TS-5645-15

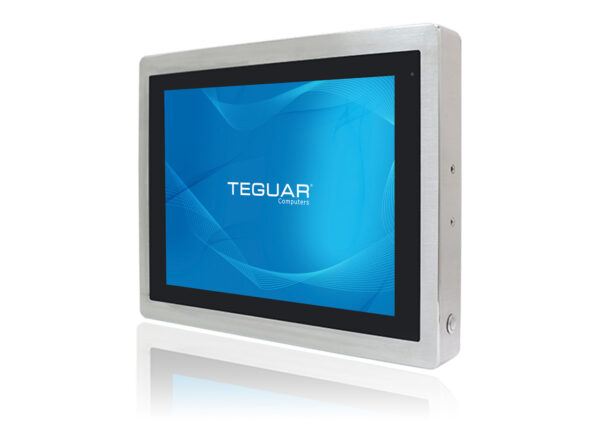

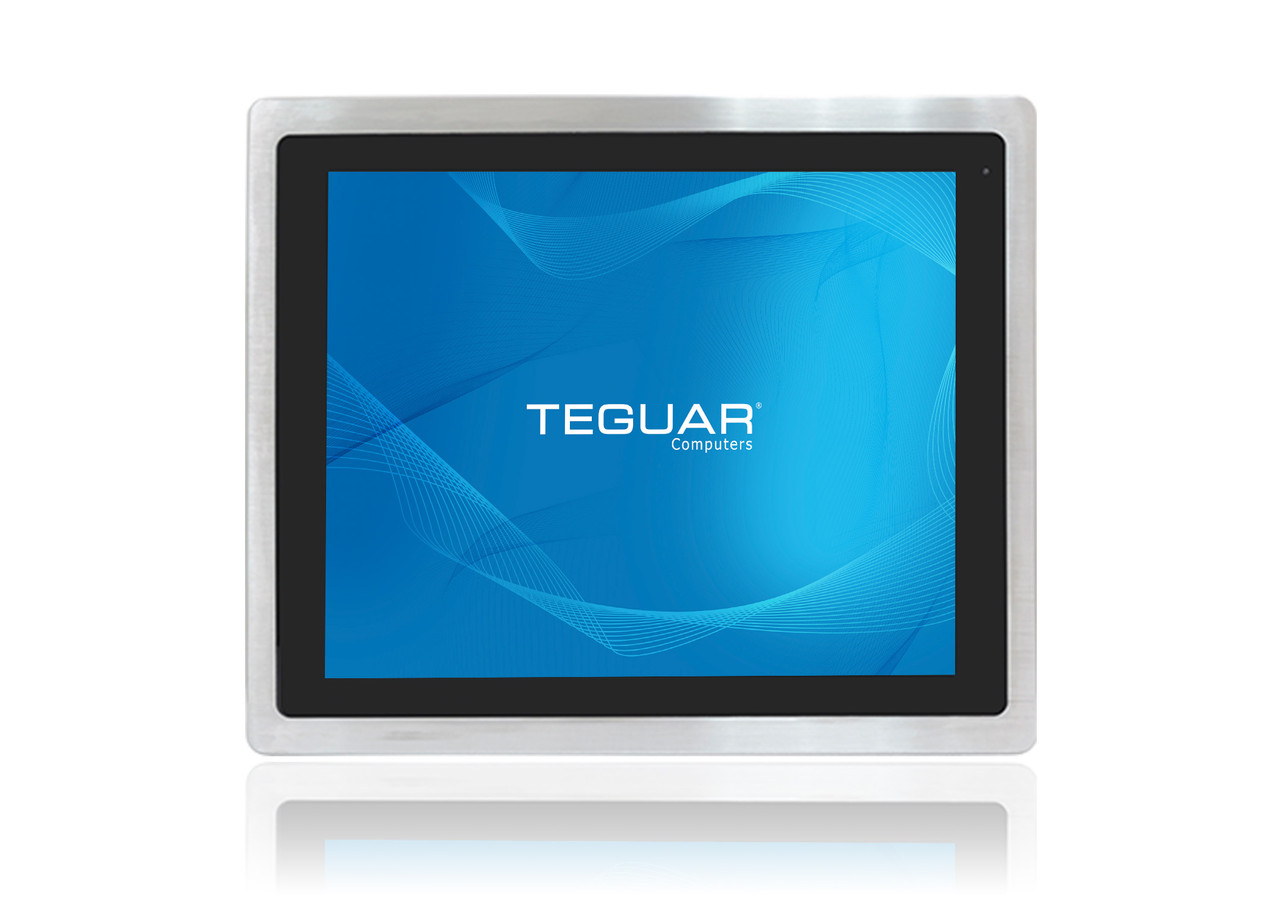

15" Stainless Steel HMI
Available – Contact Us for Quick Quote

Description

The TS-5645-15 Stainless Steel HMI is encased in a fully sealed, stainless-steel housing, making it ideal for wet environments. This computer has a fanless cooling system and IP66 rated housing. M12 metal I/O connectors also ensure no dust, debris, water or harsh chemicals get into the unit. Optional daughter board expansion allows for customization of inputs and outputs. The TS-5645 is built with industrial grade components and supports a wide temperature range, to allow for placement in a variety of environments. These HMIs operate with a powerful Intel 8th generation CPU and have the capability to run Windows 11.

Key Highlights

  • 15” LCD TFT touchscreen display
  • Fanless cooling system
  • Intel 8th Generation Core i3 CPU
  • IP66 waterproof rated
  • Multiple I/Os including 2x USB 2.0, 1x LAN, and 1x COM

Primary Components

Processor FamilyIntel Core I series 8th Generation Whiskey Lake-U
Processor ModelCore i3 8145UE, Core i5-8365UE
Processor Speed2.2 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB, 64GB
Storage Type1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage SupportM.2: 128GB-1TB

Display

Screen Size15"
Resolution1024 x 768 (XGA)
Screen Ratio4:3
BrightnessOptional 1000 nit High Brightness, 300 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB1x M12 8Pin for USB 1/2, 2x USB 2.0
Serial / Com1x M12 8-pin for COM
Ethernet / LAN1x M12 8pin RJ45 Gbe LAN
Video Outputs1x Optional DisplayPort, 1x Optional HDMI
Other Ports1x M12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC
Max Power Consumption35W
Standard Power AdapterOptional IP65 24 V 2.5A AC/DC Adapter

Battery

Battery Operating Time20min

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11

Expansion Slots

Internal M.21x M.2 for NVME SSD Support

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialOptional Stainless Steel 316L, SUS304 Stainless Steel
IP RatingIP66 Front Bezel
ColorSilver
Led Indicator LightPower
Mounting OptionsPanel Mount, VESA Mount

Weight / Dimensions

Weight6.7 KG kg (14.8 lbs)
Dimensions399 x 324 x 53 mm (15.7 x 12.8 x 2.1 in)

Certification

CertificationsCE, FCC Class A

Warranty

Warranty1 Year

Food Processing: The TS-5645 Stainless Steel HMI Computer Series is designed to withstand the challenges of food processing environments, with its fully sealed stainless steel housing and IP66 rating, ensuring protection against water, dust, and harsh cleaning chemicals.

Chemical Manufacturing: With its resistance to harsh chemicals and its ability to operate in a wide temperature range, the TS-5645 Series is well-suited for industrial environments in the chemical manufacturing industry, providing reliable computing solutions for process control and monitoring applications.

Pharmaceutical Production: The TS-5645 Stainless Steel HMI Computer Series, with its rugged and sealed stainless steel housing, is ideal for pharmaceutical production environments that require high levels of cleanliness and protection against contamination, making it suitable for critical data monitoring and analysis tasks.
