TRT-A5780-08

Name: TRT-A5780-08
SKU: 7757-80
Availability: InStock

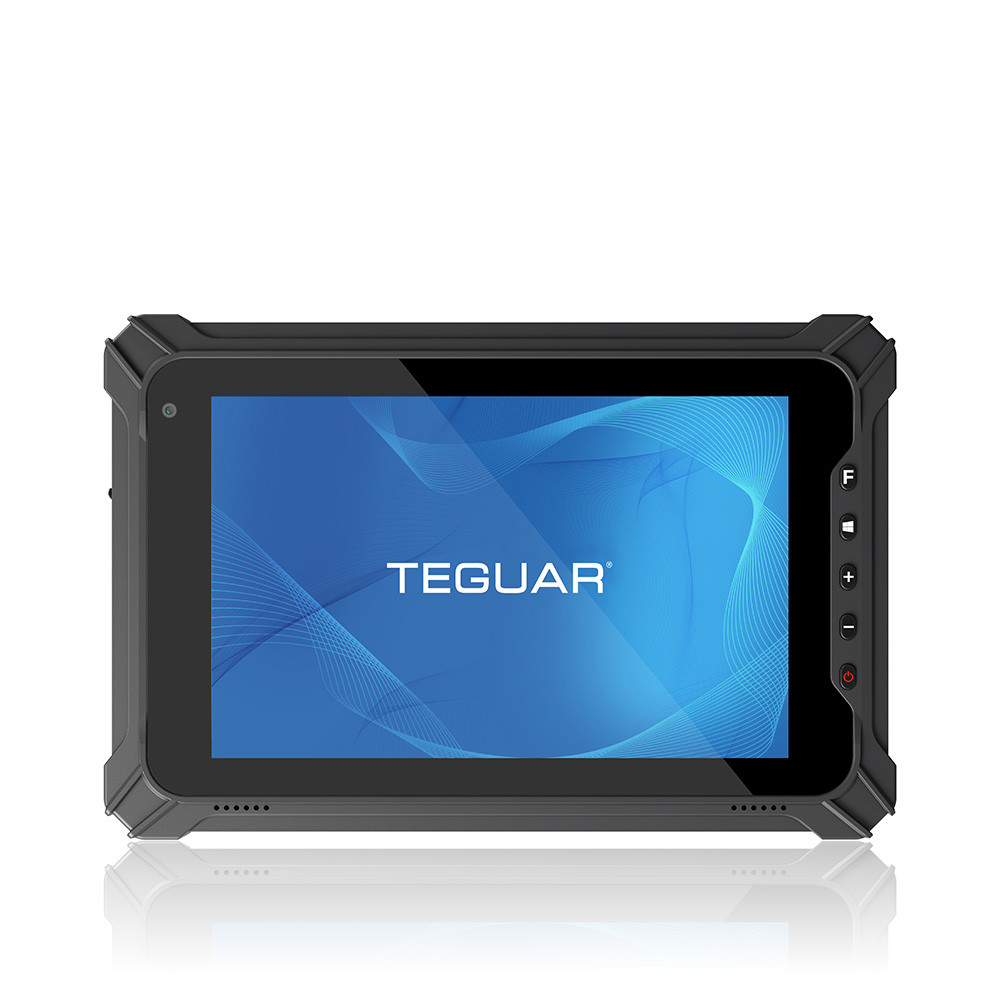

8" Rugged Tablet Computer

Available – Buy Now or Contact Us for Quick Quote

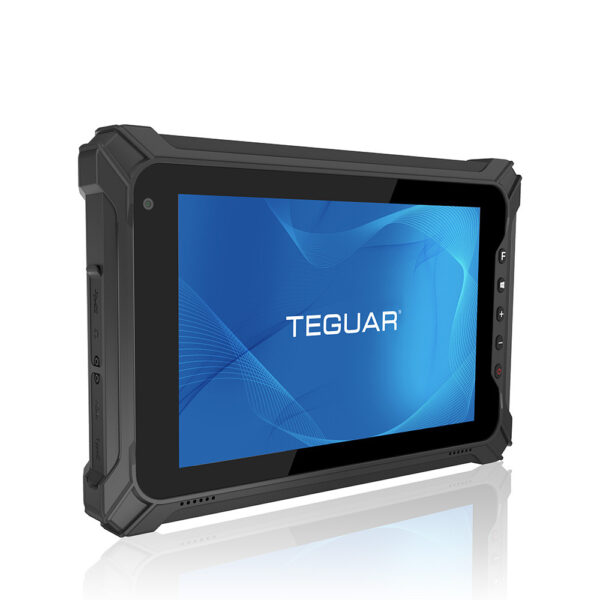

8" Rugged Android Tablet front angled view

Description

The TRT-A5780-08 is a small-but-mighty Android tablet with a rugged enclosure. For situations where an Android phone would be too small but mobility is still key, the TRT-A5780-08 provides the perfect compromise. You get the functionality offered by an Android device with a larger (but not too large) screen, and it’s all powered by a high-performance Mediatek G99 Ultimate Octa-Core CPU. With a bright, high-resolution display, 5 customizable function buttons on the side, and a removable and rechargeable battery for hot-swapping and both a front and back-facing camera, the TRT-A5780-08 packs a ton of value into a small form factor.

Key Highlights

8” bright, anti-scratch touchscreen
Mediatek G99 Ultimate Octa-Core CPU – Passmark Rating 4208
Rugged housing – IP65 and MIL-STD-810H
Fanless operation with swappable battery
Android 14 with Google Mobile Services
Optional 2D scanner & docking accessories available

Get a Demo Get a Quick Quote

Starting at: $762.14

Customize & Buy

Primary Components

Processor Family	MediaTek Helio ARM Cortex CPU
Processor Model	MT6789 (Octacore - 2x A76/6x A55)
Processor Speed	2x A76 Cores @ 2.2GHz, 6x A55 Cores @ 2.0GHz
Memory Type	Onboard LPDDR4
Memory Support	8GB
Storage Type	Onboard eMMC Flash
Storage Support	128GB

Display

Screen Size	8"
Resolution	1920 x 1200 (WUXGA)
Screen Ratio	16:10
Brightness	550 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 2.0, 1x USB Type-C
Audio Ports	1x 3.5mm Headphone Jack
Power Input Port	USB Type-C (Supports PE+ 2.0 Fast Charging)

Power

Input Voltage Range	9V Maximum
Standard Power Adapter	US AC/DC USB-C Power Supply (18W Maximum)

Battery

Battery Type	Internal 3.7V/8500mAh Battery
Battery Operating Time	8hrs (Default 50% volume, 50% Brightness, Playing 1080P Video)

Operating Systems

Android

Android 14

Expansion Slots

SD card

1x Micro SD Slot

Multimedia

Speakers	1x 0.8W Speaker
Camera	Front: 5MP, Rear: 13MP
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	95% Non-condensing

Enclosure

IP Rating	IP65
Color	Black
Led Indicator Light	Charging Indicator
Control Buttons	Audio Down, Audio Up, Home, Power Button
Programmable Function Buttons	1x Programmable Function Key
Shock Rating	MIL-STD-810H
Drop Rating	1m Drop Resistant
Mounting Options	Desktop Stand, Forklift Mount, Vehicle Mount

Peripherals & Wireless Connectivity

WiFi	Dual-Band WIFI (802.11 a/b/g/n/ac)
Bluetooth	Bluetooth 5.2
GPS	yes
Mobile Network 4G LTE	*Not Certified for USA Carrier Networks
Sim Card	2x SIM Card Slot
Barcode Scanner	Built-in 2D Barcode Scanner
RFID	NFC 13.56Mhz IEC-14443A/B, 15693, 18092, Mifare
Sensors	Accelerometer, Gyroscope, Light Sensor

Certification

Certifications

CE, FCC

Warranty

Up to 3 Years

Mobile Sales and Ordering: The TRT-A5780-08 rugged tablet, equipped with 4G LTE connectivity, is ideal for mobile sales and ordering tasks, enabling sales representatives to showcase products, process orders, and access customer data while on the move.

Warehouse Operations: The TRT-A5780-08 tablet’s ruggedness, expandability, and long battery life make it suitable for warehouse operations, providing workers with a reliable device for inventory management, barcode scanning, and data entry, improving efficiency and accuracy.

Security and Access Control: With its GMS certification and optional modules like biometric fingerprint readers and IC card readers, the TRT-A5780-08 tablet can be used for security and access control applications, providing a secure and convenient solution for authentication and entry management.

See the data sheet Warranty Download Drivers
