Home Rugged Windows Tablets TRT-3493-12

TRT-3493-12

12" Ruggedized Tablet
Available – Contact Us for Quick Quote
Ruggedized tablet front view
Ruggedized tablet front view
Ruggedized tablet front side view

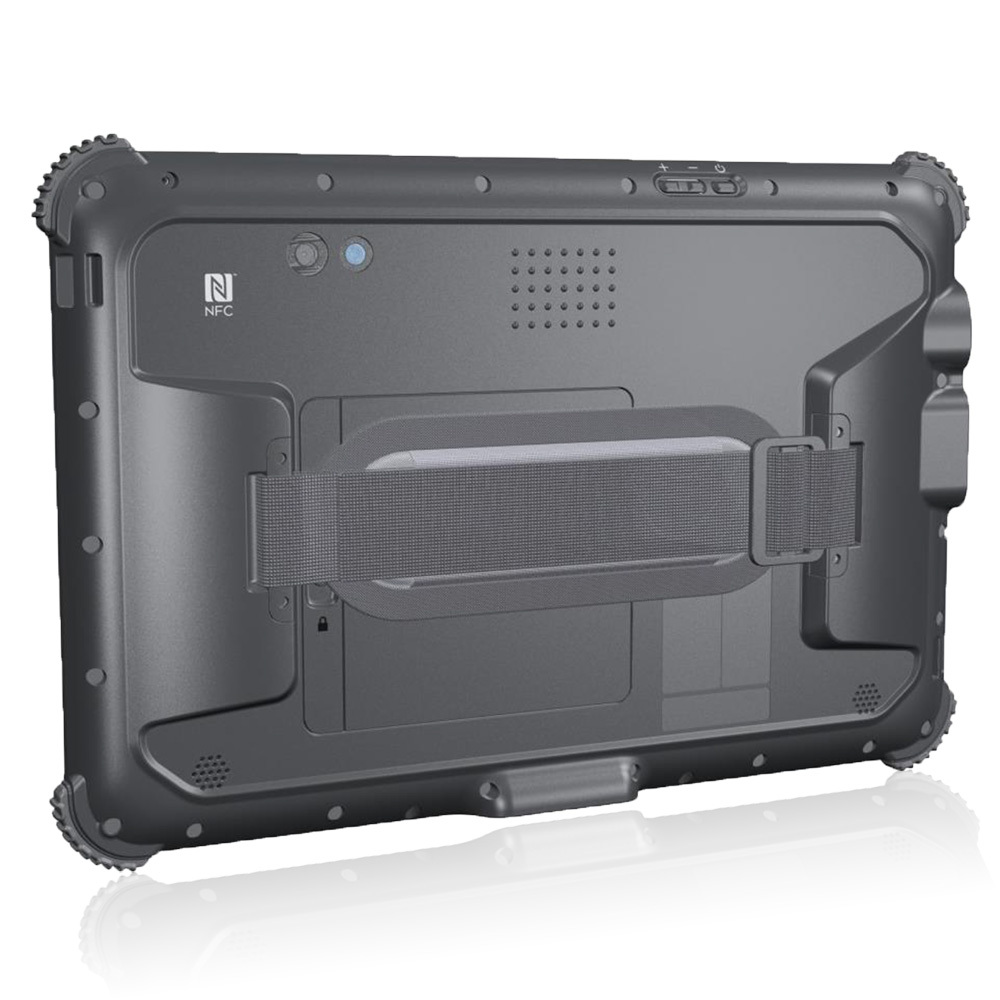

Ruggedized tablet back view with handstrap

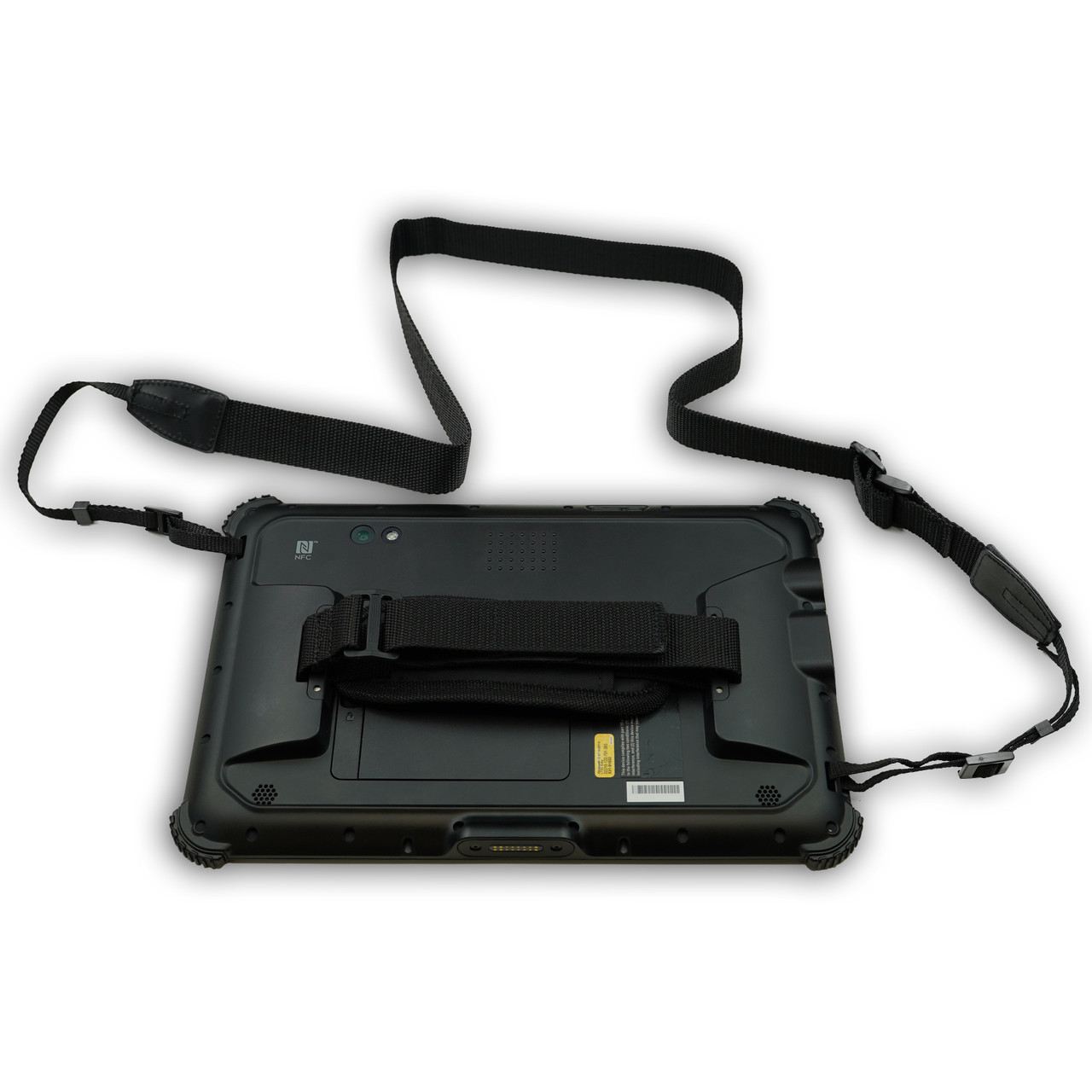

Ruggedized tablet back view with shoulder strap

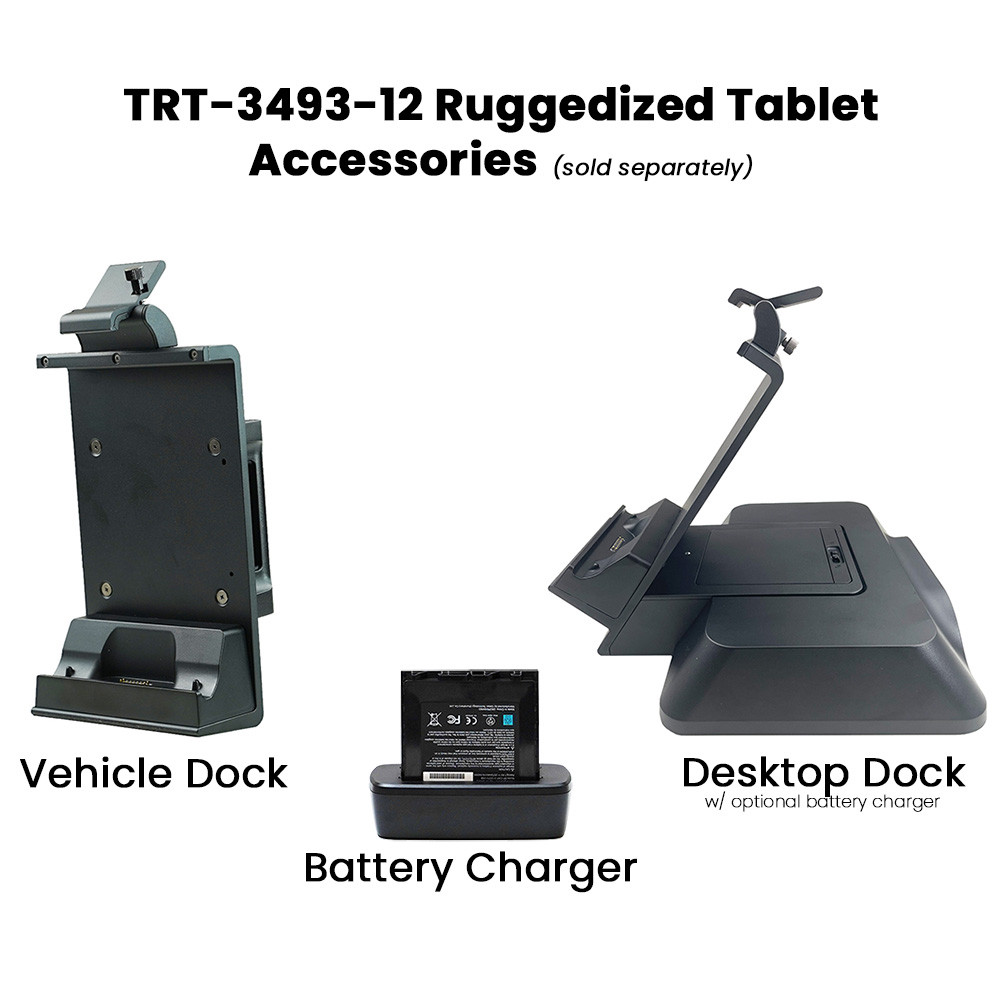

Ruggedized tablet accessories

Description

The Teguar TRT-3493-12 represents the ultimate in tablet versatility. Like all of Teguar’s rugged tablets, the TRT-3493-12 has a Gorilla Glass screen and a drop rating of 4ft at any angle, making it suitable for even the most demanding applications. What sets the TRT-3493-12 apart is its modularity. Thanks to a variety of desktop and vehicle docking solutions offered, the TRT-3493-12 has the ability to be mounted or stored virtually anywhere. When it’s time to take the TRT-3493-12 back into the field, users can utilize the back handstrap or a shoulder strap, both included with the tablet. Removable batteries with charging stations can also be provided to further increase operational time between charges.

> Read an independent review of this tablet on RuggedPCReview.com

Key Highlights

  • Intel Apollo Lake Quad-Core CPU
  • NFC reader for RFID
  • Weighs less than 2lbs (.9kg), the lightest rugged tablet in its class
  • Gorilla Glass screen and rugged shock-absorbing frame
  • Includes 1x Hot Swappable Battery
Get a DemoGet a Quick Quote

Tech Specs

See the data sheet Download Drivers

Primary Components

Processor FamilyIntel Pentium Apollo Lake
Processor ModelN4200E
Processor Speed1.1 GHz
Memory TypeOnboard LPDDR4
Memory Support8GB
Storage TypeM.2
Storage SupportM.2 128GB Standard, (Optional 256GB)

Display

Screen Size11.6"
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 500 nit, 300 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)
Glass TypeGorilla Glass 3

External I/O Ports

USB1x USB 3.0
Audio Ports1x 3.5mm Audio Line-Out
Power Input PortPogo Pin Connector, 3.5mm DC-in Jack

Power

Input Voltage Range19V DC
Standard Power AdapterAC to DC, DC 19V 65W Adaptor

Battery

Battery TypeHot Swappable 7.6V/2570mAh Battery
Battery Operating Time4.2hrs

Operating Systems

WindowsWindows 10 IoT
LinuxLinux CentOS 7, *Limited Configuration (Contact your sales rep for more information)

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Expansion Module supportDesktop Dock or Vehicle Dock with I/O Extension

Multimedia

Speakers2x 0.8W Speakers
CameraFront: 8MP Auto Focus w/flash, Rear: 8MP
MicrophoneBuilt-in Microphone

Thermal & Environmental

Operating Temperature-10°C - 50°C (14°F – 122°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialPlastic
IP RatingIP65
ColorBlack
Led Indicator LightCharging Indicator, Power
Control ButtonsAudio Down, Audio Up, Power Button
Programmable Function Buttons3x Programmable Function Keys
Shock RatingMIL-STD-810G Shock and Drop Resistant
Drop Rating4ft Drop Protection

Peripherals & Wireless Connectivity

WiFiWiFi 802.11 (a/b/g/n/ac)
BluetoothBluetooth 4.2
Barcode ScannerOptional 1D/2D Barcode Scanner, Swift Software Decoder
RFIDNFC
SensorsAccelerometer, Gyroscope, Light Sensor

Weight / Dimensions

Weight0.895 kg (2.0 lbs)
Dimensions307.9 x 207.9 x 29.3 mm (12.1 x 8.2 x 1.2 in)

Certification

CertificationsCE, FCC, VCCI

Warranty

WarrantyUp to 5 Years

Field Service Technicians: The TRT-3493-12’s ruggedness, mobility options, and hot-swappable battery make it an ideal tool for field service technicians, enabling them to access information, update records, and communicate while on the go.

Warehouse Inventory Management: With its ability to be mounted or stored virtually anywhere and its durable design, the TRT-3493-12 is well-suited for warehouse inventory management, allowing workers to easily track and update inventory levels, scan barcodes, and streamline logistics operations.

Field Inspections and Surveys: The TRT-3493-12’s ruggedness and mobility features make it a great choice for field inspections and surveys, allowing professionals to capture data, document findings, and generate reports while working in challenging outdoor conditions.

See the data sheetWarrantyDownload Drivers

Dimensional Drawings & I/Os

See the data sheet

I/O Diagram Images

ruggedized tablet IOs

Tech Diagram Images
