TR-5520-10

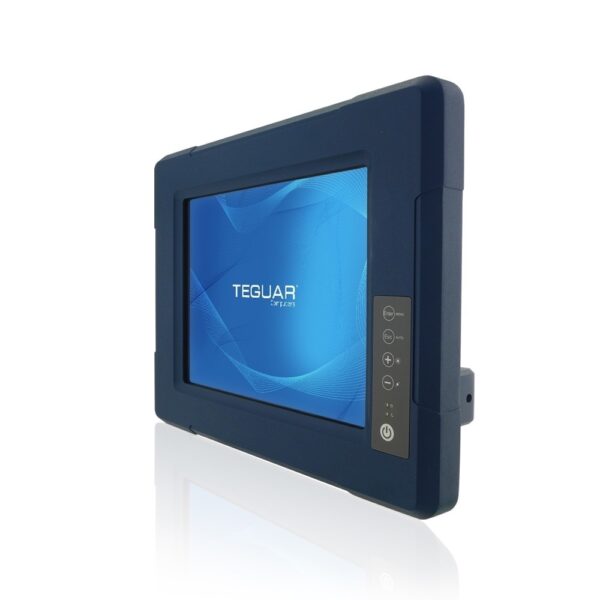

10" Rugged Computer

Available – Contact Us for Quick Quote

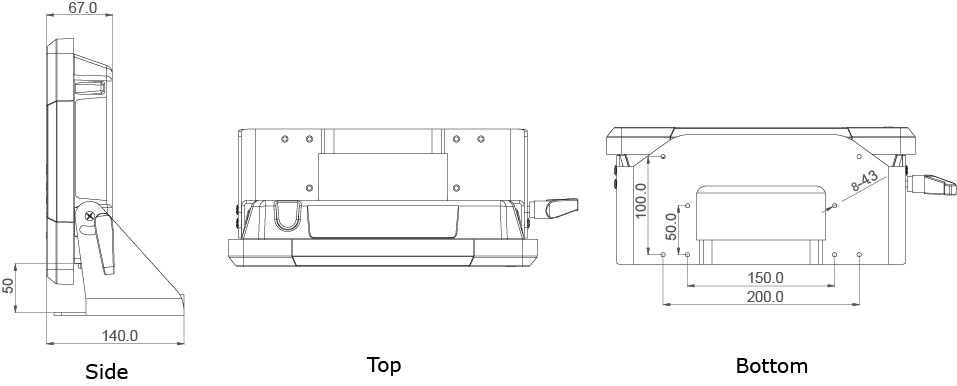

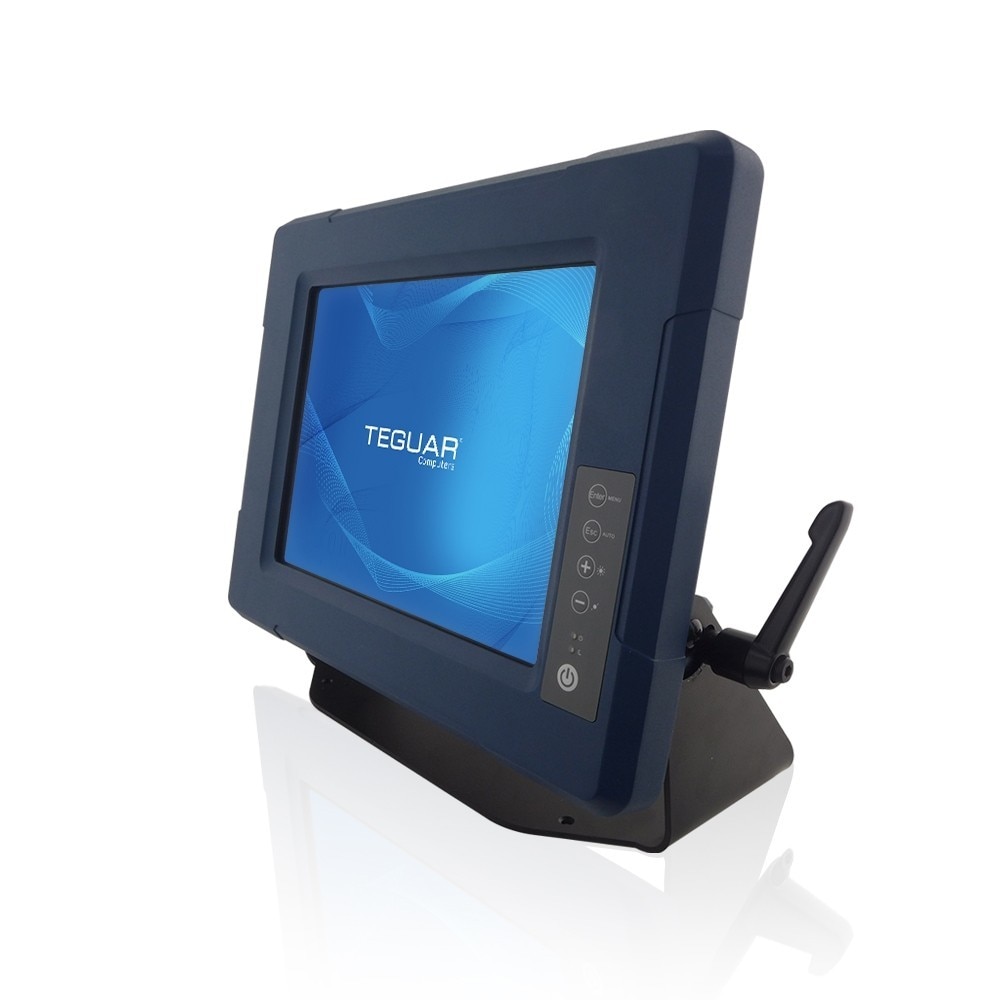

10" Rugged Computer with Mounting Bracket

Description

The TR-5520-10 Rugged PC can perform in the toughest environments. This computer features a 7th Gen. Intel Core i5 processor and is protected by rugged aluminum housing. The anti-corrosion housing is IP65 water and dust proof (excluding the I/O ports) and complies with Military Standard 810F/G, so it can withstand shock and vibrations. This PC also complies with EN50155 for EMC, ideal for usage on railways. The TR-5520-10 has a 5-wire resistive touchscreen with optional anti-reflective protection glass, ensuring maximum visibility of the unit. With its fanless design, wide operating temperature (-25 °C to 55 °C), and an abundance of I/Os, this PC is ready to go anywhere.

Key Highlights

10.4″ 5-Wire Resistive Touchscreen
7th Gen. Kaby Lake Intel Core i5 Processor
Anti-Corrosion Aluminum Housing
IP65 Dust/Waterproof (I/O Ports Excluded)
Wide Range 9 to 36V DC Input with Isolation (Optional 6-60V)
MIL-STD-810F/G and IEC60068-2-27 Anti-Shock and Vibration

Get a Demo Get a Quick Quote

Why Buy from Teguar

✆ Dedicated, Quick Response Customer Support Experts
✓ 30-Day Worry Free Return, Plus Up to 5 Years Warranty
★ Top-Rated by Our Customers on Google & Trustpilot

Primary Components

Processor Family	Intel Core I series 7th Generation Kaby Lake
Processor Model	Core i5-7200U
Processor Speed	2.5 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB
Storage Type	M.2
Storage Support	64GB (Standard), up to 256GB (Optional)

Display

Screen Size	10.4"
Screen Resolution	1024 x 768 (XGA)
Screen Ratio	4:3
Brightness	350 nits

Touch Screen

5 Wire Resistive

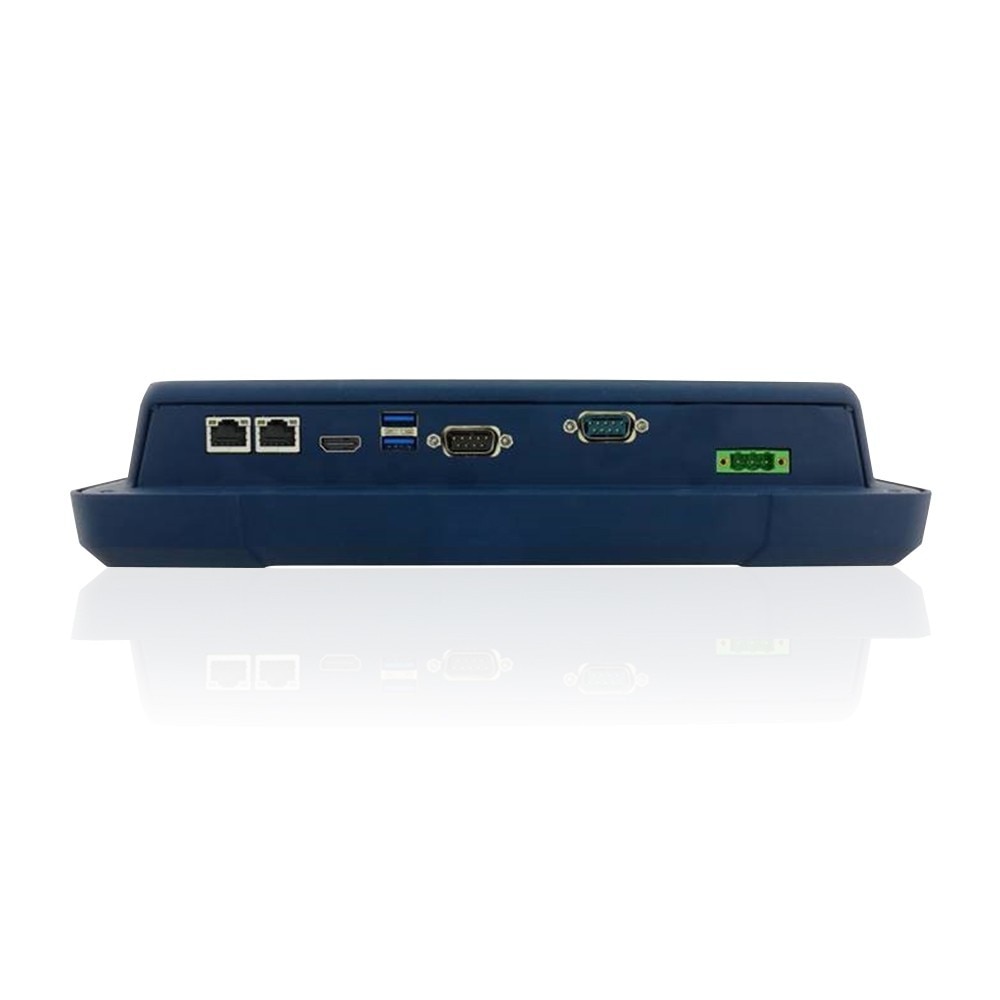

External I/O Ports

USB	2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232/422/485 (Select by BIOS) , 1x RS-232
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x HDMI
Power Input Port	DC-in Jack with Isolation (Phoenix Type)

Power

Max Power Consumption

32W

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro

Compatibility

Security Hardware

TPM 2.0

Thermal & Environmental

Operating Temperature	-25°C - 55°C (-13°F – 131°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 95% Non-condensing

Enclosure

Material	Anti-Corrosion Painted
IP Rating	IP65 Front Bezel
Color	Blue
Led Indicator Light	HDD Access, Power
Control Buttons	Brightness Down, Brightness Up, Power Button, Power Reset
Shock Rating	Operating: 30g for 18ms, 300m/s2
Mounting Options	VESA Mount
Approved Cleaning Solutions	Acetone, Alcohol, Club Soda, Hydrochloric Acid, Methyl Alcohol, Mineral Spirits, Nitric Acid, Sulfuric Acid (low concentration), Vinegar, Warm Water

Weight / Dimensions

Weight	3.3 kg (7.3 lbs)

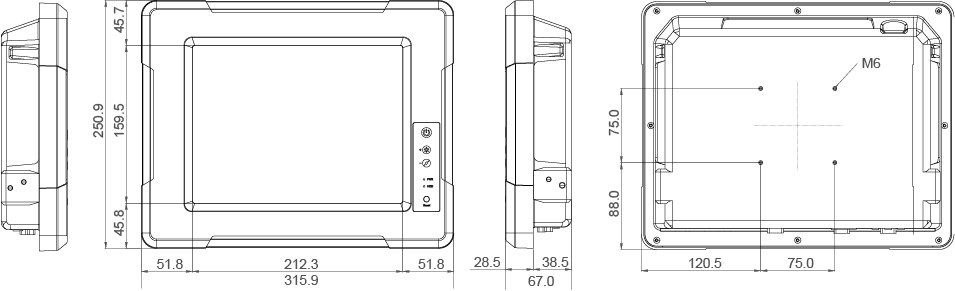

Dimensions	315 x 250 x 67 mm (12.4 x 9.8 x 2.6 in)

Certification

Certifications

CE, EN50155 EMC, FCC Class B

Warranty

Up to 5 Years

Field Data Collection and Analysis: The TR-5520-10’s rugged and waterproof design makes it suitable for field data collection in industries such as environmental monitoring, geology, and agriculture, enabling researchers to gather and analyze data in challenging outdoor environments.

Industrial Automation and Control: With its robust construction and compliance with industry standards, the TR-5520-10 is well-suited for industrial automation and control applications, providing reliable computing power and protection in harsh manufacturing environments.

Transportation and Logistics: The TR-5520-10’s ruggedness and compliance with EN50155 for EMC make it ideal for transportation and logistics applications, such as fleet management and vehicle tracking, ensuring reliable operation in demanding conditions.

See the data sheet Warranty Download Drivers
