TP-5645-24

24" Panel Mount Computer

Available – Contact Us for Quick Quote

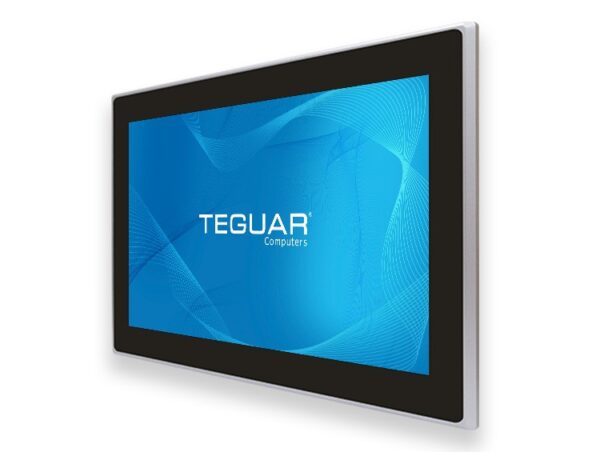

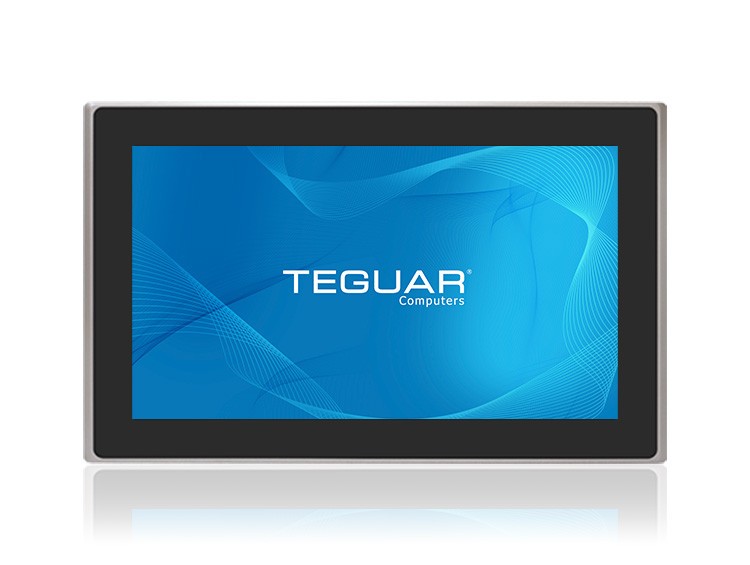

24" Panel Mount Computer TP-5645-24 Front

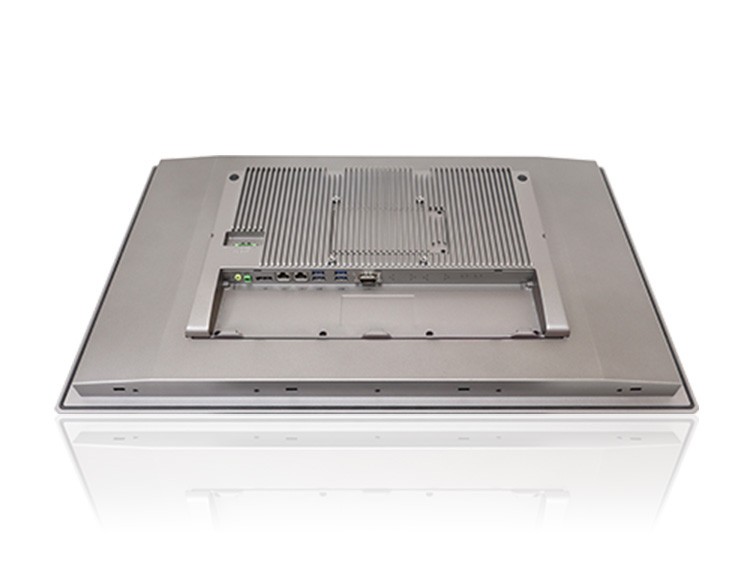

24" Panel Mount Computer TP-5645-24 Back IOs

Description

The TP-5645-24 Panel Mount Computer excels in performance with an Intel 8th generation Core i3 or i5 CPU, ensuring long life cycle support. It supports up to 16GB of DDR4 memory and features an M.2 key capable of up to 512GB SSD storage, making it an excellent choice for both Linux and Windows-based applications. The computer’s compact thermal design is complemented by a rugged die-cast aluminum enclosure, enabling fanless operation and durability in high shock and vibration environments. The IP66-rated front bezel provides protection from water and dust, and its full flat design helps prevent particulate buildup. This 24” Panel PC is ideal for applications such as serving as a data hub for IoT/IIoT sensors and running ERP (Enterprise Resource Planning) software.

Key Highlights

23.8″ P-Cap Touchscreen
Fanless Cooling System
Easily accessible M.2 storage, up to 1TB
IP66 Protected Front with Aluminum Housing
Wide Range 9~36VDC Power Input
Intel 8th Gen. Core i3/i5 CPUIP66 Protected Front with Aluminum Housing

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core I series 8th Generation Whiskey Lake-U
Processor Model	Core i3 8145UE
Processor Speed	Up to 3.9 GHz, 2.2 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 SATA3 2242 Slot
Storage Support	M.2: 256GB-1TB

Display

Screen Size	23.8"
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	250 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	4x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x DisplayPort
Audio Ports	1x 3.5mm Audio Line-Out
Power Input Port	DC-in Jack (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Standard Power Adapter	12Vdc, 5A, 60W US power cord

Battery

Battery Type

Optional Internal Battery

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 Pro

Compatibility

Security Hardware

TPM 2.0

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 95% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Gray
Mounting Options	Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi	Optional Wi-Fi 5
Bluetooth	Optional Bluetooth 4.0

Weight / Dimensions

Weight	14.8 kg (32.6 lbs)
Dimensions	640 x 65.1 x 395 mm (25.2 x 2.6 x 15.6 in)

Certification

Certifications

CE, FCC Class A, IEC 62368

Warranty

Up to 5 Years

Industrial Automation: Reliable and powerful computing for controlling and monitoring automated processes in manufacturing plants and industrial facilities.

Transportation and Logistics: Efficient management and tracking of inventory, logistics, and supply chain operations in transportation and logistics industries.

HMI (Human-Machine Interface) Systems: Intuitive and interactive interfaces for controlling and monitoring machines, equipment, and processes in various industries such as manufacturing, oil and gas, and utilities.

Retail and Point-of-Sale (POS): Versatile computing solutions for point-of-sale systems, inventory management, and customer engagement in retail environments.

Outdoor Environments: Durable and rugged computing for outdoor applications such as smart city infrastructure, outdoor kiosks, and public information displays.
