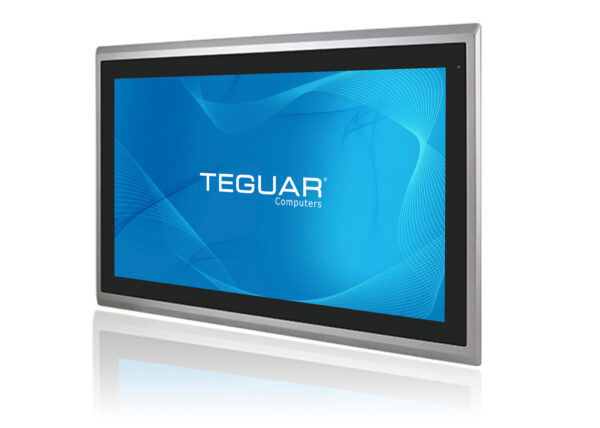

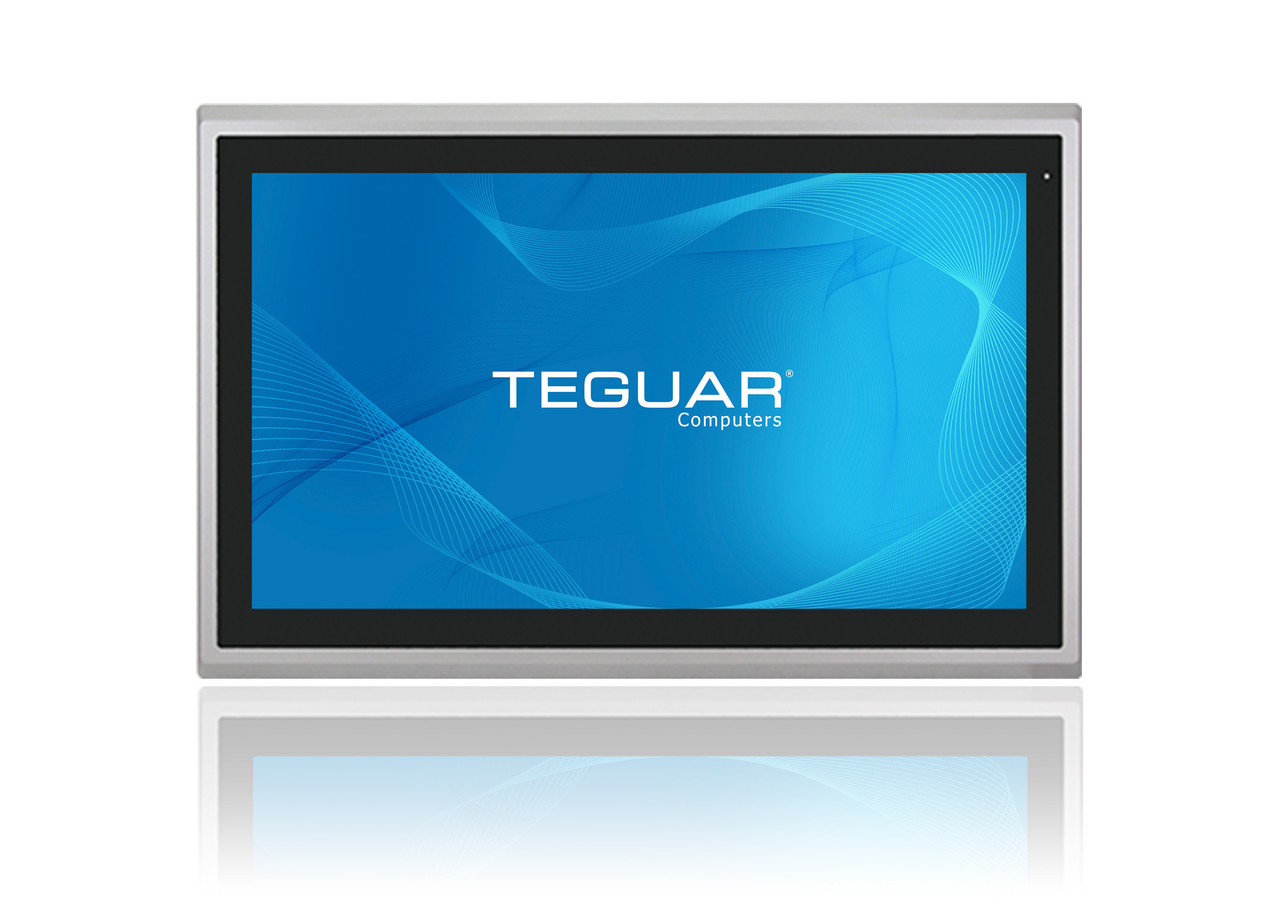

TP-5645-22

22" Panel Mount Computer
Available – Contact Us for Quick Quote

Description

The TP-5645-22 Panel Mount Computer offers strong processing power with an Intel 8th generation Core i3 or i5 CPU with long life cycle support. With up to 16GB of DDR4 memory and an M.2 key capable of up to 512GB of SSD storage, the TP-5645-22 Panel Mount Computer is a great solution for most Linux or Windows based applications. The unique compact thermal design includes a rugged die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. The front bezel is IP66 rated for protection from water and dust and uses a full flat design to prevent build-up of particulates. A high-brightness touchscreen option can be chosen for environments with low screen visibility. This panel PC is great solution for applications such as a data hub for your IoT / IIoT sensors and to run your ERP (Enterprise Resource Planning) software.

Key Highlights

  • 21.5″ P-Cap or Resistive Touchscreen
  • Fanless Cooling System
  • Easily accessible M.2 storage, up to 1TB
  • IP66 Protected Front with Aluminum Housing
  • Wide Range 9~36VDC Power Input
  • Intel 8th Gen. Core i3/i5 CPUIP66 Protected Front with Aluminum Housing

Primary Components

Processor FamilyIntel Celeron or Core i 8th Generation Whiskey Lake
Processor ModelCore i3 8145UE, Core i5-8365UE
Processor Speed2.2 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage SupportM.2: 128GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 1000 nit High Brightness, 250 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

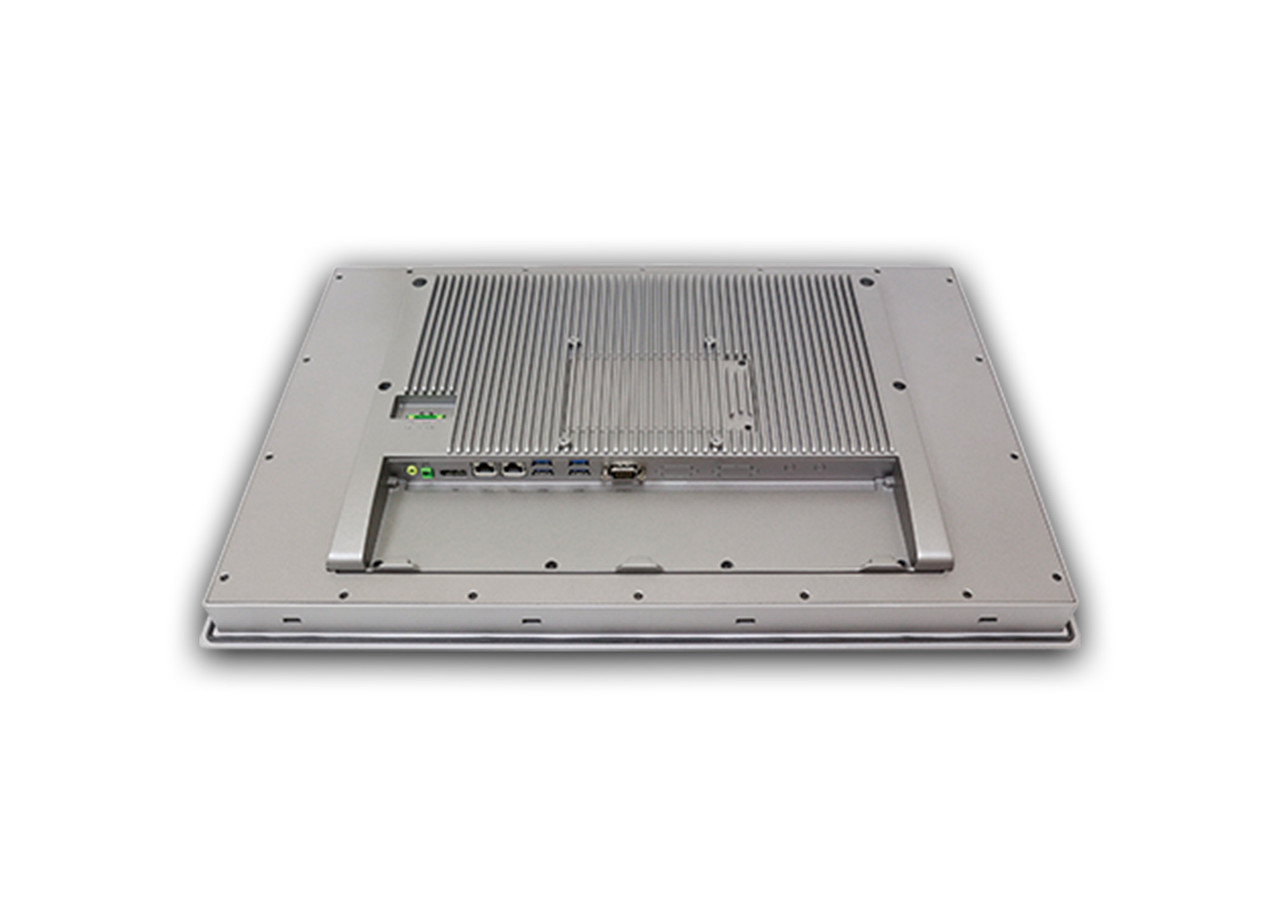

External I/O Ports

USB4x USB 3.0
Serial / Com1x COM
Serial Protocol DetailIncluded Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x DisplayPort
Other Ports1x 2-Pin DC Power Switch Connector
Audio Ports1x Audio Line-Out
Power Input Port2-Pin Power Switch

Power

Input Voltage Range9-36V DC
Max Power Consumption74W

Operating Systems

WindowsWindows 10 IoT, Windows 11
LinuxLinux Ubuntu 20.04 or above (Contact your sales rep for more information), Yocto Linux

Compatibility

Security HardwareTPM 2.0

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP66 Front Bezel
ColorGray
Mounting OptionsPanel Mount, VESA Mount

Weight / Dimensions

Weight7.5 kg (16.5 lbs)
Dimensions557.3 x 362.3 x 64.8 mm (21.9 x 14.3 x 2.6 in)

Certification

CertificationsCE, FCC Class A, UL 62368

Warranty

WarrantyUp to 5 Years

Industrial Automation: Reliable and powerful computing for controlling and monitoring automated processes in manufacturing plants and industrial facilities.

Transportation and Logistics: Efficient management and tracking of inventory, logistics, and supply chain operations in transportation and logistics industries.

HMI (Human-Machine Interface) Systems: Intuitive and interactive interfaces for controlling and monitoring machines, equipment, and processes in various industries such as manufacturing, oil and gas, and utilities.

Retail and Point-of-Sale (POS): Versatile computing solutions for point-of-sale systems, inventory management, and customer engagement in retail environments.

Outdoor Environments: Durable and rugged computing for outdoor applications such as smart city infrastructure, outdoor kiosks, and public information displays.

Dimensional Drawings & I/Os

I/O Diagram Images

TP-5645-22 I/Os

Tech Diagram Images

TP-5645-22-technical-drawing
