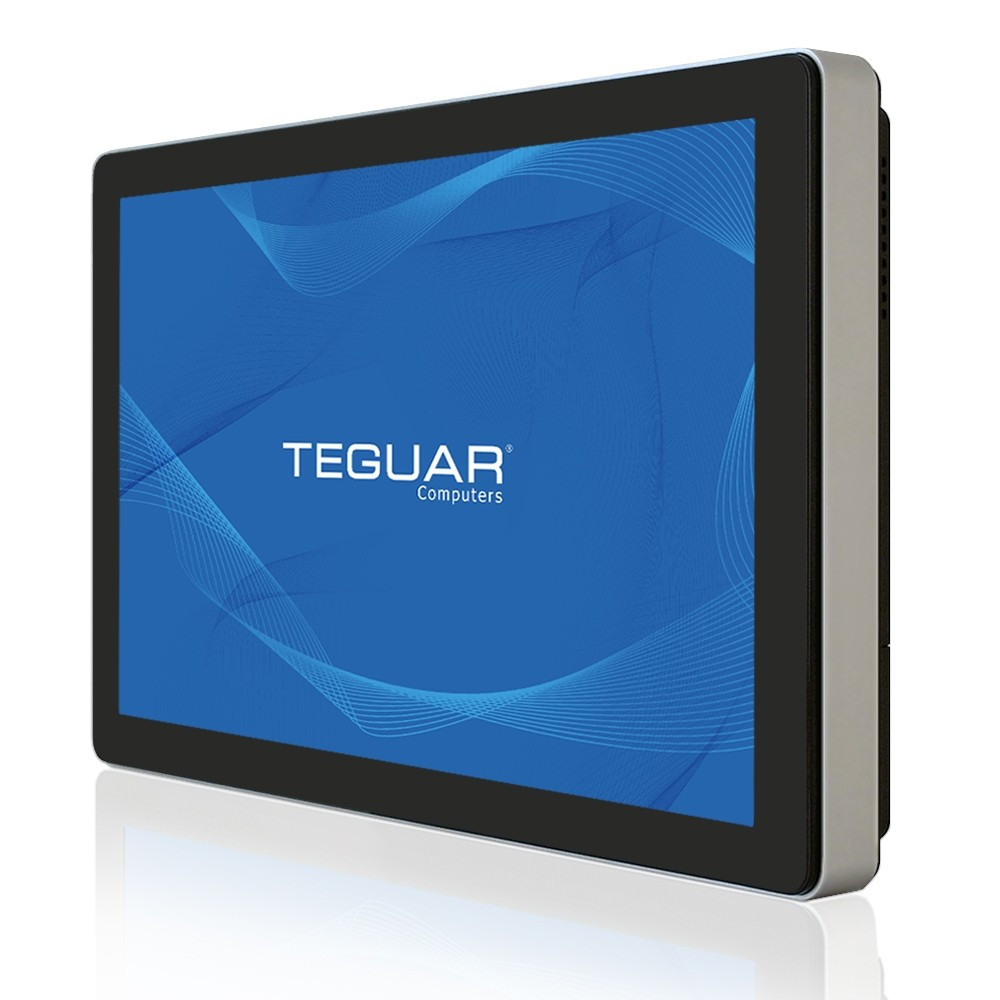

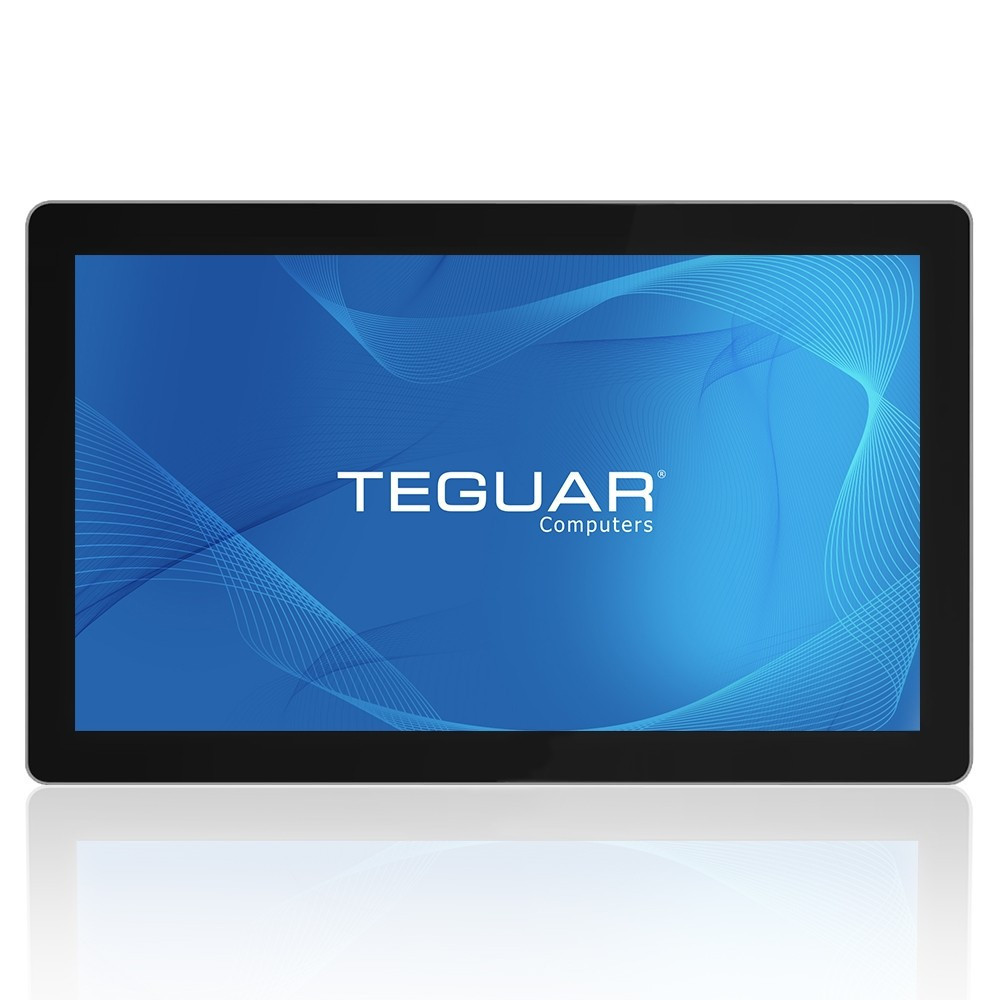

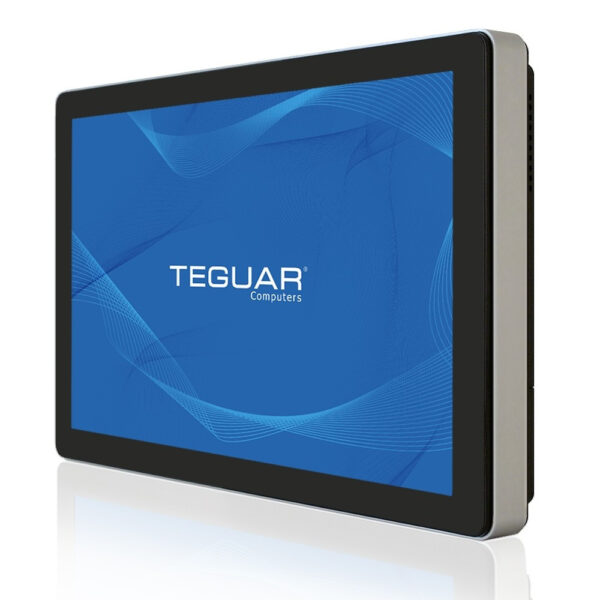

TP-5040-16

15.6" Industrial Fanless PC
Available – Contact Us for Quick Quote

Description

The TP-5040-16 is a widescreen all-in-one industrial computer with the Intel Skylake Core i3/i5 CPU and up to 8GB RAM. It utilizes a fanless cooling system, so it can run efficiently, 24/7 in particulate rich environments, such as a dusty warehouse or dirty production line. This computer has a 15.6″ projected capacitive touchscreen and is built with reliable, industrial-grade components and a durable metal housing. The TP-5040-16 has an IP65 dust and waterproof front bezel, so you can spray and wipe down the unit easily. This computer will integrate into your system seamlessly and provide great ROI and reliable performance for years-on-end.

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Panel PCs.



Key Highlights

  • 15.6″ True Flat Touchscreen with LCD Display
  • Intel Skylake Core i3/i5 CPU
  • Fanless and Low Power Consumption
  • Aluminum Die-Cast Housing
  • Several I/Os and HDD Bay
  • Integrated Webcam, WLAN, & BT 4.0

Why Buy from Teguar

Primary Components

Processor FamilyIntel Core I series 6th Generation Skylake
Processor ModelCore- i3-6100U
Processor Speed2.3 GHz, 2.4 GHz
Memory Type1x DDR3 SO-DIMM
Memory Support2GB, 4GB, 8GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support32GB-1TB

Display

Screen Size15.6"
Screen Resolution1366 x 768
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive

External I/O Ports

USB2x USB 2.0, 4x USB 3.0
Serial / Com4x COM
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x DVI, 1x Optional DisplayPort, 1x VGA
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range12-48V DC for Core i5 CPU, 19V only for Core i3 CPU
Standard Power Adapter120W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro

Compatibility

Security HardwarefTPM 2.0, Intel vPro Technology: Intel AMT Supported

Expansion Slots

Video Card SupportIntel HD Graphics

Multimedia

Speakers2x 2W Speakers
Camera2MP Webcam

Thermal & Environmental

Operating Temperature0°C - 35°C (32°F – 95°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range20% – 85% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65 Front Bezel
ColorBlack

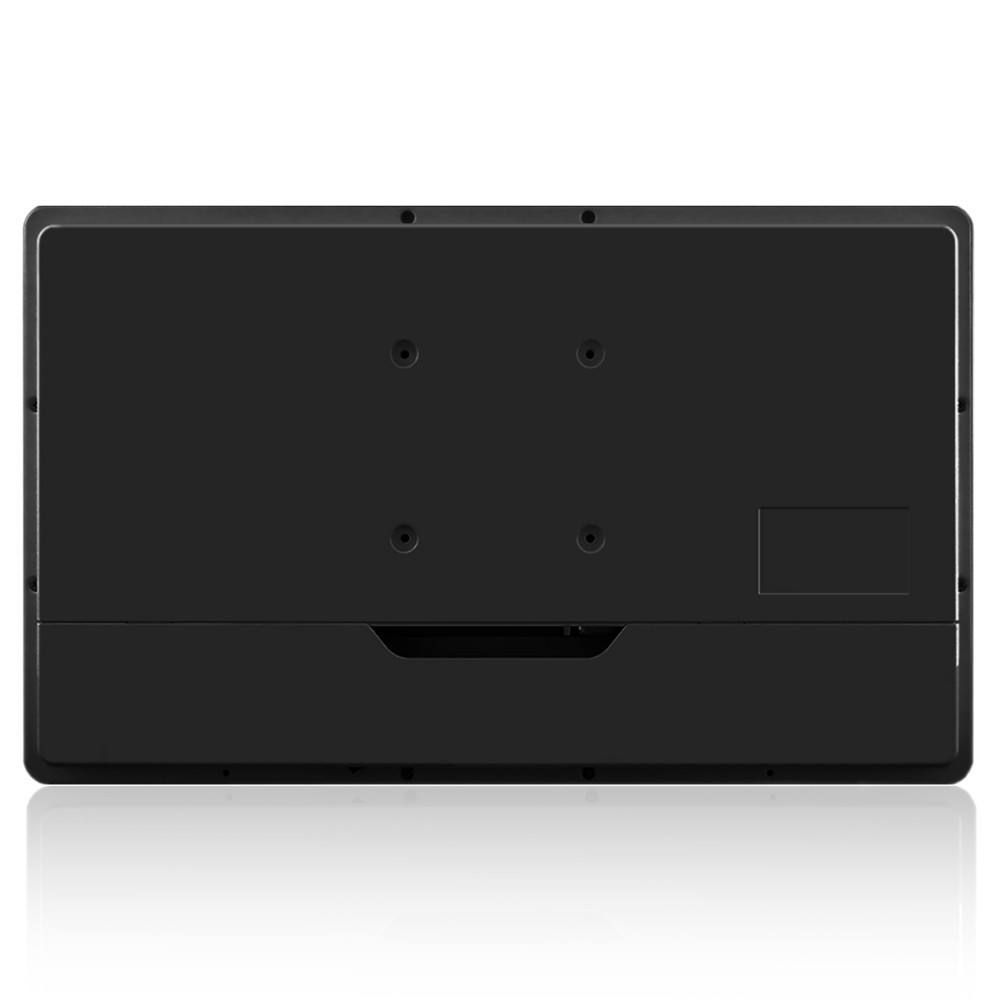

Mounting OptionsVESA 75 Mount

Peripherals & Wireless Connectivity

WiFiOptional 802.11 b/g/n WLAN card
Barcode ScannerOptional 1D/2D Barcode Scanner
RFIDOptional RFID Module

Weight / Dimensions

Weight4.5 kg (9.9 lbs)
Dimensions396 x 48 x 245 mm (15.6 x 1.9 x 9.6 in)

Certification

CertificationsCE, FCC Class A, IEC 60950-1

Warranty

WarrantyUp to 5 Years

The TP-5040-16 runs on an Intel Skylake Core i3/i5 CPU and is built with durable aluminum die-cast housing, for reliable performance in industrial applications. This All-in-One computer features a 15.6″ Pcap touchscreen and a full-flat front screen, for water and dust resistance.

Dimensional Drawings & I/Os

I/O Diagram Images

tp-5040-16-i/os

Tech Diagram Images

tp-5040-16-technical drawing
