TP-5010-22

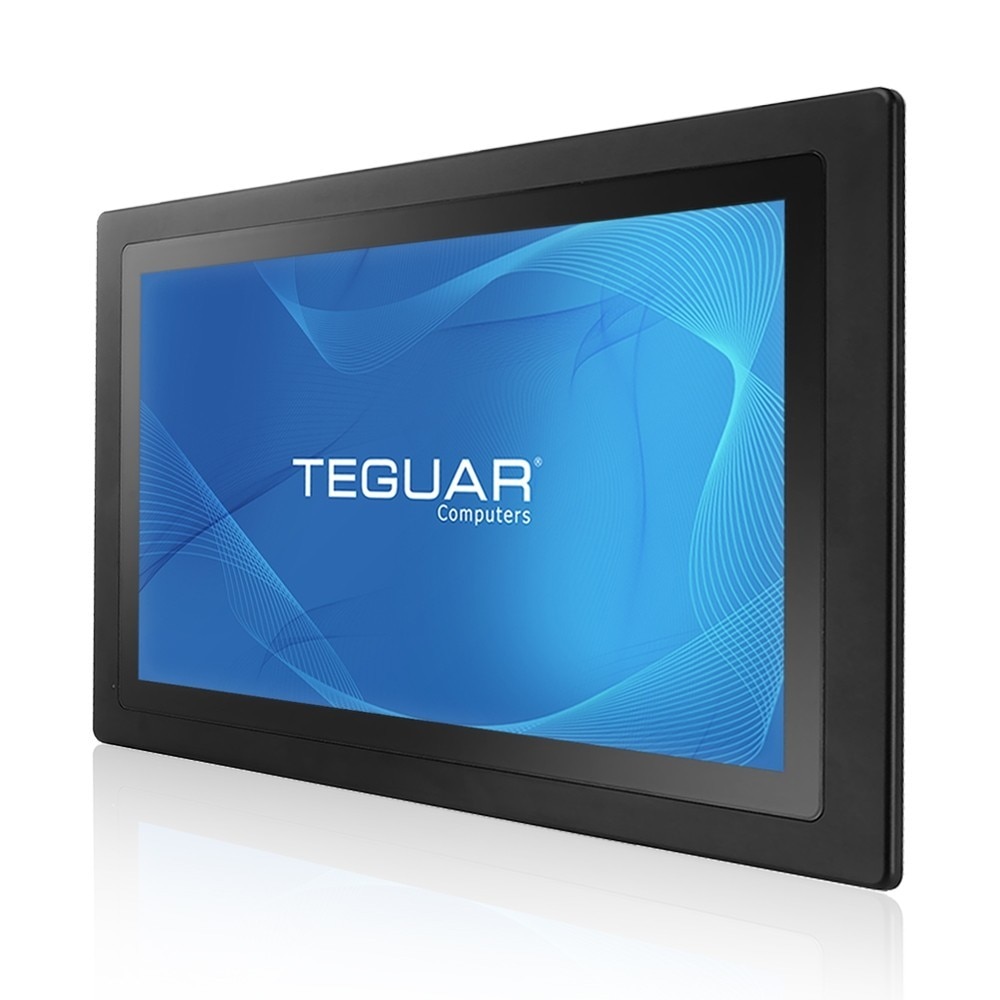

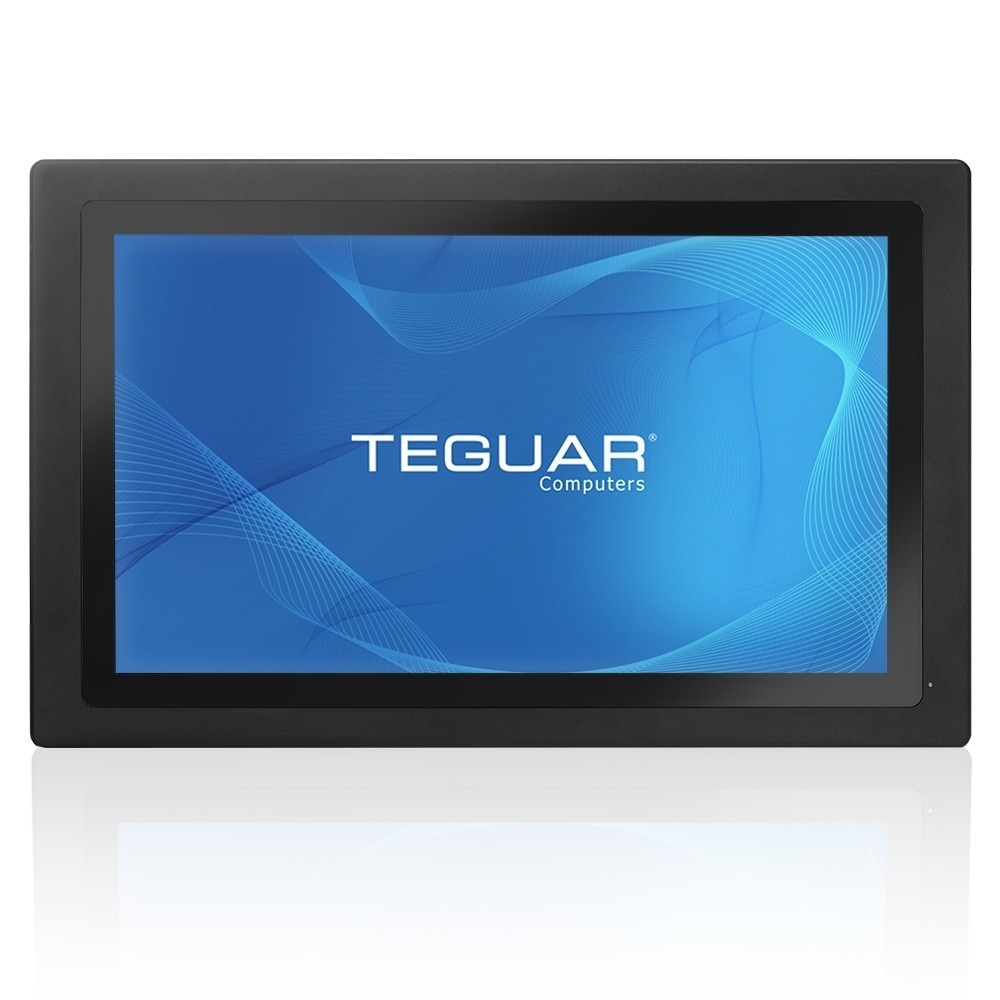

22" Flush Mount Panel PC
Available – Contact Us for Quick Quote

Description

The TP-5010-22 has a powerful Intel Core i3/i5/i7 CPU and is built with high quality components to ensure the highest reliability and 24/7 use of industrial and commercial applications. This industrial panel PC has an IP66 rated front bezel and fanless design, making it resistant to spills or sprays and suitable for particulate-rich environments. The TP-5010-22 has several mounting options including a panel mount and VESA mount, so it can easily be implemented in a diverse range of applications. With optional wireless and Bluetooth, this PC can enhance the connectivity and efficiency of your business.

This product is now considered “Previous Generation.” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Panel PCs.

Key Highlights

  • 22″ High Definition LED Backlit Touchscreen
  • Intel 6th Generation Skylake Core i3/i5/i7 CPU
  • Fanless Cooling Solution
  • HDD Anti-vibration Mechanism
  • CE, FCC, VCCI Class B

Primary Components

Processor FamilyIntel Core I series 6th Generation Skylake
Processor ModelCore i5-6200U
Processor Speed2.3 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage TypeM.2, mSATA, 1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support32GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive
HardnessResistive: 4H, P-cap: 7H

External I/O Ports

USB4x USB 3.0
Serial / Com2x COM
Serial Protocol Detail1x RS-232, 1x RS-232/422/485 (RS485 supports auto flow control)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs2x DisplayPort
Audio Ports1x 3.5mm Microphone Jack, 1x Audio Line-Out
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range9-32V DC
Max Power Consumption64.7W
Standard Power AdapterOptional, 100 watts, universal 100 ~240V AC in, 12V DC out, 8.33A

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 7 Pro
LinuxLinux

Compatibility

Security HardwareOptional TPM 2.0

Expansion Slots

Internal M.21x M.2 Type E
Video Card SupportIntel Integrated HD Graphics 520

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum, Optional Stainless Steel Bezel, Steel
IP RatingIP66 Front Bezel
ColorBlack
Control ButtonsPower Button, Power Reset
Mounting OptionsPanel Mount, VESA Mount

Peripherals & Wireless Connectivity

WiFiOptional 802.11 ac + Bluetooth 4.0 with External Antennas

Weight / Dimensions

Weight10 kg (22.0 lbs)
Dimensions584.2 x 364.6 x 91.5 mm (23.0 x 14.4 x 3.6 in)

Certification

CertificationsCE, FCC Class B, VCCI

Warranty

WarrantyUp to 5 Years

Manufacturing: The TP-5010 Series is well-suited for manufacturing environments, where it can be used for Manufacturing Execution Systems (MES), Supervisory Control and Data Acquisition (SCADA), and Human-Machine Interface (HMI) applications. It enables real-time monitoring and control of production processes, improving efficiency and productivity.

Industrial Automation: These computers are designed to run 24/7 in industrial settings, making them ideal for automation systems. They can be used for controlling and monitoring machinery, managing data collection and analysis, and integrating with other Industrial Internet of Things (IIoT) systems.

Public Kiosks: The TP-5010 Series can be deployed in public spaces as interactive kiosks. It can be used for self-service information centers, ticketing systems, wayfinding displays, and digital signage. Its rugged build and reliable performance make it suitable for high-traffic areas.

Energy and Utilities: In the energy and utilities sector, the TP-5010 Series can be utilized for monitoring and managing power distribution systems, water treatment plants, and renewable energy installations. It enables operators to visualize data, control processes, and ensure efficient operation.

Dimensional Drawings & I/Os

I/O Diagram Images

Panel PC TP-5010 IOs

Tech Diagram Images

TP-5010-22-tech-drawing
