TP-4680-10

10" Mini Touch Screen Computer

Available – Contact Us for Quick Quote

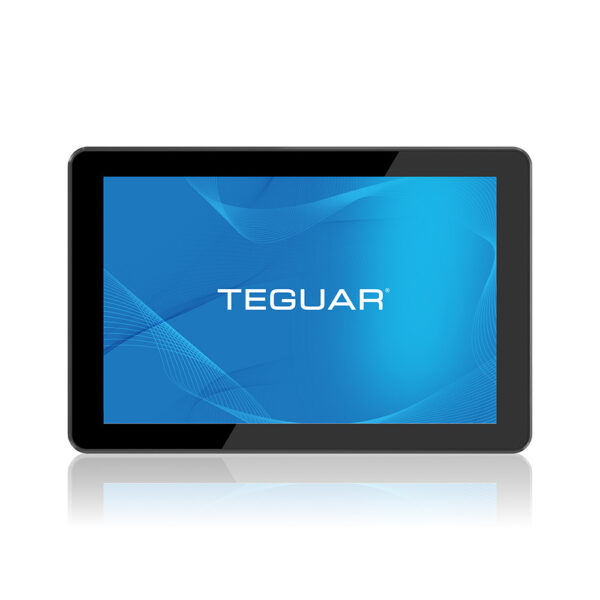

Mini Touch Screen Computer TP-4680-10 Front

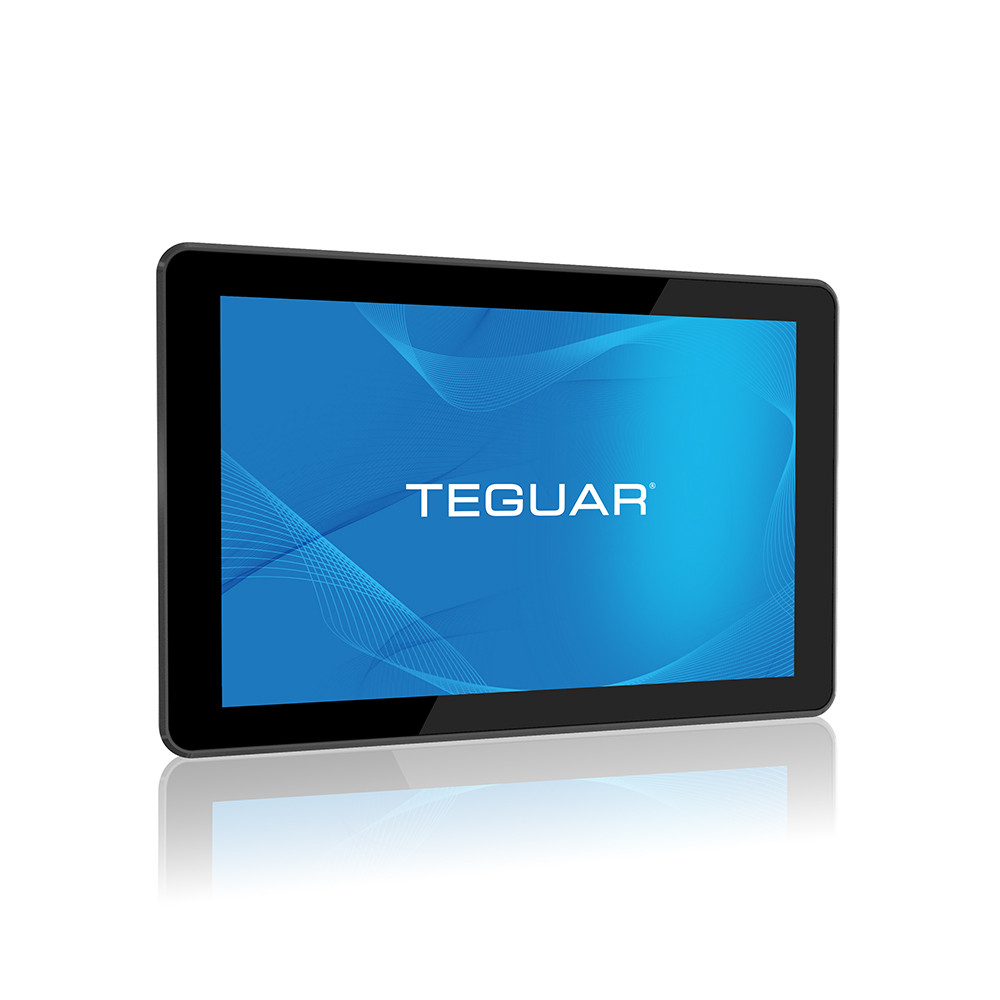

Mini Touch Screen Computer TP-4680-10 Front Left Angle

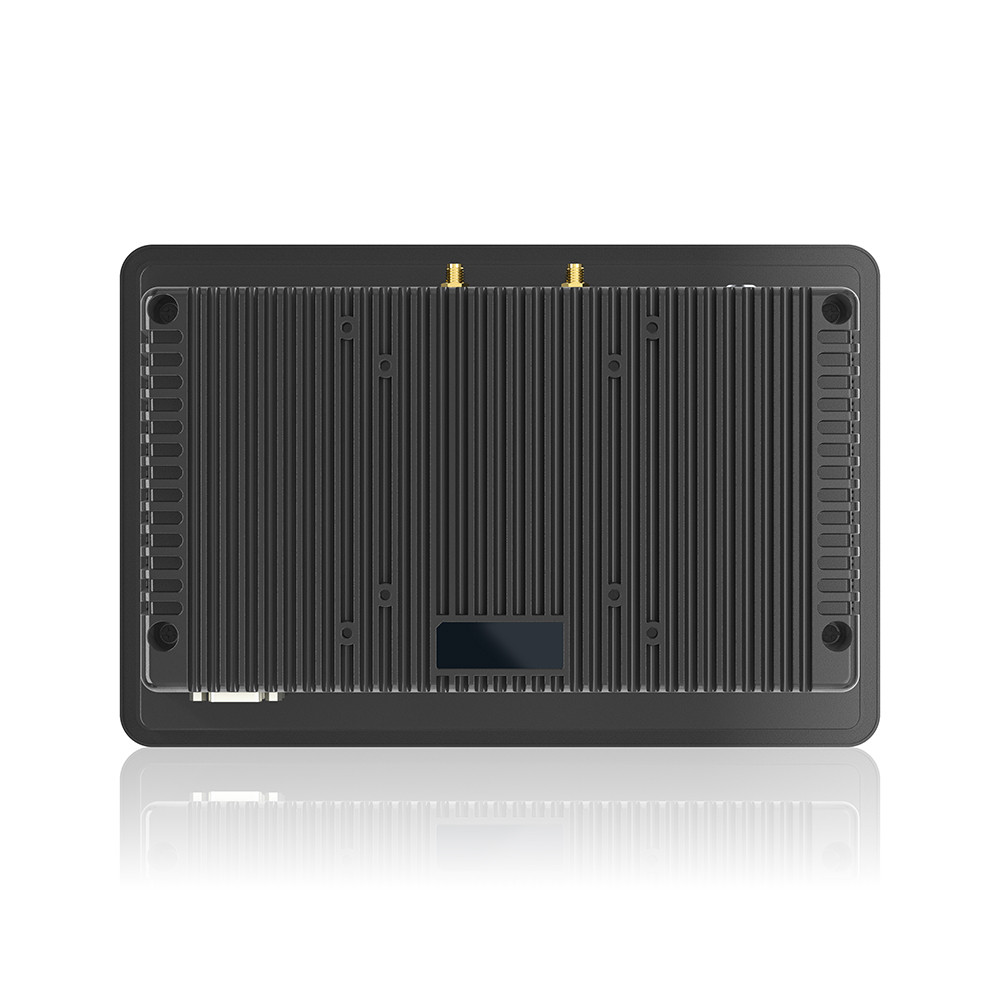

Mini Touch Screen Computer TP-4680-10 Back

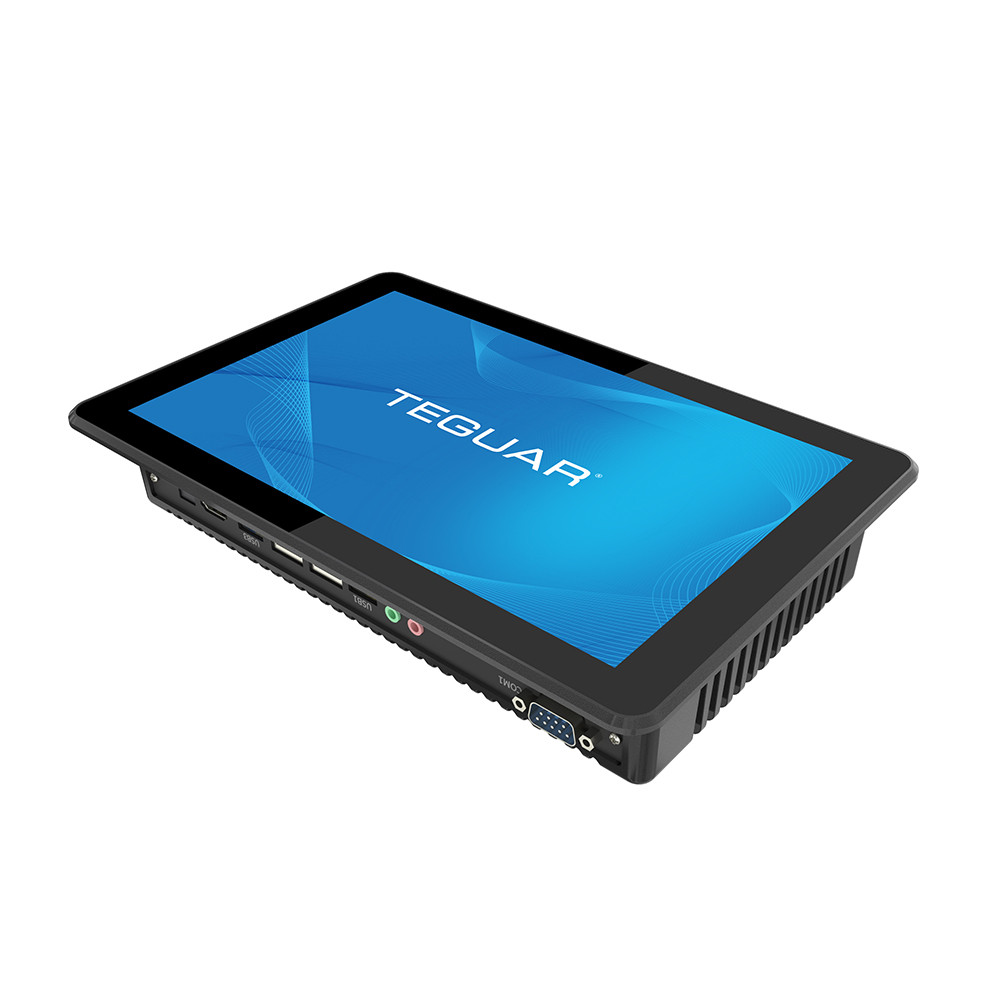

Mini Touch Screen Computer TP-4680-10 Face at an Angle

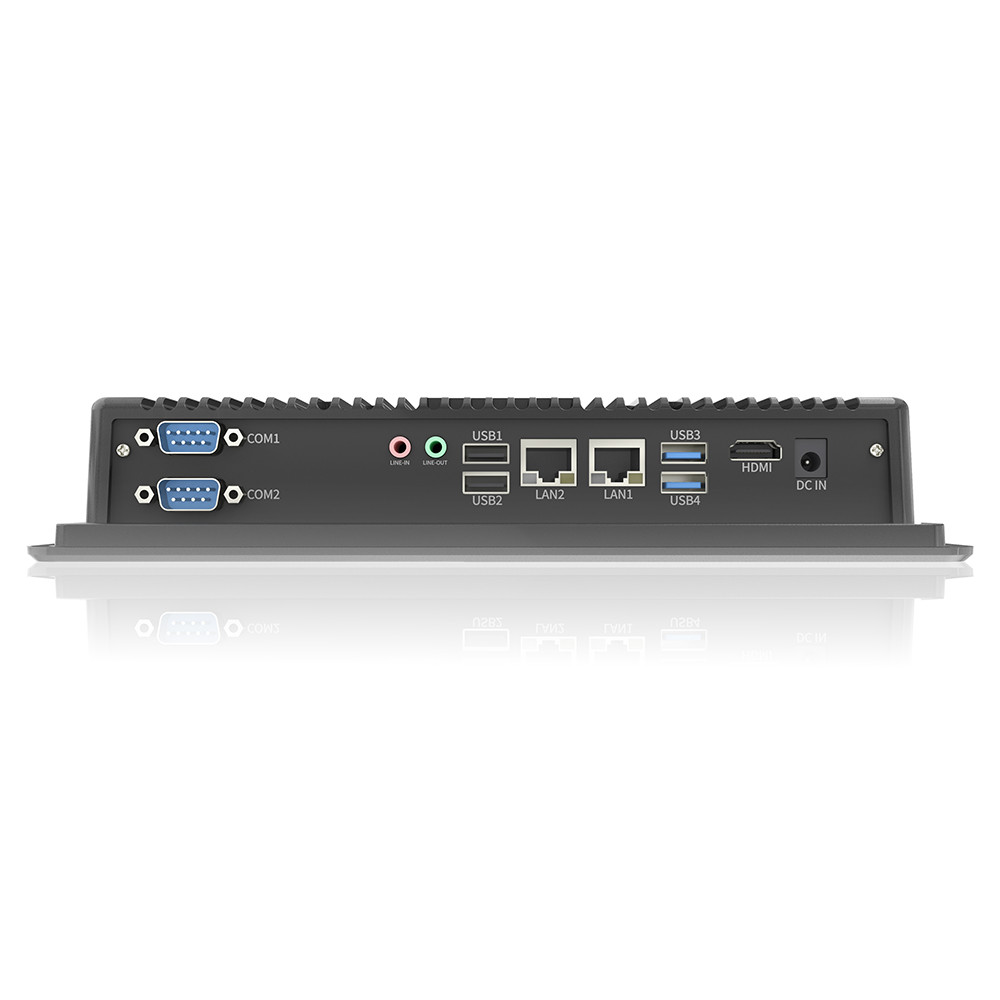

Mini Touch Screen Computer TP-4680-10 IO Side

Description

The TP-4680-10 10” Mini Touch Screen Computer is the perfect solution for high speed, low-power computing on a budget. The Intel® 11th Generation Celeron processor supports the latest Windows 11 and even machine vision tasks. Its die-cast aluminum build and IP65 front bezel ensure reliability even in dusty and dirty industrial environments. We’ll include the panel mount hardware for you, so the fully flush panel design can be seamlessly laid into a wall and operated with the 10” PCAP touch screen.

With Wi-Fi and Bluetooth capabilities, this Mini Touch Screen Computer will stay connected. Implement it for employees as a work kiosk or use it to display information seamlessly panel mounted in the wall.

Key Highlights

Intel Jasper Lake Celeron N5100 processor
Windows 11 capability
Amazing speed at a value price, a Passmark rating of over 3300
Wi-Fi and Bluetooth connectivity
Flush mountable with IP65 front bezel
Project capacitive 10” touch screen

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Jasper Lake Quad-Core
Processor Model	Celeron N5100
Processor Speed	Up to 2.8 GHz, 1.1 GHz
Memory Type	Onboard LPDDR4
Memory Support	8GB
Storage Type	1x M.2 SATA3 2280 Slot
Storage Support	M.2: 128GB-1TB

Display

Screen Size	10.1"
Resolution	1280 x 800 (WXGA)
Screen Ratio	16:10
Brightness	700 nits

Touch Screen

Projected Capacitive (Multi-touch)

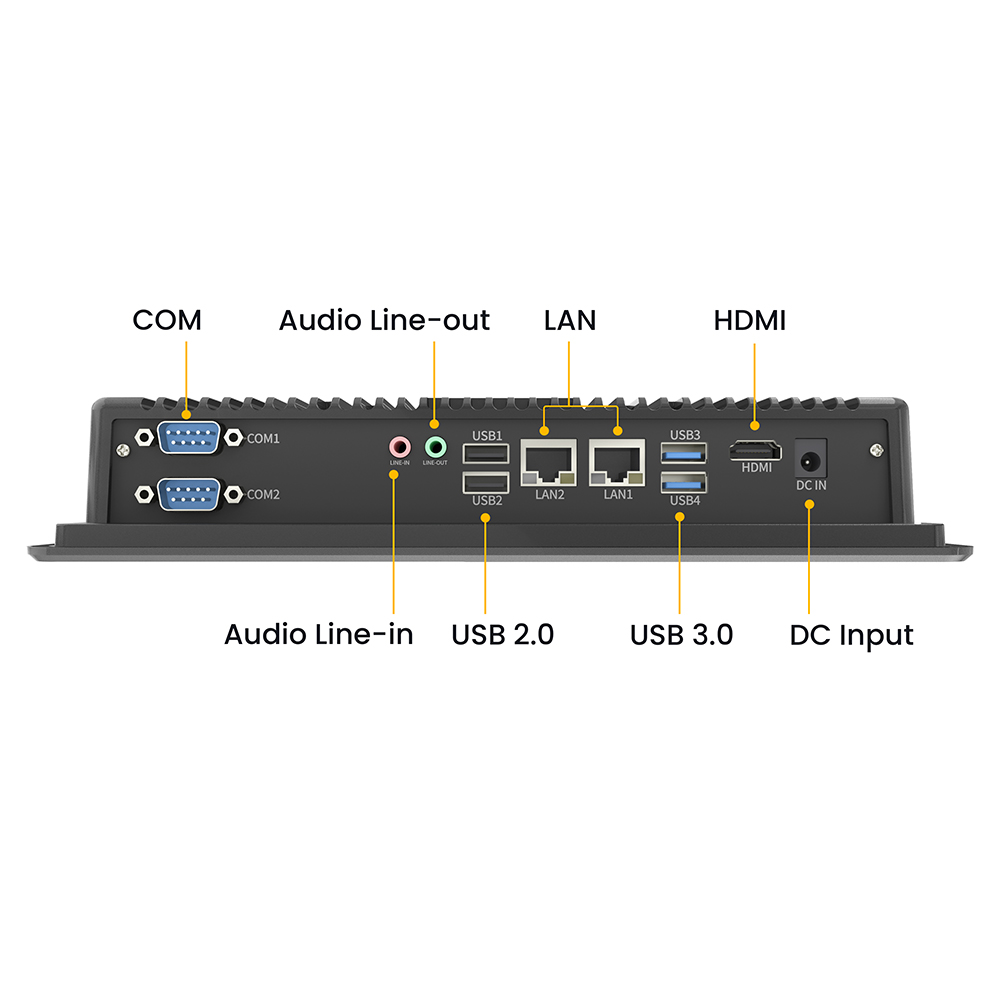

External I/O Ports

USB	2x USB 2.0, 2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	RS-232
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x HDMI
Audio Ports	1x 3.5mm Audio Line-In, 1x 3.5mm Audio Line-Out
Power Input Port	5.0mm DC-in Jack

Power

Input Voltage Range	12V DC
Max Power Consumption	48W
Standard Power Adapter	12 Vdc, 4 A, US power cord

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	95% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP65 Front Bezel
Color	Black
Led Indicator Light	Power
Control Buttons	Power Button
Shock Rating	MIL-STD-810H
Mounting Options	Panel Mount, VESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Built-in Wi-Fi 5, 802.11 a/b/g/n/ac
Bluetooth	Bluetooth 5.0

Weight / Dimensions

Weight	1.2 kg (2.6 lbs)

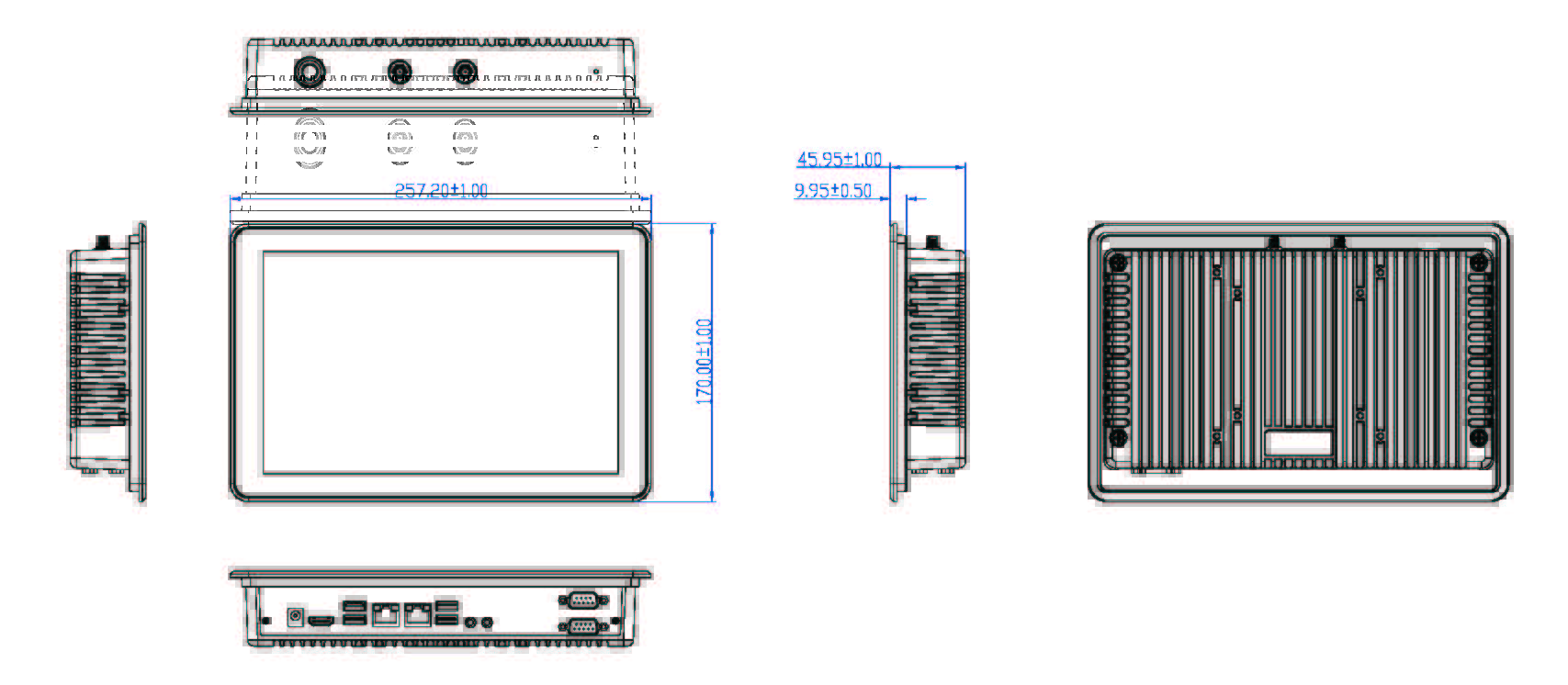

Dimensions	257.2 x 45.95 x 170 mm (10.1 x 1.8 x 6.7 in)

Warranty

Up to 5 Years

Industrial Automation Control Systems: The Mini Touch Screen Computer’s reliable Celeron processor ensures seamless Windows 11 operation for precise control in industrial automation. With a full flush design to fit seamlessly into a wall or panel, it’s ideal for standard industrial applications.

Manufacturing Process Monitoring: The TP-4680-10 excels in rugged manufacturing applications for process monitoring. Featuring an IP65 rated front bezel, it ensures reliable performance in environments with dust and dirt. With integrated Wi-Fi and Bluetooth, it offers connectivity support.

Machine Vision and Quality Inspection: The Intel Celeron N5100 processor makes TP-4680-10 a reliable choice for simple machine vision and quality inspection. A 10” display with capacitive touch screen provides easy and precise user interaction.

See the data sheet Warranty Download Drivers
