TP-4040-22

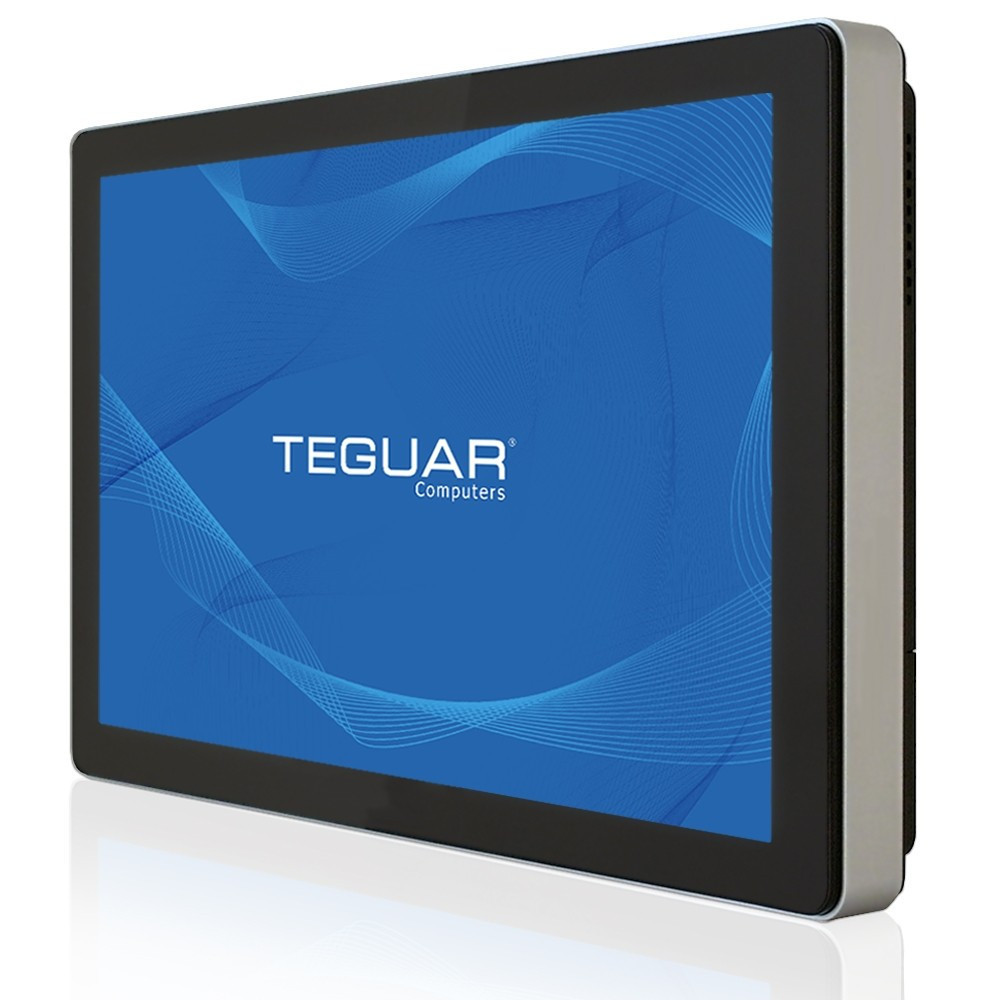

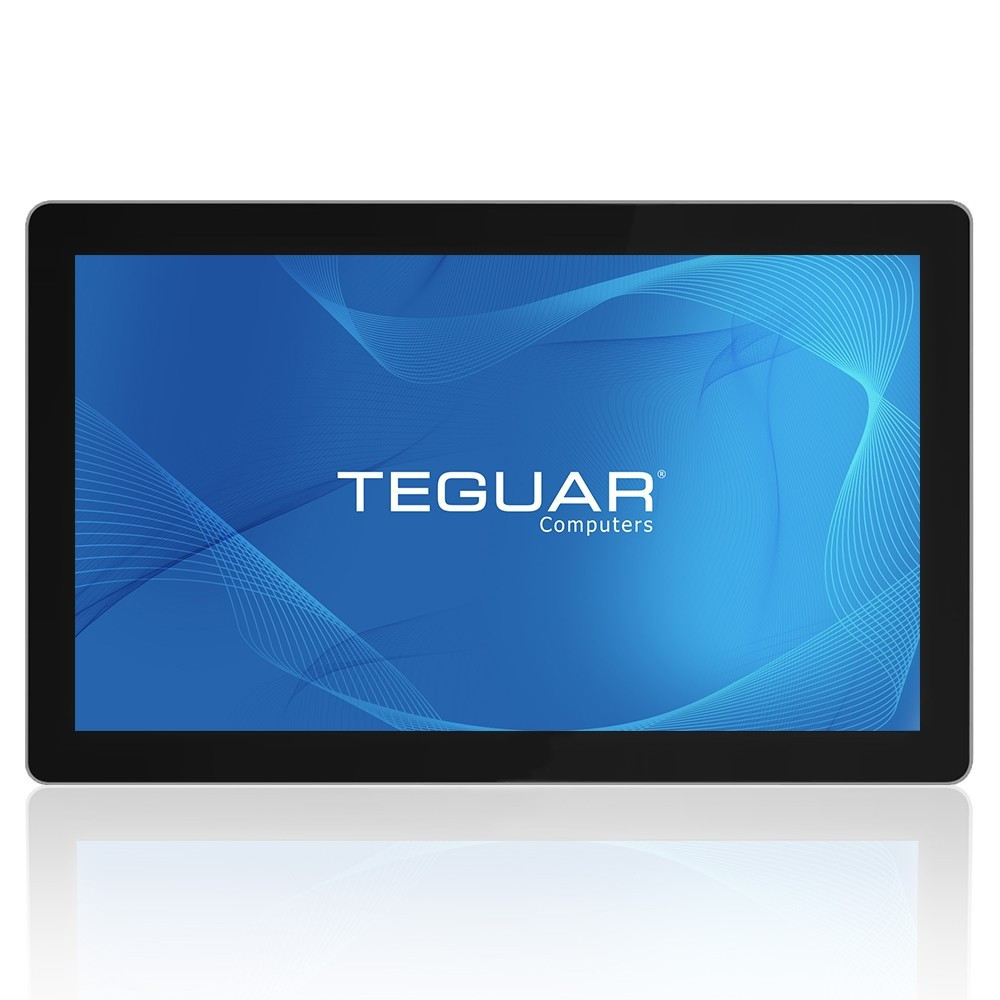

22" Industrial All-in-One Computer
Available – Contact Us for Quick Quote
22" Industrial Computer | TP-4040-22
22" Industrial Computer | TP-4040-22
Industrial All-in-one Computer
Fanless Computer

Description

This touch panel pc is ideal to use as the HMI (Human Machine Interface) where constant use and touch screen interaction is required with quick processing. Point of sale payment modules are available for large orders, as are custom configurations to meet your needs. The TP-4040-22 has a fanless design, highly durable housing, and over fifteen I/Os, and it is available at an economic price point. This industrial panel pc is ideal for commercial use with its progressive design and industrial grade components. The Bay Trail J1900 CPU allows for many programs to run simultaneously with Linux OS or up to 64 bit Windows OS installed. An easy access HDD bay provides protection for data back-up to safeguard your information.

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Panel PCs.



Key Highlights

  • 21.5″ Protected Capacitive Touchscreen
  • Intel Elkhart Lake 10th Gen Celeron J6412 Quad core CPU
  • Optional Built-in 2MP Webcam
  • Durable Aluminum Die-Cast Housing
  • Fanless with Low Power Consumption
  • Multiple I/Os including 2x USB 2.0, 1x USB Type C, 1x LAN & more
Get a DemoGet a Quick Quote

Tech Specs

See the data sheet Download Drivers

Primary Components

Processor FamilyIntel Celeron Bay Trail
Processor ModelJ1900 Quad Core
Processor Speed2.0 GHz, 2.4 GHz
Memory Type1x DDR3 SO-DIMM
Memory Support2GB, 4GB, 8GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support32GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive

External I/O Ports

USB1x USB 3.0, 4x USB 2.0
Serial / Com4x COM
Serial Protocol Detail4x RJ-48
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x VGA
Audio Ports1x Audio Line-Out
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range12-48V DC
Standard Power Adapter90W, 19V Power Adapter Included

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 7 Pro
LinuxLinux

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Video Card SupportIntel HD Graphics

Multimedia

Speakers1x 2W Speaker
CameraOptional 2MP Webcam

Thermal & Environmental

Operating Temperature0°C - 35°C (32°F – 95°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range20% – 85% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65 Front Bezel

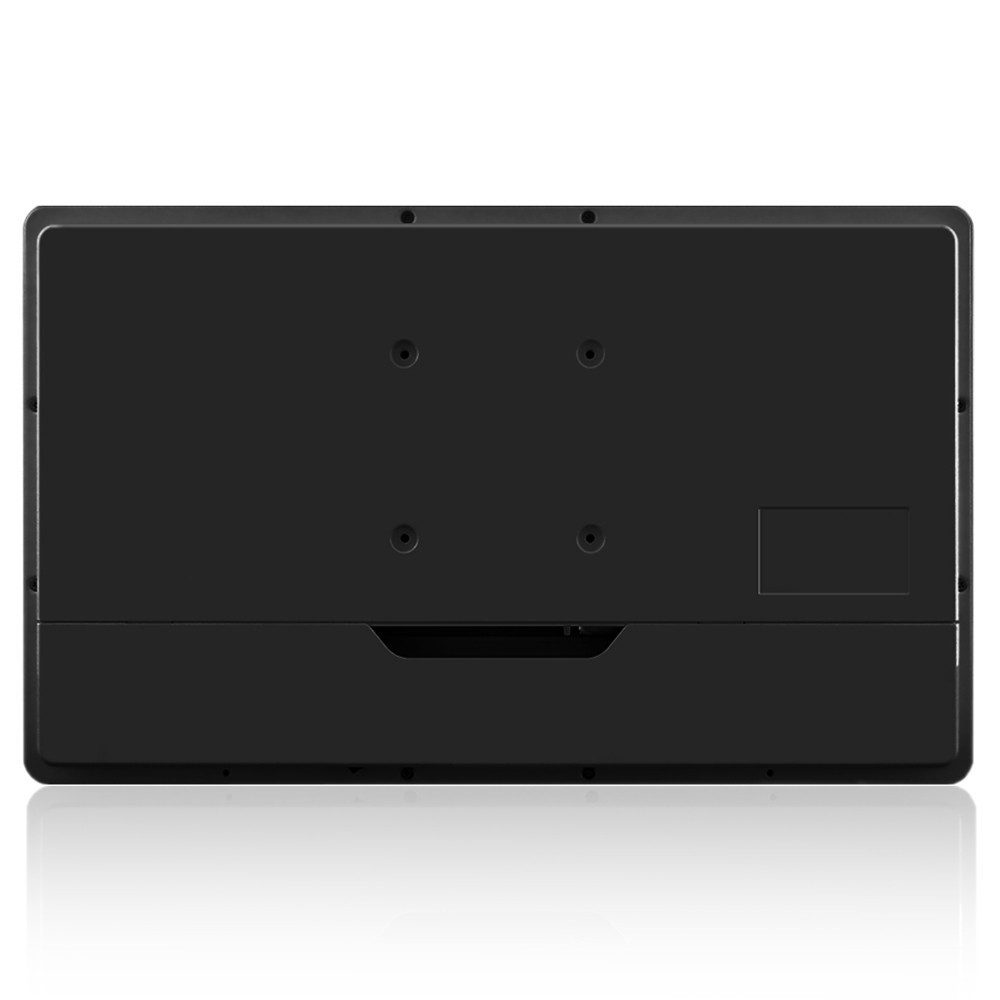

Mounting OptionsVESA 75 Mount
Approved Cleaning SolutionsAcetone, Actichlor, Alcohol, Ammonium Nitrate (low concentration), Antigone, Betasept, Bleach, Caviwipes, Chloride, CIDEX, Control III Disinfectant Germicide, Dispatch Disinfectant Cleaner CLH69101, Incidin, Isopropyl Alcohol, LpH se, MikroBac, Mikrozid, Peridox, Puregreen 24 Disinfectant, SDW 70C, Sodium Hypochlorite, SporeClear, Trigene, Viraguard, Virkon, Windex, 3M HB Quat

Peripherals & Wireless Connectivity

WiFi802.11 b/g/n WLAN card
BluetoothBluetooth 4.0

Weight / Dimensions

Weight8 kg (17.6 lbs)
Dimensions536 x 48 x 328 mm (21.1 x 1.9 x 12.9 in)

Certification

CertificationsCE, FCC Class B, LVD

Warranty

WarrantyUp to 5 Years

The 22” Industrial All-In-One PC runs on a Elkhart Lake Quad Core CPU with Windows 11 capabilities. The front bezel is IP54 rated, which protects the unit from dust and water. This rugged computer has aluminum die cast housing and a fanless operation. This industrial panel pc is ideal for commercial use with its progressive design and industrial grade components. The strong processor allows for many programs to run simultaneously with Linux OS or up to 64 bit Windows OS installed. An easy access HDD bay provides protection for data back-up to safeguard your information.

See the data sheetWarrantyDownload Drivers

Dimensional Drawings & I/Os

See the data sheet

I/O Diagram Images

All-in-One Industrial Computer Inputs/Outputs

Tech Diagram Images

TP-4040-22 Technical Drawing
