TMT-Q7C80-10S

10” Medical Tablet
Available – Contact Us for Quick Quote

Description

This 10” Medical Tablet is a lightweight, high-quality, and versatile device for healthcare professionals. Equipped with a Qualcomm SC7180 Octa Core processor, this tablet offers high-speed performance, allowing for smooth and efficient multitasking. This highly efficient ARM processor also allows the tablet to run Windows 11 operating system smoothly, making it a very competitive choice. The TMT-Q7C80-10S is a 60601 medically compliant tablet to ensure that it meets strict safety and performance standards for medical settings and makes it easy for OEM’s to integrate this tablet as part of a complete medical system. A 10-hour battery life allows for extended use throughout the day, making it an ideal choice for healthcare professionals who need a reliable and long-lasting device.

Key Highlights

  • 10.1” Projected Capacitive Touch Screen
  • Qualcomm Octa Core Processor with Windows 11
  • 60601 Medically Compliant
  • Long Lasting Battery Life & Light weight
  • Expansion dock, Keyboard, 2D scanner options
  • Need customization? Click here for OEM services.

Primary Components

Processor FamilyQualcomm SC7180 Octa Core
Processor ModelKyro OctaCore 468
Memory TypeOnboard LPDDR4X
Memory Support8GB
Storage TypeOnboard eMMC Flash
Storage Support128GB

Display

Screen Size10"
Resolution1920 x 1200 (WUXGA)
Screen Ratio16:10
Brightness400 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)
Glass TypeAshahi Glass

External I/O Ports

USB1x USB 3.0 type C PD
Other Ports12 Pin Pogo Pin
Power Input PortPogo Pin Connector, USB Type-C OTG

Power

Standard Power AdapterUSB Type C PD

Battery

Battery TypeInternal 7.6V/4750mAh Battery
Battery Operating Time10hrs

Operating Systems

WindowsWindows 11 IoT, Windows 11 Pro

Expansion Slots

SD card1x Micro SD Slot

Multimedia

Speakers2x 1W Speakers
CameraFront: 5MP, Rear: 13MP
MicrophoneBuilt-in Microphone

Thermal & Environmental

Operating Temperature-10°C - 50°C (14°F – 122°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range95% Non-condensing
Storage Humidity5% – 95% Non-condensing

Enclosure

MaterialPlastic
IP RatingIP65
ColorWhite
Led Indicator LightBattery, Charging Indicator
Control ButtonsAudio Down, Audio Up, Power Button, Scanner
Drop Rating1m Drop Resistant
Mounting OptionsDesktop Stand

Peripherals & Wireless Connectivity

WiFi802.11 a/b/g/n/ac 2.4GHz & 5GHz (5.1GHz & 5.8 GHz) dual band
BluetoothBluetooth 5.1
GPSyes
Sim Card1x Micro SIM Card Slot
Barcode ScannerOptional 1D/2D Barcode Scanner
SensorsAccelerometer, Compass, Gyroscope

Weight / Dimensions

Weight0.7 kg (1.5 lbs)
Dimensions263 x 177 x 10.5 mm (10.4 x 7.0 x 0.4 in)

Warranty

WarrantyUp to 2 Years

Point-of-Care Decision Making: With its durable and rugged design, the tablet series is suitable for point-of-care decision making, allowing healthcare professionals to quickly access medical references, drug databases, and clinical decision support tools right at the patient’s side.

Home Healthcare and Remote Monitoring: The lightweight and portable nature of the tablet series makes it suitable for home healthcare settings and remote monitoring scenarios. Healthcare providers can use the tablets to perform remote patient monitoring, conduct virtual consultations, and provide care outside of traditional healthcare facilities.

Medical Education and Training: The Medical Tablet Series can be used in medical education and training settings, allowing students, residents, and healthcare professionals to access educational resources, participate in virtual simulations, and engage in interactive learning activities.

Dimensional Drawings & I/Os

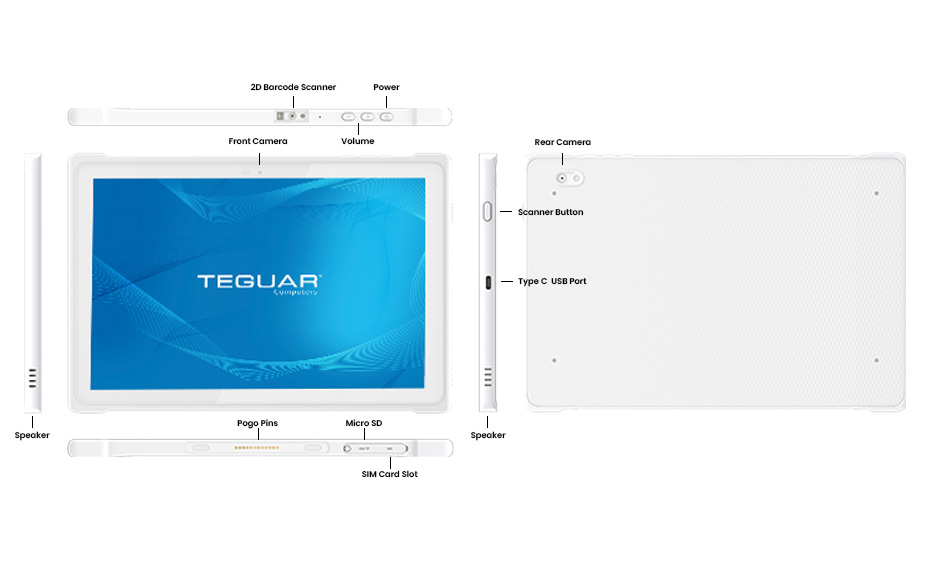

I/O Diagram Images

Medical tablet Inputs and Outputs

Tech Diagram Images

TMT-A5580-10S Technical drawing
