Tech Specs
Primary Components
| Processor Family | Intel Core I series 11th Generation Tiger Lake |
| Processor Model | Core i5 1145G7E |
| Processor Speed | 2.6 GHz |
| Memory Type | 1x DDR4 SO-DIMM |
| Memory Support | 8GB, 16GB |
| Storage Type | 1x M.2 2280 NVME SSD slot |
| Storage Support | 256GB (Standard), up to 1TB (Optional) |
Display
| Screen Size | 13.3" |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 400 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |
| Hardness | > 6H |
| Glass Type | Gorilla Glass |
External I/O Ports
| USB | 1x USB 3.1 Type-C, 2x USB 3.0 |
| Ethernet / LAN | 1x RJ45 GbE LAN |
| Video Outputs | 1x DisplayPort via USB-C Alt Mode |
| Audio Ports | 1x 3.5mm Audio Line-Out/Mic-In |
| Power Input Port | 5.0mm DC-in Jack |
Power
| Standard Power Adapter | 90 W |
Battery
| Battery Type | Internal 10.8V/4660mAh Battery |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 for NVME SSD Support |
Multimedia
| Speakers | 2x 2W Speakers |
| Camera | Front: 5MP, Rear: 8MP w/auto focus & flash |
| Microphone | Built-in Microphone |
Thermal & Environmental
| Operating Temperature | 0°C - 40°C (32°F – 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless with Heatsink |
Enclosure
| Material | Aluminum, Plastic |
| IP Rating | IP65 |
| Color | Silver |
| Led Indicator Light | Charging Indicator, Wi-Fi |
| Control Buttons | Audio Down, Audio Up, Power Button |
| Programmable Function Buttons | 3x Programmable Function Keys |
| Shock Rating | MIL-STD-810G |
| Drop Rating | 4ft Drop Protection |

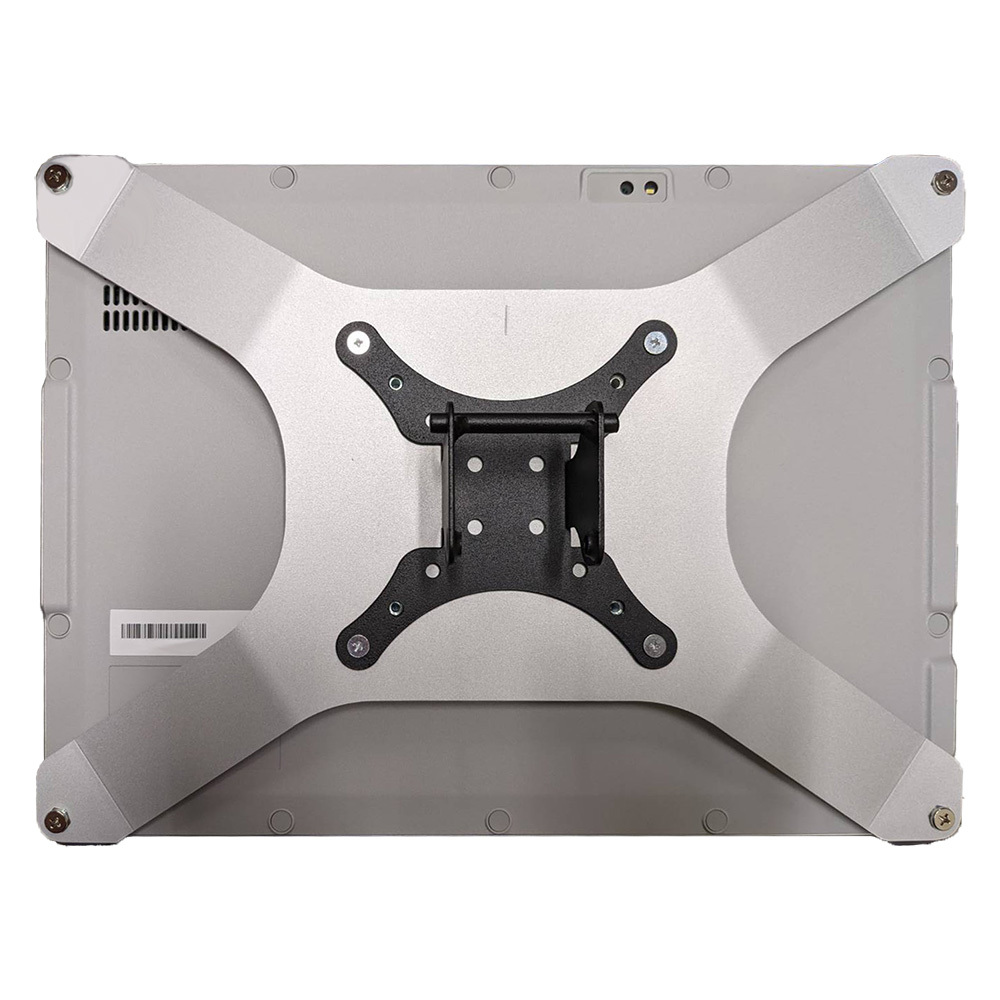

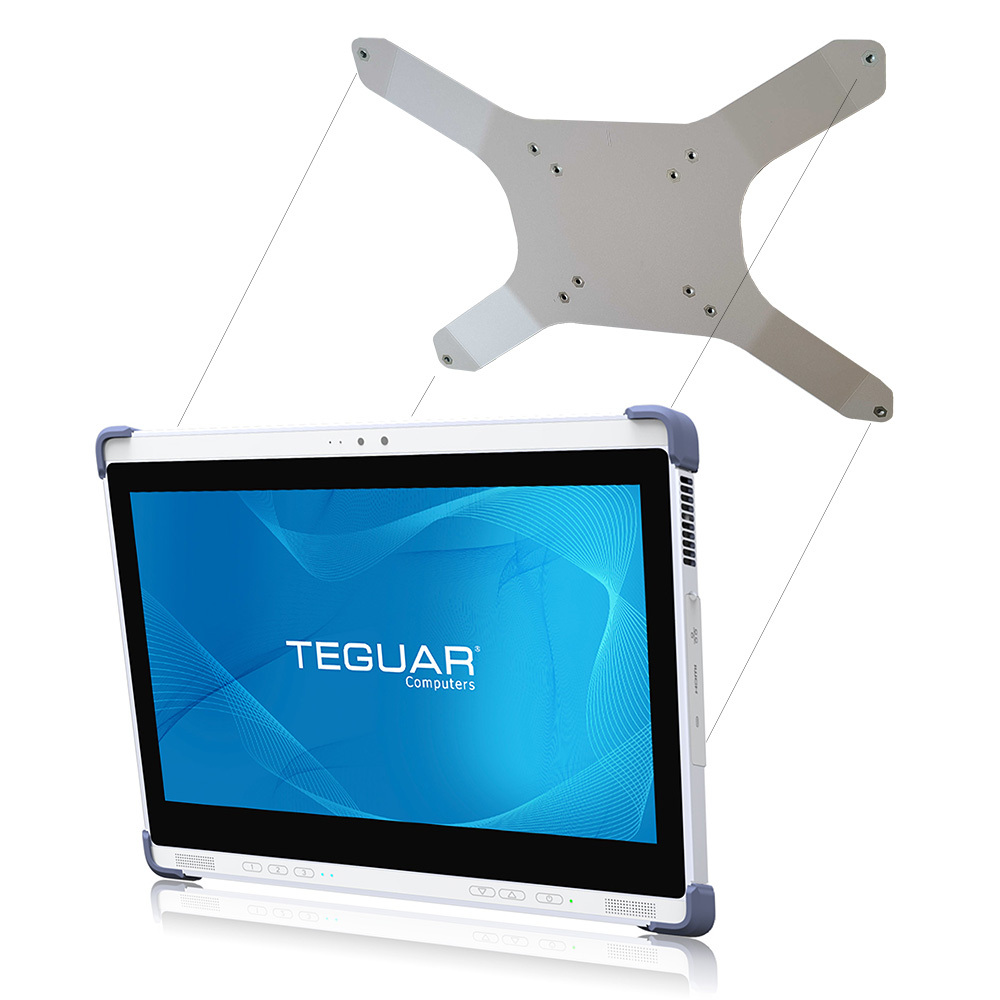

| Mounting Options | VESA 100 Mount, VESA 75 Mount |
Peripherals & Wireless Connectivity
| WiFi | WiFi 802.11 (a/b/g/n/ac), WIFI 6 , MIMO ( Fast Roaming support) |
| Bluetooth | Bluetooth 5.2 |
| Sensors | Accelerometer, eCompass, Gyroscope, Light Sensor |
Weight / Dimensions
| Weight | 1.8kg kg (4.0 lbs) |
| Dimensions | 330 x 240 x 20.8 mm (13.0 x 9.4 x 0.8 in) |
Certification
| Certifications | CE, EN 55032/55035 and CISPR 32/35, FCC Class B, IEC 61000-3-2 (EMC), IEC 61000-3-3 (EMC), UL 62368, 60601-1 4th Edition |
Warranty
| Warranty | Up to 5 Years |
