TME-7115-22

22" Medical Touch Screen Computer
Available – Contact Us for Quick Quote

Description

TME-7115-22 is a high-powered touch screen computer designed for ease and excellence on medical carts and in other mobile medical applications. Hot-swappable batteries set this product apart from other medical-grade all-in-ones. With 3 battery bays, battery indicator LED lights, and a charging station accessory for up to 6 additional batteries, the TME-7115-22 can maintain 24/7 uptime anywhere. The 22″ PCAP touch screen is ultra-responsive even through five layers of gloves or with water on the IP65-rated front face, ensuring nothing gets between you and your work. Power the entire medical cart straight from this computer with its configurable DC output, USB 3.2 slots, and USB-C perfect for any cart attachments or accessory equipment.

Key Highlights

  • Intel® Core i5 and i7 options
  • Windows 11 or Linux

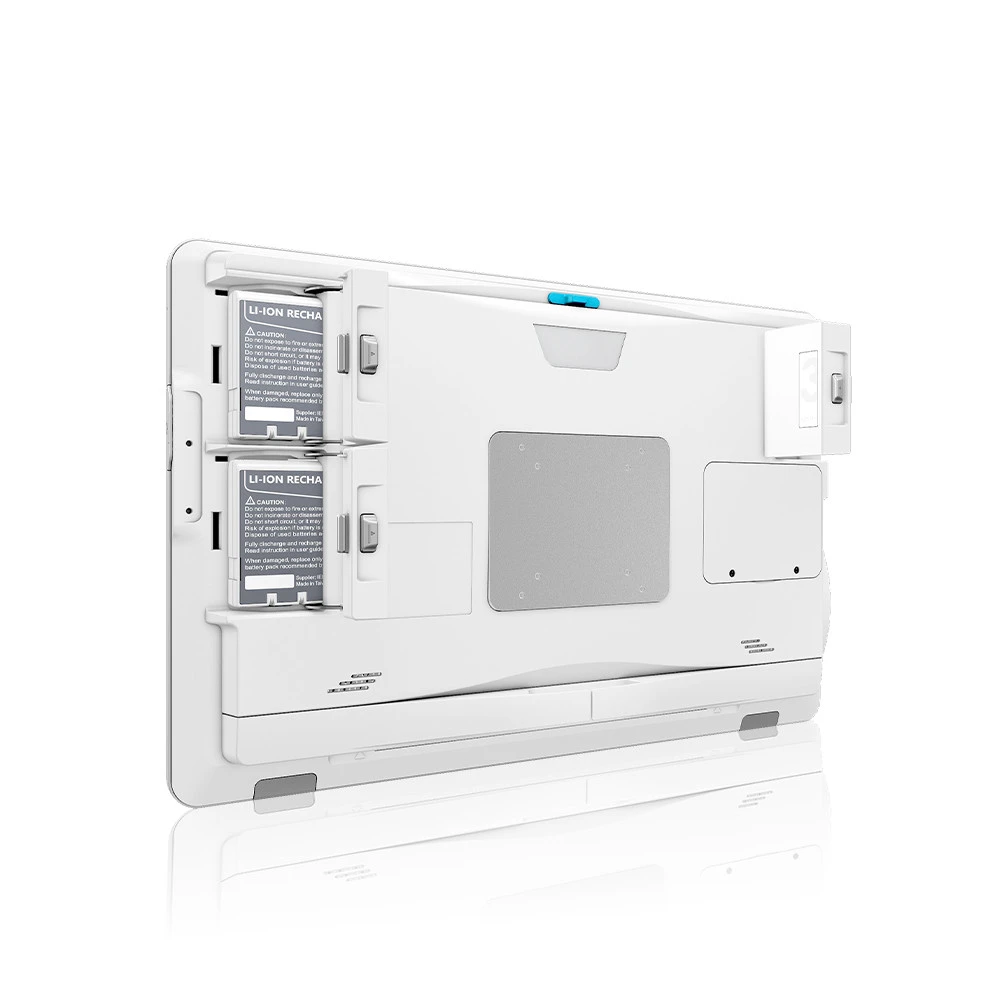

  • Three hot-swappable batteries
  • Configurable DC output and versatile USB-C port for high-power attachments
  • Accessible NVMe & 2.5” storage slot
  • DDR5 offering 36% increase in bandwidth

Primary Components

Processor FamilyIntel Core I series 13th Generation Raptor Lake
Processor ModelCore i5-1340PE, Core i7-1370PE Optional
Processor Speed4x Performance Cores up to 4.5 GHz, 8x Efficient Cores up to 3.3 GHz Turbo
Memory Type2x DDR5 SO-DIMM
Memory Support8GB, 16GB, 32GB, 64GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 2x NVME SSD M.2 2280 (easily accessible)
Storage SupportM.2 and 2.5": 256GB - 1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness350 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)
Hardness6H

External I/O Ports

USB1x USB Type-C, 2x USB 2.0, 4x USB 3.2
Serial / Com1x COM
Serial Protocol DetailRS-232 Default/422/485- BIOS selectable
Ethernet / LAN2x RJ45 2.5 GbE LAN
Video Outputs1x HDMI
Audio Ports1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port4-Pin DC-In Jack

Power

Input Voltage Range19V DC
Standard Power Adapter19Vdc, 150W Medical Power Supply with US power Cord

Battery

Battery TypeHot Swappable 10.8V/9000mAh Battery

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro
LinuxLinux (Contact your sales rep for more information)

Compatibility

Security HardwareTPM 2.0

Multimedia

Speakers2x 2W Speakers
CameraFront: 8MP
MicrophoneBuilt-in Microphone

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 90% Non-condensing

Enclosure

IP RatingIP65 Front Bezel
ColorWhite
Led Indicator LightBattery, Charging Indicator, Power
Control ButtonsAudio Down, Audio Up, Brightness Down, Brightness Up, LCD ON/OFF and Touch Lock for Cleaning, Power Button
Mounting OptionsDesktop Stand, VESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFiIncluded 802.11 a/b/g/n/ac/ax Wi-Fi 6E
BluetoothBluetooth 5.2
RFIDOptional RFID module, 13.56MHz/125KHz

Weight / Dimensions

Weight7.07 (Without Batteries) kg (15.6 lbs)
Dimensions543 x 61 x 350 mm (21.4 x 2.4 x 13.8 in)

Warranty

WarrantyUp to 5 Years

Medical Cart Computer: TME-7115-22 uses hot-swappable batteries keep it mobile, perfect for an untethered medical cart. Power auxiliary accessories or attachments on your cart right from the computer using its DC output and array of USB ports. This computer replaces the need for a powered medical cart, by having the batteries directly in the computer. You can get 10-16 hours of run time from the 3 batteries, and then swap them out easily if you need more battery life.

Handle Complex Medical Software: Access EMR/EHR and run demanding imaging software with ease thanks to the highly efficient DDR5 and the Core i processor options of the TME-7115-22. Dual NVMe offers RAID support for extra security.

Point of Care Computer: High speed computing brings peace of mind to patients and professionals alike. This computer is perfect for accessing patient information at the point of care with a hygienic design that looks sharp in any patient-facing setting.

Dimensional Drawings & I/Os

I/O Diagram Images

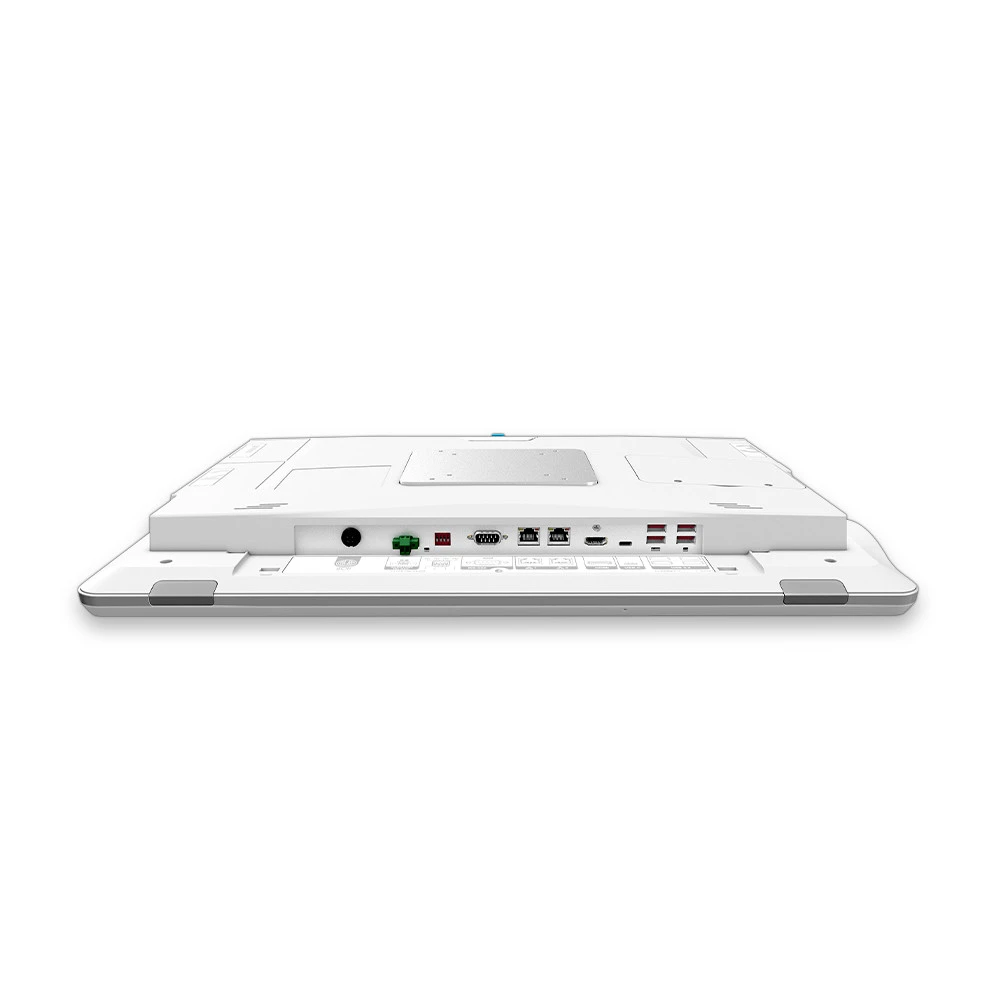

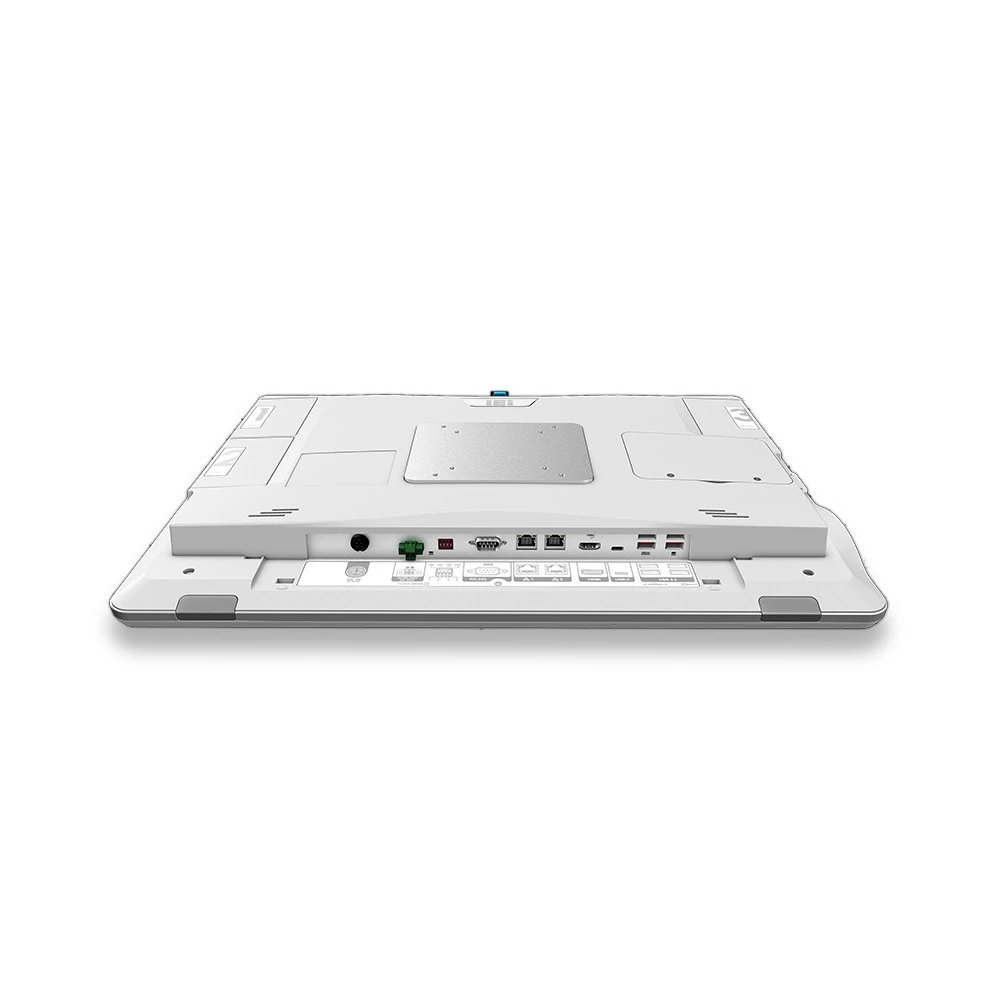

TME-7115 IO Diagram

Tech Diagram Images

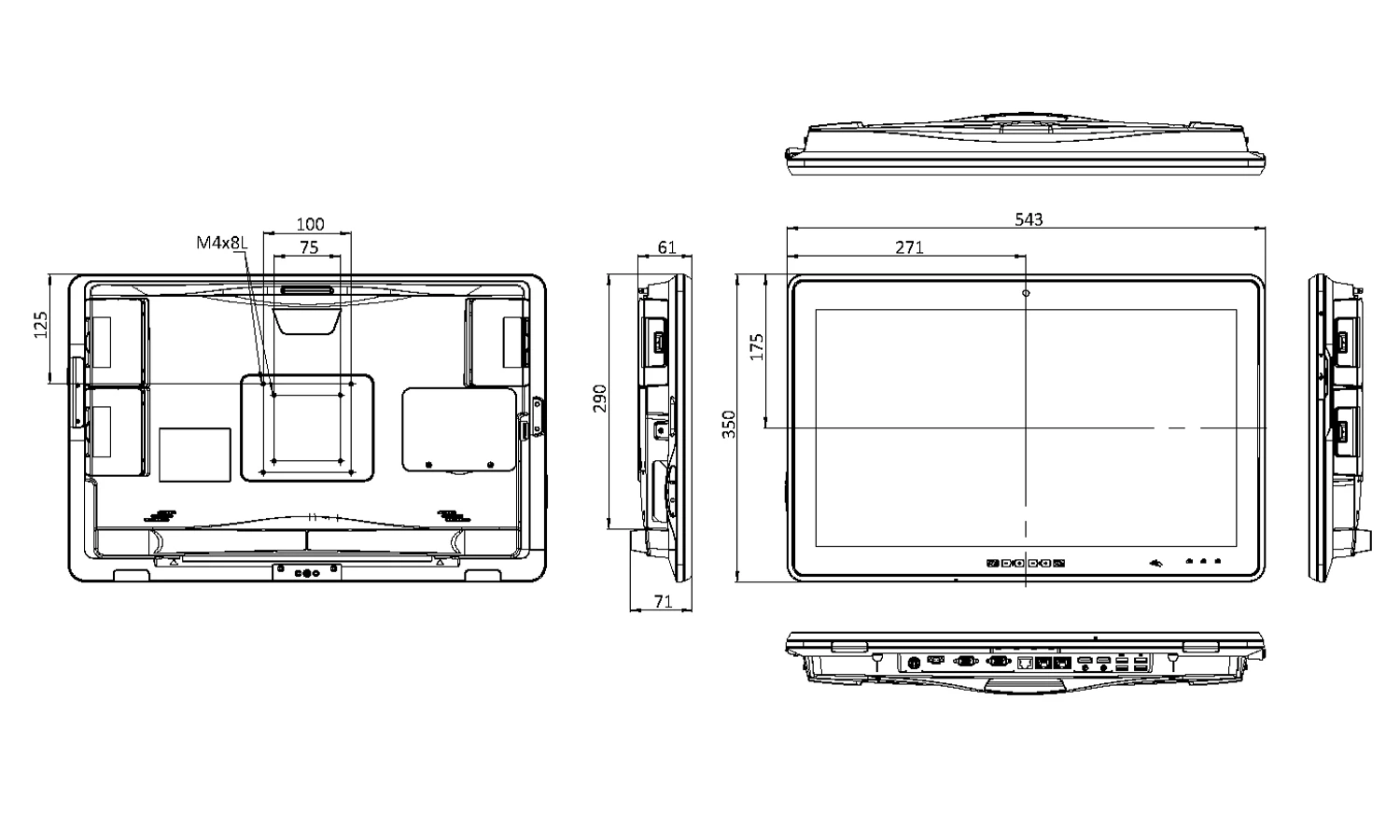

TME-7115-22 2D Drawing
