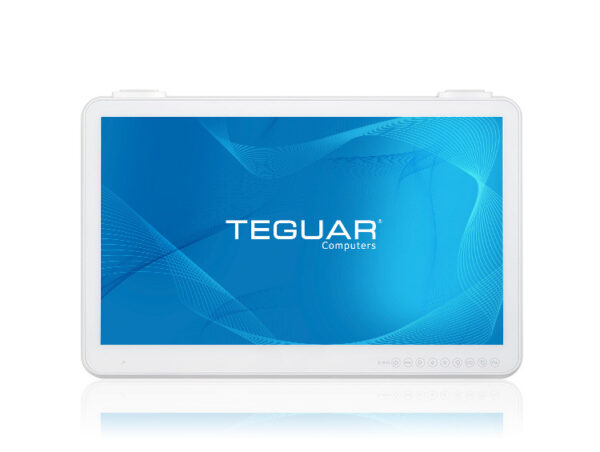

TM-7110-24

24" Fanless Medical PC
Available – Contact Us for Quick Quote

Description

The 24″ Fanless Medical PC is an exceptional healthcare technology solution designed for the most critical medical applications. With medical certification, it upholds stringent reliability and security standards. User-friendly function keys enhance usability, granting quick access to essential functions. The built-in PSU streamlines installation and maintenance, minimizing clutter. Its robust die-cast housing ensures durability, while the IP65 waterproof rating protects against moisture and contaminants. Powered by an Intel 13th Generation CPU and running Windows 11, it offers powerful, dependable performance. This PC is tailored to meet the rigorous demands of healthcare, combining cutting-edge technology with a rugged design for efficient use in clinical environments.

Key Highlights

  • 24” Touchscreen Size
  • Intel 12th Generation CPU, Passmark 24599
  • Built-in Power Supply
  • Windows 11 Compatible
  • Die Cast Housing with an IP65 Waterproof Rating

Primary Components

Processor FamilyIntel Core I series 12th Generation Alder Lake
Processor ModelCore i5 12600HE
Memory Type2x DDR5 SO-DIMM
Memory Support8GB, 16GB, 32GB, 64GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD (Internal, not with removable drive in use), 1x M.2 2280 NVME SSD slot
Storage SupportM.2 and 2.5": 128GB - 1TB

Display

Screen Size23.8"
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness400 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)
Hardness6H

External I/O Ports

USB4x USB 3.2
Serial / Com2x COM
Serial Protocol Detail1x RS-232, 1x RS-232/422/485
Ethernet / LAN1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN
Video Outputs1x DisplayPort, supports DP++, 1x HDMI 2.0b
Audio Ports1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input PortC13, 3-Prong AC Plug

Power

Standard Power AdapterBuilt-In AC 100-240V/47-60Hz to DC 24V, 250W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security HardwareTPM 2.0, Intel vPro

Multimedia

CameraOptional 5MP Webcam

Thermal & Environmental

Operating Temperature0°C - 35°C (32°F – 95°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialAluminum, Anti-Microbial
IP RatingIP65 Front Bezel, IP54 with cable cover
ColorWhite
Control ButtonsBrightness Down, Brightness Up, Clean me, Display on/off, Enter, Exit, Menu, Power Button, Video Input Selection
Programmable Function Buttons1x Programmable Function Key
Mounting OptionsVESA 100 Mount

Peripherals & Wireless Connectivity

WiFi802.11 a/b/g/n/ac/ax
BluetoothBluetooth 5.0
RFIDOptional
Peripheral OtherPOAG-Grounding Pin built-in

Weight / Dimensions

Weight11.2 kg (24.7 lbs)
Dimensions580 x 59 x 350 mm (22.8 x 2.3 x 13.8 in)

Certification

CertificationsCE, FCC, 60601-1 3.2 Edition

Warranty

WarrantyUp to 5 Years

Healthcare Information Systems: The TM-7110 series represents a significant advancement in healthcare technology. Powered by an Intel 12th Generation CPU and running on Windows 11, this series seamlessly integrates into modern medical environments, providing a reliable platform for healthcare information systems. The built-in PSU streamlines operation, and the medical certification guarantees the highest standard of safety and performance.

Patient Care Management: The TM-7110 series, with its larger screen sizes boasting a die-cast housing and an IP65 waterproof rating, becomes an invaluable tool for patient care management in healthcare settings. This fanless Medical PC enhances durability and hygiene, making it suitable for applications such as patient monitoring, electronic health record management, and communication in hospitals and clinics.

Clinical Information Access: With screen size options of 22” and 24”, the TM-7110 series provides a versatile solution for clinical information access in healthcare environments. The inclusion of function keys enhances usability, ensuring efficient navigation and data input. The Fanless Medical PC’s medical certification, coupled with its advanced features, guarantees a high standard of safety and performance.

Dimensional Drawings & I/Os

I/O Diagram Images

TM-7110-24 Labeled IOs

Tech Diagram Images

TM-7110-24 Technical Drawing
