TM-6140-18i

18.5" Fanless All in One PC | Horizon

Available – Contact Us for Quick Quote

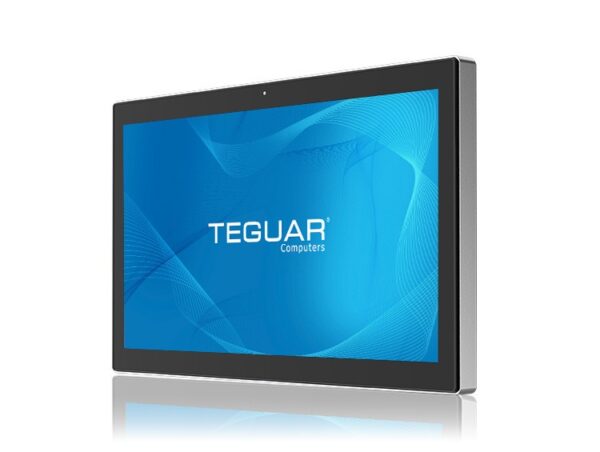

18.5" Point of Care Terminal TM-6140-19 Front Angle

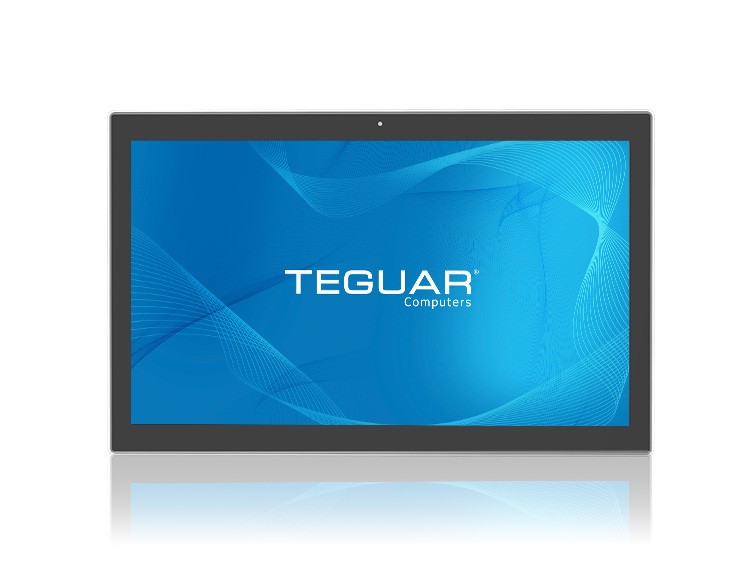

18.5" Point of Care Terminal TM-6140-19 Front

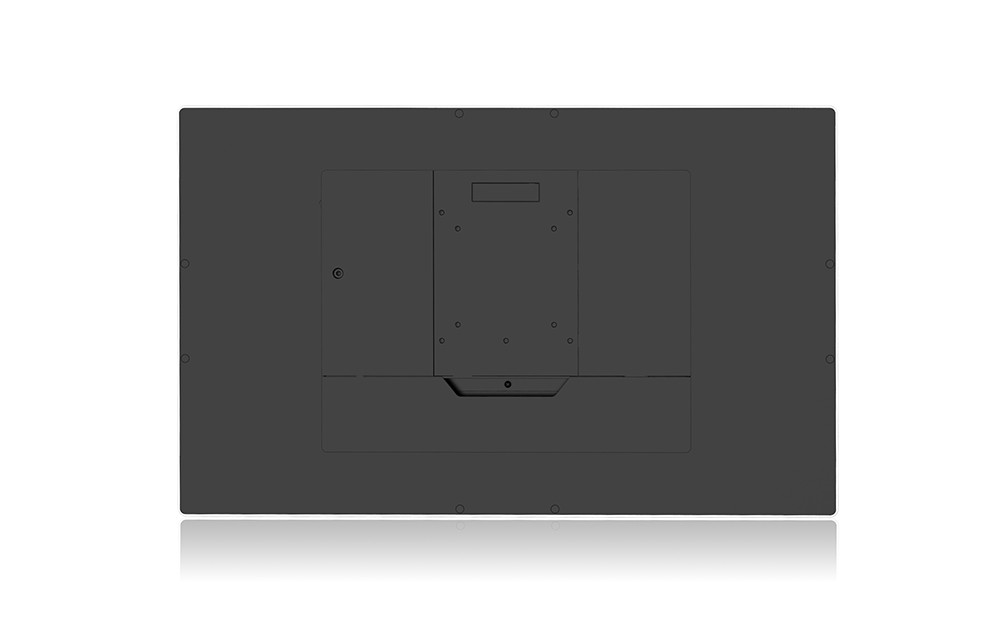

18.5" Fanless All in One PC TM-6140-18i Rear

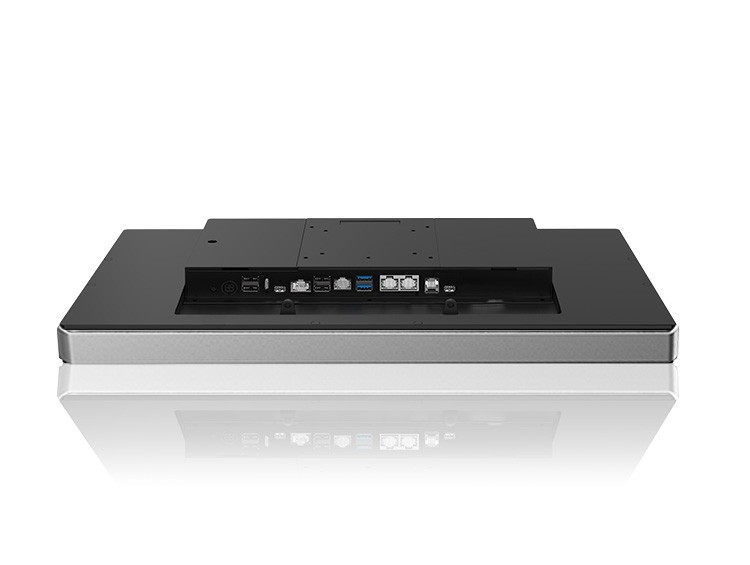

18.5" Point of Care Terminal TM-6140-19 Back I/Os

Description

The 18″ Fanless All in One PC offers modern advancements tailored for rugged application. Designed for seamless integration into industrial workflows, it serves as a versatile solution for operations terminals and data management. With a focus on durability that still maintains an elegant look, this PC ensures reliability and safety even in hazardous settings. The advanced 12th Gen Alder Lake-N processor from Intel® delivers exceptional performance, enabling smooth and efficient operation. Featuring multiple inputs and outputs, the TM-6140-18i offers extensive connectivity options for enhanced versatility and productivity in any facility.

Key Highlights

18.5” PCAP Touch Display
12th Generation Alder Lake-N processor
Tough form factor for rugged operation
Options for POE and wide input DC power
Option to upgrade to Core i3

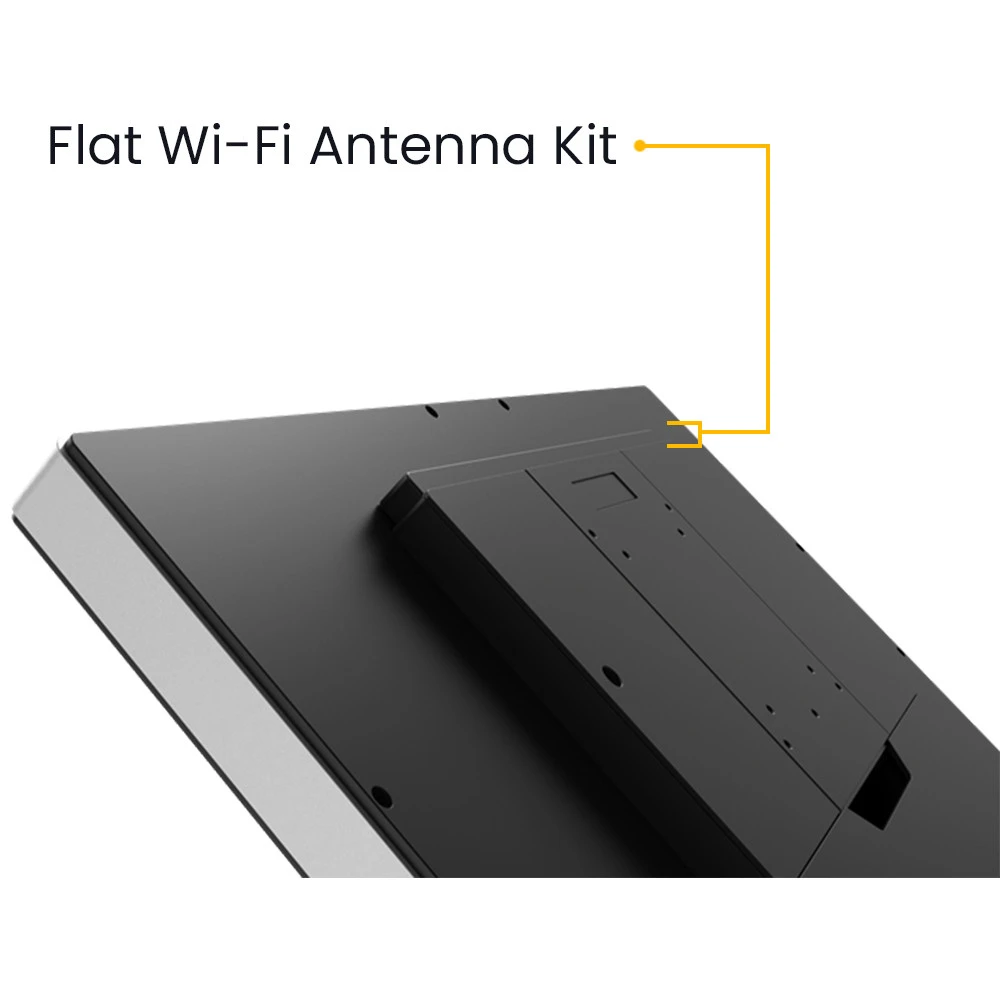

Durable Flat Wi-Fi Antenna Kit

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core I series 12th Generation Alder Lake
Processor Model	Core i3-N305, Intel Processor N97
Processor Speed	Up to 3.6 GHz, Up to 3.8 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB
Storage Support	128GB-1TB

Display

Screen Size	18.5"
Resolution	1366 x 768
Screen Ratio	16:9
Brightness	450 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 3.0 type C, 2x USB 3.0, 4x USB 2.0
Serial / Com	3x RJ48 COM
Serial Protocol Detail	RS232
Ethernet / LAN	1x RJ45 GbE LAN
Video Outputs	1x DisplayPort via USB-C Alt Mode
Other Ports	1x RJ11
Power Input Port	4-Pole DIN (latching)

Power

Input Voltage Range	12-48V DC
Standard Power Adapter	External 19V/3.42A 65W DC Power Adapter (120W Adapter with Powered USB Option)

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro
Linux	Linux

Expansion Slots

Internal M.2	1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 for NVME SSD Support
Expansion Module support	1x Expansion Board Slot with Options for POE, Wide Range Power, Isolated Serial & LAN and Powered USB

Multimedia

Speakers	1x 3W Speaker
Camera	Optional 5MP Webcam

Thermal & Environmental

Operating Temperature	0°C - 40°C (32°F – 104°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive
Humidity Range	20% – 85% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP65 Front Bezel
Color	Black Touch w/ Silver Border and Black Rear (Default) or White Rear (Optional)
Led Indicator Light	Power
Control Buttons	Power Button, Power Switch
Mounting Options	VESA Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi 6 (AX)
Bluetooth	Optional Bluetooth 5.2

Weight / Dimensions

Weight	5 kg (11.0 lbs)

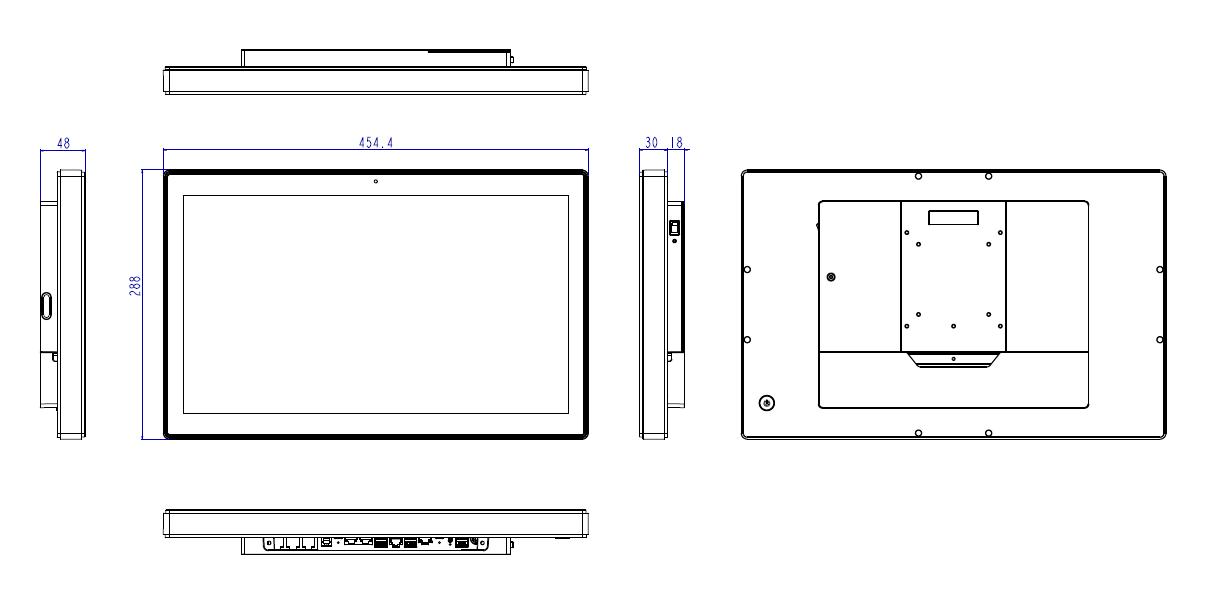

Dimensions	454 x 287 x 47 mm (17.9 x 11.3 x 1.9 in)

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Manufacturing: The TM-6140 series is well-suited for manufacturing environments, where it can be used for process control, data monitoring, and production line management. Its rugged design, fanless cooling, and durable housing make it ideal for withstanding the demands of industrial settings.

Warehousing and Logistics: These all-in-one computers can be utilized in warehouses and logistics operations for inventory management and order tracking. The PoE capability and DC power input options allow versatility to streamline operations and improve efficiency in a variety of use cases.

Shop Floor Automation: In industrial settings, these computers can be used for shop floor automation, providing real-time access to production data, work instructions, and quality control processes. Their ruggedness and compatibility with industrial protocols make them suitable for integration into automation systems.
