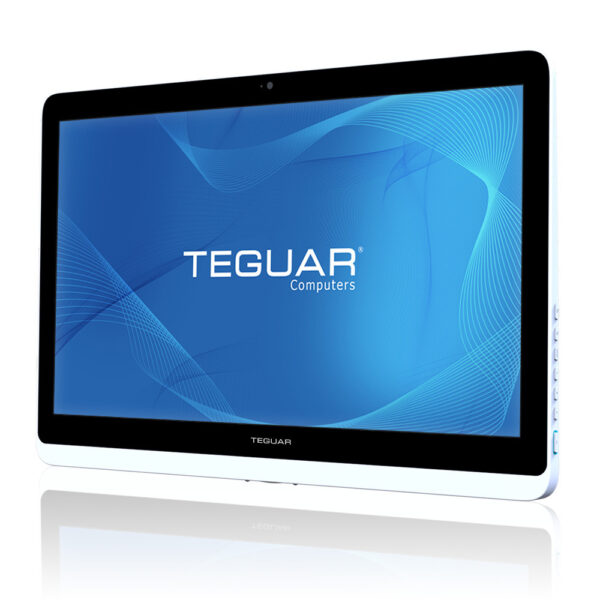

TM-5957-22i

22" Fanless AIO PC
Available – Contact Us for Quick Quote

Description

The TM-5957-22i features a powerful 11th generation Intel Core Tiger Lake i5/i7 processor capable of running Windows 11. Measuring at 44 mm in width and weighing only 11 pounds, this fanless all-in-one is the lightest industrial computer in its class. The lightweight and sleek design makes it ideal for applications where aesthetics matter, but make no mistake: The construction is rugged, and being fanless means that dusty and debris-filled environments are no problem. The front is IP65 rated, so this PC can withstand spills, sprays and repeated wipe downs with cleaning chemicals. Because of the fanless cooling system, this PC has quiet operation and prevents the spread of dust and germs. For easy integration with other devices, the TM-5957-22i comes standard fully packed with WiFi 6, BT 5.2, a front camera, and even isolated I/Os. Operators can even mount this device on a mobile workstation thanks to the optional 2-hour battery pack, which allows for swapping batteries without having to power down the computer or use a heavy battery-powered cart.

Key Highlights

  • Intel 11th Gen Tiger Lake Core i5/i7 CPU
  • Windows 11 Available Upon Request
  • Fanless cooling system makes for a dustproof chassis
  • Lightweight, Ultra-thin Design w/ white housing (black available at quantity)
  • High-Speed NVMe SSD Storage
  • Convenient & easily-accessible USB port on side
  • WiFi 6 Enabled
  • Need customization? Click here for OEM services.

Primary Components

Processor FamilyIntel Core I series 11th Generation Tiger Lake
Processor ModelCore i5 1145G7E
Processor SpeedUp to 2.8 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB, 64GB
Storage Type2x NVME SSD M.2 2280
Storage Support256GB (Standard), up to 1TB (Optional)

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness500 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)

External I/O Ports

USB4x USB 3.2, 5x USB 2.0
Serial / Com4x COM
Serial Protocol Detail4x RS232 (RJ48)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x HDMI
Audio Ports1x 3.5mm Headphone Jack

Power

Input Voltage Range19V DC
Standard Power Adapter4.74 Amp AC/DC Adapter

Battery

Battery TypeOptional Internal Battery
Battery Operating Time2hrs

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2
OtherDual RFID & Dual SmartCard

Multimedia

Speakers2x 3W Speakers
CameraStandard
Microphone2x Built-in Microphones

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-10°C - 55°C (14°F – 131°F)
Cooling SolutionPassive – Fanless

Enclosure

MaterialPlastic
IP RatingIP65 Front Bezel
ColorBlack, White
Control ButtonsDisplay on/off, On-Screen Display (OSD), Power Button
Mounting OptionsVESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFiWifi 802.11 a/b/g/n/ac/ax Wifi 6
BluetoothBluetooth 5.2
RFIDOptional Dual RFID (LF/HF)
Peripheral OtherReading Lights, Camera Privacy Latch

Weight / Dimensions

Weight5.8 kg (12.8 lbs)
Dimensions529.8 x 346.7 x 45 mm (20.9 x 13.6 x 1.8 in)

Certification

CertificationsEN 55011:2016+A2:2021 (RF), FCC Class B, IEC 61000-3-2 (EMC), IEC 61000-3-3 (EMC), ITE 62368, 60601-1 4th Edition

Warranty

WarrantyUp to 5 Years

The TM-5957-22i features a 21.5″ Full HD, P-Capacitive touchscreen and runs on the Intel Core i5/i7 processor. This computer is sleek, lightweight and stylish without sacrificing ruggedness. A fanless cooling system means this PC is dust and debris-proof, making it perfect for industrial environments.

Dimensional Drawings & I/Os

I/O Diagram Images

labeled inputs and outputs on a TM-5957-22i all in one PC

Tech Diagram Images

tech drawing for 22 aio pc TP-5900-22
