TM-5510-24

24" Medical Cart Computer with Hot Swappable Batteries

Available – Contact Us for Quick Quote

24" Medical All-in-One Computer | TM-5510-24

Medical Computer with Hot-Swappable Batteries

Description

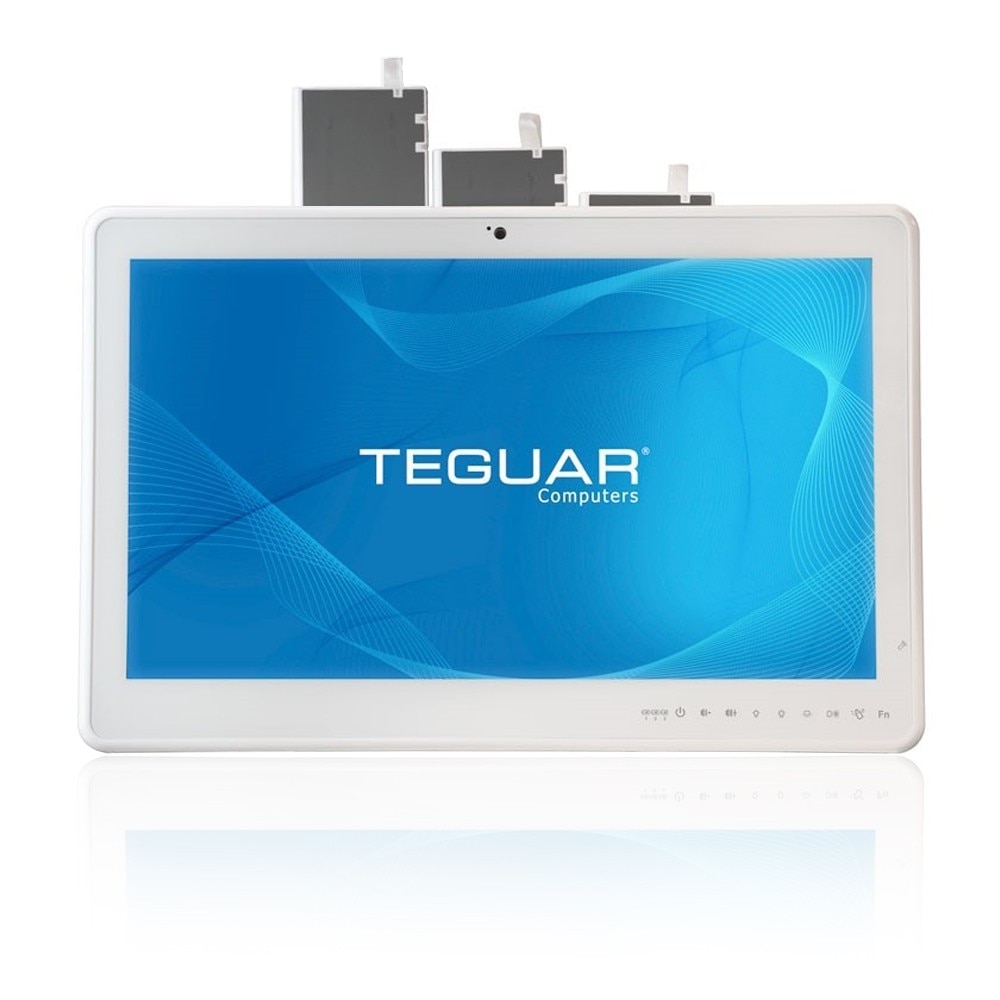

The TM-5510-24 features three hot-swappable batteries which give you 24/7 runtime, ideal for non-powered medical carts or Work Stations on Wheels (WOW). The high-resolution HD touchscreen and high performance Intel Kabylake CPU make this computer a premier choice in medical computers. This PC is ideal for applications including nursing stations, operating room imaging system, radiology information systems and other EMR systems, including EPIC software. Its fanless system prevents the spread of germs and allows for silent operation. The TM-5510-24 is 60601-1 4th Edition Certified and EMC 4.0/ Safety 3.1 Certified. It has easy-clean, anti-bacterial housing to prevent bacteria growth and an IP65 rated front bezel that can resist harsh cleaning chemicals.

Key Highlights

23.8″ Pcap Touchscreen
7th Gen Intel Core i5/i7 Processor
Easy Access Hot-Swappable Batteries for 24/7 operation
60601-1 4th Edition Medically Certified
1x PCI-Ex4 Slot
Anti-bacterial Housing with Front Control Buttons
Optional TPM 2.0 Security

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core I series 7th Generation Kaby Lake
Processor Model	Core i5-7200U
Processor Speed	2.5 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB
Storage Type	M.2, 1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support	32GB-1TB

Display

Screen Size	23.8"
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	250 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch)
Hardness	7H

External I/O Ports

USB	2x Optional USB 3.0, 4x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232, 1x RS-232/422/485
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	2x DisplayPort
Audio Ports	1x Audio Line-Out

Power

Standard Power Adapter

100~240V / 47~63 Hz

Battery

Battery Type

Optional Hot Swappable Battery

Operating Systems

Windows

Windows 10 IoT

Compatibility

Security Hardware

Optional TPM 2.0, Optional VPro

Expansion Slots

Video Card Support

Intel HD620

Multimedia

Camera	Optional 5MP Webcam
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	0°C - 40°C (32°F – 104°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Plastic
IP Rating	IP65 Front Bezel
Color	White
Led Indicator Light	Battery, Clean me, Fn Key, LCD On/Off
Control Buttons	Audio Down, Audio Up, Brightness Down, Brightness Up, Display on/off, Reading Light, Touchscreen Lock for Cleaning
Programmable Function Buttons	1x Programmable Function Key
Mounting Options	Table Mount, VESA 100 Mount
Approved Cleaning Solutions	Alcohol, Chlorine and Compounds, Glutaraldehyde, Hydrogen Peroxide, Ortho-phthalaldehyde (OPA), Quaternary Ammonium Compounds

Weight / Dimensions

Weight	9 kg (19.8 lbs)
Dimensions	594 x 397 x 56 mm (23.4 x 15.6 x 2.2 in)

Certification

Certifications

CE, FCC Class B, IEC 62133, UL 60950, 60601-1 4th Edition

Warranty

1 Year

Medical Workstations on Wheels: The TM-5510 Series is specifically designed to be used with medical workstations on wheels, providing healthcare professionals with a mobile and reliable computing solution for bedside charting, medication administration, and patient monitoring.

Point-of-Care Documentation: With its easy-clean housing and hygienic design, the TM-5510 Series is ideal for healthcare professionals to efficiently document patient information and update electronic health records (EHR) at the point of care.

Telemedicine and Remote Patient Monitoring: The TM-5510 Series supports telemedicine applications, allowing healthcare providers to conduct virtual consultations, monitor patients remotely, and provide timely care from a distance.

See the data sheet Warranty Download Drivers
