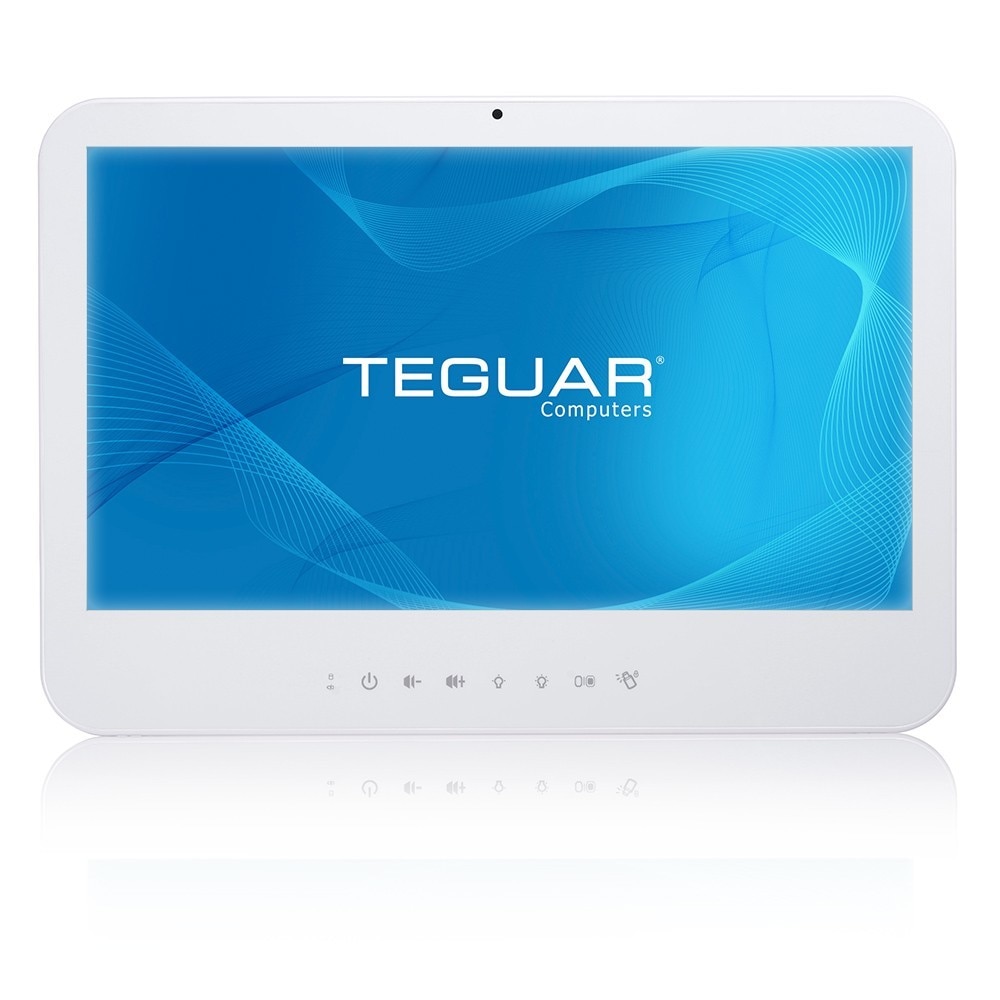

TM-5010-22F

22" Healthcare PC

Available – Contact Us for Quick Quote

Description

The TM-5010-22F healthcare computer is partner to the TM-5010-22. The major difference is the TM-5010-22F has a fan which allows for the extra bit of power (35W max) for higher CPU performance and a wider operating temperature range. Medical grade computer requirements are met or superceeded with the EMC 4.0 /and Safety 3.1 certification readiness. The highest performing CPU along with graphics capabilities, multiple USB slots, COM ports and expansion functions make this healthcare computer ideally situated for medical OEM use or in conjunction with DICOM program uses. The TM-5010-22F healthcare computer supports Intel vPro with options for TPM v2.0 for hardware security. The ten front function buttons are full flat flush and easily cleaned in the anti-bacterial housing.

Key Highlights

22″ P-Cap HD Multi-Touch Screen
Intel 6th Gen Core i3/i5/i7 CPU
Optional Built-In Battery Pack
60601-1 4th Ed Certified & Anti-bacterial Housing
Supports Intel vPro Hardware Security
PCI-E Expansion and 4KV Isolation Port Options

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core I series 6th Generation Skylake
Processor Model	Core i5-6200
Processor Speed	2.3 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	mSATA, 1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support	32GB-1TB

Display

Screen Size	21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	250 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch)
Hardness	7H

External I/O Ports

USB	4x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232, 1x RS-232/422/485 (RS485 supports auto flow control, Jumperless configuration in BIOS)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x DisplayPort, 1x DVI
Other Ports	4KV Isolation Option is 2x ISO COM, 1x ISO LAN, 1x ISO USB 2.0
Audio Ports	1x 3.5mm Audio Line-In, 1x 3.5mm Audio Line-Out

Power

Max Power Consumption	112W
Standard Power Adapter	AC 90V~264V / 47-63 Hz

Battery

Battery Type	Optional Internal Battery
Battery Operating Time	40min

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 7 Pro

Compatibility

Security Hardware

Optional TPM 2.0, Optional VPro

Expansion Slots

Video Card Support

Intel Integrated HD Graphics 530

Multimedia

Speakers	2x 1.5W Speakers
Camera	Optional 3MP Webcam

Thermal & Environmental

Operating Temperature	0°C - 40°C (32°F – 104°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Active – with Fan
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Plastic
IP Rating	IP65 Front Bezel
Color	White
Led Indicator Light	Battery, HDD Access, Power
Control Buttons	Audio Down, Audio Up, Brightness Down, Brightness Up, Clean me, Display on/off, Power Button
Shock Rating	Operating: 15g/0.53 oz, 11 ms, half sine wave
Drop Rating	3ft Drop Protection
Mounting Options	Desktop Stand, VESA Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 a/b/g/n/AC WLAN module + Optional Bluetooth
RFID	Optional RFID reader (13.56Hz) (5V USB)
Peripheral Other	Reading light

Weight / Dimensions

Weight	6.5 kg (14.3 lbs)
Dimensions	540 x 375 x 78 mm (21.3 x 14.8 x 3.1 in)

Certification

Certifications

CE, FCC Class B, VCCI, 60601-1 4th Edition

Warranty

Up to 5 Years

Clinical Documentation and EMR: The TM-5010 Medical Computer Series provides a reliable platform for electronic medical records and clinical documentation.

Telehealth and Virtual Consultations: These computers support telehealth services with optional camera and wireless connectivity.

Medical Point-of-Care Stations: The TM-5010 Series is ideal for efficient workflow management and patient care at medical point-of-care stations.
