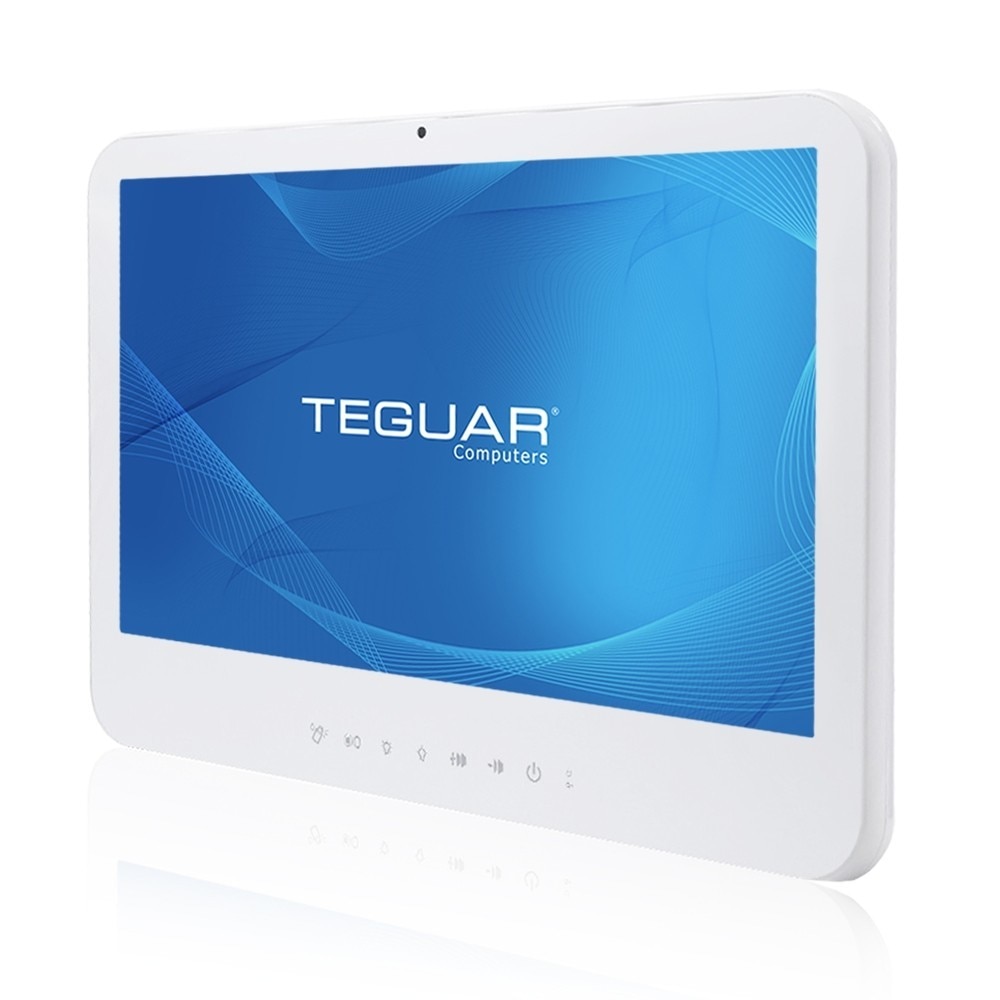

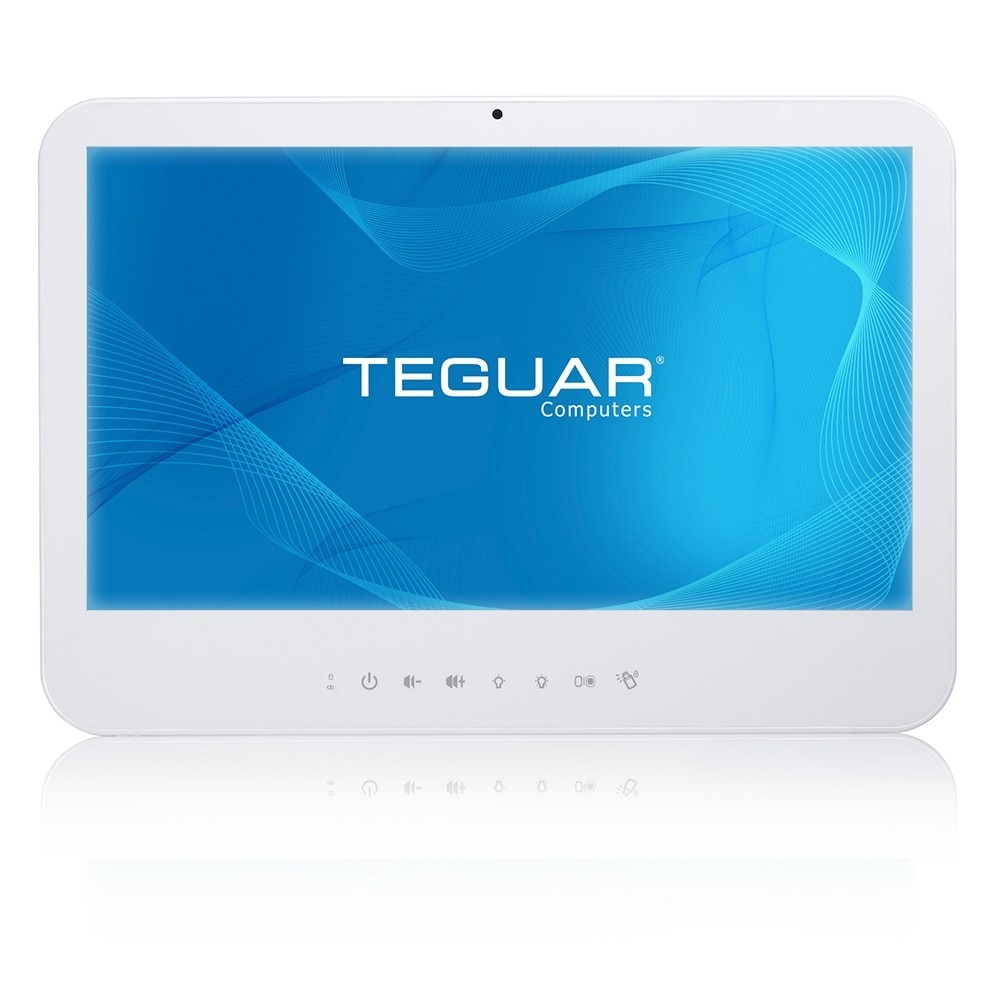

TM-5010-22

22" Healthcare Computer
Available – Contact Us for Quick Quote

Description

The TM-5010-22 fanless healthcare computer is the best in class of 22” medical computers. All recent medical grade computer requirements are met or superseded to meet new medical technology requirements with EMC 4.0 /and Safety 3.1 certification readiness. The high-performance CPU along with graphics capabilities, COM ports, multiple USB slots, and expansion functions make this healthcare computer ideally situated for the operating room or in critical care situations. The TM-5010-22 healthcare computer supports Intel vPro with options for TPM v2.0 for hardware security. An optional back-up battery pack and 4KV isolation give further versatility for applications in no-fail situations. The ten front function buttons are full flat flush and easily cleaned in the anti-bacterial housing.

Key Highlights

  • 21.5 ” P-Cap Full HD Touch Screen
  • 6th Gen Intel Core i3/i5/i7 CPU
  • Optional Built-In Battery Pack
  • 60601-1 4th Edition Certified
  • Supports Intel vPro Hardware Security
  • PCI-E Expansion and 4KV Isolation Port Options

Primary Components

Processor FamilyIntel Core I series 6th Generation Skylake
Processor ModelCore i5-6200
Processor Speed2.3 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage TypemSATA, 1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support32GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)
Hardness7H

External I/O Ports

USB4x USB 3.0
Serial / Com2x COM
Serial Protocol Detail1x RS-232, 1x RS-232/422/485 (RS485 supports auto flow control)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs2x DisplayPort
Other Ports4KV Isolation Option is 2x ISO COM, 1x ISO LAN, 1x ISO USB 2.0
Audio Ports1x 3.5mm Microphone Jack, 1x Audio Line-Out

Power

Max Power Consumption80W
Standard Power AdapterAC 90V~264V / 47-63 Hz

Battery

Battery TypeOptional Internal Battery
Battery Operating Time10min

Operating Systems

WindowsWindows 10 IoT, Windows 7 Pro

Compatibility

Security HardwareSupports Intel Vpro

Expansion Slots

Internal M.21x M.2 Type E
Video Card SupportIntel Integrated HD Graphics 520

Multimedia

Speakers2x 1.5W Speakers
CameraOptional 3MP Webcam
MicrophoneOptional Microphone built-in to I/O cover

Thermal & Environmental

Operating Temperature0°C - 35°C (32°F – 95°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialPlastic
IP RatingIP65 Front Bezel
ColorWhite
Led Indicator LightBattery, HDD Access, Power
Control ButtonsAudio Down, Audio Up, Brightness Down, Brightness Up, Clean me, Display on/off, Power Button
Shock RatingOperating: 15g/0.53 oz, 11 ms, half sine wave
Drop Rating3ft Drop Protection
Mounting OptionsDesktop Stand, VESA Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFiOptional 802.11 ac/a/b/g/n WLAN + Bluetooth 4.1 module (M.2)
RFIDOptional RFID reader (13.56Hz) (5V USB)
Peripheral OtherReading light

Weight / Dimensions

Weight7 kg (15.4 lbs)
Dimensions540 x 375 x 78 mm (21.3 x 14.8 x 3.1 in)

Certification

CertificationsCE, Energy Star 6.1 Compliance, FCC Class B, IEC 62133, VCCI

Warranty

WarrantyUp to 5 Years

Clinical Documentation and EMR: The TM-5010 Medical Computer Series provides a reliable platform for electronic medical records and clinical documentation.
Telehealth and Virtual Consultations: These computers support telehealth services with optional camera and wireless connectivity.
Medical Point-of-Care Stations: The TM-5010 Series is ideal for efficient workflow management and patient care at medical point-of-care stations.

Dimensional Drawings & I/Os

I/O Diagram Images

22" Healthcare Panel PC Drawing

Tech Diagram Images

healthcare computer IOs TM-5010-22
