TM-4757-13

13" Medical All in One Computer

Available – Contact Us for Quick Quote

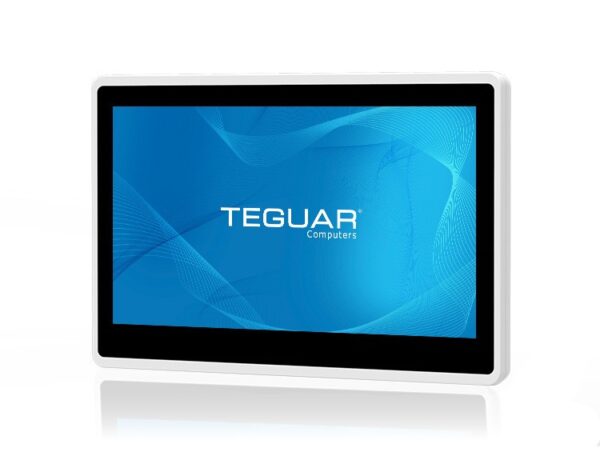

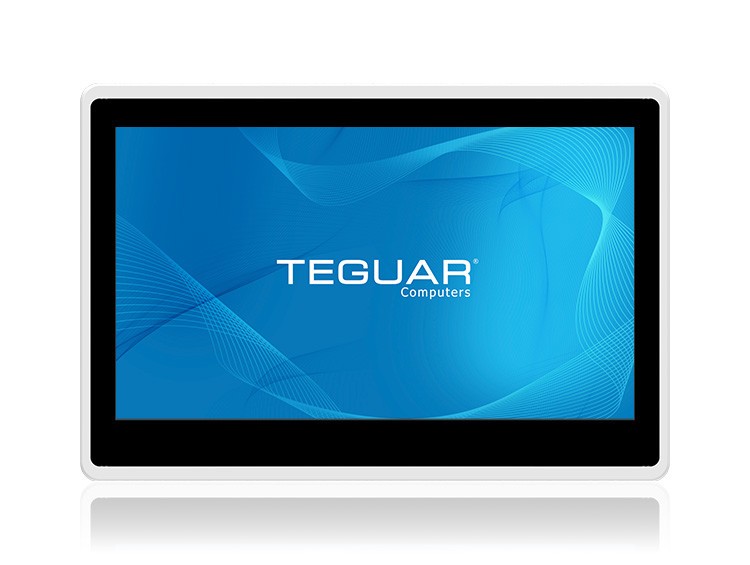

13" Medical All in One Computer TM-4757-13 Front

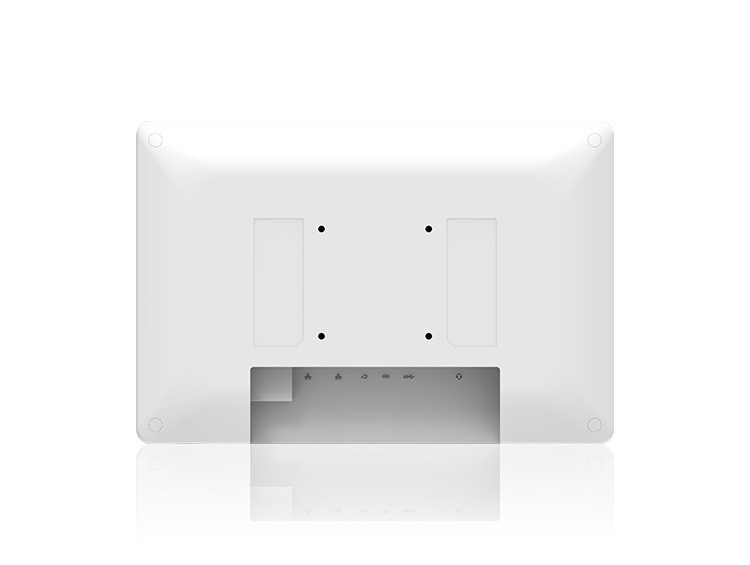

13" Medical All in One Computer TM-4757-13 Back

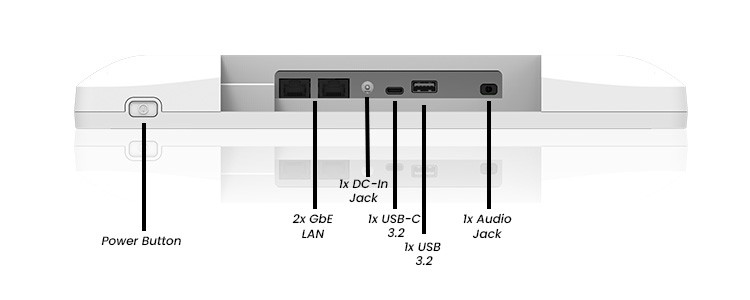

13" Medical All in One Computer TM-4757-13 Inputs and Outputs Empowered by Hailo provided upon request

Description

The 13” Medical All in One Computer integrates the robust Intel Pentium N6415 processor, ensuring reliable performance tailored for medical environments. This unit is designed to meets stringent industry standards, guaranteeing safety and reliability. With its compact 13″ screen size, it optimizes space without compromising on display clarity essential for medical tasks. For those custom projects with space constraints, the medical all in one computer offers flexibility and efficiency. The customization continues with optional features such as RFID and an internal battery, enhancing its versatility for specialized medical applications. The TM-4757 is a comprehensive solution for healthcare professionals seeking reliable, space-efficient computing solutions.

Key Highlights

13.3” Full HD Touchscreen
Intel Pentium N6415 Quad-Core CPU (Up to 3.0 GHz)
Designed for Medical Compliance
Empowered by Hailo-8 M.2 AI module up to 26 TOPS
Windows 11 Capable
Options available to add RFID and Internal Battery
Need customization? Click here for OEM services.

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Pentium N6415
Processor Speed	1.2 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 2242 NVME SSD Slot, 1x M.2 2280 SATA SSD Slot
Storage Support	128GB-1TB

Display

Screen Size	13.3"
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	400 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 3.2, 1x USB 3.2 Type-C (DP 1.4A)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x DisplayPort via USB-C Alt Mode
Audio Ports	1x 3.5mm Audio Line-Out

Power

Input Voltage Range	19V DC
Max Power Consumption	60W
Standard Power Adapter	External 19V/3.43A (65W) Medical Power Supply

Operating Systems

Windows	Windows 10 IoT, Windows 11 Pro
Linux	Linux

Expansion Slots

Internal M.2

1x M.2 2242 for NVME SSD Support, 1x M.2 2280 for SATA SSD Support

Thermal & Environmental

Operating Temperature	10°C - 40°C (50°F – 104°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing

Enclosure

Color	White
Control Buttons	Power Button
Mounting Options	VESA Mount

Peripherals & Wireless Connectivity

WiFi	WIFI 6 (AX) Included
Bluetooth	Bluetooth 5.3

Weight / Dimensions

Weight	1.8 kg (4.0 lbs)

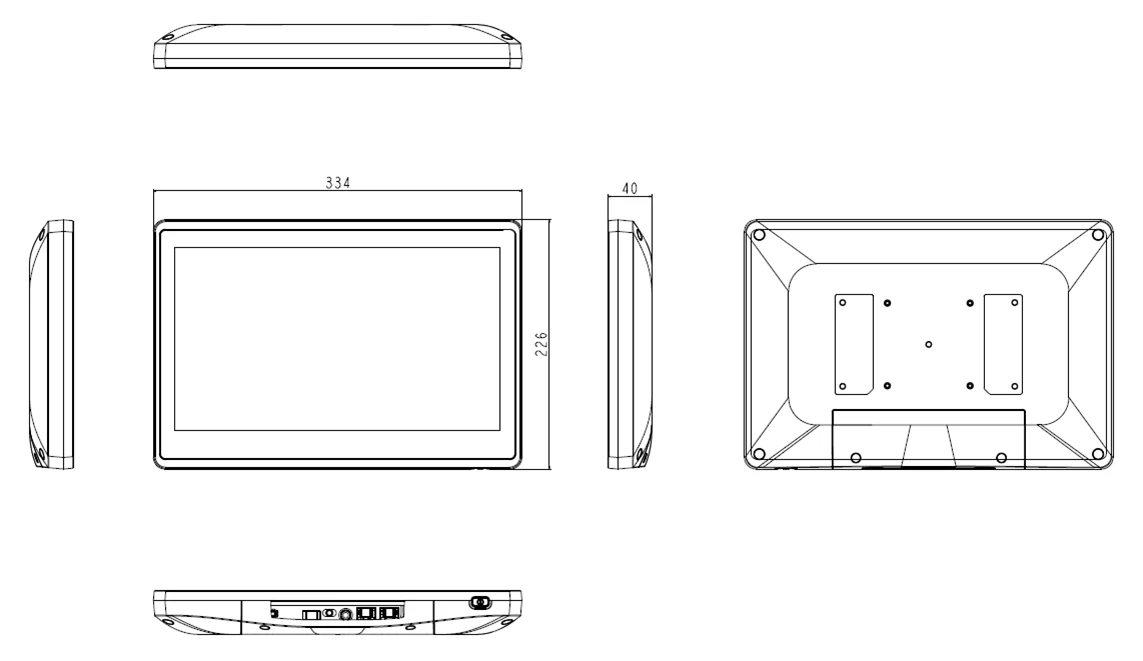

Dimensions	334 x 226 x 40 mm (13.1 x 8.9 x 1.6 in)

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Healthcare Computer: The TM-4757 series features medical-grade components and stringent compliance standards, ensuring reliability and security in healthcare settings. Its robust Intel Pentium N6415 processor supports critical applications for patient care and administrative tasks.

Point-of-Care: The TM-4757 serves as an efficient point-of-care computer with its compact design and 13″ Full HD display, facilitating easy access to patient records and medical data. It supports video output over USB-C for seamless connectivity to peripherals like monitors or projectors.

Custom Projects: TM-4757’s customizable options, including RFID and internal battery integration, make it ideal for tailored solutions in specialized environments. Its versatile design is able to meet unique project requirements.

See the data sheet Warranty Download Drivers
