TD-45-18

Name: TD-45-18
SKU: 2240597
Availability: InStock

Available – Buy Now or Contact Us for Quick Quote

Description

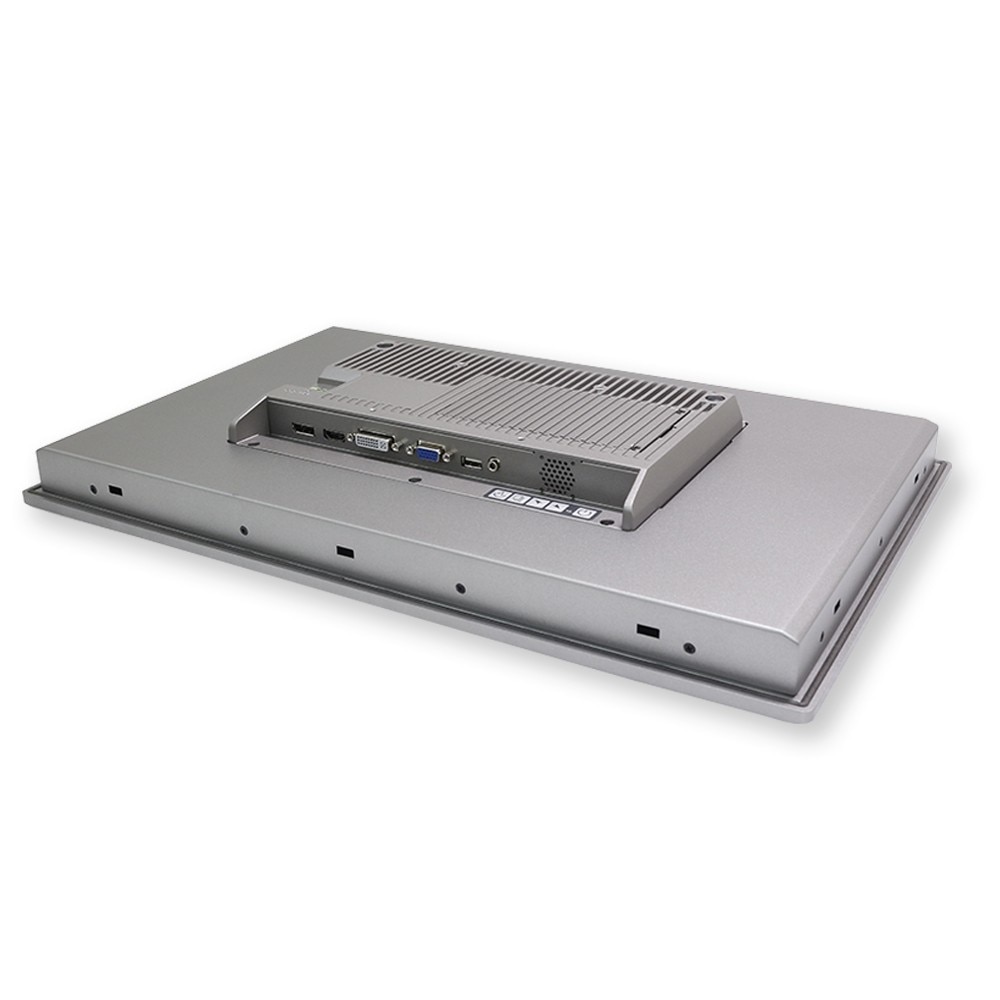

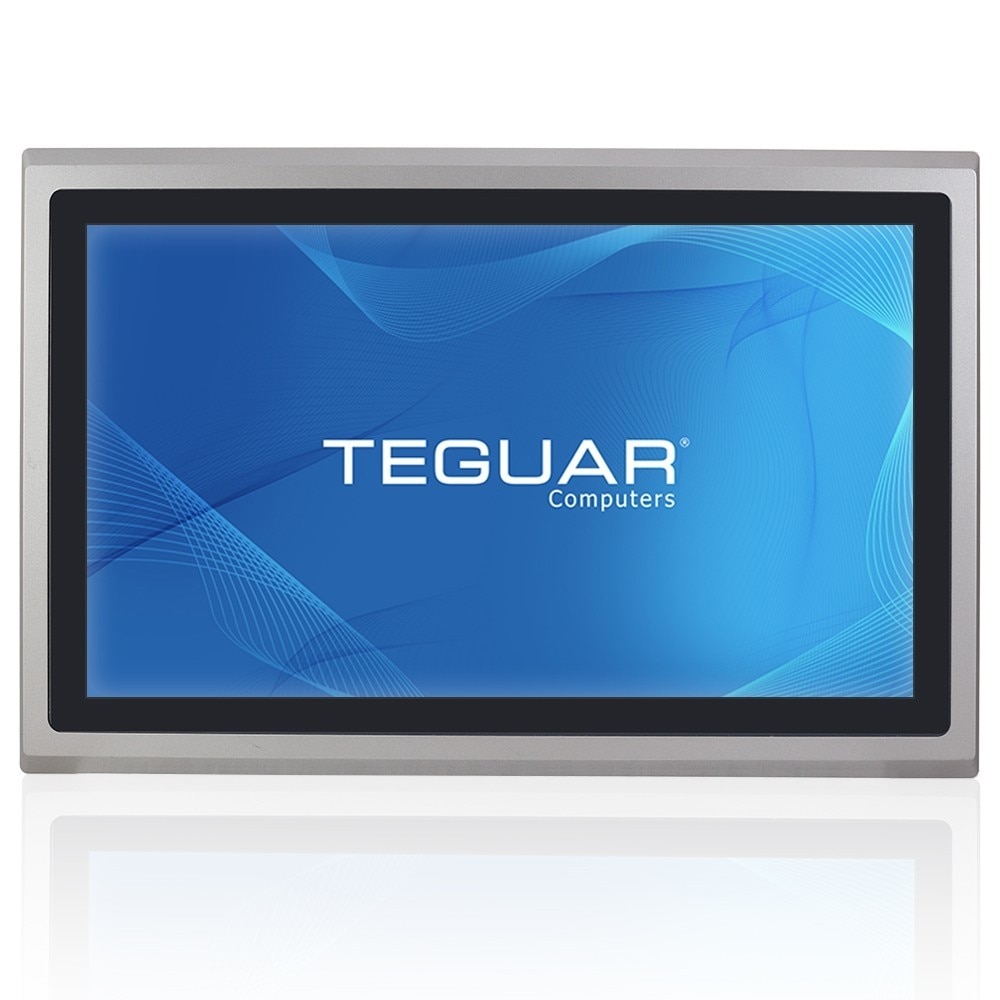

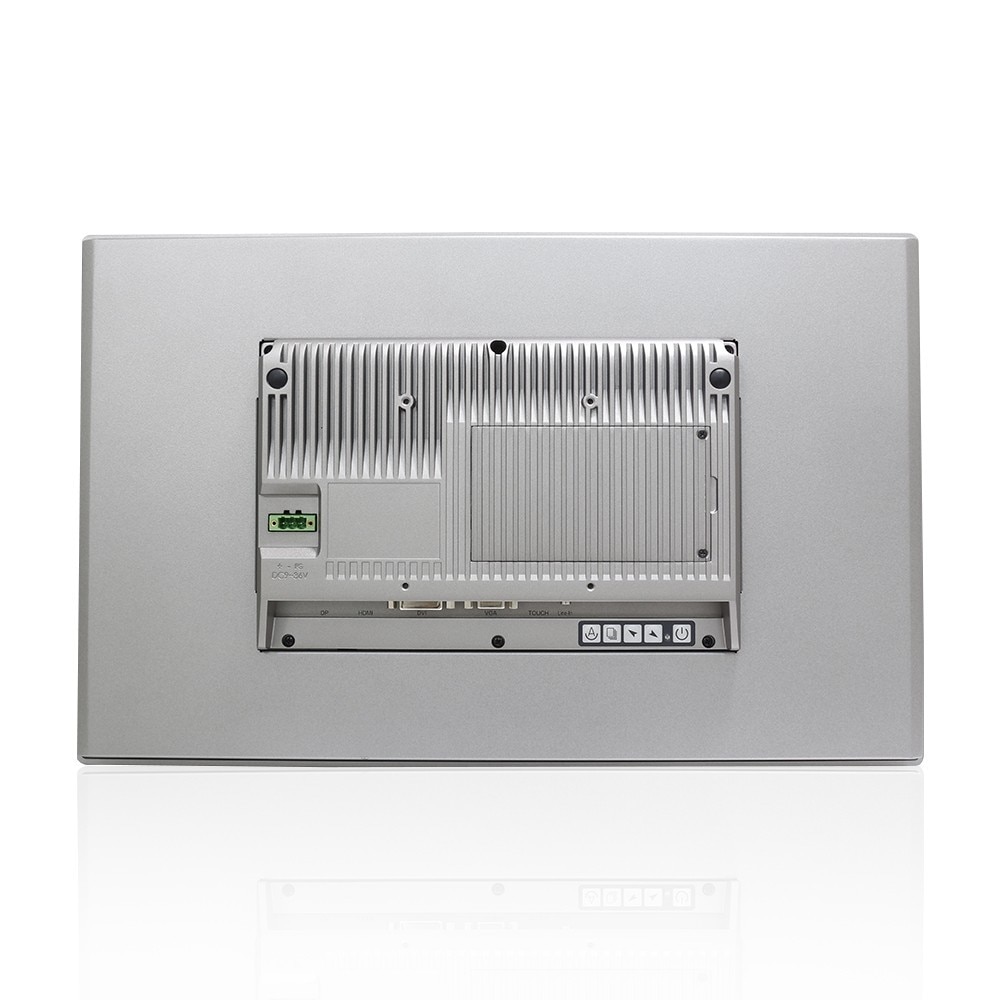

The TD-45-18 is a cost effective, versatile display with a die-cast aluminum enclosure, ideal for industrial environments. This versatile display can be panel mounted into a cutout in an enclosure or it can be mounted to an arm, stand, or hung on a surface. When panel mounted, the front bezel is IP66 rated and protected from liquids and dust. The TD-45-18 includes a wide range 9~36VDC power input and has an optional AC-to-DC power supply for AC powered applications. The same model is available in screen sizes from 7″ to 21.5″. These industrial touchscreen monitors can be connected to any computer, but most often times are connected to a fanless box PC. This offers a two piece rugged long life cycle solution. They can also be connected to other touchscreen panel PCs, where they operate as cloned displays or extended desktops.

Key Highlights

18.5″ LCD with 1366 x 768 Resolution
Optional Sunlight Readable 1000 Nit LCD
Rugged Die Cast Aluminum Enclosure
Full Flat Front Panel and Fanless Design
Resistive or Projected Capacitive Touchscreen
Wide Range DC 9~36V Power Input

Get a Demo Get a Quick Quote

Starting at: $1,108.76

Customize & Buy

Display

Screen Size	18.5"
Resolution	Optional 1920 x 1080, 1366 x 768
Screen Ratio	16:9
Brightness	Optional 1000 nit High Brightness, 300 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

Audio Ports	1x Optional Speaker with 1x Audio Input
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-32V DC
Max Power Consumption	19.7W (Resistive), 30.2W (P-Cap)
Standard Power Adapter	Optional 12V AC/DC Adapter

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Silver
Mounting Options	Panel Mount, VESA 100 Mount
Approved Cleaning Solutions	Acetone, Alcohol, Club Soda, Hydrochloric Acid, Methyl Alcohol, Mineral Spirits, Nitric Acid, Sulfuric Acid (low concentration), Vinegar, Warm Water

Weight / Dimensions

Weight	6.4 kg (14.1 lbs)
Dimensions	499.6 x 314.6 x 59.9 mm (19.7 x 12.4 x 2.4 in)

Certification

Certifications

CE, FCC Class A

Warranty

Up to 5 Years

Outdoor Digital Signage: With options for a 1000 nit high brightness LCD and optical bonding, the displays are ideal for outdoor digital signage, providing excellent visibility in various lighting conditions.

Industrial Control Rooms: With their wide range of screen sizes, resolutions, and durable construction, the TD-45 series is suitable for industrial control room applications, delivering reliable performance and protection against liquids and dust.

Transportation and Logistics: The TD-45 Series, featuring fanless cooling systems and a wide range 9~36VDC power input, is suitable for transportation and logistics applications, providing robust and reliable displays for vehicle-mounted or outdoor environments.

See the data sheet Warranty Download Drivers
