TD-45-12

Name: TD-45-12
SKU: 2240593
Availability: InStock

12.1" Industrial Display

Available – Buy Now or Contact Us for Quick Quote

Description

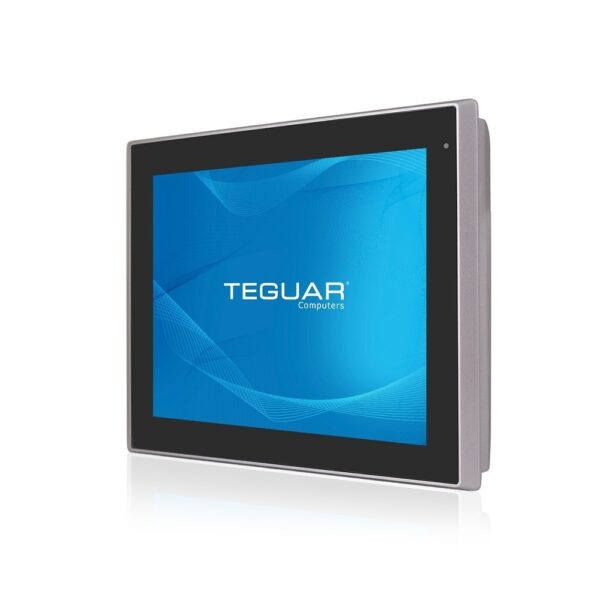

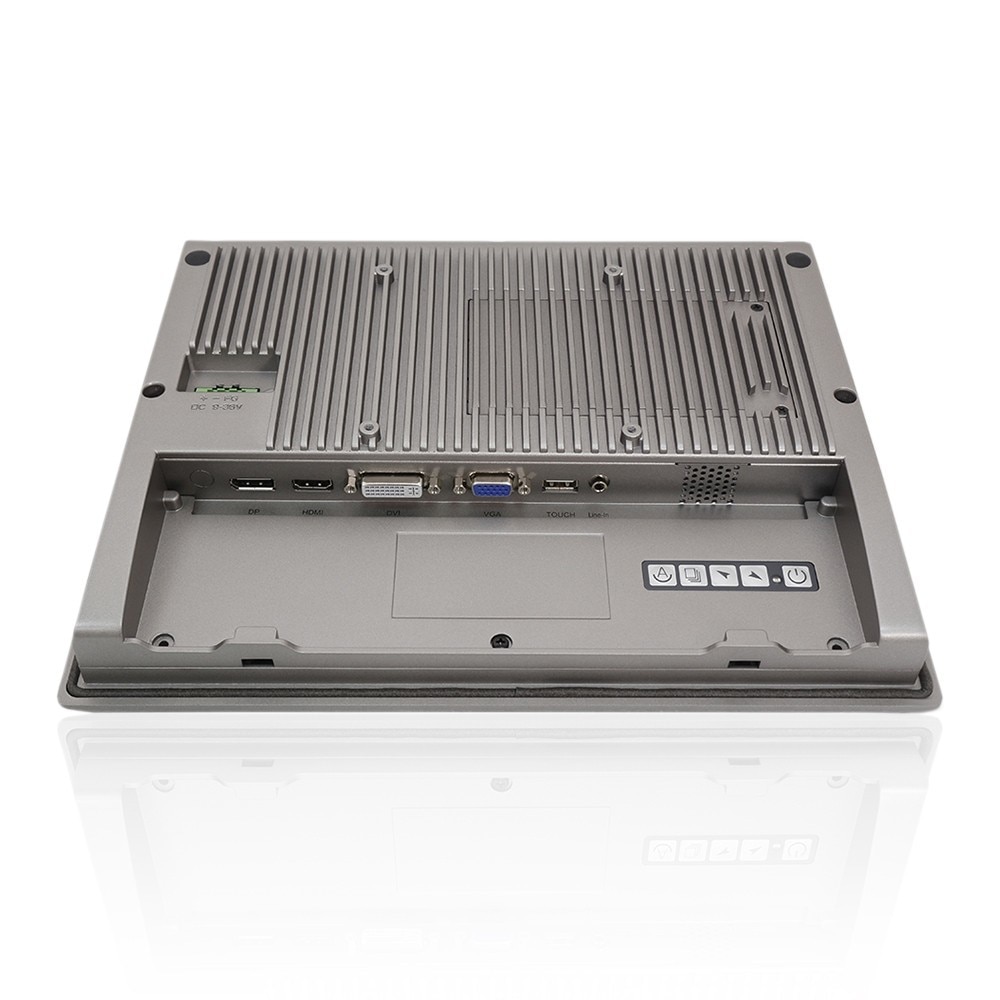

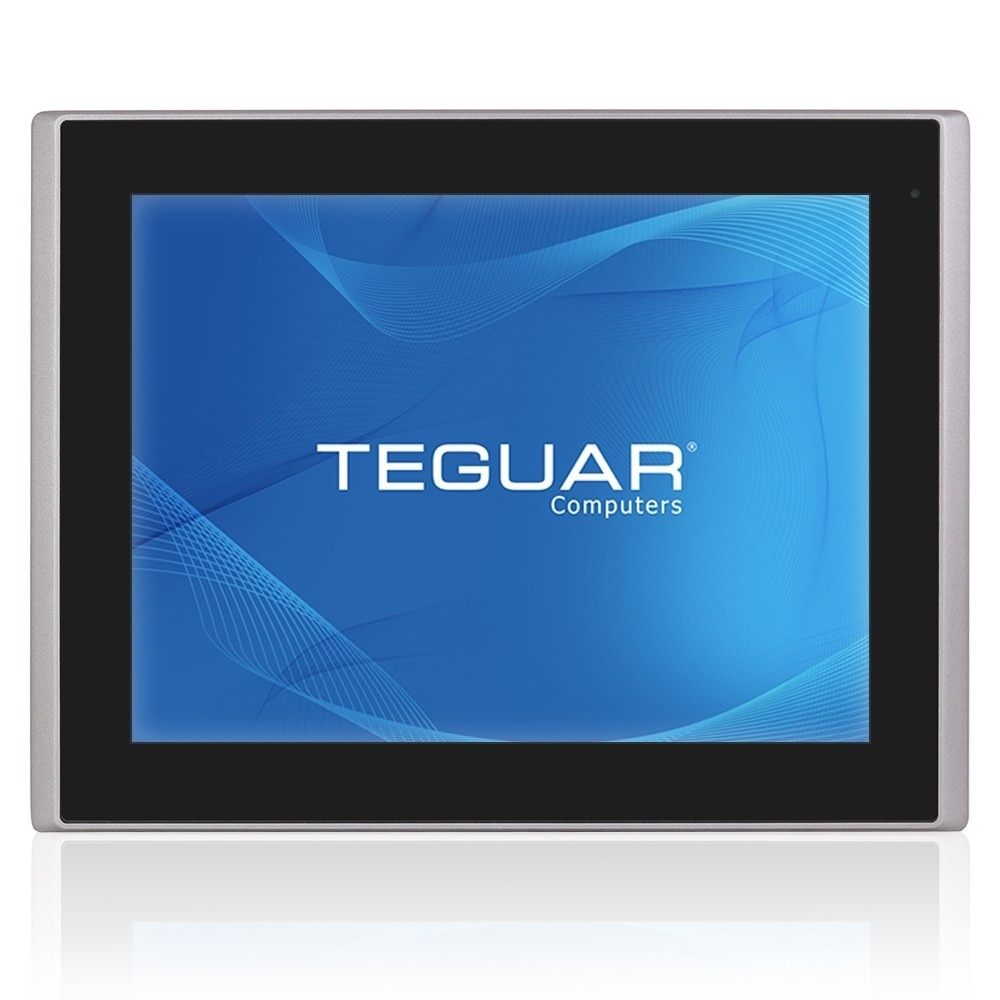

The TD-45-12 is a cost effective, versatile display with a die-cast aluminum enclosure, ideal for industrial environments. The same model is available in screen sizes from 7″ to 21.5″ and with either a resistive touchscreen or a projective capacitive touchscreen. The TD-45-12 includes VGA, DVI, HDMI, and DisplayPort video inputs. This industrial touchscreen monitor can be mounted to an arm, stand, hung on a surface, or panel mounted. When panel mounted, the front bezel is IP66 rated to protect from liquids and dust. The TD-45-12 provides a graphical user interface where the operator may perform tasks such as: operate a machine, view sensor data, or interact with ERP software.

Key Highlights

12.1″ LCD with 800×600 or 1024×768 Resolution
Rugged Die Cast Aluminum Enclosure
Full Flat Front Panel
Resistive or Projected Capacitive Touchscreen
Wide Range DC 9~36V Power Input
IP66 Compliant Front Panel

Get a Demo Get a Quick Quote

Starting at: $841.64

Customize & Buy

Display

Screen Size	12.1"
Resolution	Optional 1024 x 768, 800 x 600 (SVGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 450 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

Audio Ports	1x Optional Line in by RCA Jack
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-32V DC
Max Power Consumption	7.9W (Resistive), 14.8W (P-Cap)
Standard Power Adapter	Optional 12V AC/DC Adapter

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Silver
Mounting Options	Panel Mount, VESA 100 Mount

Weight / Dimensions

Weight	2.7 kg (6.0 lbs)
Dimensions	319 x 245 x 51.6 mm (12.6 x 9.6 x 2.0 in)

Certification

Certifications

CE, FCC Class A

Warranty

Up to 5 Years

Outdoor Digital Signage: With options for a 1000 nit high brightness LCD and optical bonding, the displays are ideal for outdoor digital signage, providing excellent visibility in various lighting conditions.

Industrial Control Rooms: With their wide range of screen sizes, resolutions, and durable construction, the TD-45 series is suitable for industrial control room applications, delivering reliable performance and protection against liquids and dust.

Transportation and Logistics: The TD-45 Series, featuring fanless cooling systems and a wide range 9~36VDC power input, is suitable for transportation and logistics applications, providing robust and reliable displays for vehicle-mounted or outdoor environments.

See the data sheet Warranty Download Drivers
