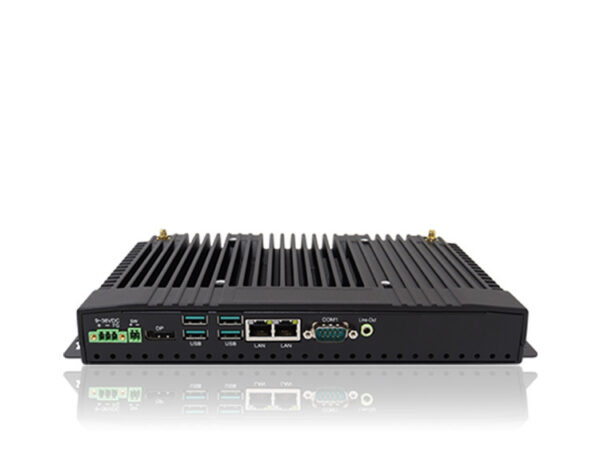

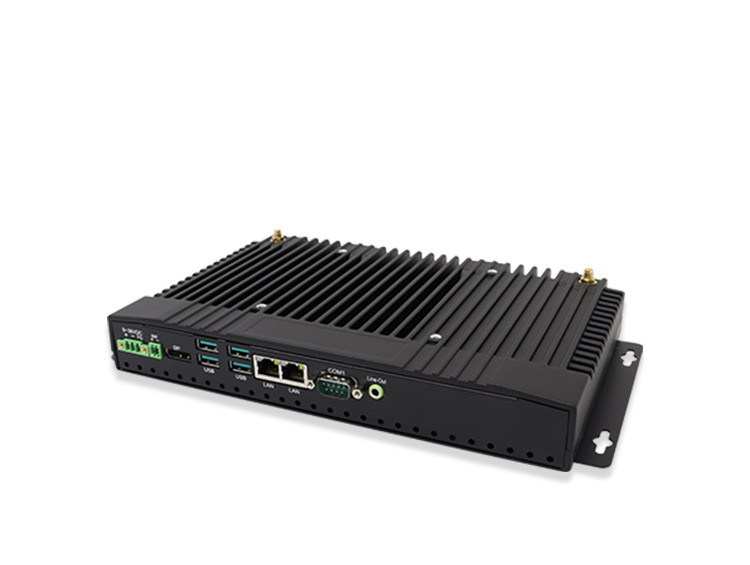

TB-5945

Industrial PC
Available – Buy Now or Contact Us for Quick Quote

Description

The Industrial PC is a pivotal asset in modern manufacturing environments, combining robust hardware and top-of-the-line features to streamline operations. Powered by an 11th Gen Core i processor, it ensures swift and efficient performance for demanding tasks. With multiple I/O expansion options, including TPM 2.0 security, it provides flexibility to adapt to diverse manufacturing needs, facilitating seamless integration with machinery, sensors, and other peripherals. This comprehensive solution empowers manufacturing processes with reliability, security, and efficiency, driving productivity to new heights.

Key Highlights

  • 11th Generation Core i Processor
  • Windows 11
  • Fanless Operation
  • TPM 2.0 Security and Encryption
  • Optional I/O Expansions

Starting at: $1,522.16

Customize & Buy

Primary Components

Processor FamilyIntel Core I series 11th Generation Tiger Lake
Processor ModelCore i3-1115G4E
Processor SpeedUp to 3.9 GHz, 2.2 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB, 64GB
Storage Type1x M.2 SATA3 2280 Slot
Storage SupportM.2: 256GB-1TB

External I/O Ports

USB4x USB 3.0
Serial / Com2x COM
Serial Protocol DetailCOM1 RS-232, COM2 RS-232/422/485 via Y-CABLE Included
Ethernet / LAN1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN
Video Outputs1x DP-1.4/HDMI combo Video Out
Audio Ports1x 3.5mm Audio Line-Out
Power Input Port3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range9-36V DC
Max Power Consumption28W
Standard Power Adapter19Vdc, 6.3A, 120W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option)
OtherOptional Daughter Boards for various I/Os

Thermal & Environmental

Operating Temperature-20°C - 60°C (-4°F – 140°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum
ColorBlack
Mounting OptionsVESA 100 Mount

Peripherals & Wireless Connectivity

WiFiWi-Fi 6 optional
BluetoothOptional Bluetooth 5.1
Sim Card1x Nano SIM Card Slot

Weight / Dimensions

Weight1.05 kg (2.3 lbs)
Dimensions252.7 x 158.7 x 36 mm (9.9 x 6.2 x 1.4 in)

Certification

CertificationsCE, FCC

Warranty

WarrantyUp to 5 Years

Manufacturing: With its fanless design and optional TPM 2.0 security, the TB-5945 ensures uninterrupted operation and protects sensitive data, critical for maintaining production efficiency and compliance. Its multiple I/O expansion options facilitate seamless integration with manufacturing equipment and control systems, enabling real-time monitoring and control.

Industrial Automation: The TB-5945’s compatibility with Windows 11 and powerful 11th Gen Core i processor make it an ideal platform for running sophisticated automation software and managing complex processes. Its reliable performance, coupled with various I/O expansion options, allows seamless connectivity with sensors, actuators, and PLCs, facilitating efficient automation workflows.

Warehouse Management: The TB-5945’s rugged construction and fanless design ensure durability and reliability in harsh environments. Its extensive I/O expansion options enable integration with barcode scanners, RFID readers, and inventory management systems, enhancing operational efficiency and accuracy.

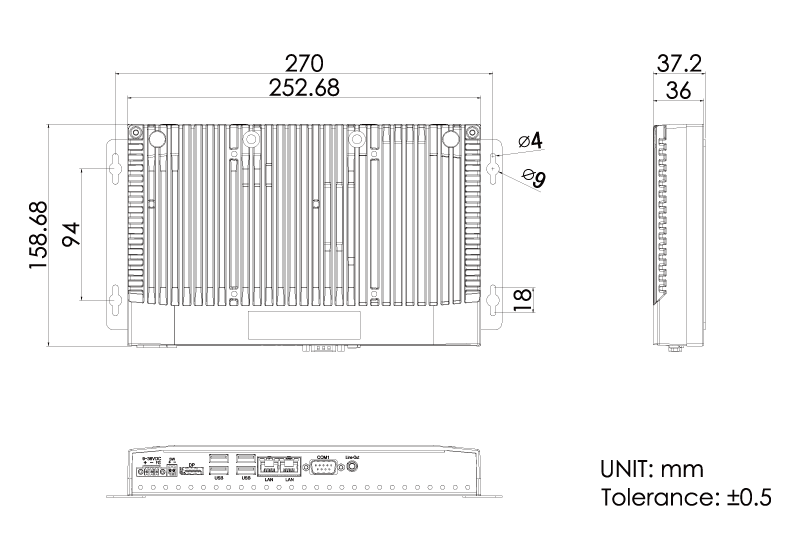

Dimensional Drawings & I/Os

I/O Diagram Images

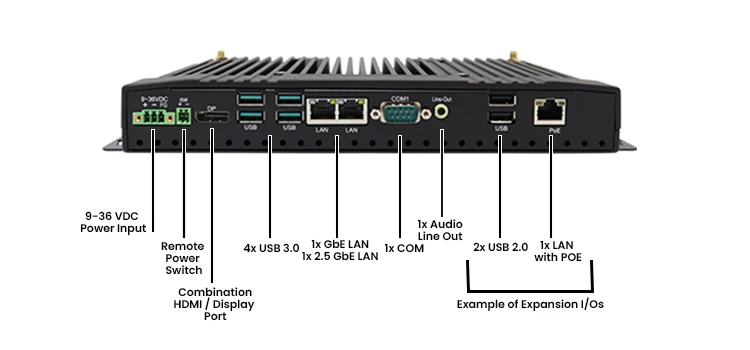

Industrial PC TB-5945 Labeled I/O Diagram

Tech Diagram Images
