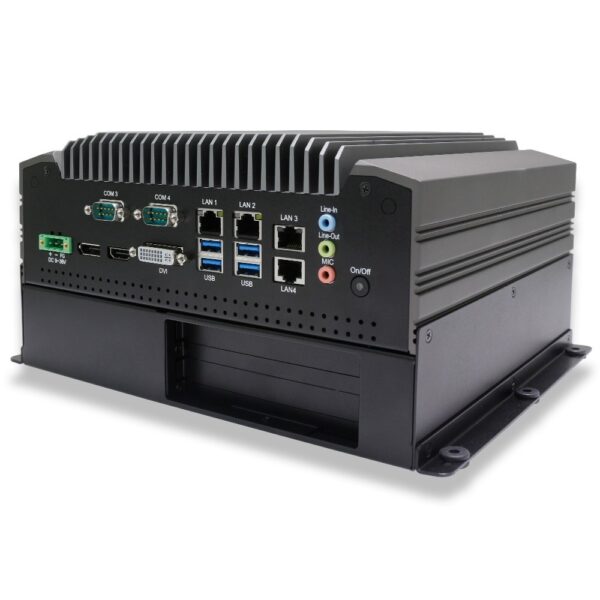

TB-5545-PCIe

Fanless PC with PCIe

Available – Contact Us for Quick Quote

Description

The TB-5545-PCIe is packed with features ideal for distributed industrial control systems such as discrete processing and SCADA systems. This box PC can be configured with two PCIex1 slots or one PCIex4 slot and it has three independent video outputs that can connect the PC to multiple monitors. The TB-5545-PCIe also features four COM ports, four LAN ports, and four USB 3.0 type A ports. The 7th Gen Core i3/i5/i7 processor gives this box PC strong computing power, while the rugged steel housing with aluminum heatsink gives it the industrial strength it needs to withstand tough industrial environments.

Key Highlights

Intel 7th Gen. Kaby Lake Core i3/i5/i7 CPU
2x SO-DIMM, up to 32GB DDR4 Memory
Three Independent Video Outputs
2x PCIex1 or 1x PCIex4 Expansion Slots
Easy-Access Storage Bay
Wide Range Power Input (DC 9~36V)

Get a Demo Get a Quick Quote

Why Buy from Teguar

✆ Dedicated, Quick Response Customer Support Experts
✓ 30-Day Worry Free Return, Plus Up to 5 Years Warranty
★ Top-Rated by Our Customers on Google & Trustpilot

Primary Components

Processor Family	Intel Core I series 7th Generation Kaby Lake
Processor Speed	Up to 2.9 GHz Base
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB

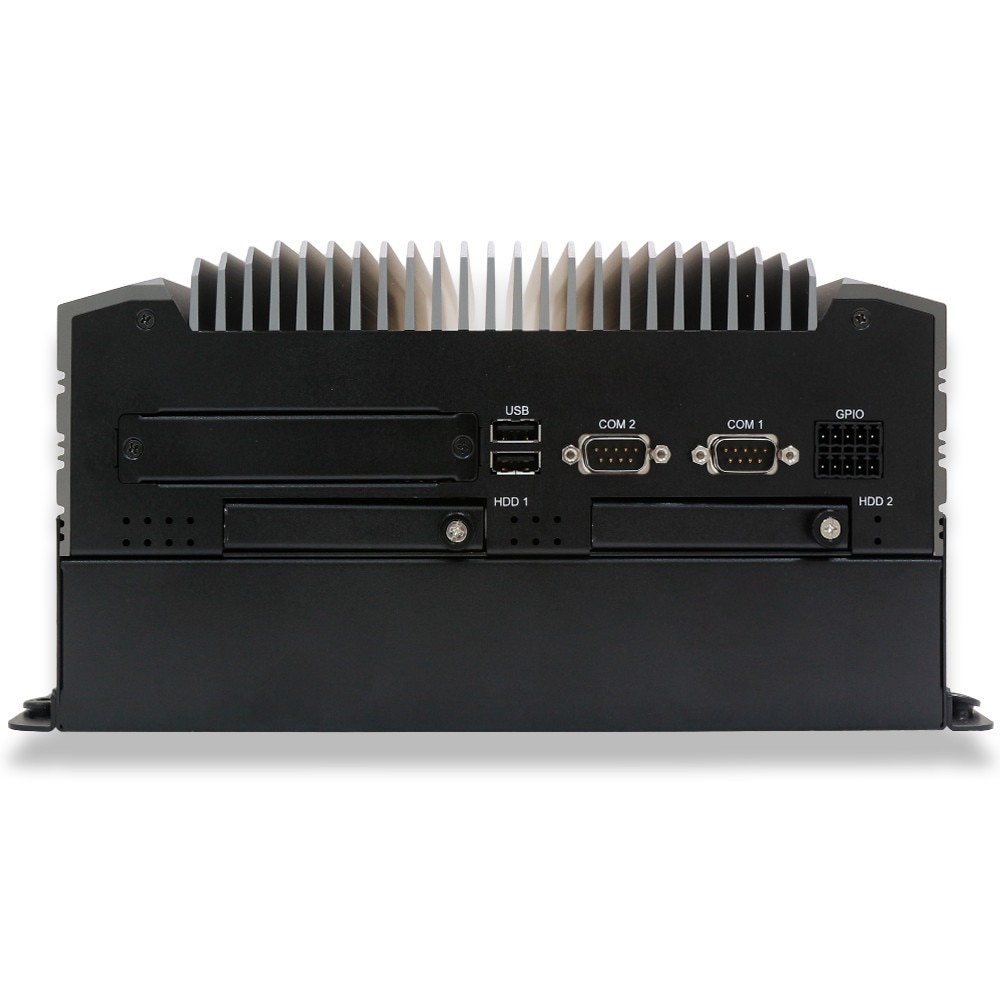

Storage Type	2x 2.5" SATA Drive Bay for SSD/HDD (easily accessible)
Storage Support	Accessible Bays Support RAID 0/1, 32GB-2TB

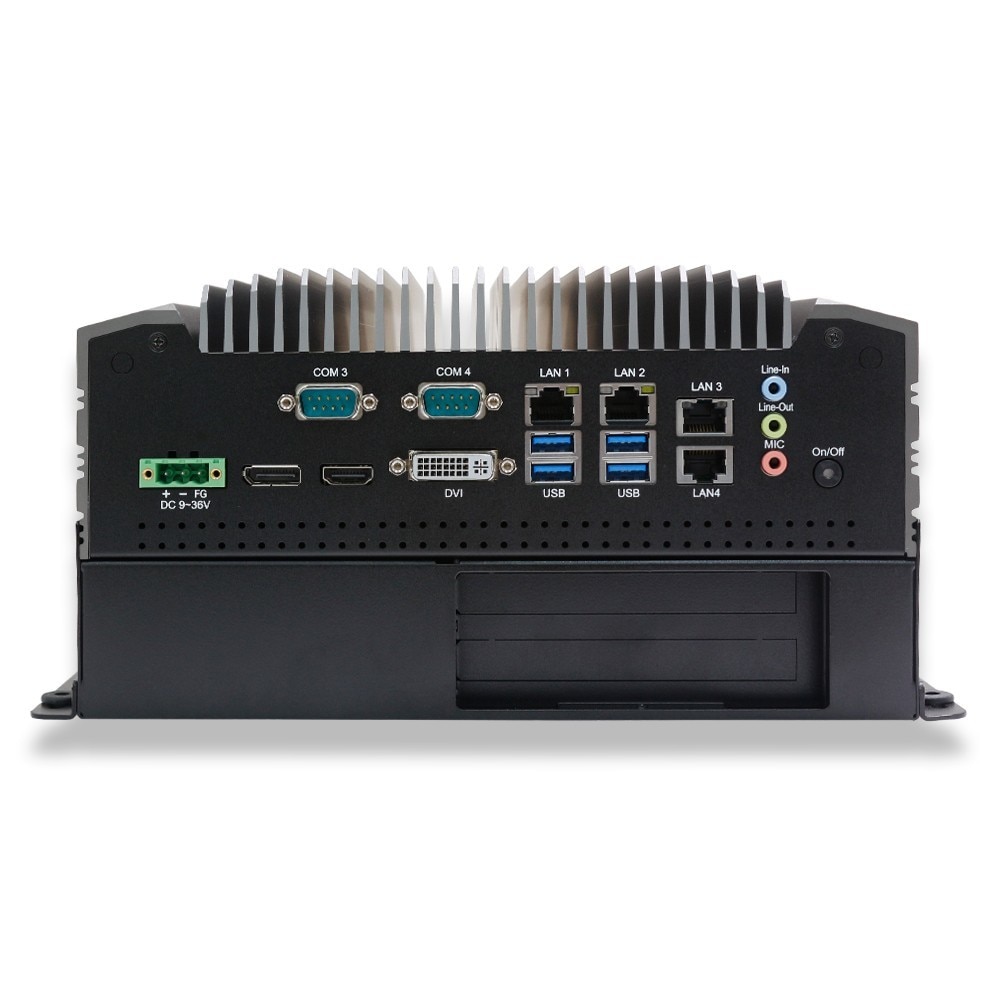

External I/O Ports

USB	2x USB 2.0, 4x USB 3.0
Serial / Com	4x COM
Serial Protocol Detail	2x RS-232/422/485 DB-9, default RS232(COM1/2), 2x RS232 DB-9(COM3/4)
Ethernet / LAN	4x RJ45 GbE LAN
Video Outputs	1x DisplayPort, 1x DVI-I, 1x HDMI
Other Ports	1x GPIO 8-bit digital I/O (4x DI, 4x DO)
Audio Ports	1x Audio Line-Out
Power Input Port	Locking Type

Expansion Slots

Other

2x PCIe (x1) Slots, or 1x PCIe (x4) Slot

Thermal & Environmental

Operating Temperature	-20°C - 60°C - -20°C - 50°C (-4°F – 140°F (i3/i5 CPU), -4°F – 122°F (i7 CPU))
Storage Temperature	-40°C - 85°C (-40°F – 185°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Aluminum, Steel
Color	Black
Control Buttons	Power Button
Mounting Options	Wall Mount

Weight / Dimensions

Weight	5.5 kg (12.1 lbs)
Dimensions	280 x 230 x 134.6 mm (11.0 x 9.1 x 5.3 in)

Certification

Certifications

CE, FCC Class A

Warranty

1 Year

Machine Vision Systems: The rugged TB-5545 Series Industrial Box PCs, with their 7th Gen Intel Core i3/i5/i7 CPU and expandability options, are well-suited for machine vision applications in industrial environments, providing reliable performance and customized solutions.

Quality Control Systems: With their rugged steel housing and aluminum heatsink cooling, the TB-5545 Series Industrial Box PCs are specifically designed to meet the demands of quality control applications in industrial environments, ensuring reliable and efficient performance.

Industrial Monitoring and Control: The TB-5545 Series Box PCs, equipped with a 7th Gen Intel Core i3/i5/i7 CPU, makes them suitable for monitoring and controlling systems such as SCADA (Supervisory Control and Data Acquisition) in sectors like energy, utilities, and transportation.

See the data sheet Warranty Download Drivers
