TB-4840

Industrial NUC
Available – Buy Now or Contact Us for Quick Quote

Description

The Industrial NUC is a versatile computing solution tailored for confined spaces and industrial/commercial kiosks. Its compact design, around the size of a slice of toast, optimizes space while delivering robust performance powered by an efficient Celeron processor. Supporting both Chrome and Windows operating systems, including the latest Windows 11, this compact box PC ensures adaptability to diverse computing needs. Ideal for multitasking in small spaces, the Industrial NUC combines size and power, offering a dynamic solution for industrial environments and interactive kiosks, seamlessly bridging efficiency with space optimization in a technologically advanced package.

Key Highlights

  • Intel Celeron J6412 Processor Passmark Rating 3846
  • Supports Chrome, Windows 10, and Windows 11
  • Fanless Cooling System
  • Empowered by Hailo-8 M.2 AI module up to 26 TOPS (available upon request)
  • Supports Dual Display
  • Unique VESA Mounting Options

Starting at: $383.72

Customize & Buy

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412
Processor SpeedUp to 2.6 GHz
Memory TypeOnboard DDR4
Memory Support4GB
Storage TypeOnboard eMMC Flash, 1x M.2 2242 Slot, SATA3 or NVMe
Storage SupportM.2: 128GB-1TB, 128GB (On board)

External I/O Ports

USB1x USB 2.0, 3x USB 3.0
Serial / Com1x COM
Serial Protocol DetailDB9
Ethernet / LAN1x RJ45 GbE LAN
Video Outputs1x DisplayPort, 1x DisplayPort via USB-C Alt Mode, 1x HDMI
Audio Ports1x 3.5mm Audio Line-Out/Mic-In

Power

Input Voltage Range12V DC
Standard Power Adapter12V/3.0A US AC Power Supply 36W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 Pro
AndroidAndroid 13
LinuxLinux

Compatibility

Security HardwarefTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option), 1x M.2 for NVME SSD Support
SD card1x Micro SD Slot

Thermal & Environmental

Operating Temperature0°C - 35°C (32°F – 95°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive
Humidity Range20% – 85% Non-condensing

Enclosure

MaterialAluminum, Plastic
ColorBlack
Led Indicator LightPower
Control ButtonsPower Button
Mounting OptionsVESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFiWiFi 6 (optional)
BluetoothOptional Bluetooth 5.2

Weight / Dimensions

Weight0.36 kg (0.8 lbs)
Dimensions120 x 120 x 23 mm (4.7 x 4.7 x 0.9 in)

Certification

CertificationsCE, FCC, FCC ID, RoHS, UKCA

Warranty

WarrantyUp to 5 Years

Industrial Automation: The TB-4840 Industrial NUC, designed for confined spaces, is an optimal choice for embedded systems in industrial automation. Its compact form and efficient Celeron processor deliver reliable performance, making it ideal for integration into machinery and automation setups.

Manufacturing: Tailored for design, programming, and data analysis tasks in industrial environments, the Industrial NUC’s compact yet powerful design is well-suited for efficient multitasking on the manufacturing floor.

Interactive Kiosks: With adaptability and efficiency, the TB-4840 Industrial NUC is a preferred solution for interactive kiosks in the retail sector. Enhancing user interaction and delivering reliable performance, it seamlessly integrates into commercial environments.

Point-of-Sale Systems: Supporting Chrome and Windows operating systems, the Industrial NUC is compact and powerful, making it an excellent choice for point-of-sale terminals in the hospitality industry. Ensuring smooth transactions, it’s an essential component for retail and hospitality settings.

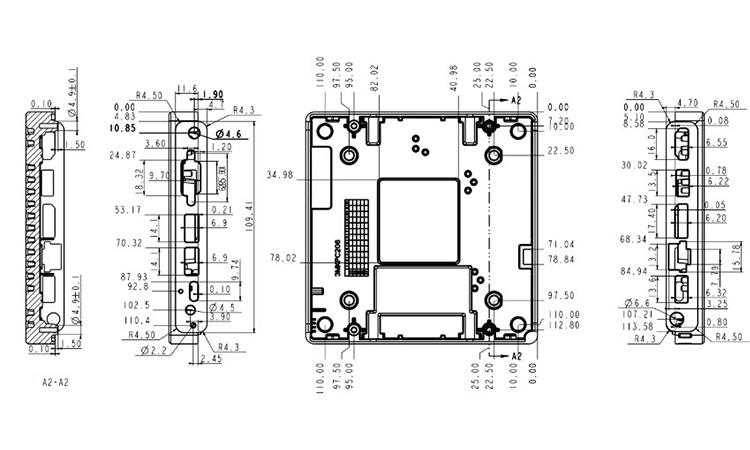

Dimensional Drawings & I/Os

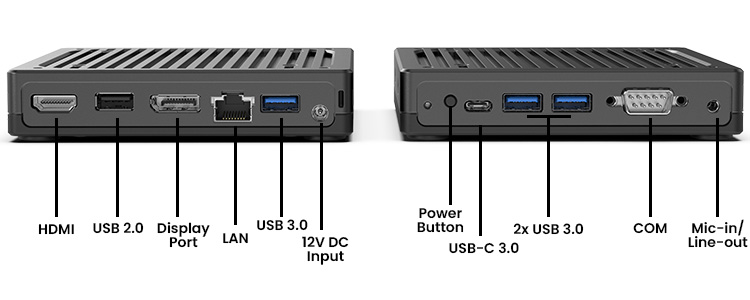

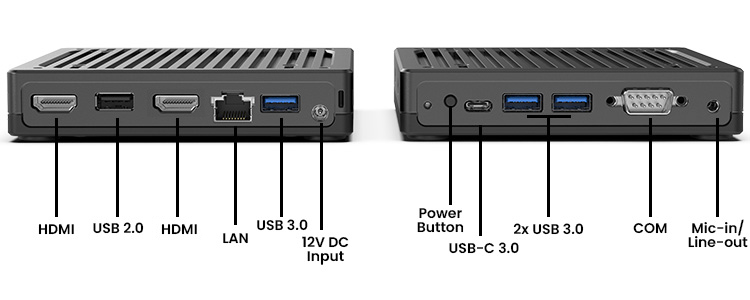

I/O Diagram Images

Tech Diagram Images
