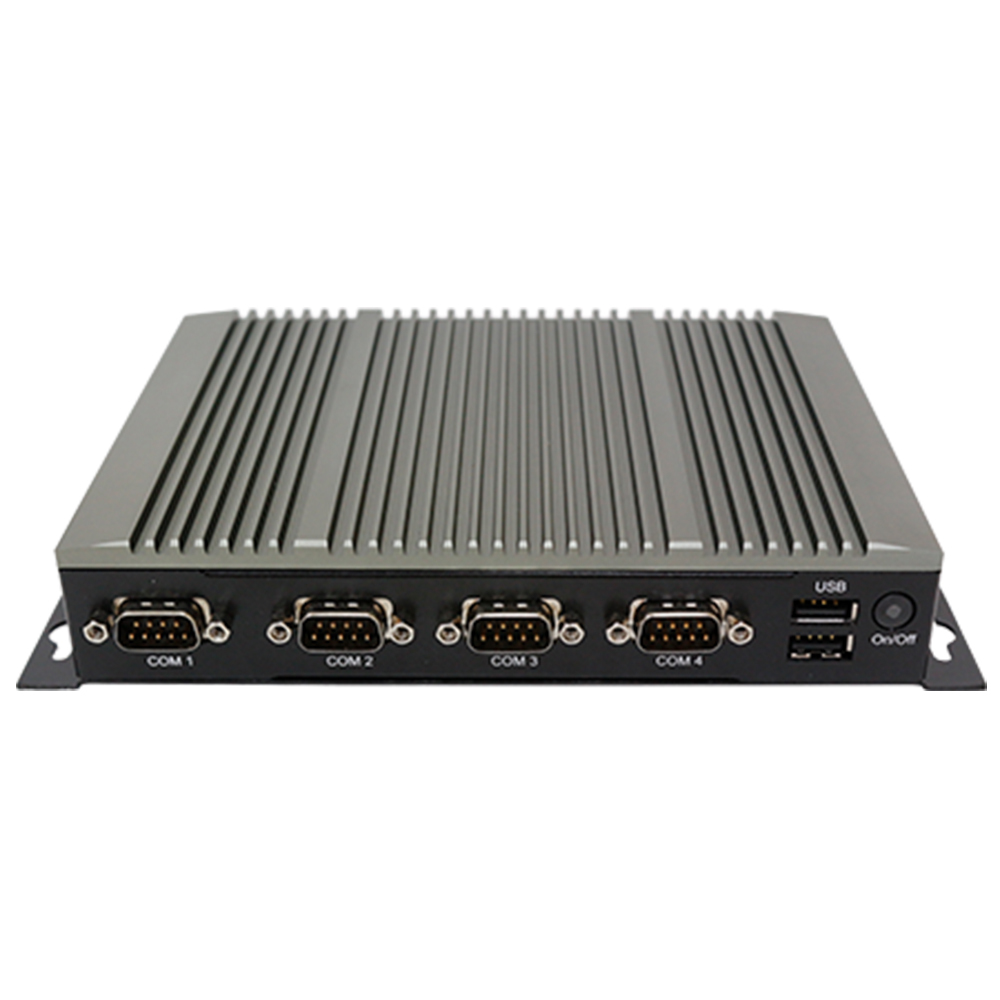

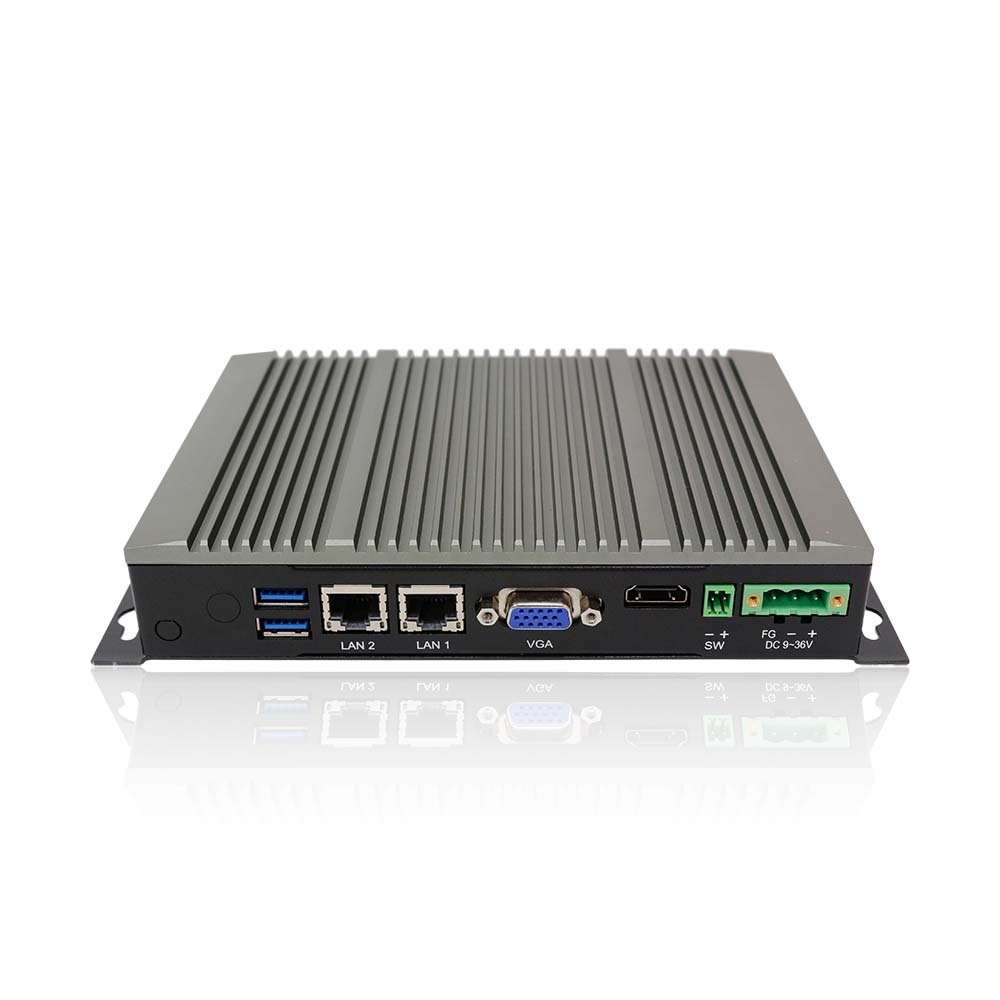

TB-4045

Name: TB-4045
SKU: 5266-45
Availability: OutOfStock

Rugged Box PC

Available – Buy Now or Contact Us for Quick Quote

Description

The TB-4045 Rugged Mini PC is a compact, reliable solution, at a similar price-point to consumer-grade PCs. This box PC is made for production lines, warehouses, control cabinets, and other enduring environments with heat, dust, or machine vibration that would damage a consumer-grade PC. The TB-4045 is small enough to fit next to your equipment and provide you a smooth windows operating system experience. It is fanless and has a wide operating temperature range. It also has abundant inputs/outputs and it runs on a quad-core Celeron CPU.

Key Highlights

Intel Celeron J1900 CPU
Wall Mountable, Compact Form Factor
Fanless, Rugged Housing
Wide Operating Temp (-20°C – 70°C)

Get a Demo Get a Quick Quote

Starting at: $536.36

Customize & Buy

Primary Components

Processor Family	Intel Celeron Bay Trail
Processor Model	J1900 Quad Core
Processor Speed	2.0 GHz
Memory Type	1x DDR3L SO-DIMM
Memory Support	4GB, 8GB
Storage Type	mSATA, 1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support	32GB-2TB

External I/O Ports

USB	2x USB 2.0, 2x USB 3.0
Serial / Com	4x COM
Serial Protocol Detail	Com1 configurable in BIOS RS-232/422/485; Com2 RS-232; COM3 and 4 RS-485 only
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x HDMI, 1x VGA
Other Ports	OPTIONAL: 1x 8-bit GPIO (4x DI, 4x DO)
Power Input Port	2-Pin Power Switch, 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range

9-36V DC

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 7 Pro
Linux	Linux (Contact your sales rep for more information)

Compatibility

Security Hardware

Optional TPM 2.0

Thermal & Environmental

Operating Temperature	-20°C - 70°C (-4°F – 158°F)
Storage Temperature	-40°C - 85°C (-40°F – 185°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Titanium Aluminum
Color	Black, Gray
Control Buttons	Power Button
Mounting Options	Wall Mount

Peripherals & Wireless Connectivity

WiFi	Optional WIFI via mPCIe expansion
Bluetooth	Optional Bluetooth 4.0
Mobile Network 4G LTE	Optional Cellular data via mPCIe expansion
Sim Card	1x SIM Card Slot

Weight / Dimensions

Weight	1.05 kg (2.3 lbs)
Dimensions	180 x 130 x 35.5 mm (7.1 x 5.1 x 1.4 in)

Certification

Certifications

ANSI C63.4, CE, FCC Class A, IEC 61000-3-2 (EMC), IEC 61000-3-3 (EMC), IEC 61000-4 (ESD)

Warranty

Up to 5 Years

Industrial Automation Systems: The TB-4045 Series Rugged Mini PCs, with their robust construction, fanless design, and wide operating temperature range, are ideal for industrial automation applications, providing reliable and durable computing power in challenging environments.

Remote Monitoring and Control: Designed to withstand harsh conditions, the TB-4045 Series Mini PCs are suitable for remote monitoring and control systems in industries such as energy, utilities, and transportation, offering long-term 24/7 operation and abundant inputs/outputs.

Manufacturing Execution Systems (MES): With their continuous 24/7 operation and resistance to heat, dust, and machine vibration, the TB-4045 Series Rugged Mini PCs are well-suited for MES applications in manufacturing environments, delivering durability, reliability, and cost-effectiveness.

See the data sheet Warranty Download Drivers

I/O Diagram Images

Tech Diagram Images
