Tech Specs
Primary Components
| Processor Family | Intel Core I series 14th Generation Raptor Lake |
| Processor Model | Core i5-14400, Core i3-14100, Core i7-14700, Core i9-14900 |
| Memory Type | 2x DDR5 SO-DIMM |
| Memory Support | Up to 96GB |
| Storage Type | 1x M.2 SSD Slot (2260/2242) for SATA, 1x M.2 SSD Slot (2280/2260/2242) for NVMe or SATA, 1x mSATA SSD Slot, 2x 2.5" SATA Drive Bay for SSD/HDD |

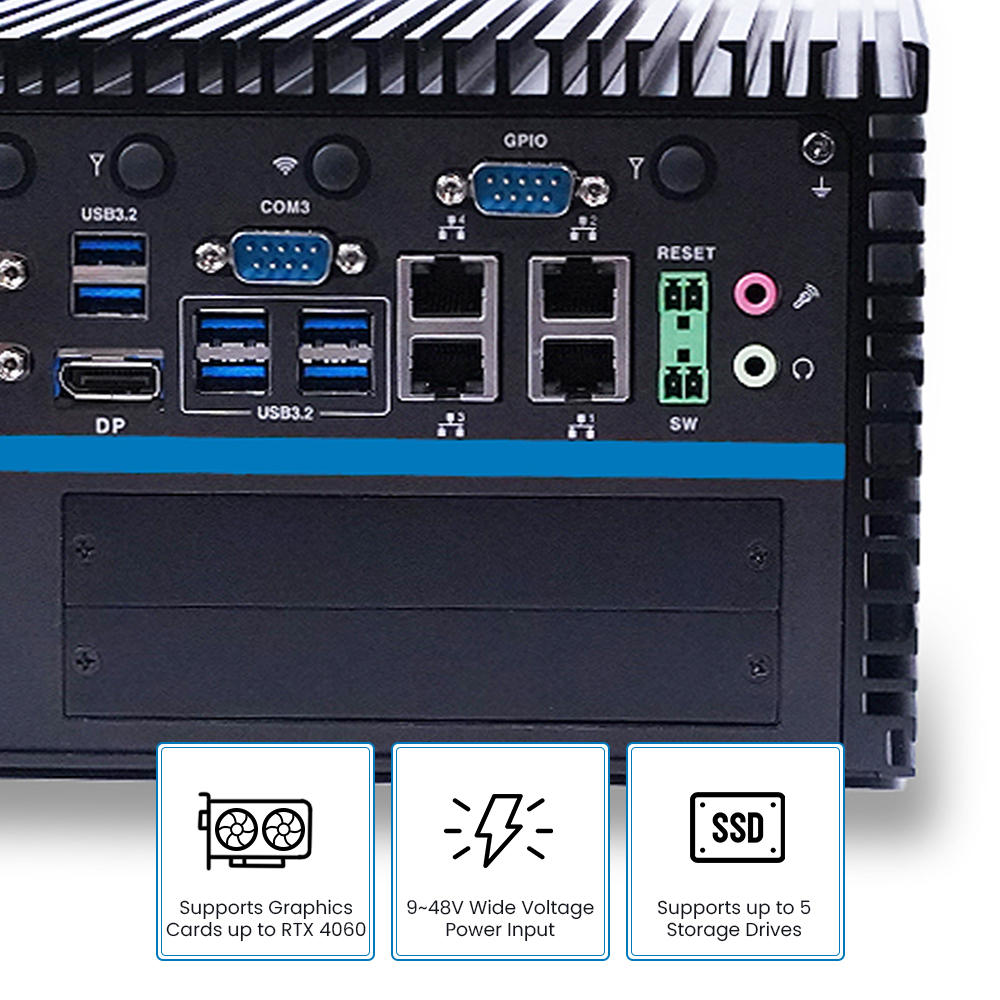

External I/O Ports
| Serial / Com | 3x COM |
| Serial Protocol Detail | 3x RS232/RS422/RS485 |
| Ethernet / LAN | 4x RJ45 2.5Gbe LAN (Optional PoE Module Available) |
| Other Ports | 1x 2-Pin DC Power Switch Connector, 1x 2-PIN Power Reset Connector, 1x 8-bit GPIO (in DB9 Connector) |
| Audio Ports | 1x Audio Line-Out, 1x Mic-In |

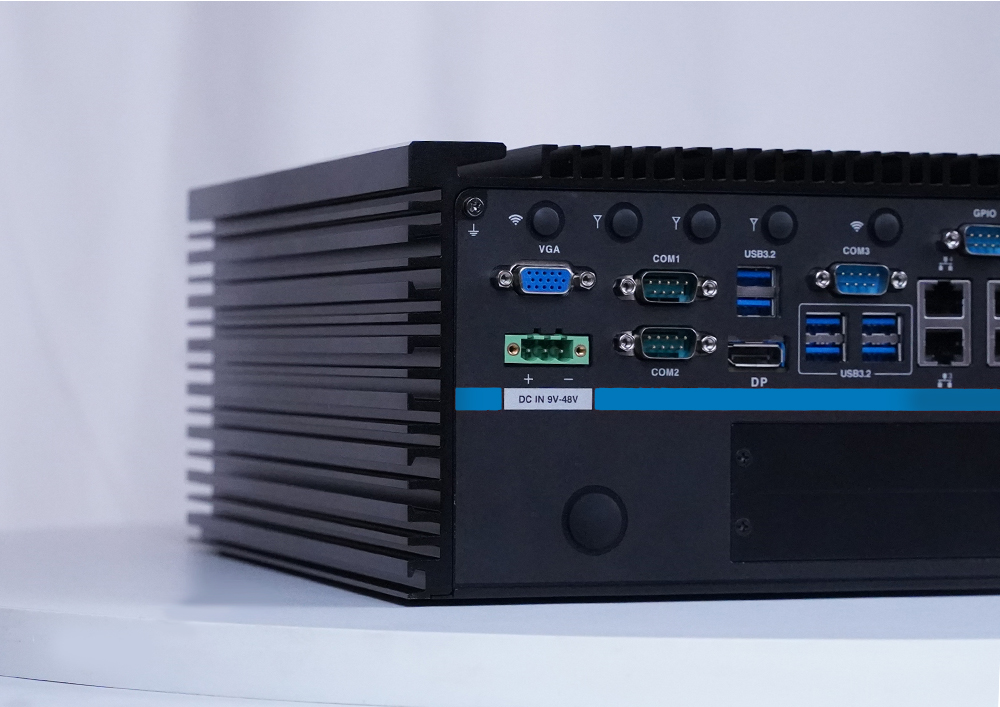

| Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range | 9-48V DC |
| Standard Power Adapter | 180W (12V/15A) GPU Power Supply (Only Required for GPUs needing more than 75W of Power), 300W (24V/12..5A) External Power Supply |
Operating Systems
| Windows | Windows 10 IoT, Windows 11 IoT, Windows 11 Pro |
| Linux | Linux Ubuntu 22.04 or above (Contact your sales rep for more information) |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 2260/2242 B-Key (USB2.0 / PCIeX1 / SATAIII), 1x M.2 2280/2260/2242 M-Key (PCIe x4 NVMe, SATAIII) |

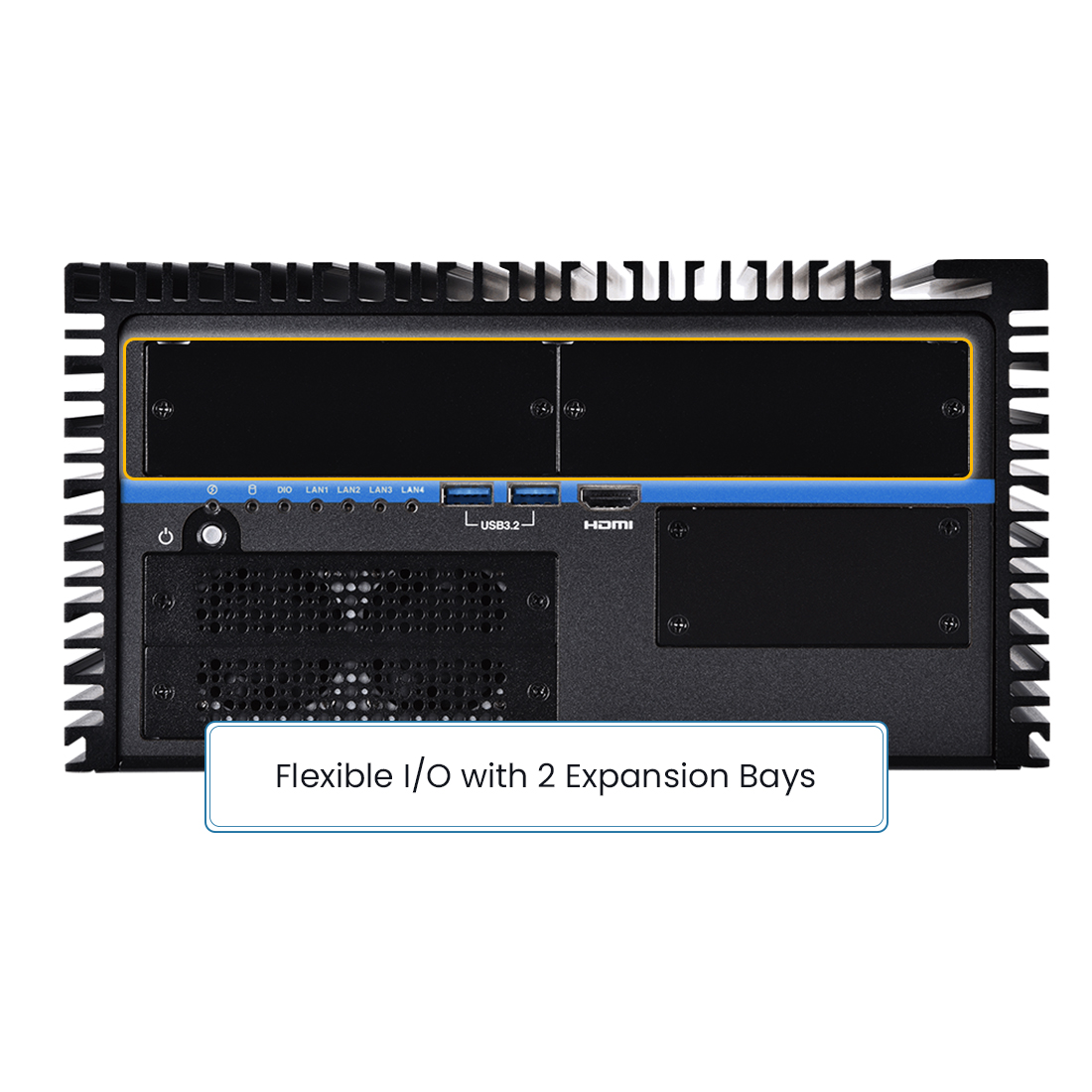

| Expansion Module support | Internal PoE+ Expansion (For RJ45 Ports Already Included, Does not take up Expansion Bay Slot), 2x Isolated CANBus + 1x Isolated GPIO (DB9) Expansion, 4x DB9 COM (RS232/422/485) + 1x Isolated GPIO (DB9) Expansion, 4x M12 LAN Expansion, 4x M12 LAN Expansion w/ PoE+, 4x RJ45 LAN Expansion, 4x RJ45 LAN Expansion w/ PoE+ |
| Video Card Support | Supports Cards up to 75W or 180W with External PSU (Max Dimensions - 221 x 145 x 43 mm) |
Thermal & Environmental
| Operating Temperature | -40°C - 50°C (-40°F to 122°F (with 0.7m/s Air Flow and Wide Temperature Memory/Storage)) |
| Storage Temperature | -40°C - 85°C (-40°F – 185°F) |
| Cooling Solution | CPU - Passively Cooled with Heatsink, PCIe Expansion Area - Actively Cooled with 2x 40x40x20mm Fans |
| Storage Humidity | 10%~95%, non-condensing |
Enclosure
| Material | Aluminum |
| Color | Black & Blue |

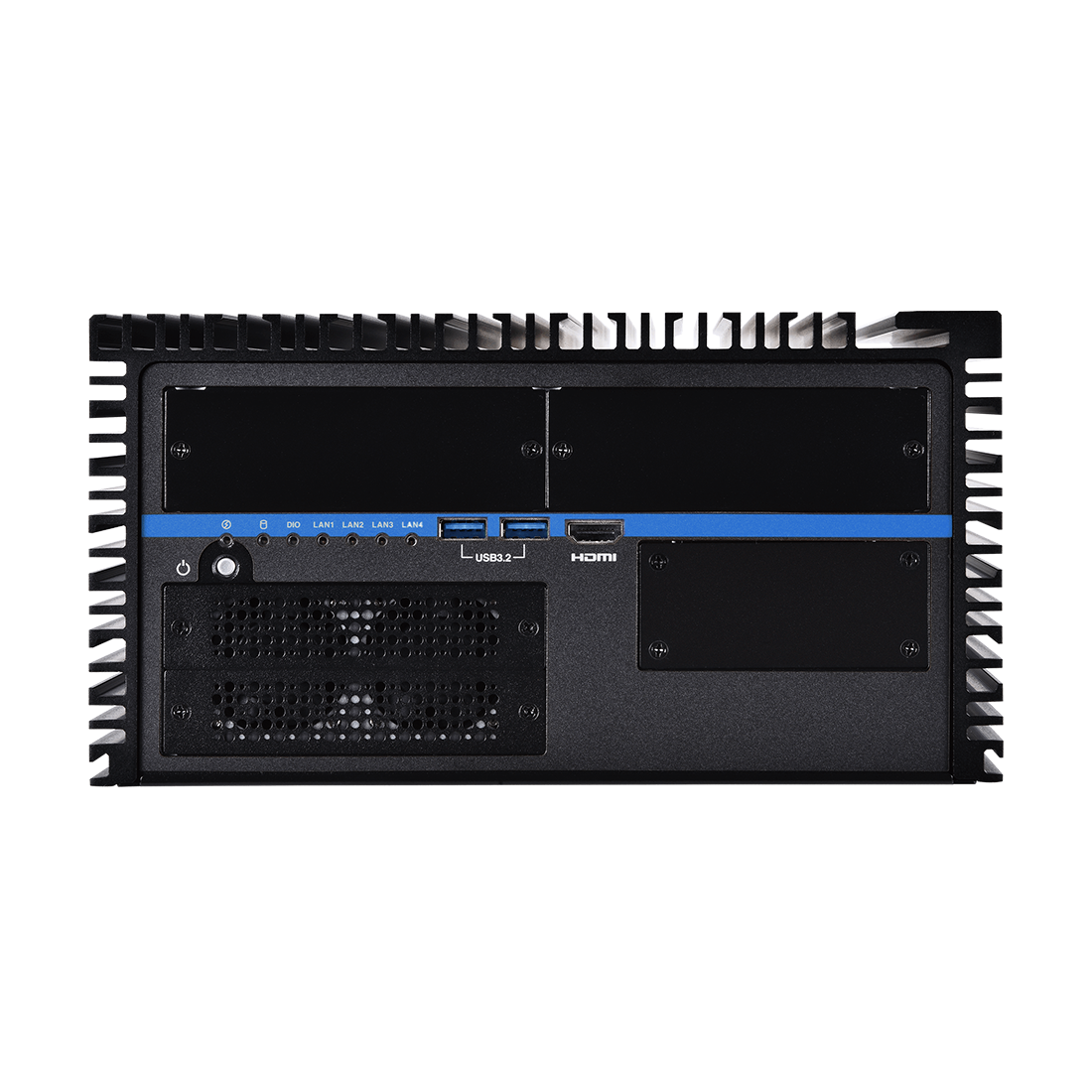

| Led Indicator Light | 1x DIO, 1x Power, 1x Storage, 4x LAN |
| Control Buttons | Power Button |
| Mounting Options | Wall Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional WiFi 6E |
| Bluetooth | Optional Bluetooth 5.2 |
| Sim Card | 2x SIM Card Slot |

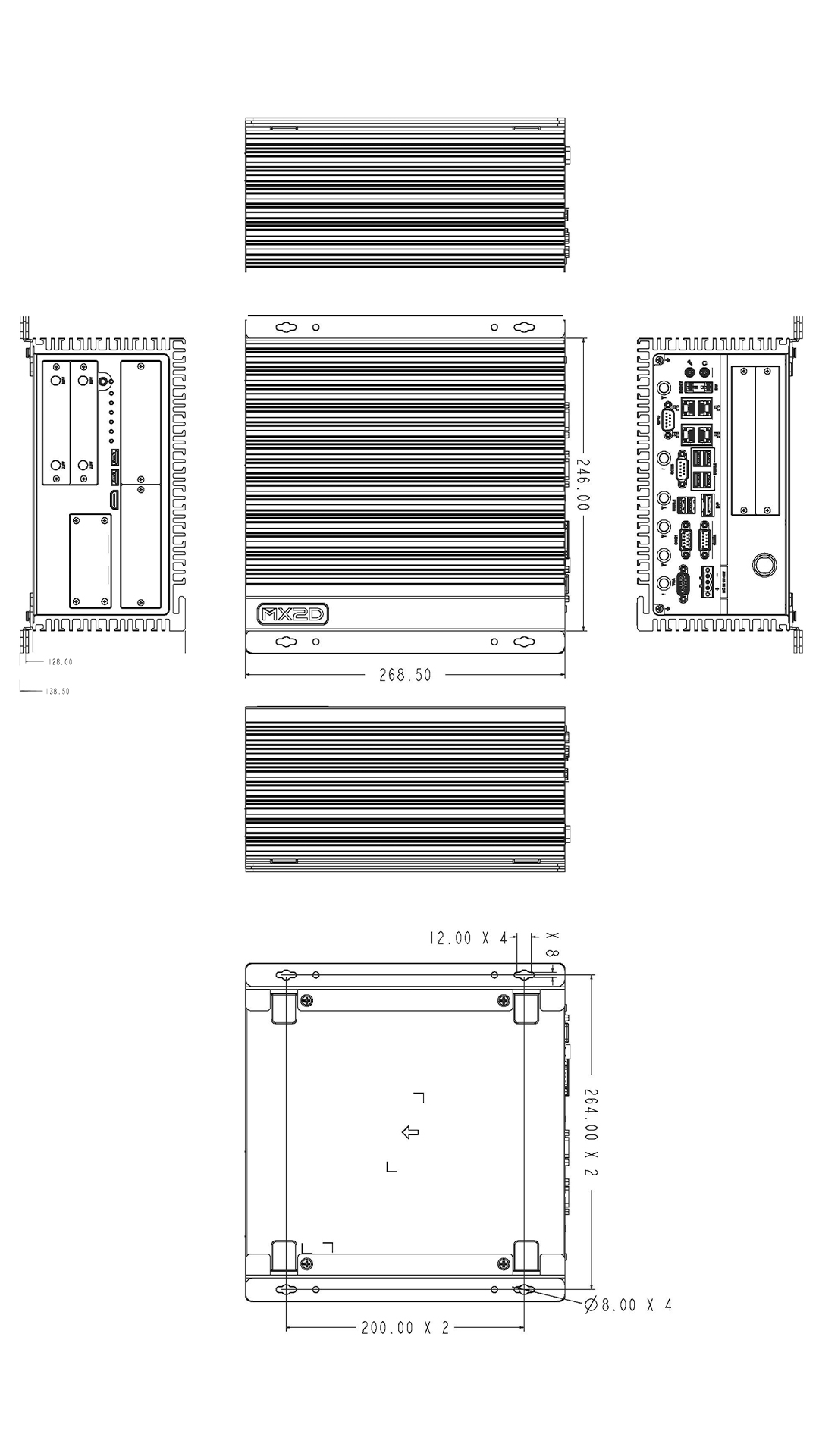

Weight / Dimensions
| Weight | 7.7 kg (17.0 lbs) |
Certification
| Certifications | CE, FCC |
