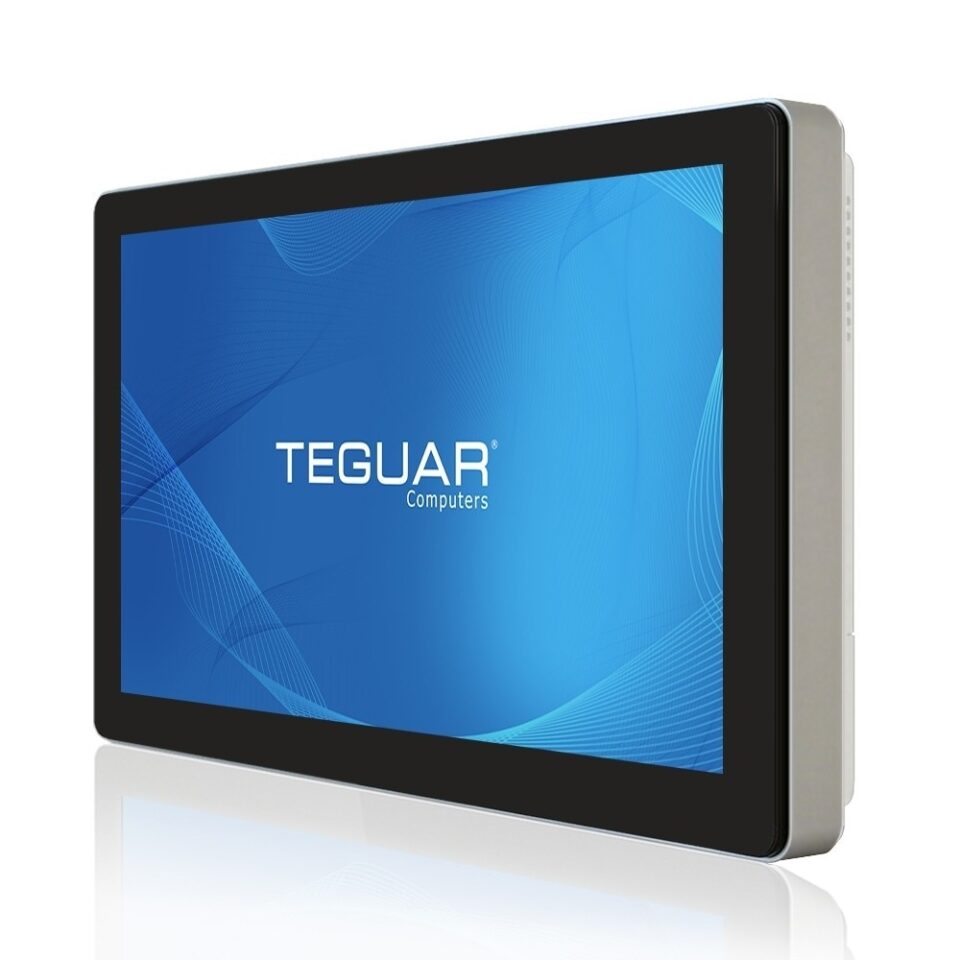

15.6" Medical Computer

TM-5040-16

Available

16" Medical All-in-One Computer | TM-5040-16
15.6" Medical Computer | TM-5040-16
16" Medical Grade Computer | TM-5040-16
16" Medical All-in-One Computer | TM-5040-16
15.6" Medical Computer | TM-5040-16
16" Medical Grade Computer | TM-5040-16

Description

The TM-5040-16 is a medical-grade all-in-one PC with a 15.6” widescreen touch display. Running the Skylake Celeron / Core i5 dual-core processor and a fanless cooling system, this unit is ready for reliable use in any healthcare facility. The TM-5040-16 has abundant IOs for connectivity to scanners, printers and your other medical devices, optional isolated RS232, LAN and USB is also available. This computer has durable aluminum housing with anti-bacterial properties to stop the growth of germs. Each computer is EN/UL 60601-1 4th Edition medically certified, for the highest level of patient safety. *TPM 2.0 and Intel vPro only available with Core i5 CPU

Key Highlights

  • 15.6" True Flat IP65 Protected Touchscreen
  • Intel Skylake Celeron/Core i5 CPU
  • Isolated RS232, LAN and USB Available
  • TPM 2.0, Intel vPro Supported*
  • Anti-bacterial Aluminum Housing
  • IEC 60601-1 4th Edition Medical Certification
GET A DEMO GET A QUICK QUOTE

Use Cases

Hospital Point-of-Care Stations: The TM-5040 Series of medical computers are ideal for hygienic point-of-care stations in hospitals.

Medical Imaging and Diagnosis: The TM-5040 Series computers offer seamless integration with scanners and printers for medical imaging and diagnosis.

Telemedicine and Remote Patient Monitoring: These computers provide reliable performance and connectivity for telemedicine and remote patient monitoring.

See the data sheet Warranty Download Drivers

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

TM-5040 Medical Grade Computer IOs

Technical Drawings

Tp-4040-15 Technical Drawing

TECH SPECS

See the data sheet Download Drivers

Key Highlights

  • 15.6" True Flat IP65 Protected Touchscreen
  • Intel Skylake Celeron/Core i5 CPU
  • Isolated RS232, LAN and USB Available
  • TPM 2.0, Intel vPro Supported*
  • Anti-bacterial Aluminum Housing
  • IEC 60601-1 4th Edition Medical Certification

General

Main Category Medical Computer

Primary Components

Processor Family Intel Celeron or Core I 6th Generation Skylake
Processor Model Celeron 3955U; Core- i5-6300U
Processor Speed Base 2.0 GHz
Memory Type 2x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 15.6"
Resolution 1366 x 768, Optional 1920 x 1080
Screen Ratio 16:9
Brightness 220 nits

Touch Screen

Touch Screen Projected Capacitive

External I/O ports

USB 4x USB 3.0
Serial / Com 2x COM
Serial Protocol Detail RJ-48, support RS-232
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x HDMI
Other Ports Optional Isolated I/O: RS-232, RJ45 LAN, USB
Audio 1x Audio Line-Out, 1x 3.5mm Microphone Jack

Power

Input Voltage Range 12-48V DC
Max Power consumption 80W
Standard Power Adapter 19V AC/DC Adapter included by default

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro
Linux Linux (Contact your sales rep for more information)

Compatibility

Security Hardware TPM 2.0, Intel vPro *Not available with Celeron

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe (half size)
Internal M.2 1x M.2 Slot half-size Type E

Multimedia

Speakers 2x 2W Speakers
Camera 2MP Webcam

Thermal and Environmental

Operating Temperature 0°C – 40°C
(32°F – 104°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 20% – 85% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material Aluminum
Ip Rating IP65 Front Bezel
Antibacterial Housing Yes
Mounting Options VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi Optional 802.11 b/g/n WLAN card and Bluetooth 4.0

Dimensions / Weight

Weight 4.5 KG (9.9 lbs)
Dimensions 396 x 48 x 245 mm (15.6 x 1.9 x 9.6 in)

Certification

Certifications 60601-1 4th Edition, CE, FCC Class B

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
