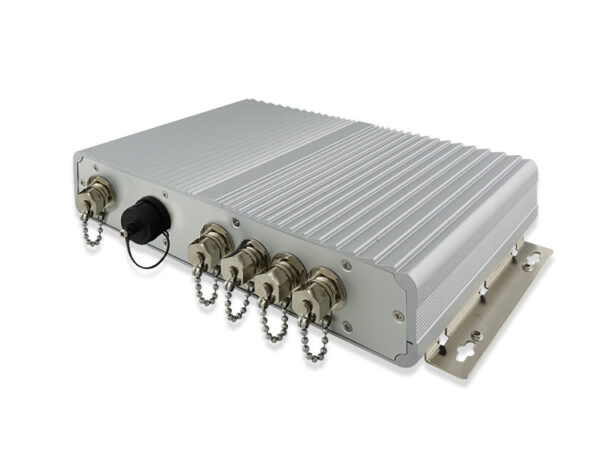

TWB-5920

Waterproof Box PC
Available – Buy Now or Contact Us for Quick Quote

Description

The TWB-5920 stands as a pinnacle of durability and performance, boasting an IP65 Full Waterproof rating with a NEMA 4x enclosure, ensuring resilience against water and dust in demanding environments. Its ultra-compact design, complemented by an aluminum chassis, maximizes space efficiency without compromising durability. Powered by an 11th Gen Core i5 processor and equipped with Windows 11, this system delivers robust computing power and seamless functionality. Whether in rugged industrial settings or outdoor installations, the TWB-5920 offers unparalleled reliability, making it an ideal choice for applications where durability, performance, and efficiency are essential.

Key Highlights

  • 11th Generation Core i5 Processor
  • Windows 11 Capabilities
  • Fanless Design
  • Wide Operating Temperature (0C-50C)
  • 9~36V DC with Isolation

Starting at: $3,141.31

Customize & Buy

Primary Components

Processor FamilyIntel Core I series 11th Generation Tiger Lake
Processor ModelCore i5-1135-G7
Processor SpeedUp to 4.2 GHz, 2.4 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support2GB, 4GB, 8GB, 32GB
Storage Type1x M.2 M Key, PCIe or SATA, 2242 default or 2280
Storage Support32GB-512GB

External I/O Ports

USB1x M12 USB, 1x USB 2.0 Waterproof Connector with Cover
Serial / Com1x M12 8-pin for COM
Serial Protocol Detail1x RS-232/RS-485/RS-422
Ethernet / LAN2x M12 8pin RJ45 Gbe LAN
Video Outputs1x M21 Connector for HDMI
Power Input PortM12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 Pro
LinuxLinux Ubuntu 22.04 or above (Contact your sales rep for more information)

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option), 1x M.2 for NVME SSD Support

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65
ColorSilver
Led Indicator LightHDD Access, LAN, Power
Control ButtonsPower Button
Shock Rating15g for 11ms
Mounting OptionsWall Mount

Weight / Dimensions

Weight3.2 kg (7.1 lbs)
Dimensions261 x 193 x 51 mm (10.3 x 7.6 x 2.0 in)

Certification

CertificationsComplies with FCC and CE Requirements

Warranty

WarrantyUp to 5 Years

Outdoor Use: The Waterproof Box PC Series excels as an outdoor computing solution, catering to industries like agriculture, forestry, and renewable energy. Its rugged construction and IP65 Full Waterproof rating ensure seamless operation despite exposure to outdoor elements. Whether monitoring weather data in agricultural fields or managing renewable energy installations, this series offers reliable performance in demanding outdoor environments.

Semi-Outdoor Use: In semi-outdoor settings such as waste processing facilities, lumber yards, and recycling plants, the Waterproof Box PC Series proves invaluable. With its NEMA 4x enclosure and fanless design, it withstands dust, moisture, and varying temperatures common in such environments.

Manufacturing: The TWB-5920 durable construction and compact design make it suitable for installation on factory floors or within production lines. From monitoring equipment performance to managing inventory and quality control, this series provides the computing power and reliability necessary for seamless operations in the manufacturing sector.

Dimensional Drawings & I/Os

Tech Diagram Images
