TWB-5620

IP65 Waterproof Box Computer
Available – Contact Us for Quick Quote

Description

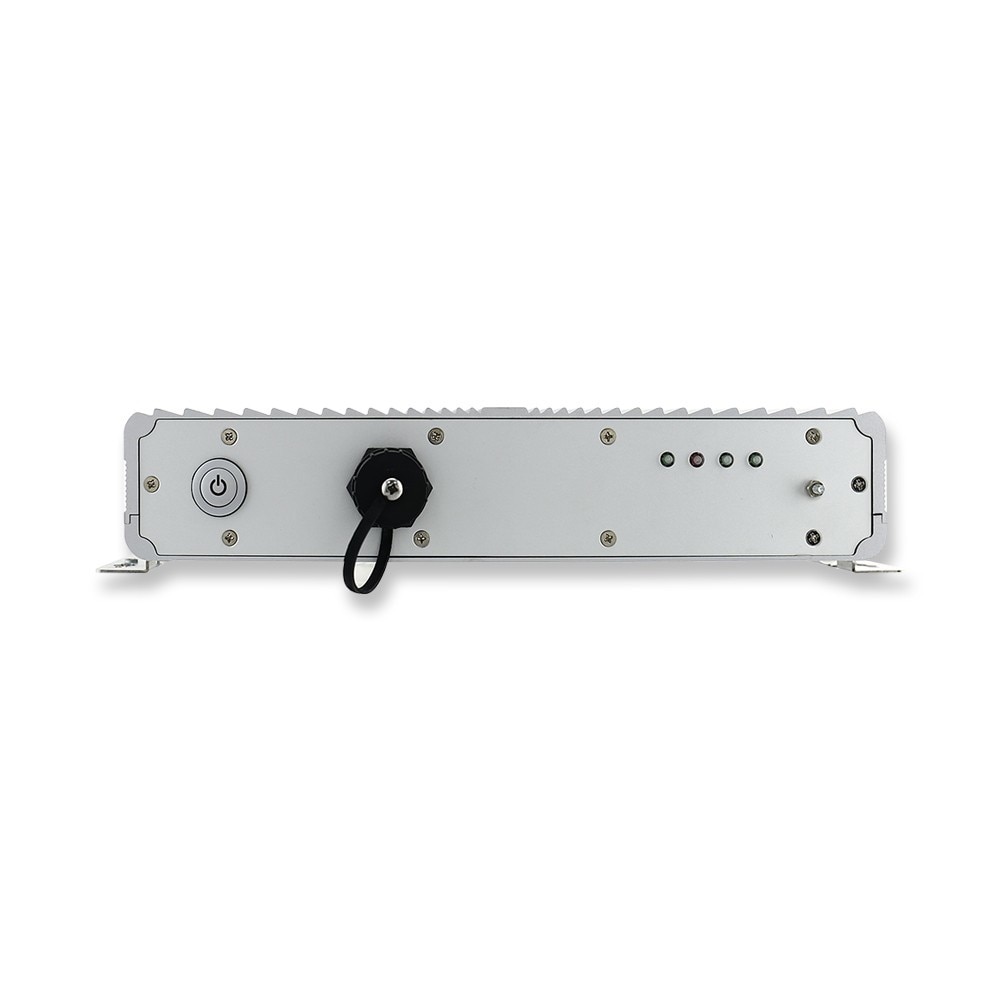

The TWB-5620 is a fully waterproof, IP65 and NEMA 4 rated box computer with an Intel i5-8265U Whiskey Lake processor. This embedded computer is fully sealed, fanless, and has a rugged aluminum chassis, ideal for use in damp or dusty environments. The TWB-5620 includes an one M.2 slot for the solid state drive and one M.2 slot for expansion for WiFi and Bluetooth. This computer offers a variety of I/O ports including  2x LAN, 3x USB, 1x RS-232, and 1x HDMI as well as a 9~36VDC power input. The TWB-5620 can be used in a wide variety of applications that require a rugged and compact computer.

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Waterproof Box PCs.

Key Highlights

  • 8th Gen. Intel Core i5-8265U Whiskey Lake Processor
  • Full IP65 Waterproof / NEMA 4 Box PC
  • Wide Operating Temperature 0°C to 50°C (Optional -20°C to 60°C)
  • Ultra Compact, Aluminum Chassis with Fanless Design
  • 9~36V DC Power Input with Isolation

Primary Components

Processor FamilyIntel Core I series 8th Generation Whiskey Lake-U
Processor ModelCore i5-8265U
Processor Speed1.6 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage TypeM.2
Storage Support32GB-1TB

External I/O Ports

USB3x USB 2.0
Serial / Com1x COM
Serial Protocol Detail1x RS-232, 1x extra RS-232 (Optional)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x HDMI
Other PortsOptional GPIO
Audio Ports1x Optional Audio Line-In, 1x Optional Audio Line-Out
Power Input PortM12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC
Max Power Consumption50W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Video Card SupportIntel HD Graphics 620

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 95% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65
ColorSilver
Led Indicator LightHDD Access, LAN, Power

Peripherals & Wireless Connectivity

WiFiOptional WiFi

Weight / Dimensions

Weight3.2 kg (7.1 lbs)
Dimensions260.4 x 168 x 50 mm (10.3 x 6.6 x 2.0 in)

Warranty

WarrantyUp to 5 Years

Food and Beverage Manufacturing: The TWB-5620’s compact size, fully waterproof design, and rugged aluminum chassis make it well-suited for use in food and beverage manufacturing environments. It can be used for tasks such as recipe management, quality control, and process monitoring in production lines.

Pharmaceutical Processing: With its fully sealed and waterproof construction, the TWB-5620 is suitable for pharmaceutical processing facilities where cleanliness and hygiene are crucial. It can be used for applications such as data logging, equipment monitoring, and batch management in pharmaceutical production processes.

Outdoor Applications: The TWB-5620’s ruggedness and waterproof features make it ideal for outdoor applications where exposure to harsh weather conditions is a concern. It can be used in outdoor kiosks, digital signage, or surveillance systems, providing reliable performance in various environmental conditions.

Dimensional Drawings & I/Os

I/O Diagram Images

twb-5620-ios

Tech Diagram Images

IP65 Box Computer Technical Drawing
