TWB-4810

Stainless Steel IP69K Box PC
Available – Buy Now or Contact Us for Quick Quote

Description

With an IP66/IP69K rating, the TWB-4810 is ideal for industrial environments that require a rugged and compact solution. Whether opting for cable glands or waterproof M12 connectors, your connectivity needs are expertly addressed even in wet conditions. The Stainless Steel IP69K Box PC conserves energy and has lower operation costs because of the low power consumption at only 35 watts. The Celeron J6412 processor is efficient, and the fanless design ensures quiet operation. With optional WiFi 6 capability, the TWB-4810 guarantees seamless connectivity in remote or demanding locations, while its four mounting holes enable effortless adaptation to any workspace for versatile wall installation.

Key Highlights

  • Intel Celeron J6412 Processor Passmark Rating 3850
  • IP66/IP69K Stainless Steel Enclosure
  • Optional WiFi 6

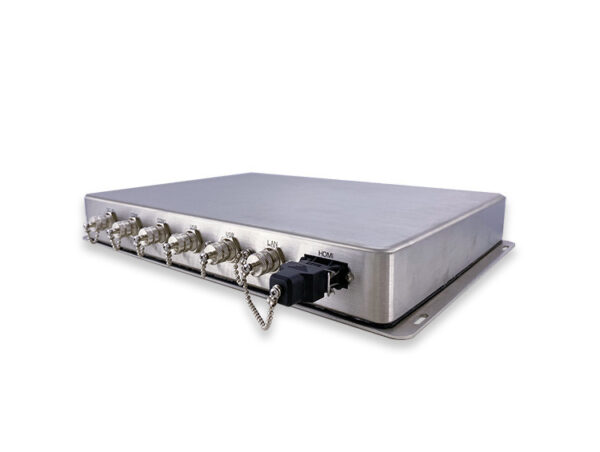

  • M12 Input Connectors with Optional Cable Glands
  • Low Power Consumption- 35W

Starting at: $2,006.58

Customize & Buy

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412 Quad
Processor Speed2.0 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x M.2 M Key, PCIe or SATA, 2242 default or 2280
Storage Support64GB-1TB

External I/O Ports

USB2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com2x M12 8-pin for COM
Serial Protocol Detail2x RS-232/422/485 (configured in BIOS)
Ethernet / LAN1x M12 8pin RJ45 Gbe LAN

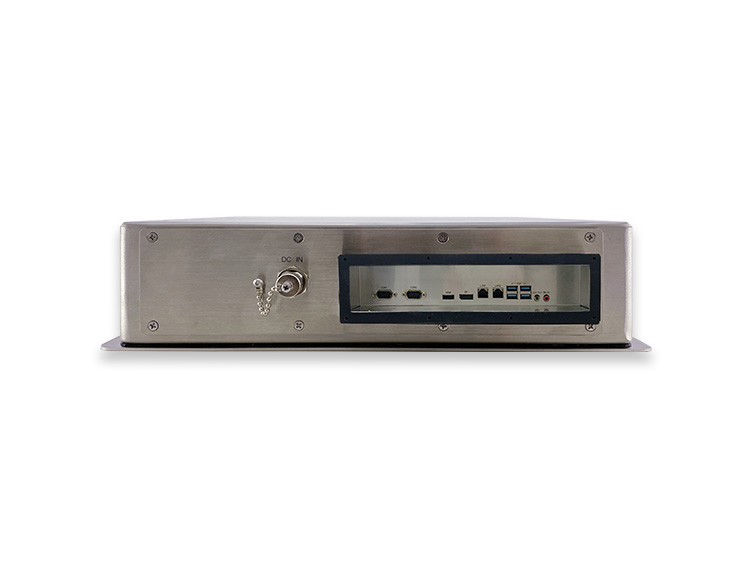

Other PortsCable Gland option allows for more IO options including USB 3.2 and Dual Video Output
Power Input PortM12 type 5-PIN DC-in

Power

Input Voltage Range12-28V DC
Max Power Consumption35W
Standard Power AdapterAC/DC Adapter, output 24V, 5A, 120W, IP68

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option)

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialOptional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66, IP69K
ColorSilver, Stainless Steel
Mounting OptionsWall Mount

Weight / Dimensions

Weight6 kg kg (13.2 lbs)
Dimensions363 X 274 X 48 mm (14.3 in)

Certification

CertificationsANSI C63.4, CE, EN 55032/55035 and CISPR 32/35, FCC Class A, IEC 61000-3-2 (EMC), IEC 61000-3-3 (EMC), VCCI

Warranty

WarrantyUp to 5 Years

Food Processing: The IP66/IP69K waterproof stainless steel enclosure ensures uncompromising durability and reliability in harsh environments, meeting the stringent requirements of food processing operations. Whether using cable glands or waterproof M12 connectors, this box PC expertly addresses connectivity needs, even in wet conditions, making it an ideal choice for diverse applications in the food processing sector.

Beverage & Bottling: The TWB-4810, with its robust and waterproof stainless steel enclosure, is well-suited for the challenges of the beverage & bottling industry. With an IP66/IP69K rating, it guarantees durability and reliability in demanding environments. The low power consumption of just 35 watts contributes to energy conservation and lower operation costs.

Manufacturing Operations: The TWB-4810, powered by the efficient Intel Celeron J6412 and featuring a Stainless Steel IP69K Box PC design, is an excellent choice for diverse manufacturing operations. The connectivity options, along with low power consumption, make it adaptable for various applications within manufacturing settings. The compact size and versatile installation options, including four mounting holes, enable seamless integration into different workspaces.

Dimensional Drawings & I/Os

I/O Diagram Images

TWB-4810 Labeled Ios

Tech Diagram Images

M12 TWB-4810 Technical DrawingTWB-4810 Cable Gland Technical Drawing
