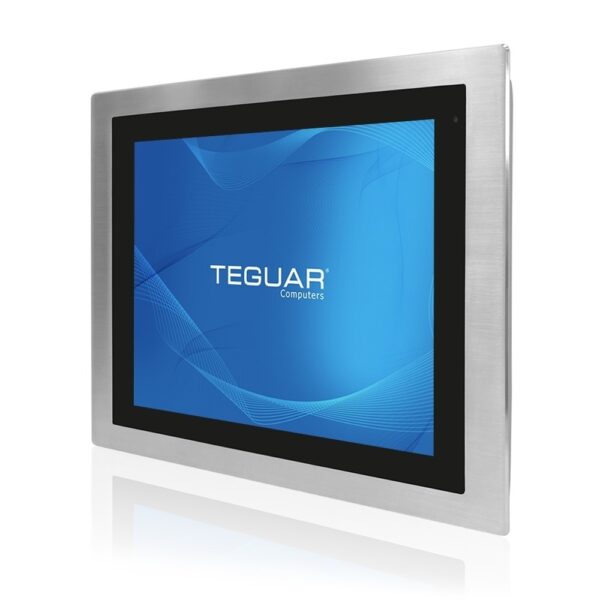

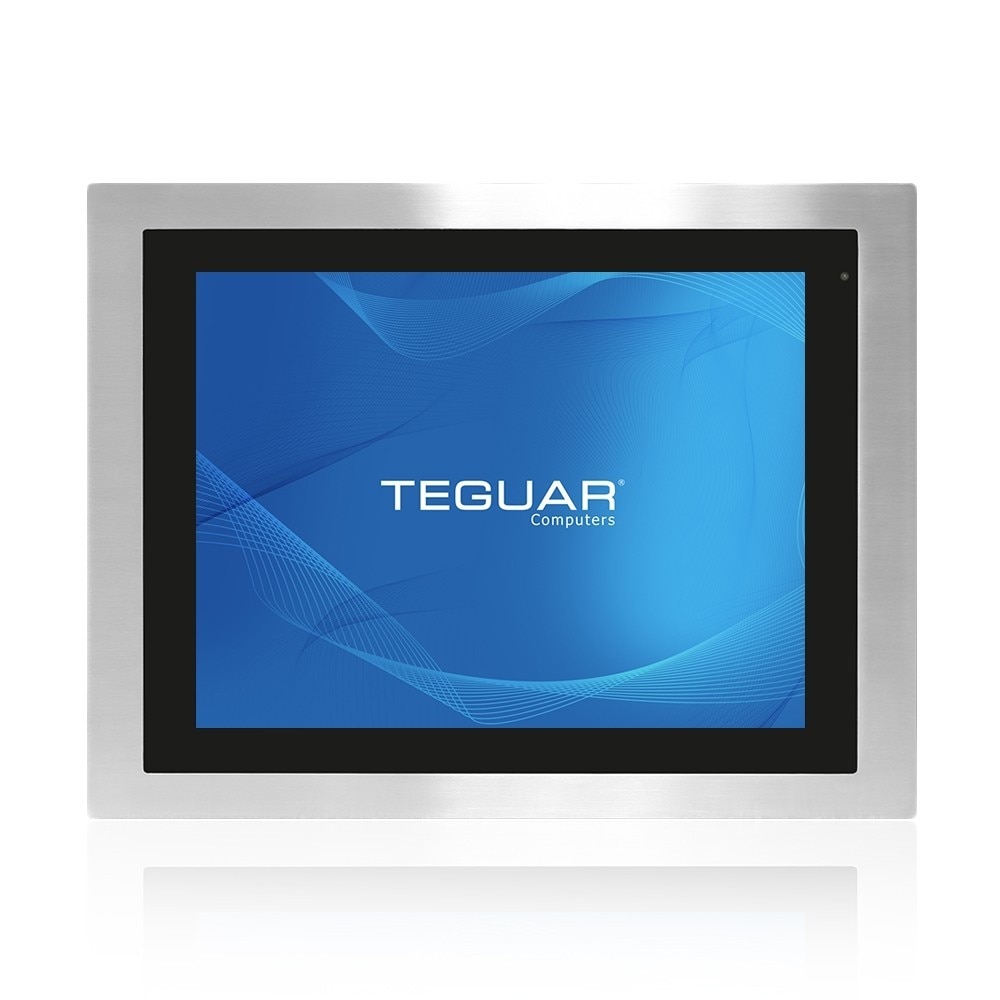

TSP-5045-15

15" Industrial Touch Screen PC
Available – Contact Us for Quick Quote

Description

The TSP-5045-15 has a stainless steel front panel and aluminum back cover. The front bezel is IP66/IP69K compliant, so when panel mounted, this panel PC is an ideal waterproof solution for food and beverage manufacturing or industrial applications exposed to liquids, sprays or humidity. The TSP-5045-15 can also be VESA mounted and it has an aluminum back cover. This PC has an Intel Skylake Core i3/i5 processor and supports Windows 10 IoT. The TSP-5045 series is available in screen sizes from 12” – 22”

Key Highlights

  • 15″ LCD Touchscreen
  • Intel 6th Gen. Core i3/i5 CPU
  • Grade 304 Stainless Steel Bezel
  • IP66/IP69K Compliant Front
  • Wide Range DC 9~36V Power Input

Primary Components

Processor FamilyIntel Core I series 6th Generation Skylake
Processor ModelCore i3-6100U
Processor Speed2.3 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible)
Storage Support32GB-1TB

Display

Screen Size15"
Resolution1024 x 768 (XGA)
Screen Ratio4:3
BrightnessOptional 1000 nit High Brightness, 420 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

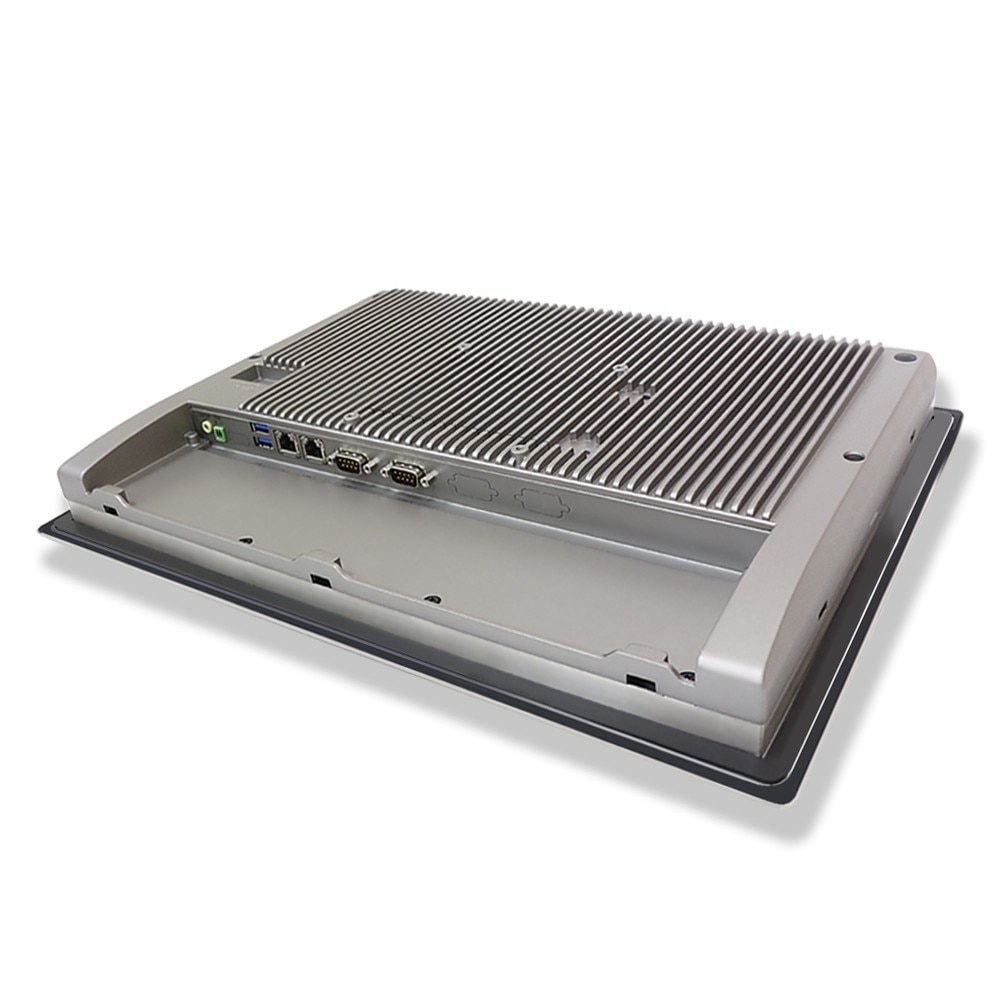

External I/O Ports

USB2x USB 3.0
Serial / Com2x COM
Serial Protocol Detail1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x Optional HDMI
Audio Ports1x Audio Line-Out
Power Input Port3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range9-36V DC
Max Power Consumption42W
Standard Power AdapterOptional 12V AC/DC Adapter

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

SD card1x Full Size SD Slot

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum, Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66 Front Bezel, IP69K Front Bezel
Mounting OptionsPanel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFiWiFi

Weight / Dimensions

Weight4.4 kg (9.7 lbs)
Dimensions422 x 322 x 54 mm (16.6 x 12.7 x 2.1 in)

Certification

CertificationsCE, EN 1672-2 Complaint (PCAP Touchscreen Only), FCC Class A

Warranty

WarrantyUp to 5 Years

Food and Beverage Manufacturing: The TSP-5045 Series computers, with their stainless steel front and waterproof design, are well-suited for food and beverage manufacturing environments, providing reliable computing solutions that can withstand exposure to liquids, sprays, and humidity.

Industrial Automation: With their support for Windows 10 IoT and rugged construction, the TSP-5045 Series computers are suitable for industrial automation applications, enabling operators to monitor and control processes in harsh industrial environments.

Cleanroom Environments: The TSP-5045 Series computers, with their fully waterproof and washdown-rated front bezel, are ideal for cleanroom environments that require regular cleaning and sterilization, providing a reliable computing solution that can withstand high-pressure, high-temperature water jets.

Dimensional Drawings & I/Os

I/O Diagram Images

TSP-2945 Industrial Panel PC IOs

Tech Diagram Images

15" Industrial Panel PC Technical Drawing
