Tech Specs
Primary Components
| Processor Family | Intel Core I series 6th Generation Skylake |
| Processor Model | Core i3-6100U |
| Processor Speed | 2.3 GHz |
| Memory Type | 1x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB |
| Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible) |
| Storage Support | 32GB-1TB |
Display
| Screen Size | 12.1" |
| Resolution | 1024 x 768 (XGA) |
| Screen Ratio | 4:3 |
| Brightness | Optional 1000 nit High Brightness, 450 nits |
Touch Screen
| Touch Screen | Projected Capacitive, Resistive |

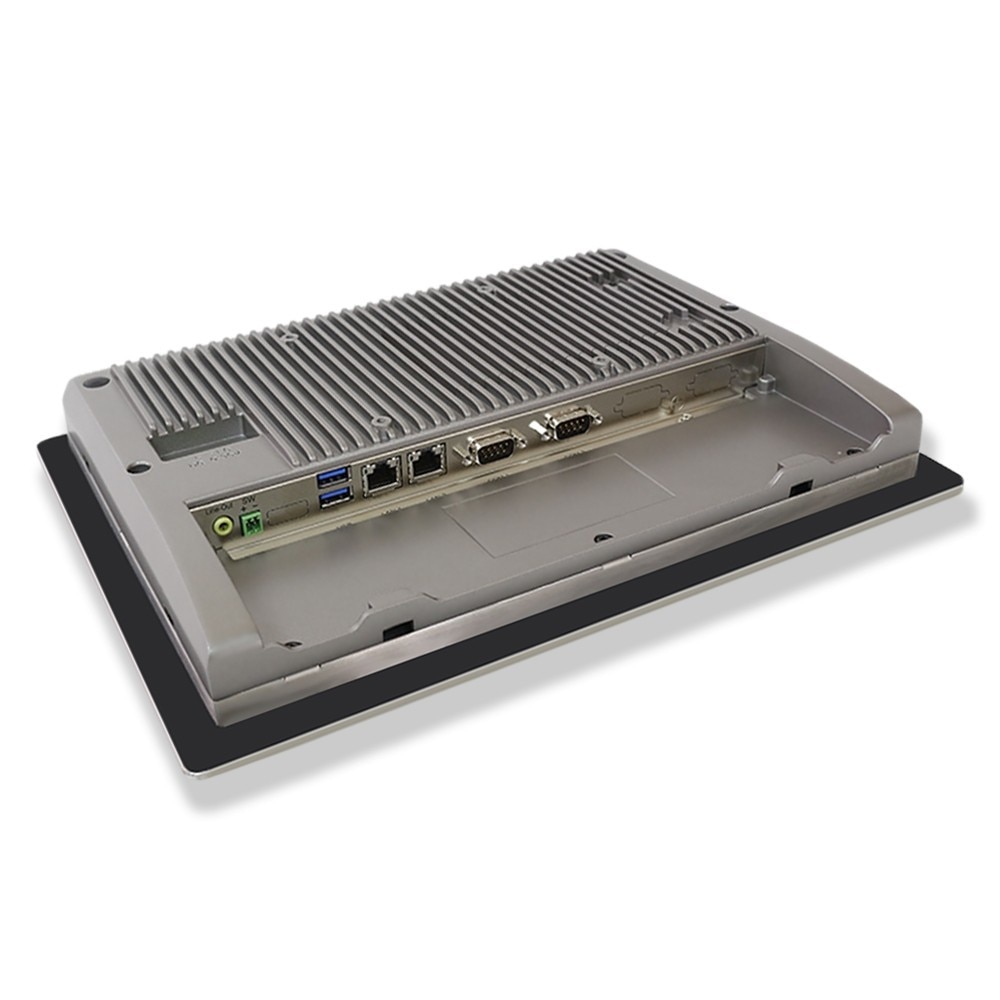

External I/O Ports
| USB | 2x USB 3.0 |
| Serial / Com | 2x COM |
| Serial Protocol Detail | 1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2) |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Video Outputs | 1x Optional HDMI |
| Audio Ports | 1x Audio Line-Out |
| Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range | 9-36V DC |
| Max Power Consumption | 45.5W |
| Standard Power Adapter | Optional 12V AC/DC Adapter |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| SD card | 1x Full Size SD Slot |
Thermal & Environmental
| Operating Temperature | 0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
| Storage Humidity | 10% – 90% Non-condensing |
Enclosure
| Material | Aluminum, Optional SUS316 Stainless Steel, SUS304 Stainless Steel |
| IP Rating | IP66 Front Bezel, IP69K Front Bezel |
| Mounting Options | Panel Mount, VESA 100 Mount |
| Approved Cleaning Solutions | Acetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid (low concentration), Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol |
Peripherals & Wireless Connectivity
| WiFi | WiFi |
Weight / Dimensions
| Weight | 2.5 kg (5.5 lbs) |
| Dimensions | 331 x 257 x 52 mm (13.0 x 10.1 x 2.0 in) |
Certification
| Certifications | CE, FCC Class A |
Warranty
| Warranty | Up to 5 Years |
