TSP-4845-07

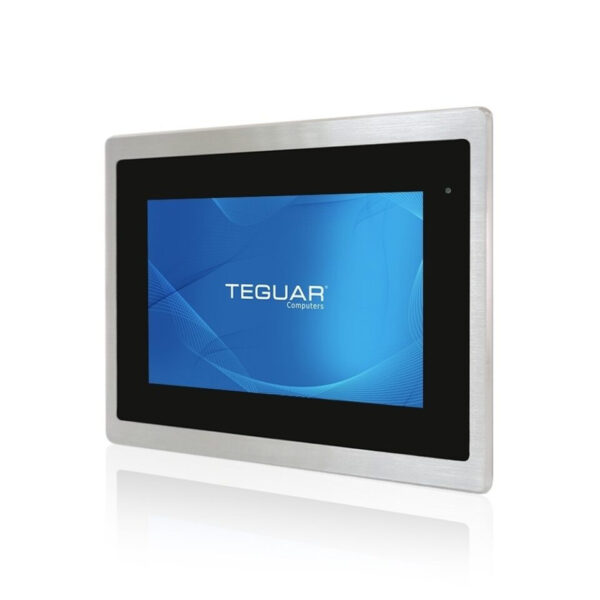

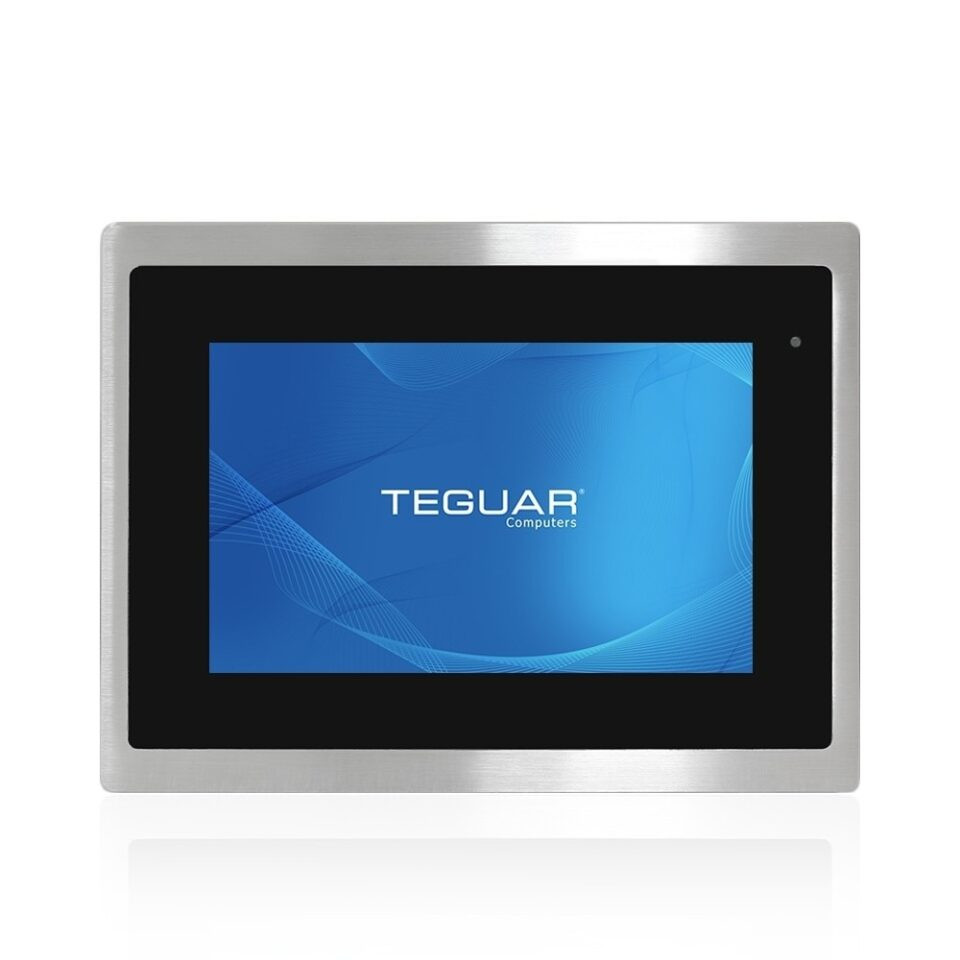

7” Stainless Panel PC
Available – Contact Us for Quick Quote

Description

The 7” Stainless Panel PC is a compact and efficient computing solution for various industrial applications. Featuring Windows 11 compatibility and Celeron J6412 CPU, it offers a seamless user experience. It replaces the TSP-2945-07, providing upgraded performance and features. The IP66/IP69K compliant front bezel ensures protection against water and harsh chemicals, making it suitable for food & beverage and pharmaceutical industries. With an aluminum back enclosure, it remains lightweight while granting easy access to inputs/outputs. Optionally, it comes with a smart battery for uninterrupted operation, making it a versatile and valuable addition to your industrial setup.

Key Highlights

  • 7” Resistive or PCAP Touchscreen
  • Intel Celeron J6412 Processor
  • Windows 11 Operating System
  • IP66/IP69K Stainless Steel Front Bezel
  • Aluminum Back Enclosure

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412 Quad
Processor Speed2.0 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x M.2 M Key, PCIe or SATA, 2242 default or 2280
Storage Support128GB-1TB

Display

Screen Size7"
Resolution800 x 480 (WVGA)
Screen Ratio5:3
BrightnessOptional 1000 nit High Brightness, 300 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB2x USB 2.0, 2x USB 3.2
Serial / Com1x COM
Serial Protocol Detail1x RS-232/422/485 DB-9, default RS-232(COM1)
Ethernet / LAN2x RJ45 2.5 GbE LAN
Video Outputs1x DisplayPort
Audio Ports1x Audio Line-Out
Power Input PortDC-in Jack (Phoenix Type)

Power

Input Voltage Range9-36V DC
Standard Power AdapterOptional 12V 5A AC/DC Adapter

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 95% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum, Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66 Front Bezel, IP69K Front Bezel
ColorSilver, Stainless Steel
Mounting OptionsPanel Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFiOptional 802.11 ac + Bluetooth with External Antennas
BluetoothOptional Bluetooth 4.0

Weight / Dimensions

Weight1.6 kg (3.5 lbs)
Dimensions217 x 163 x 40 mm (8.5 x 6.4 x 1.6 in)

Certification

CertificationsCE, EN 1672-2 Complaint (PCAP Touchscreen Only), FCC Class A

Warranty

WarrantyUp to 5 Years

Food Processing: The TSP-4845 series, with its IP66/IP69K compliant stainless steel front bezel, is an ideal computing solution for the food processing industry. This Stainless Panel PC provides a reliable and hygienic platform for critical applications in food processing. Its design ensures protection against water, dust, and high-pressure wash downs, meeting the stringent requirements of the industry for maintaining cleanliness and hygiene.

Manufacturing Operations: The TSP-4845 series serves as a rugged computing solution for manufacturing operations. This Stainless Panel PC, featuring an Intel Celeron J6412 processor, ensures efficient performance and multitasking in diverse manufacturing environments.

Clean Room Environments: Specifically designed for sterile environments, the TSP-4845 series is well-suited for use in clean room applications. This panel PC provides a reliable and hygienic computing solution for critical operations in clean room environments. The IP66/IP69K compliant stainless steel front bezel ensures protection against water, dust, and high-pressure wash downs, meeting the strict requirements of clean room standards.

Dimensional Drawings & I/Os

I/O Diagram Images

TSP-4845 Labeled IOs

Tech Diagram Images

TSP-4845-07 Technical Drawing
