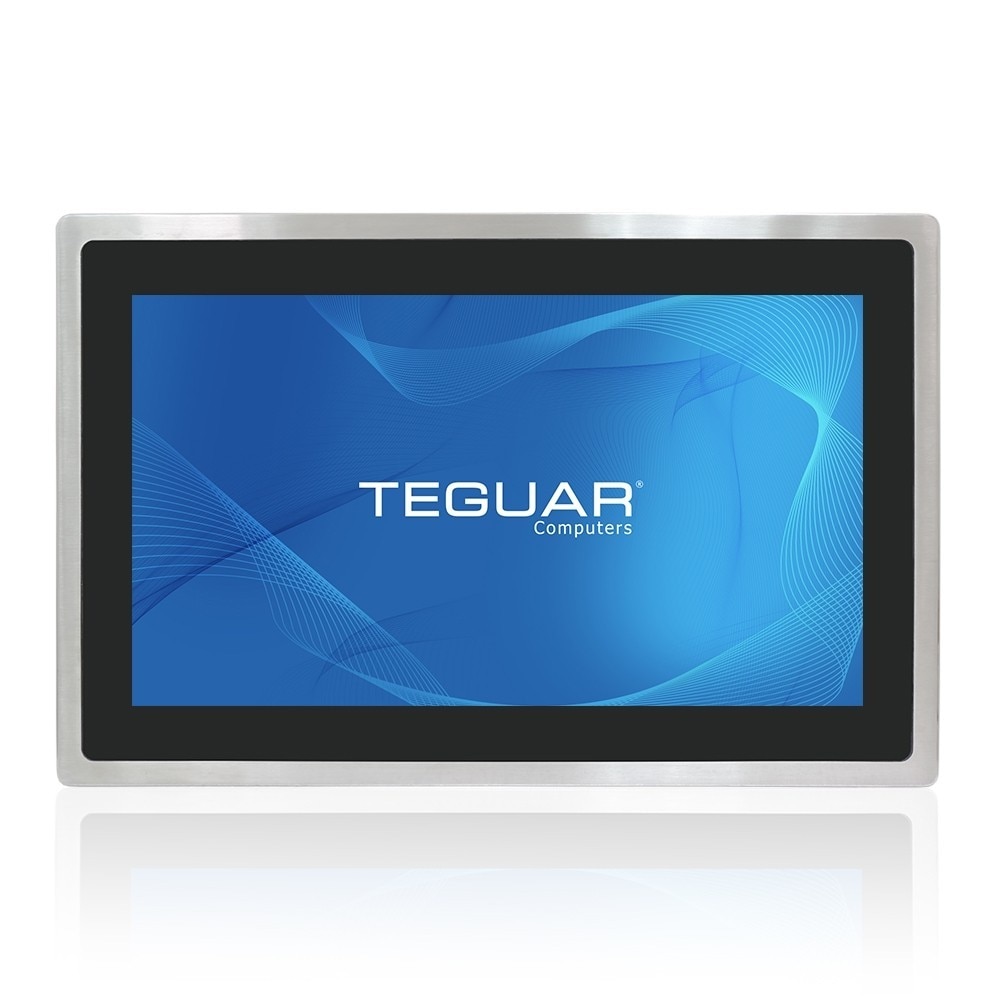

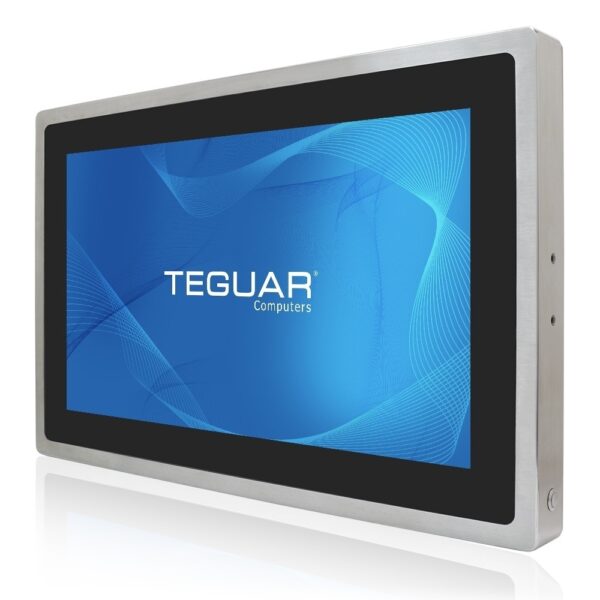

TSD-45-24

24" Waterproof Touchscreen Display
Available – Buy Now or Contact Us for Quick Quote

Description

The TSD-45-24 is a large waterproof touchscreen monitor, ideal for facilities where a reliable 24/7 display is critical. The monitor’s grade 304 stainless steel housing is well suited for the food and beverage processing industry, pharmaceutical manufacturing, or even in outdoor applications. This unit has the option to upgrade to stainless steel grade 316L housing, for protection from salt water. The IP66/IP69K rating indicates that this unit can withstand high temperature and high pressure water jets used regularly for cleaning equipment. The TSD-45-24 is fully sealed, fanless and NEMA 4x compliant. Convenient on-screen display (OSD) controls on the back of the unit provide a means for easy adjustment of display settings. The TSD-45-24 is the largest in this display series, which comes in sizes down to 10” in various screen ratios, so you can choose the best configuration for your application.

Key Highlights

  • 23.4″ Projected Capacitive Touchscreen
  • Full-Flush LCD Display
  • IP66/IP69K Fully Enclosed Fanless Design
  • Optional 1000 nit High Brightness and Optical Bonding
  • Grade 304 Stainless Steel Enclosure
  • M12 Metal I/O Connectors

Starting at: $2,537.38

Customize & Buy

Display

Screen Size23.8"
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 1000 nit High Brightness, 250 nits

Touch Screen

Touch ScreenProjected Capacitive

External I/O Ports

USB1x M12 USB
Power Input PortM12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC
Max Power Consumption32W

Multimedia

SpeakersOptional Speaker

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialOptional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66, IP69K

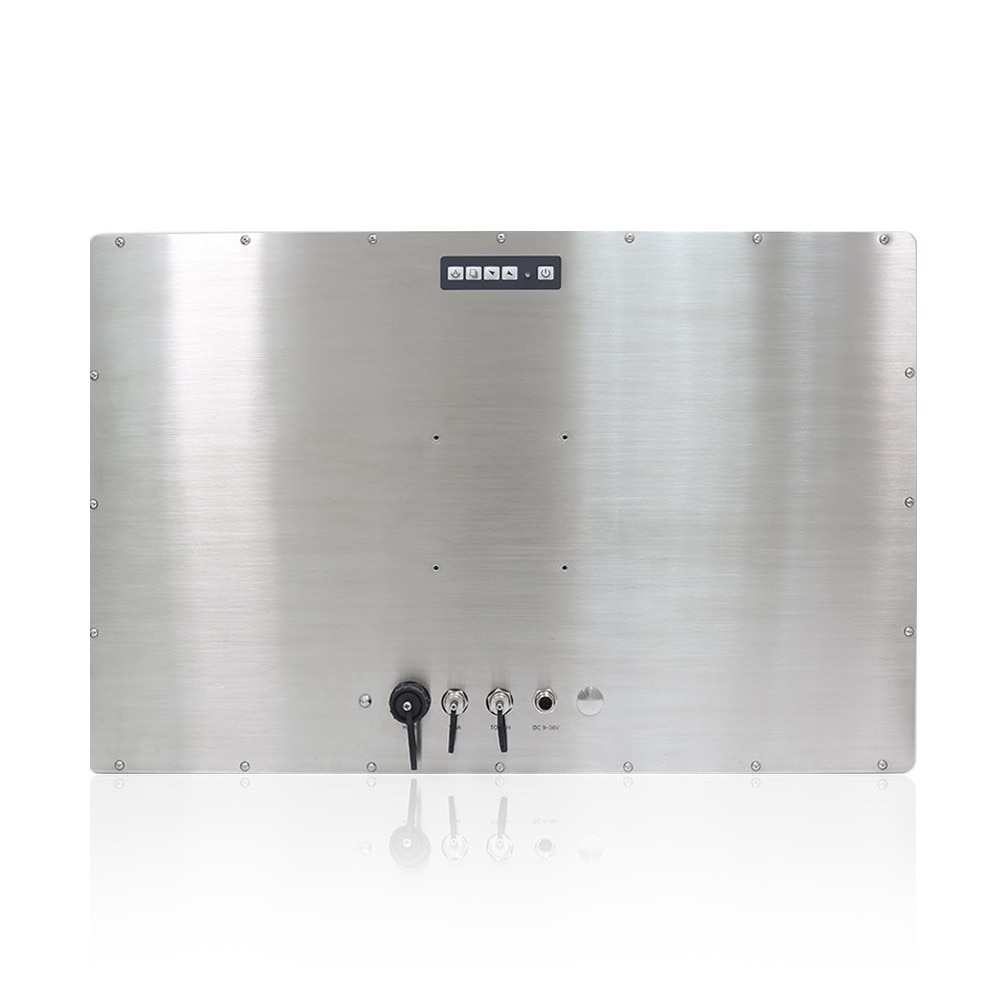

Control ButtonsOn-Screen Display (OSD), Touchscreen Lock for Cleaning
Mounting OptionsVESA Mount, Yoke Mount

Weight / Dimensions

Weight12.6 kg (27.8 lbs)
Dimensions656 x 423 x 53 mm (25.8 x 16.7 x 2.1 in)

Certification

CertificationsCE, FCC Class A

Warranty

WarrantyUp to 5 Years

Outdoor Applications: With optional features like high brightness, optical bonding, and ambient light sensors, the TSD-45 Series is well-suited for outdoor applications where sunlight readability and visibility are crucial. It can be used in industries such as outdoor signage, transportation, and agriculture, providing reliable and visible monitors in various weather conditions.

Industrial Automation: The TSD-45 Series, with its robust construction and M12 connectors, is suitable for industrial automation environments that require waterproof and durable monitors. It can be used for tasks such as machine control, process visualization, and data monitoring, providing reliable and rugged monitors in demanding industrial settings.

Production Line Monitoring: The TSD-45 Series, with its optional integrated IP65-rated speakers, can be used for production line monitoring and signaling. It provides visual and audio feedback for alarms, notifications, and process control in industries such as manufacturing, assembly, and packaging.

Dimensional Drawings & I/Os

I/O Diagram Images

IP66 Waterproof Monitor IOs Teguar

Tech Diagram Images

24" Waterproof Touchscreen Monitor Technical Drawing
