TSD-45-10

10" Waterproof Display
Available – Buy Now or Contact Us for Quick Quote

Description

The TSD-45-10 widescreen monitor is fully waterproof, ideal for food and beverage manufacturing, clean rooms, and even outdoor applications. This fully enclosed, fanless monitor is IP66/IP69K rated and NEMA 4x compliant. The grade 304 stainless steel housing ensures that this unit will not rust, even if exposed to water and moisture daily. There is also an option to upgrade to grade 316L stainless steel, for settings exposed to salt water. The TSD-45 series comes in screen sizes up to 24” and in various screen ratios, so you can choose the best configuration for your application. This series also comes with M12 waterproof connectors to protect the power supply and IOs. The TSD-45-10 includes on-screen display (OSD) controls on the back of the unit for quick adjustment of your display settings.

>> Read an independent review of the TSD-45-10 by ruggedpcreview.com

Key Highlights

  • 10.1″ Flush LCD Touchscreen
  • IP66/IP69K Fully Enclosed Fanless Design
  • HDMI and VGA Inputs
  • Grade 304 Stainless Steel Enclosure
  • Resistive or Projected Capacitive Touchscreen
  • M12 Metal I/O Connectors

Starting at: $1,295.06

Customize & Buy

Display

Screen Size10.1"
Resolution1280 x 800 (WXGA)
Screen Ratio16:10
BrightnessOptional 1000 nit High Brightness, 350 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB1x M12 USB
Audio Ports1x Audio Line-Out
Power Input PortM12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC

Multimedia

SpeakersOptional Speaker

Thermal & Environmental

Operating Temperature-20°C - 60°C (-4°F – 140°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialOptional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66, IP69K
Control ButtonsOn-Screen Display (OSD), Touchscreen Lock for Cleaning
Mounting OptionsVESA 75 Mount, Wall Mount

Weight / Dimensions

Weight3.6 kg (7.9 lbs)
Dimensions300 x 220 x 53 mm (11.8 x 8.7 x 2.1 in)

Certification

CertificationsCE, FCC Class A

Warranty

WarrantyUp to 5 Years

Outdoor Applications: With optional features like high brightness, optical bonding, and ambient light sensors, the TSD-45 Series is well-suited for outdoor applications where sunlight readability and visibility are crucial. It can be used in industries such as outdoor signage, transportation, and agriculture, providing reliable and visible monitors in various weather conditions.

Industrial Automation: The TSD-45 Series, with its robust construction and M12 connectors, is suitable for industrial automation environments that require waterproof and durable monitors. It can be used for tasks such as machine control, process visualization, and data monitoring, providing reliable and rugged monitors in demanding industrial settings.

Production Line Monitoring: The TSD-45 Series, with its optional integrated IP65-rated speakers, can be used for production line monitoring and signaling. It provides visual and audio feedback for alarms, notifications, and process control in industries such as manufacturing, assembly, and packaging.

Dimensional Drawings & I/Os

I/O Diagram Images

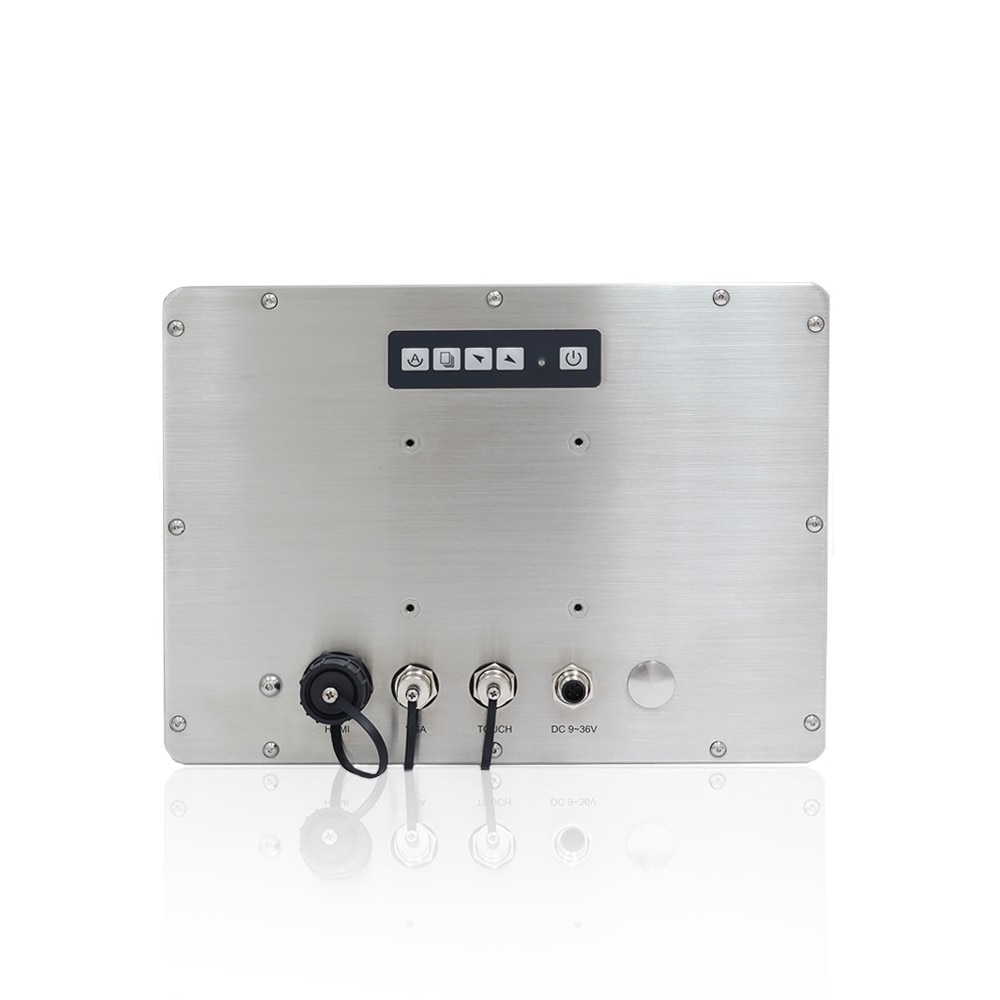

IP66 Waterproof Monitor IOs Teguar

Tech Diagram Images

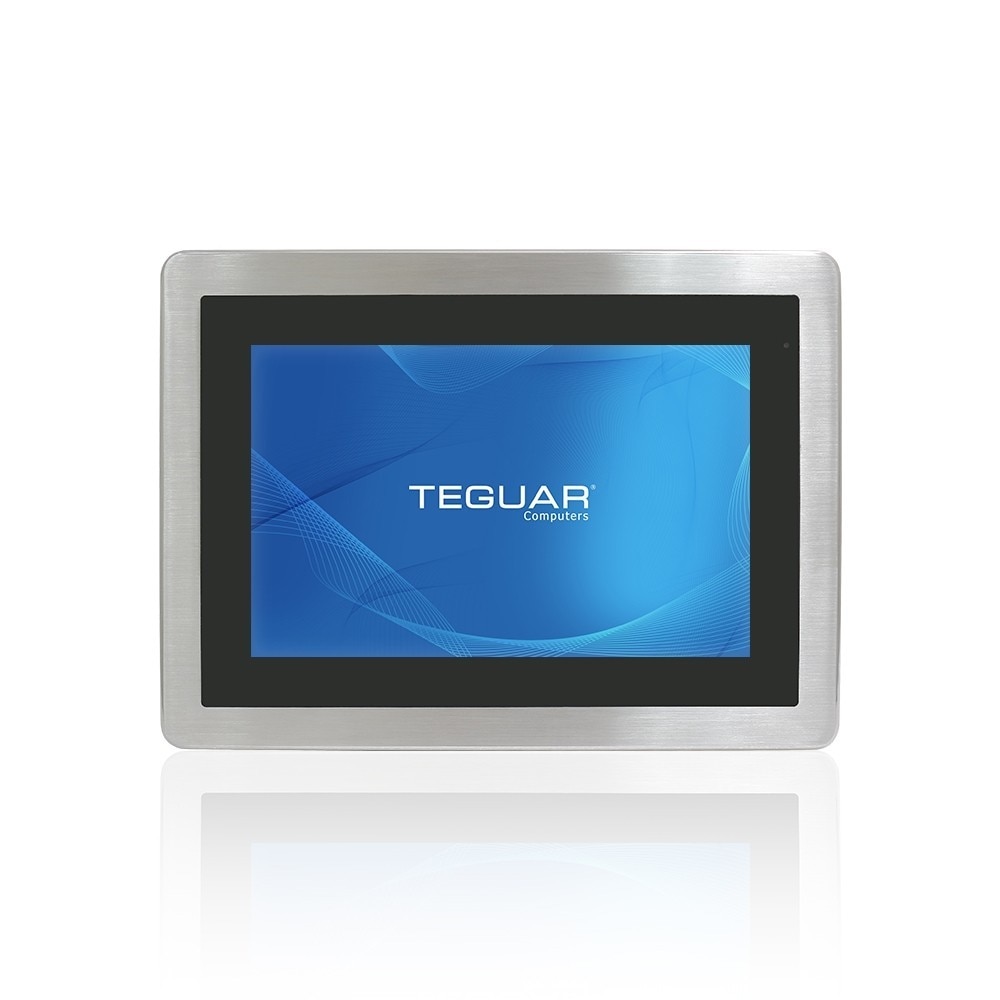

10 Inch Touchscreen Waterproof Monitor
