Tech Specs
Primary Components
| Processor Family | Intel Core I series 12th Generation Alder Lake |
| Processor Model | Core i5-1245UE |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 6GB, 8GB, 16GB, 32GB, 64GB |
| Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD |
| Storage Support | 32GB-1TB |

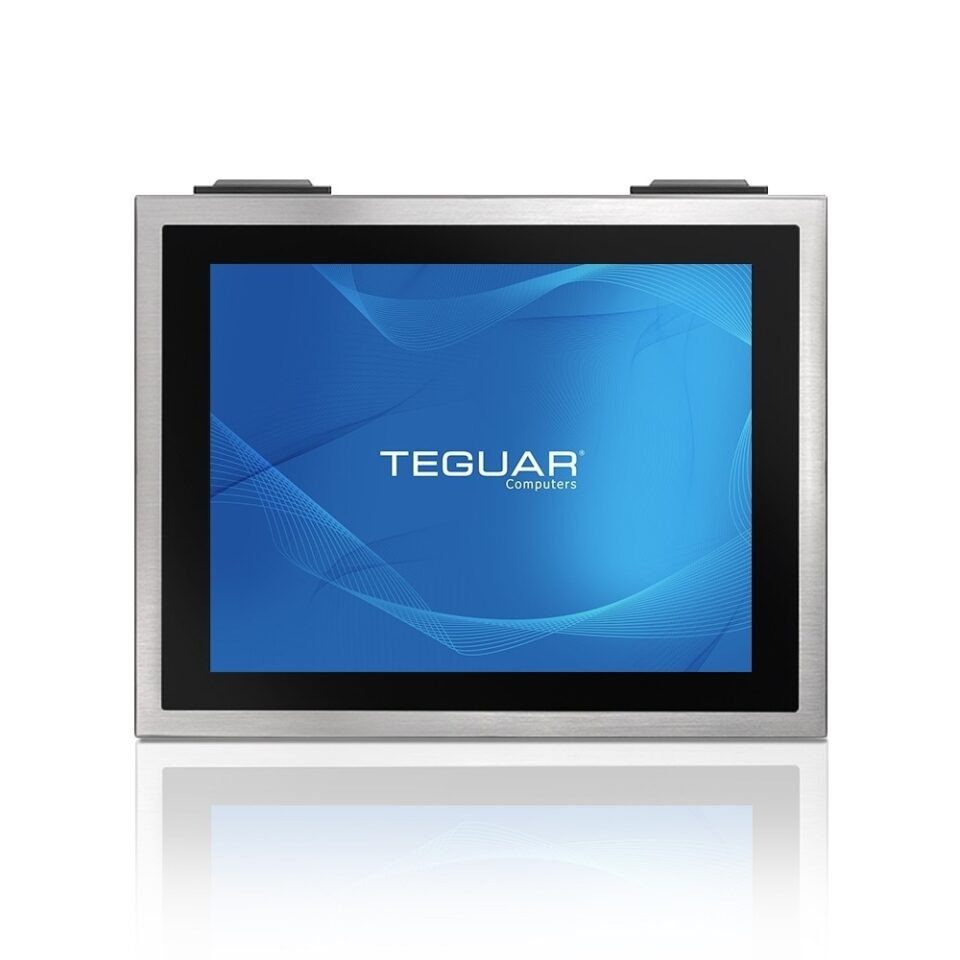

Display
| Screen Size | 15" |
| Resolution | 1024 x 768 (XGA) |
| Screen Ratio | 4:3 |
| Brightness | Optional 1000 nit High Brightness, 350 nits |
Touch Screen
| Touch Screen | Projected Capacitive, Resistive |
| Hardness | Resistive: 3H, P-cap: 7H |

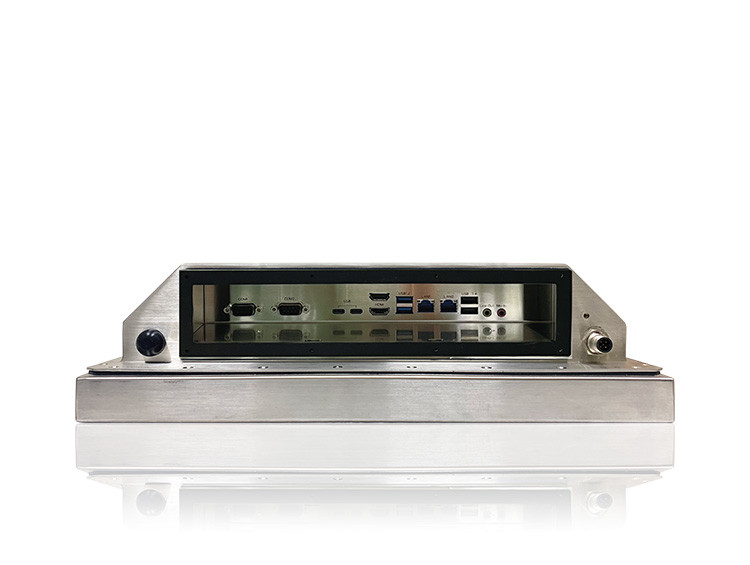

External I/O Ports
| USB | 2x USB 2.0, 2x USB 3.2, 2x USB 3.2 Type C |
| Serial / Com | 2x COM |
| Serial Protocol Detail | 2x RS-232/422/485 |
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN |
| Video Outputs | 2x Display Port 1.4a via USB-C, 2x HDMI 2.0b |
| Audio Ports | 1x Audio Line-Out, 1x Mic-In |
Power
| Input Voltage Range | 12-28V DC |
| Standard Power Adapter | AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68 |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
| Linux | Linux |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option), 1x M.2 for NVME SSD Support, 1x M.2 Type E |
Multimedia
| Speakers | Optional Speaker |
Thermal & Environmental
| Operating Temperature | 0°C - 40°C (32°F – 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 10% – 90% Non-condensing |
| Storage Humidity | 10% – 90% Non-condensing |
Enclosure
| Material | Optional SUS316 Stainless Steel, SUS304 Stainless Steel |
| IP Rating | IP66, IP69K |
| Color | Stainless Steel |
| Control Buttons | Brightness Down, Brightness Up, Power Button |
| Mounting Options | Swing Arm, Table Mount, VESA 100 Mount, Wall Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional WiFi + Bluetooth Flat Antenna Kit |
| Sim Card | 1x Nano SIM Card Slot |
| Barcode Scanner | Optional 1D/2D Barcode Scanner |
| RFID | Optional RFID (Cannot coexist with barcode scanner) |

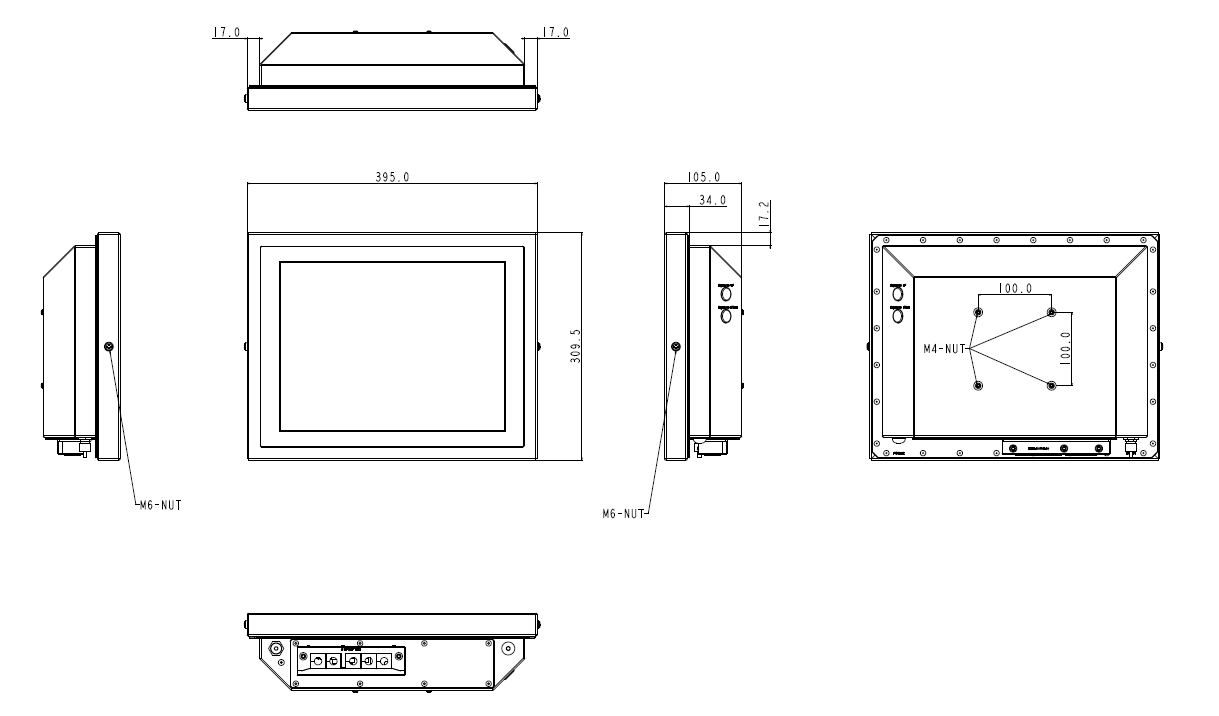

Weight / Dimensions
| Weight | 8.4 kg (18.5 lbs) |
| Dimensions | 395 x 310 x 105 mm (15.6 x 12.2 x 4.1 in) |
Certification
| Certifications | CE, FCC, VCCI Class B |
Warranty
| Warranty | Up to 5 Years |
