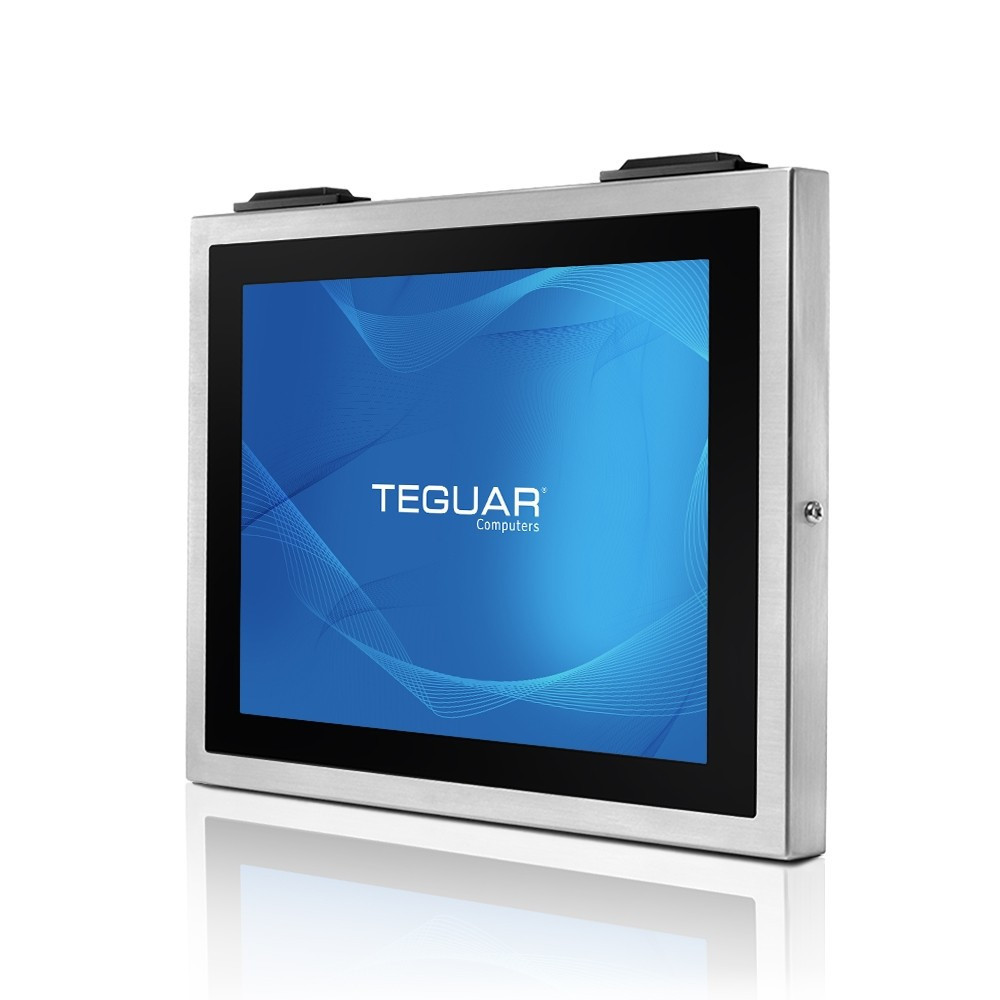

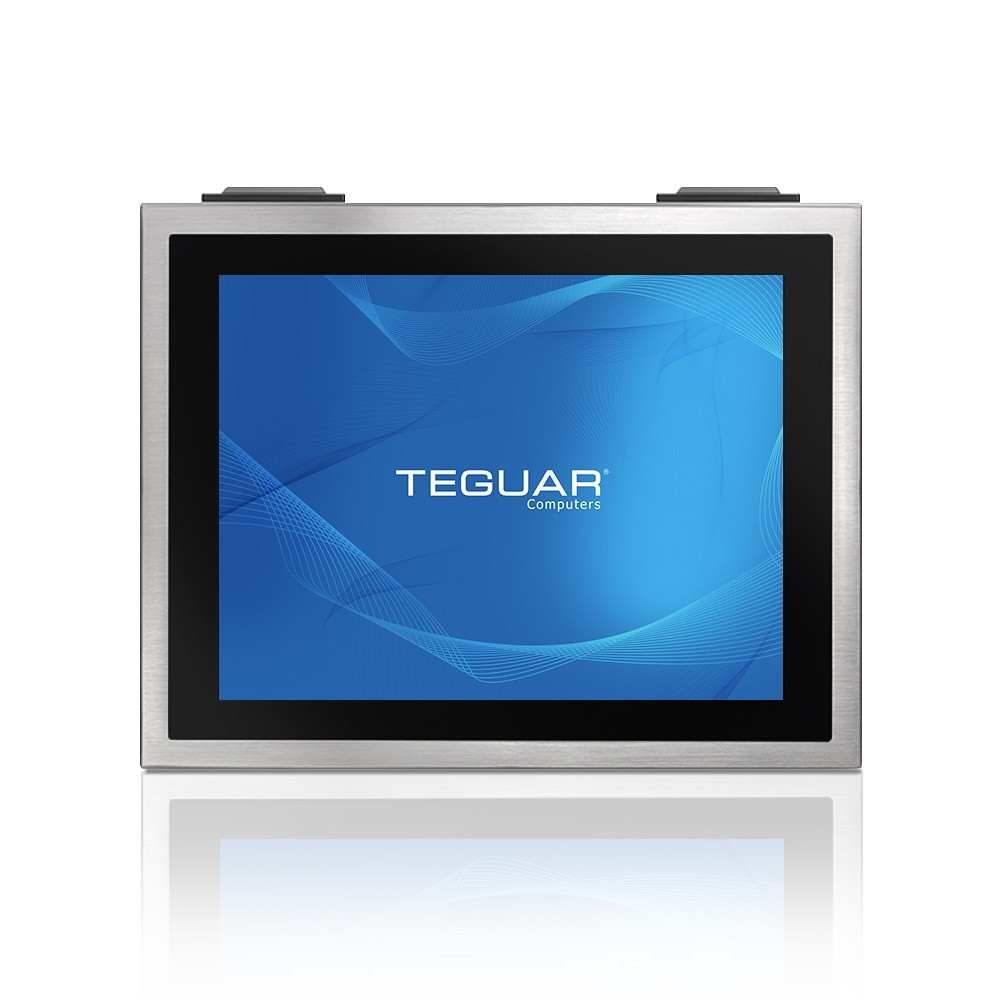

TSC-5010-15

15" Waterproof PC with Sealed Cable Gland
Available – Contact Us for Quick Quote

Description

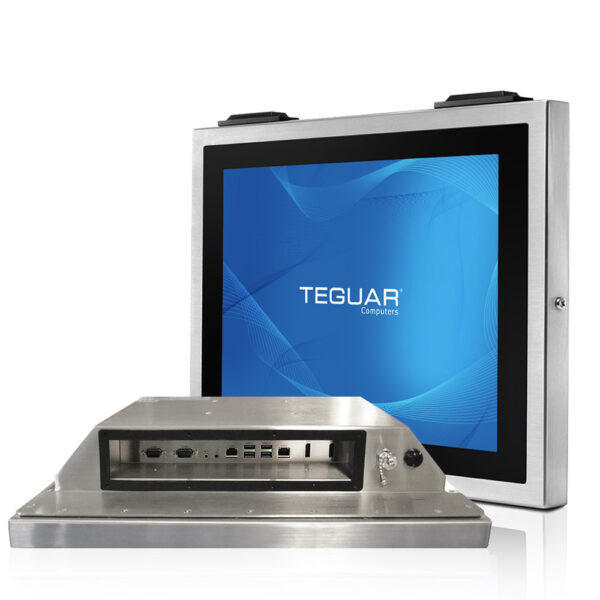

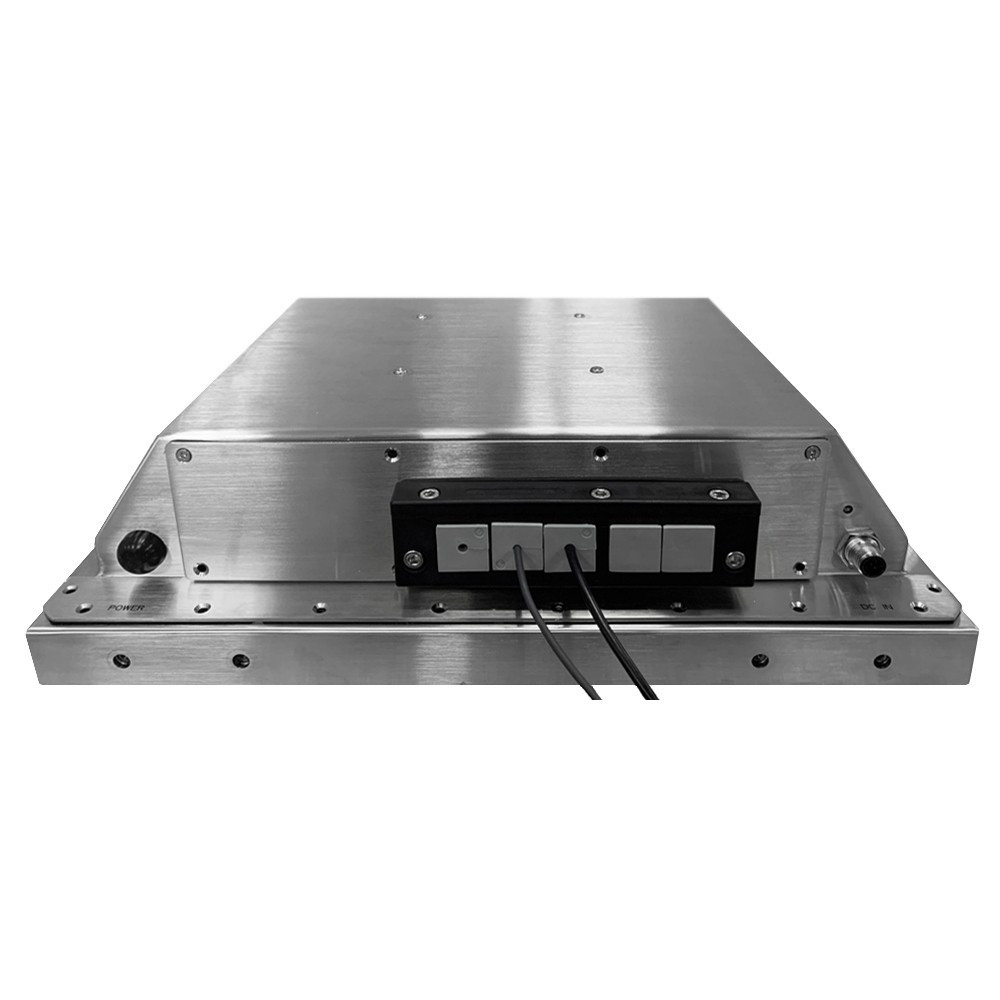

The TSC-5010-15 is a fully waterproof computer running on an Intel Core i5 CPU. Teguar’s unique cable gland design allows you to plug in standard cables to the I/O ports and maintain a fully waterproof system. This means the computer does not require custom M12 cables and it has no exposed connectors. The 15” touchscreen is available in resistive or P-Cap touch and has a 4:3 aspect ratio, which is required for certain HMI and SCADA software. This PC can also be upgraded to 1000 nit high brightness with optical-bonding, for use outdoors or under bright overhead lights. The TSC-5010-15 can be VESA mounted onto a machine, mobile cart, or arm, or it can be yoke mounted to the wall or a desktop stand. This computer is made for food and beverage manufacturing, pharmaceutical production, and other cleanroom applications.

Read the Product Review from RuggedPCReview >

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Waterproof Computers.

Key Highlights

  • 15″ P-Cap or Resistive Touchscreen
  • Intel Core i5 Dual-Core CPU
  • Sealed IO Design for Standard Cables
  • IP66, IP69K, Optional IP67
  • Optional Barcode Reader

Primary Components

Processor FamilyIntel Core I series 6th Generation Skylake
Processor ModelCore i5-6200U
Processor Speed2.3 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support32GB-1TB

Display

Screen Size15"
Resolution1024 x 768 (XGA)
Screen Ratio5:3
BrightnessOptional 1000 nit High Brightness

Touch Screen

Touch ScreenProjected Capacitive
Hardness4H

External I/O Ports

USB4x USB 3.0
Serial / Com2x COM
Serial Protocol Detail1x RS-232, 1x RS-232/422/483 (Jumperless configuration in BIOS)
Ethernet / LAN2x RJ45 GbE LAN
Audio Ports1x Audio Line-Out
Power Input PortM12 type 5-PIN DC-in

Power

Input Voltage Range9-32V DC
Max Power Consumption52.9W
Standard Power AdapterAC 100 - 240V / 47-63 Hz / DC Output 12V, AC Cable 2130MM

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 7 Pro

Compatibility

Security HardwareOptional TPM 2.0

Expansion Slots

Internal M.21x M.2 Type E

Multimedia

SpeakersOptional Speaker

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialOptional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66, IP69K, Optional IP67
ColorStainless Steel
Control ButtonsPower Button
Mounting OptionsTable Mount, VESA 100 Mount, Wall Mount
Approved Cleaning SolutionsAcetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid, Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid (low concentration), Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol

Peripherals & Wireless Connectivity

WiFiOptional WiFi + Bluetooth Flat Antenna Kit
Barcode ScannerOptional 1D/2D Barcode Scanner

Weight / Dimensions

Weight8.4 KG kg (18.5 lbs)
Dimensions295 x 310 x 104 mm mm (11.6 x 12.2 x 4.1 in)

Certification

CertificationsCE, FCC, VCCI Class B

Warranty

WarrantyUp to 5 Years

Food and Beverage Manufacturing: The TSC-5010 Series, with its fully waterproof design and stainless steel construction, is ideal for food and beverage manufacturing environments that require frequent washdowns. It can be used for tasks such as recipe management, batch tracking, and quality control.

Pharmaceutical Production: With its waterproof and cleanroom-compatible design, the TSC-5010 Series is well-suited for pharmaceutical production environments. It provides reliable and durable computers for tasks such as process monitoring, documentation management, and regulatory compliance.

Cleanroom Applications: The TSC-5010 Series’ waterproof and cable gland design make it suitable for cleanroom applications that require protection against water and dust. It can be used in industries such as semiconductor manufacturing, medical device production, and research laboratories.

Dimensional Drawings & I/Os

I/O Diagram Images

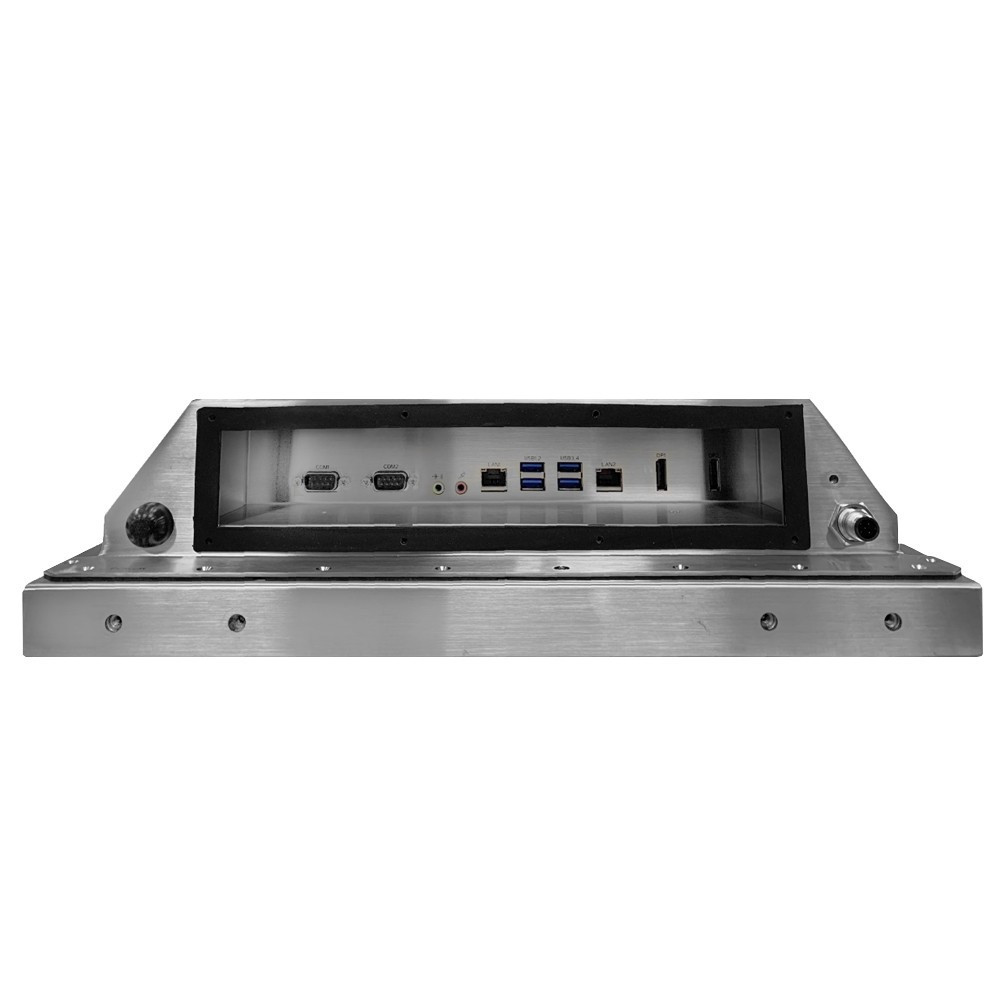

Inputs and Outputs of Teguar's Cable Gland Computer

Tech Diagram Images

TSC-5010-15 Tech Drawing
