TSC-4810-19

19" Cable Gland Computer

Available – Contact Us for Quick Quote

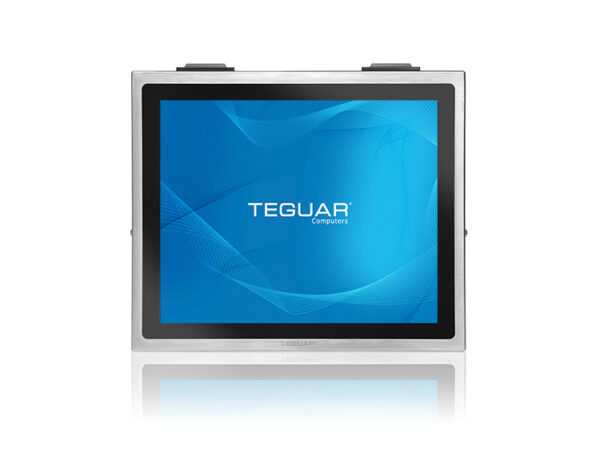

19" Cable Gland Computer TSC-4810-19 Front Angle

19" Cable Gland Computer TSC-4810-19 I/Os

19" Cable Gland Computer TSC-4810-19 Cable Glands

Description

The 19″ Cable Gland Computer stands as a rugged computing solution, boasting an IP69K waterproof rating to tackle the rigorous cleaning procedures essential in food and meat processing environments. Its integrated cable gland, accommodating up to five I/O cables, facilitates efficient cable management and ensures a sealed design. Running on Windows 11, powered by the dependable Celeron J6412 CPU, this computer offers seamless performance. Its WiFi 6 capabilities enable high-speed and reliable wireless connectivity, enhancing productivity in demanding industrial settings. With a focus on durability, hygiene, and robust processing, the 19″ Cable Gland Computer proves to be a crucial asset in these industries.

Key Highlights

19” Resistive or PCap Touchscreen Options
Intel Celeron J6412 Processor Passmark Rating 3839
Windows 11 Capabilities
Integrated Cable Gland supporting up to 5 I/O cables
IP69K Waterproof Rated

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412
Processor Speed	2.0 GHz, 2.6 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (Internal, not with removable drive in use), 1x M.2 SATA3 2242 Slot
Storage Support	M.2 and 2.5": 128GB - 1TB

Display

Screen Size	19
Resolution	1280 x 1024 (SXGA)
Screen Ratio	5:4
Brightness	350 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch), 5 Wire Resistive
Hardness	Resistive: 3H, P-cap: 7H

External I/O Ports

USB	2x USB 2.0, 2x USB 3.2
Serial / Com	2x COM
Serial Protocol Detail	RS-232/422/485
Ethernet / LAN	1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN
Video Outputs	1x HDMI 2.0b, 1x VGA
Audio Ports	1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port	M12 type 5-PIN DC-in

Power

Input Voltage Range	12-28V DC
Standard Power Adapter	100~277Vac /47~63 Hz/ 24Vdc, 120W, IP68

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security Hardware

fTPM 2.0, Optional TPM 2.0

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	0°C - 40°C - 0°C - 50°C (32°F – 104°F (With HDD), 32°F – 122°F (With SSD))
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	0% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Stainless Steel
IP Rating	IP66, IP69K
Color	Stainless Steel
Control Buttons	Power Button
Mounting Options	VESA 100 Mount, Wall Mount, Yoke Mount

Peripherals & Wireless Connectivity

WiFi	Optional Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Dual band with Flat Robust Antennas
Bluetooth	Optional Bluetooth 5.3
Barcode Scanner	Optional 1D/2D with Device Box

Weight / Dimensions

Weight	11.5 kg (25.4 lbs)
Dimensions	458 x 64 x 386 mm (18.0 x 2.5 x 15.2 in)

Warranty

Up to 5 Years

Food and Meat Processing: The TSC-4810 series, with its rugged design, integrated cable gland, and IP69K waterproof rating, is specifically tailored for demanding environments like food and meat processing. Powered by Windows 11 and a Celeron J6412 CPU, this series provides a resilient and reliable computing solution, ensuring durability and hygiene in critical processes.

Clean Room Monitoring: The rugged and waterproof features of the TSC-4810 series make it suitable for industrial hygiene monitoring applications. With its integrated cable gland supporting multiple I/O cables, it ensures efficient cable management in environments where cleanliness is crucial. This computing solution, driven by Windows 11 and a Celeron J6412 CPU, is well-suited for monitoring and managing hygiene conditions in industrial settings, contributing to overall workplace safety.

See the data sheet Warranty Download Drivers
