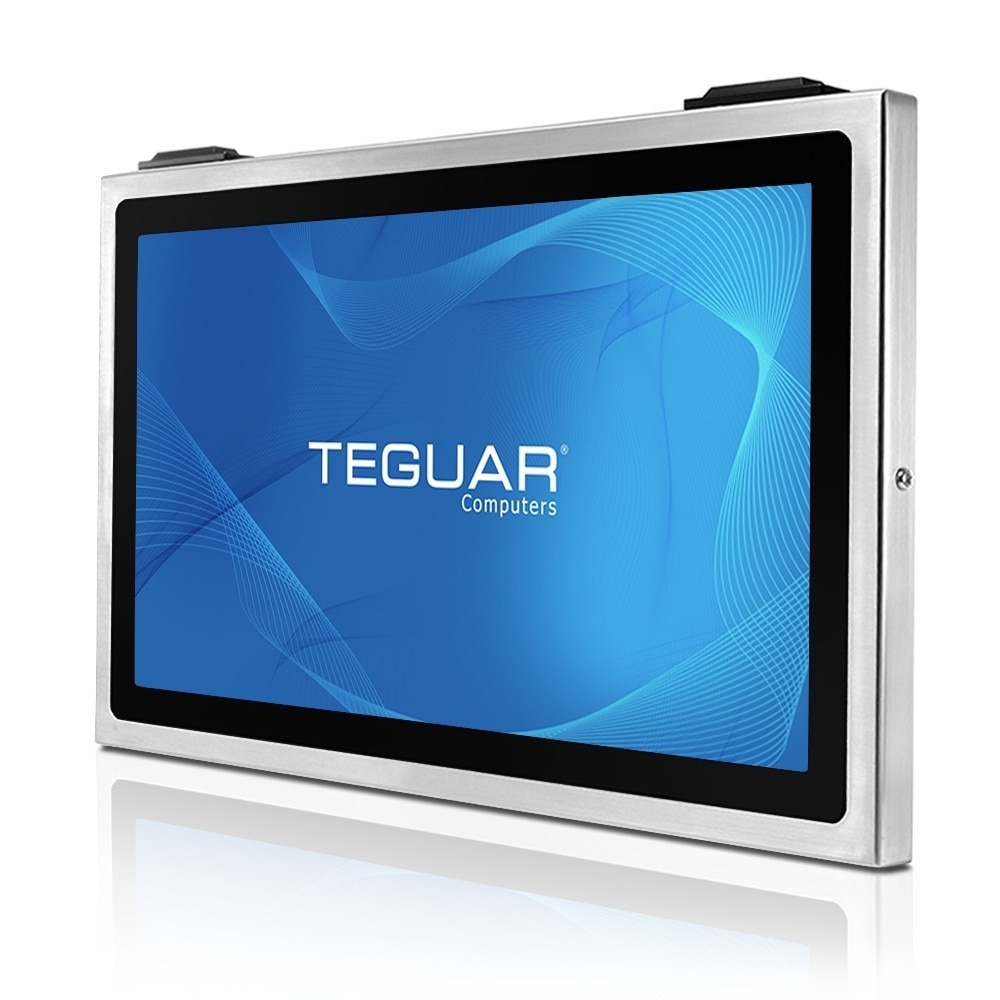

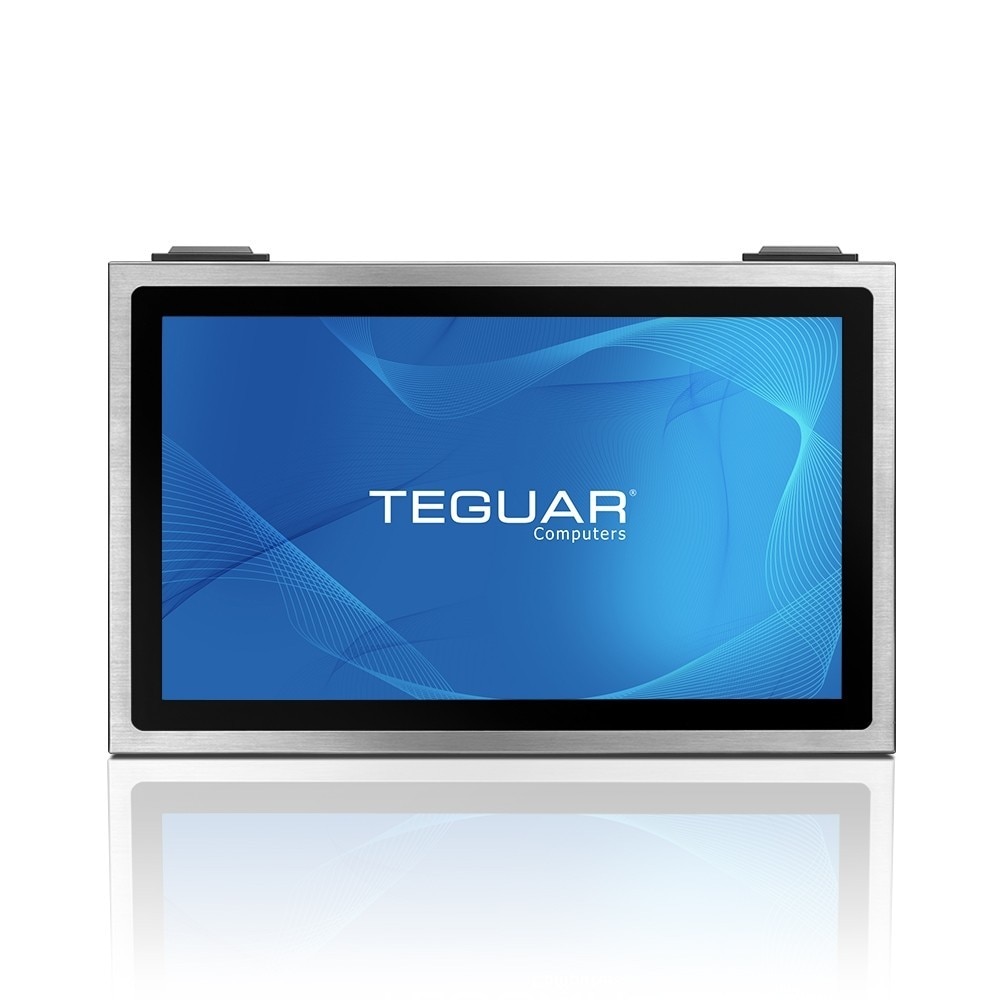

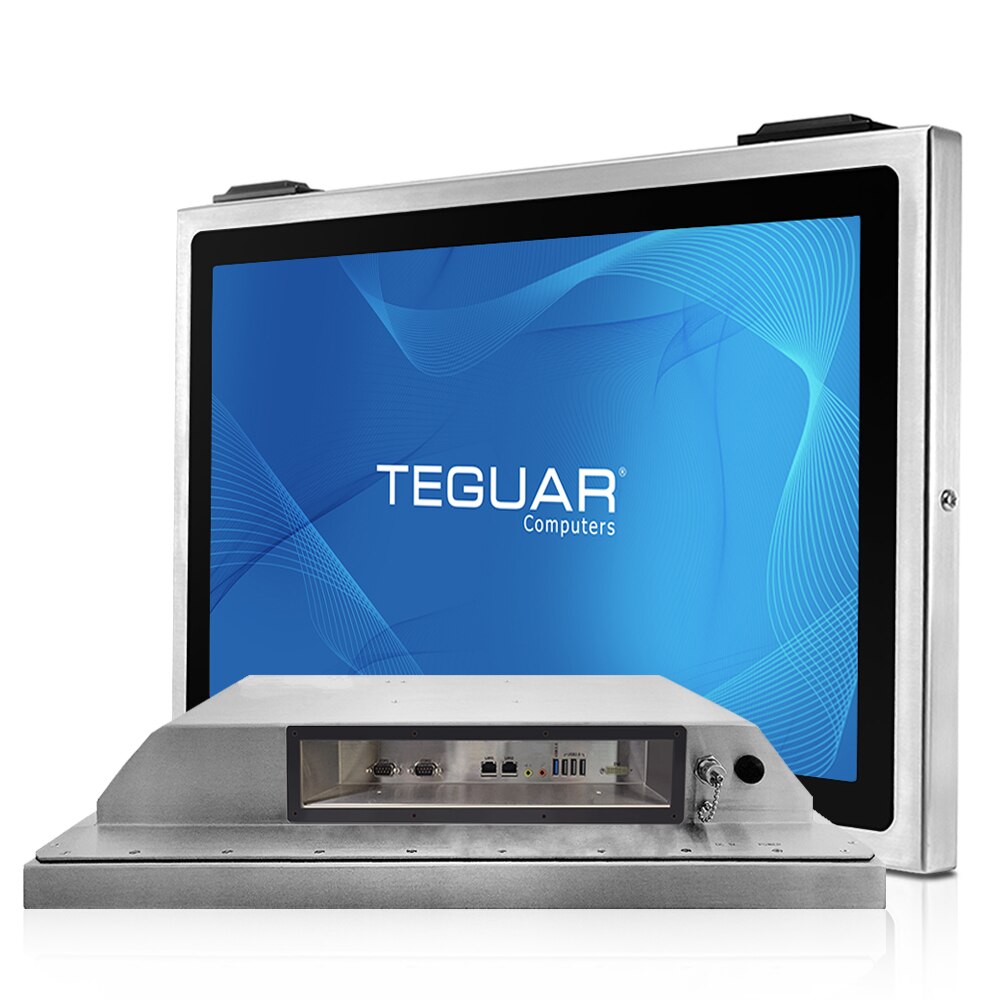

TSC-4010-22

22" Waterproof PC with Sealed Cable Feedthrough
Available – Contact Us for Quick Quote

Description

The TSC-4010-22 provides a large touchscreen interface in a fully waterproof enclosure. The widescreen 21.5” LCD is available in P-Cap or Resistive touch, and with high brightness and optical bonding. This computer has a unique cable gland design that allows you to use standard cables with the I/O ports, while maintaining a full IP67/IP69K waterproof rating. The Intel Celeron Bay Trail CPU is designed to work with software frequently used in the food and beverage manufacturing industry, such as ERP software. The stainless steel housing is fully sealed, to withstand wash downs and frequent cleanings with chemicals used in sterile environments.

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Waterproof Computers.

Key Highlights

  • 21.5″ LCD Touchscreen
  • Intel Celeron Quad-Core CPU

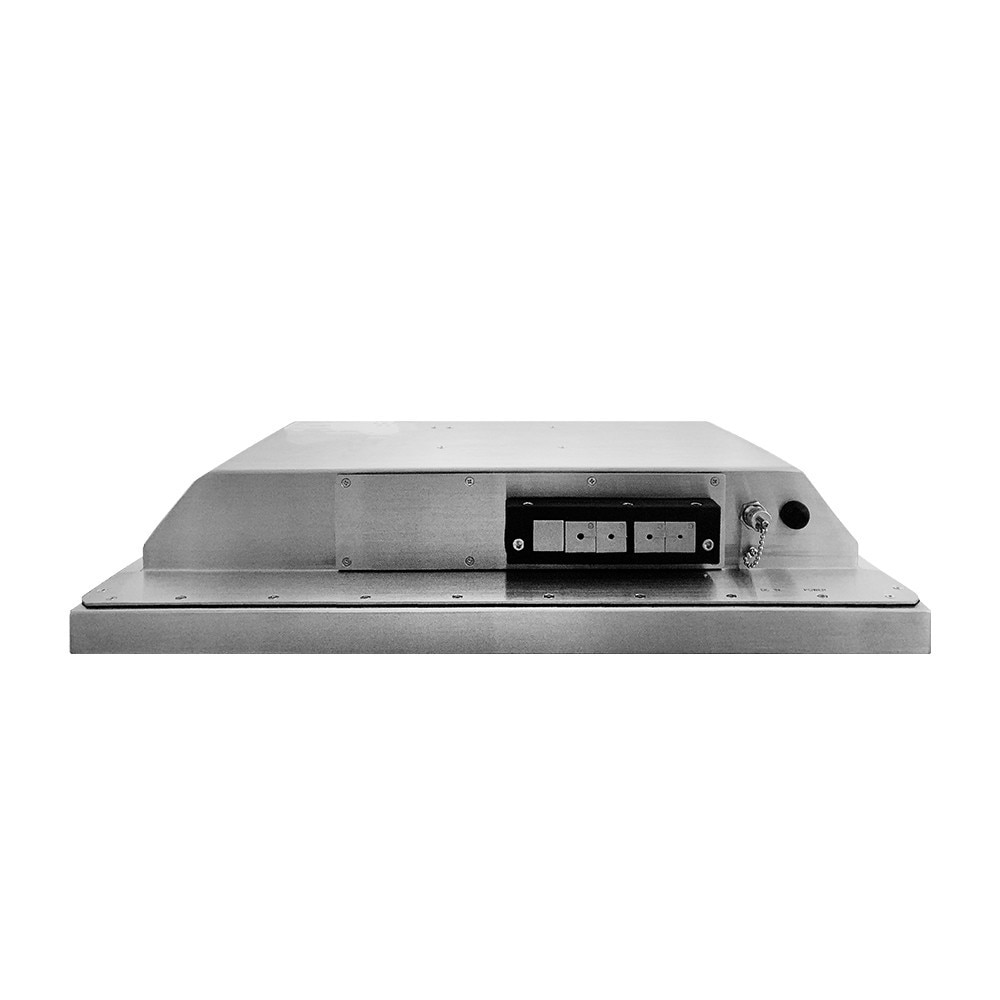

  • Sealed Cable Gland for I/O Connections
  • Fully Waterproof IP66, IP69K, Optional IP67
  • Resistive or P-Cap Touch

Primary Components

Processor FamilyIntel Celeron Bay Trail
Processor ModelJ1900 Quad Core
Processor Speed2.0 GHz
Memory Type2x DDR3L SO-DIMM
Memory Support2GB, 4GB, 8GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support32GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 1000 nit High Brightness, 250 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive
Hardness4H

External I/O Ports

USB1x USB 3.0, 3x USB 2.0
Serial / Com2x COM
Serial Protocol Detail1x RS-232, 1x RS-232/422/485 (RS485 supports auto flow control, Jumperless configuration in BIOS)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x DVI-I
Audio Ports1x Audio Line-Out
Power Input PortM12 type 5-PIN DC-in

Power

Input Voltage Range7-32V DC
Max Power Consumption40.2W
Standard Power AdapterAC 100 ~ 277/ 47 ~ 63 Hz / DC Output 12V, IP68, AC Cable 2130MM

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 7 Pro

Compatibility

Security HardwareOptional TPM 2.0

Expansion Slots

Internal M.21x M.2 Type E

Multimedia

SpeakersOptional Speaker

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialOptional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66, IP69K, Optional IP67
ColorStainless Steel
Control ButtonsPower Button

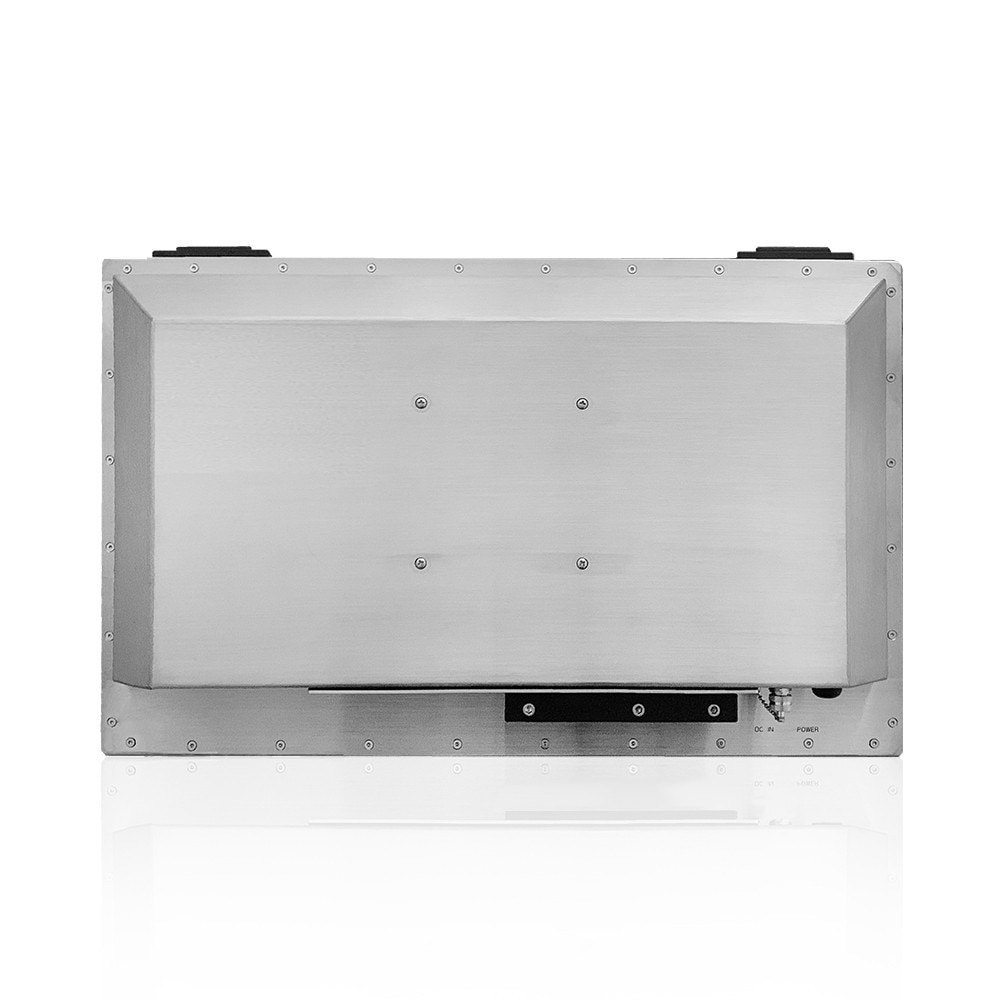

Mounting OptionsTable Mount, VESA 100 Mount, Wall Mount
Approved Cleaning SolutionsAcetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid (low concentration), Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol

Peripherals & Wireless Connectivity

WiFiOptional WiFi + Bluetooth Flat Antenna Kit
Barcode ScannerOptional 1D/2D Barcode Scanner

Weight / Dimensions

Weight17.1 kg (37.7 lbs)
Dimensions557 x 358.5 x 105 mm (21.9 x 14.1 x 4.1 in)

Certification

CertificationsCE, FCC, VCCI Class B

Warranty

WarrantyUp to 5 Years

Food and Beverage Manufacturing: The TSC-4010 Waterproof Computer Series, with its IP66/IP69K waterproof rating and stainless steel construction, is well-suited for use in food and beverage manufacturing environments. It can be used for tasks such as recipe management, production tracking, and quality control.

Pharmaceutical Production: With its sealed I/O design and optional TPM 2.0 hardware security, the TSC-4010 Waterproof Computer Series provides reliable and secure computing solutions for pharmaceutical production environments. It can be used for tasks such as batch tracking, documentation management, and regulatory compliance.

Cleanroom Applications: The TSC-4010 Waterproof Computer Series, with its sealed design and optional high brightness and optical bonding, is suitable for cleanroom applications that require protection against water, dust, and enhanced visibility. It can be used in industries such as semiconductor manufacturing, medical device production, and research laboratories.

Industrial Automation: The TSC-4010 Waterproof Computer Series, with its durable construction and efficient Intel Celeron CPU, is ideal for industrial automation applications. It can serve as an interface for machine control, data monitoring, and automation systems in industries such as manufacturing, logistics, and transportation.

Dimensional Drawings & I/Os

I/O Diagram Images

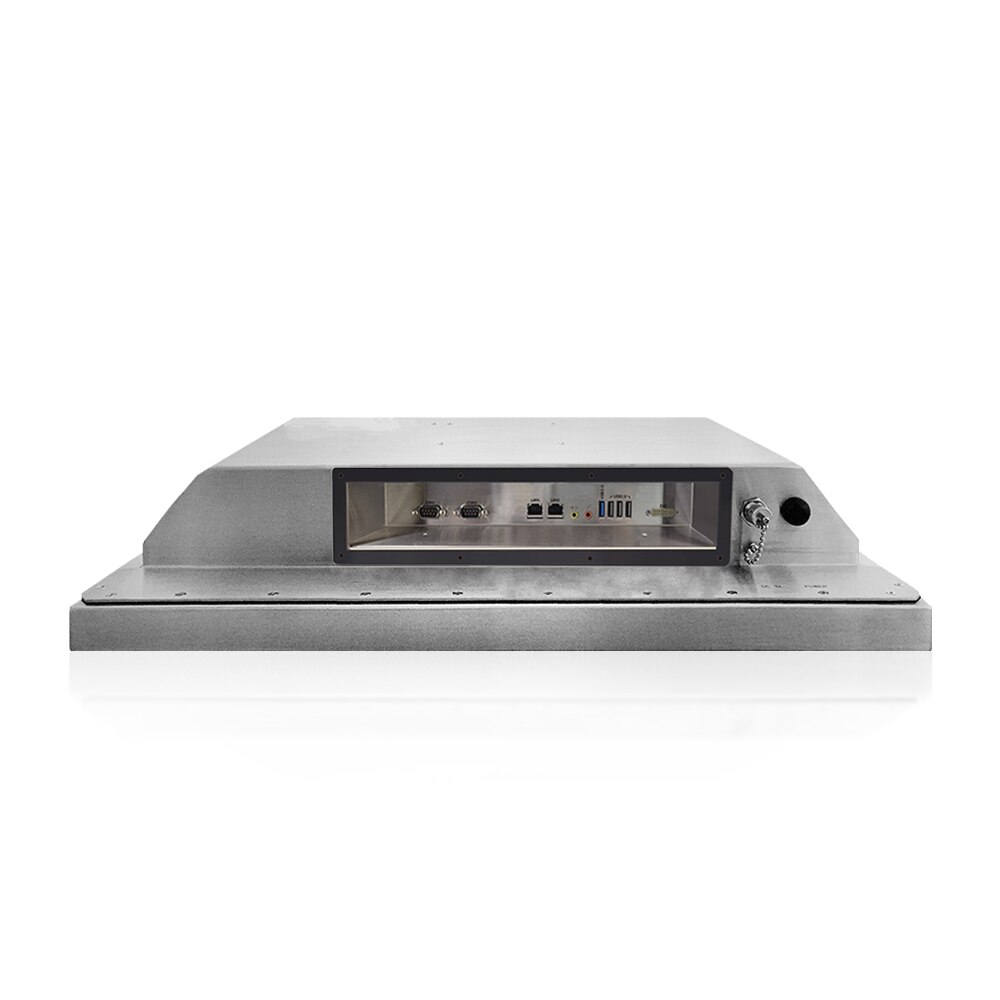

Inputs and Outputs of Teguar's Cable Gland Computer

Tech Diagram Images

TSC-4010-22 Tech Drawing
