TS-4845-17

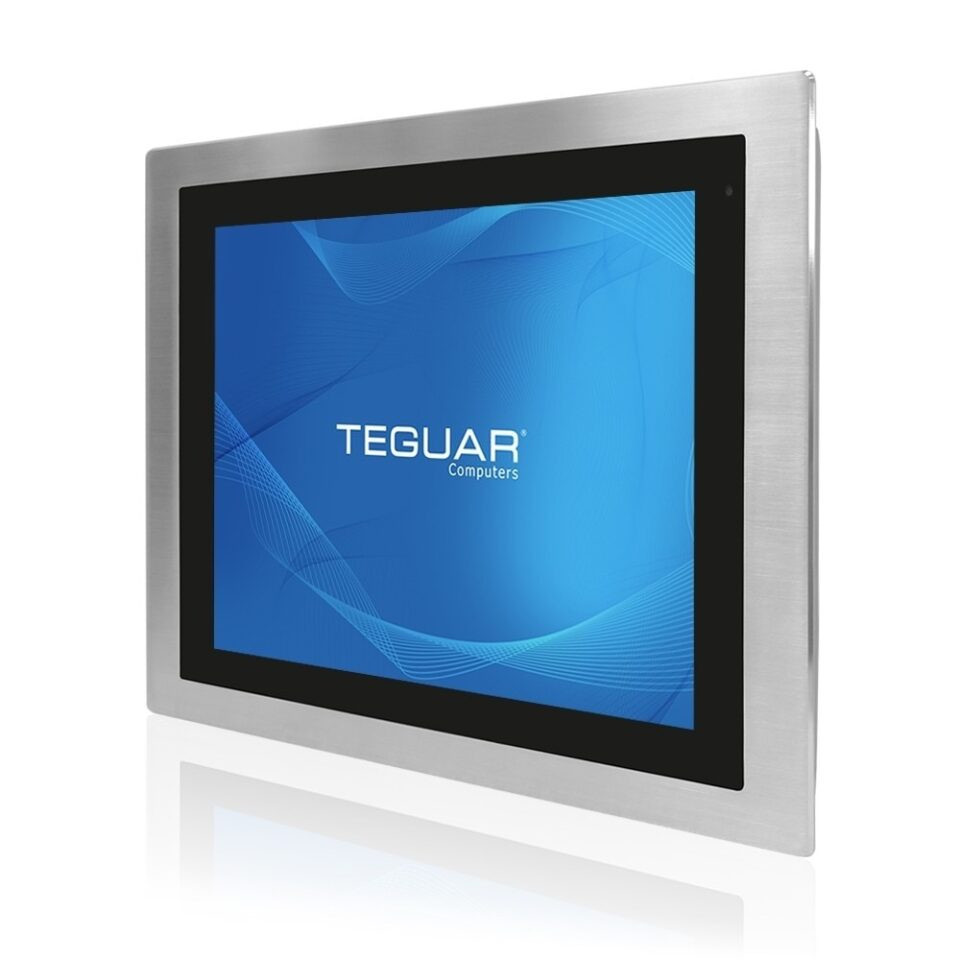

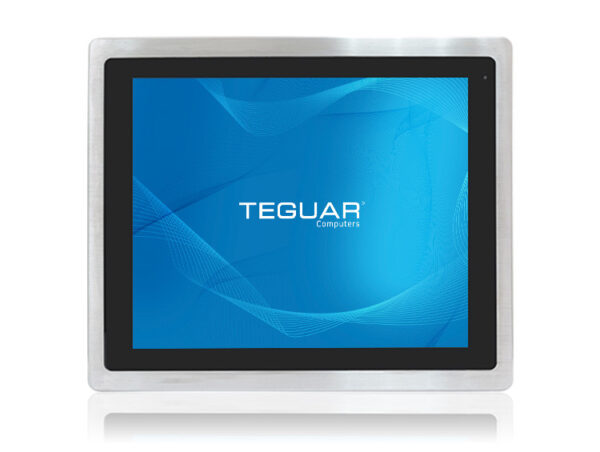

17" Waterproof Touch Screen Computer
Available – Contact Us for Quick Quote

Description

Introducing the 17″ Waterproof Touch Screen Computer, crafted for superior performance in wet or damp environments. Powered by Windows 11 and a potent Celeron Quad-Core Processor, this device seamlessly blends efficiency with innovation. Its M12 waterproof I/O connectors ensure secure and reliable connectivity in challenging conditions, enhancing versatility. The Touch On/Off button not only elevates user experience but also facilitates hygienic cleaning, a crucial feature for maintaining pristine screens in diverse settings. With a generous 17″ screen, this series is an ideal choice for those seeking a spacious yet rugged computing solution that excels in demanding and variable environments.

Key Highlights

  • 17” Touchscreen in Both Resistive and PCap Options
  • Celeron J6412 Processor Passmark Rating 3839
  • Windows 11 Compatibility
  • IP66 Stainless Steel Housing
  • Waterproof M12 I/O Connectors

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412
Processor SpeedUp to 2.6 GHz, 2.0 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 SATA3 2242 Slot
Storage SupportM.2 and 2.5": 128GB - 1TB

Display

Screen Size17"
Resolution1280 x 1024 (SXGA)
Screen Ratio5:4
BrightnessOptional 1000 nit High Brightness, 350 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch), Resistive

External I/O Ports

USB1x M12 8Pin for USB 1/2, 1x Optional M12 8Pin for USB 3/4
Serial / Com1x M12 8-pin for COM, 1x Optional M12 8-pin for COM 2
Serial Protocol DetailRS-232/422/485, RS-232 Defualt
Ethernet / LAN1x M12 8pin RJ45 Gbe LAN, 1x Optional M12 8pin RJ45 Gbe LAN
Power Input PortM12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 95% Non-condensing

Enclosure

MaterialSUS304 Stainless Steel
IP RatingIP66, IP69K Front Bezel
ColorStainless Steel
Led Indicator LightPower
Control ButtonsPower Button, Touchscreen Lock for Cleaning
Mounting OptionsDesktop Stand, VESA 75 Mount, Wall Mount, Yoke Mount

Peripherals & Wireless Connectivity

WiFiOptional Wi-Fi 6, 802.11 a/b/g/n/ac/ax
BluetoothOptional Bluetooth 5.3
Sim Card1x Nano SIM Card Slot
RFIDOptional 125KHz OR 13.56 MHz
SensorsLight Sensor

Weight / Dimensions

Dimensions432 x 55 x 358 mm (17.0 x 2.2 x 14.1 in)

Certification

CertificationsCE, FCC

Warranty

WarrantyUp to 5 Years

Manufacturing Floors: The TS-4845 series, featuring a 10″ Waterproof Touch Screen Computer, is purpose-built for manufacturing floors where wet or damp conditions are prevalent. With its Windows 11 compatibility and Celeron Quad-Core Processor, this device ensures optimal performance and seamless operation in industrial manufacturing settings.

Semi-Outdoor Workstations: Designed for versatility, the TS-4845 series is an excellent choice for semi-outdoor workstations. Its waterproof touch screen and compact form factor, combined with a Celeron Quad-Core Processor, make it suitable for tasks requiring efficiency and innovation in partially exposed environments.

Agricultural Operations: The rugged design of the TS-4845 series makes it an ideal computing solution for agricultural operations. With its waterproof touch screen and Windows 11 compatibility, it provides reliable performance in challenging outdoor conditions, supporting tasks such as data monitoring and management in agriculture.

Food Processing Facilities: In food processing facilities, where hygiene is paramount, the TS-4845 series excels with its 10″ waterproof touch screen and hygienic Touch On/Off button. Running on Windows 11 and equipped with a Celeron Quad-Core Processor, this device is well-suited for applications such as recipe management and quality control in food production.

Dimensional Drawings & I/Os

I/O Diagram Images

TS-4845-17 Labeled IOs

Tech Diagram Images

TS-4845-17 Technical Drawing
