TS-4845-10

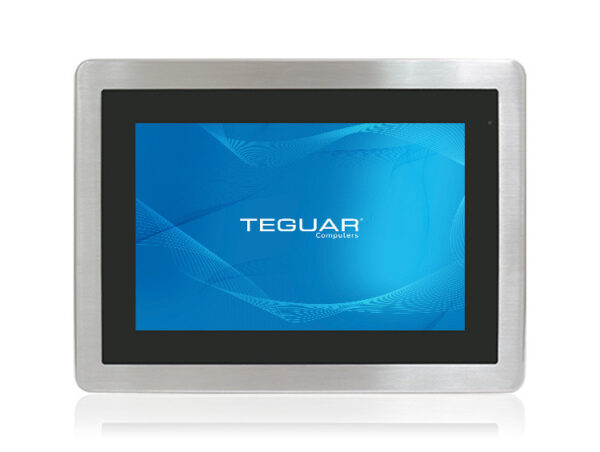

10" Waterproof Touch Screen Computer
Available – Contact Us for Quick Quote

Description

Introducing our 10″ Waterproof Touch Screen Computer, a compact powerhouse designed for optimal performance in wet or damp environments. Running on Windows 11 and equipped with a Celeron Quad-Core Processor, this device seamlessly combines efficiency with innovation. The Touch On/Off button not only enhances user experience but also facilitates hygienic cleaning, ensuring a pristine display. Its 10″ screen size strikes the perfect balance between portability and functionality, making it an ideal choice for diverse applications. Embrace the future of computing with this series, where cutting-edge features meet the demands of challenging environments.

Key Highlights

  • 10.1” Touchscreen in Both Resistive and PCap Options
  • Celeron J6412 Processor Passmark Rating 3839
  • Windows 11 Compatibility
  • IP66 Stainless Steel Housing
  • Waterproof M12 I/O Connectors

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412
Processor SpeedUp to 2.6 GHz, 2.0 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x M.2 SATA3 2242 Slot
Storage Support128GB-1TB

Display

Screen Size10.1"
Resolution1280 x 800 (WXGA)
Screen Ratio16:10
BrightnessOptional 1000 nit High Brightness, 350 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch), Resistive

External I/O Ports

USB1x M12 8Pin for USB 1/2, 1x Optional M12 8Pin for USB 3/4
Serial / Com1x M12 8-pin for COM, 1x Optional M12 8-pin for COM 2
Serial Protocol DetailRS-232/422/485, RS-232 Defualt
Ethernet / LAN1x M12 8pin RJ45 Gbe LAN, 1x Optional M12 8pin RJ45 Gbe LAN
Power Input PortM12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2 Type E
OtherOptional RFID module, front side

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 95% Non-condensing

Enclosure

MaterialOptional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66, IP69K Front Bezel
ColorStainless Steel
Led Indicator LightPower
Control ButtonsPower Button, Touchscreen Lock for Cleaning
Mounting OptionsDesktop Stand, VESA 75 Mount, Wall Mount, Yoke Mount

Peripherals & Wireless Connectivity

WiFiOptional Wi-Fi 6, 802.11 a/b/g/n/ac/ax
BluetoothOptional Bluetooth 5.3
Sim Card1x Nano SIM Card Slot
RFIDOptional 125KHz OR 13.56 MHz
SensorsLight Sensor

Weight / Dimensions

Dimensions300 x 53 x 220 mm (11.8 x 2.1 x 8.7 in)

Certification

CertificationsCE, FCC

Warranty

WarrantyUp to 5 Years

Manufacturing Floors: The TS-4845 series, featuring a 10″ Waterproof Touch Screen Computer, is purpose-built for manufacturing floors where wet or damp conditions are prevalent. With its Windows 11 compatibility and Celeron Quad-Core Processor, this device ensures optimal performance and seamless operation in industrial manufacturing settings.

Semi-Outdoor Workstations: Designed for versatility, the TS-4845 series is an excellent choice for semi-outdoor workstations. Its waterproof touch screen and compact form factor, combined with a Celeron Quad-Core Processor, make it suitable for tasks requiring efficiency and innovation in partially exposed environments.

Agricultural Operations: The rugged design of the TS-4845 series makes it an ideal computing solution for agricultural operations. With its waterproof touch screen and Windows 11 compatibility, it provides reliable performance in challenging outdoor conditions, supporting tasks such as data monitoring and management in agriculture.

Food Processing Facilities: In food processing facilities, where hygiene is paramount, the TS-4845 series excels with its 10″ waterproof touch screen and hygienic Touch On/Off button. Running on Windows 11 and equipped with a Celeron Quad-Core Processor, this device is well-suited for applications such as recipe management and quality control in food production.

Dimensional Drawings & I/Os

I/O Diagram Images

TS-4845-10 Labeled IOS

Tech Diagram Images

TS-4845-10 Technical Drawing
