TS-4810-19

19" Stainless Steel Panel PC
Available – Contact Us for Quick Quote

Description

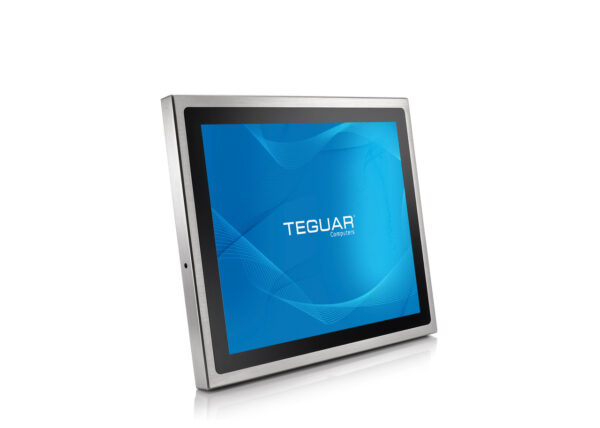

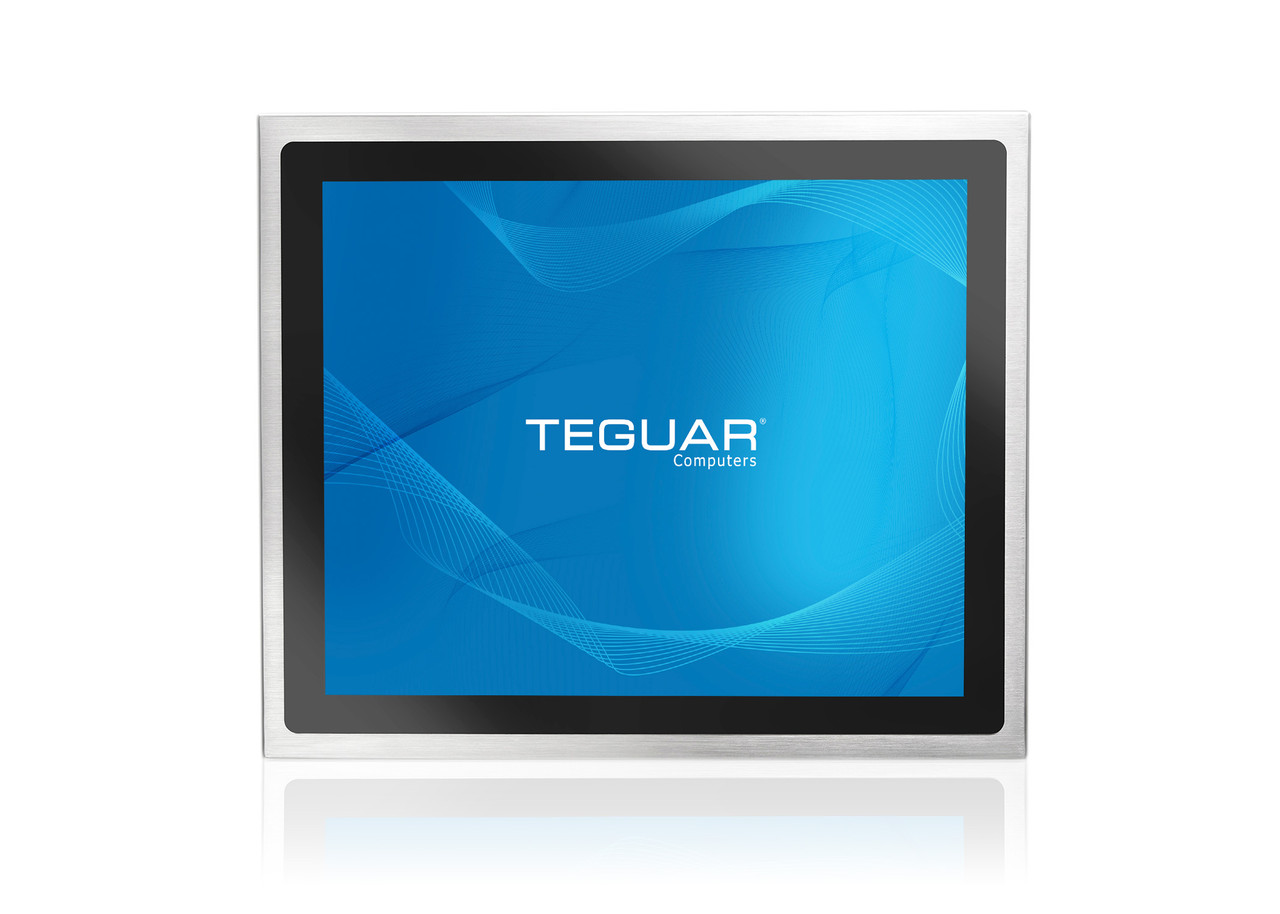

The TS-4810-19 has a 19” resistive or Pcap touchscreen and a fully flush front bezel, meaning there are no crevices where debris and dirt can build up. This computer is IP66 / IP69K rated and is designed for food processing and repeated cleanings in washdown environments. Inside, the TS-4810-19 is made with industrial components and has an Intel Celeron J6412 CPU that is able to run Windows 11 Operating System. Multiple inputs and outputs are located on the back side of the unit and have M12 metal I/O connectors to ensure that no water gets in during powerful washdowns.

Key Highlights

  • 19” Full-Flat Touchscreen
  • IP66 / IP69K Rated
  • Intel Celeron J6412 CPU with Windows 11 Capabilities
  • Waterproof Connectors and Power Supply
  • Fanless and Fully Sealed Design

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412
Processor SpeedUp to 2.6 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 SATA3 2280 Slot
Storage Support64GB-2TB

Display

Screen Size19
Resolution1280 x 1024 (SXGA)
Screen Ratio5:4
Brightness350 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch), 5 Wire Resistive
HardnessResistive: 3H, P-cap: 7H

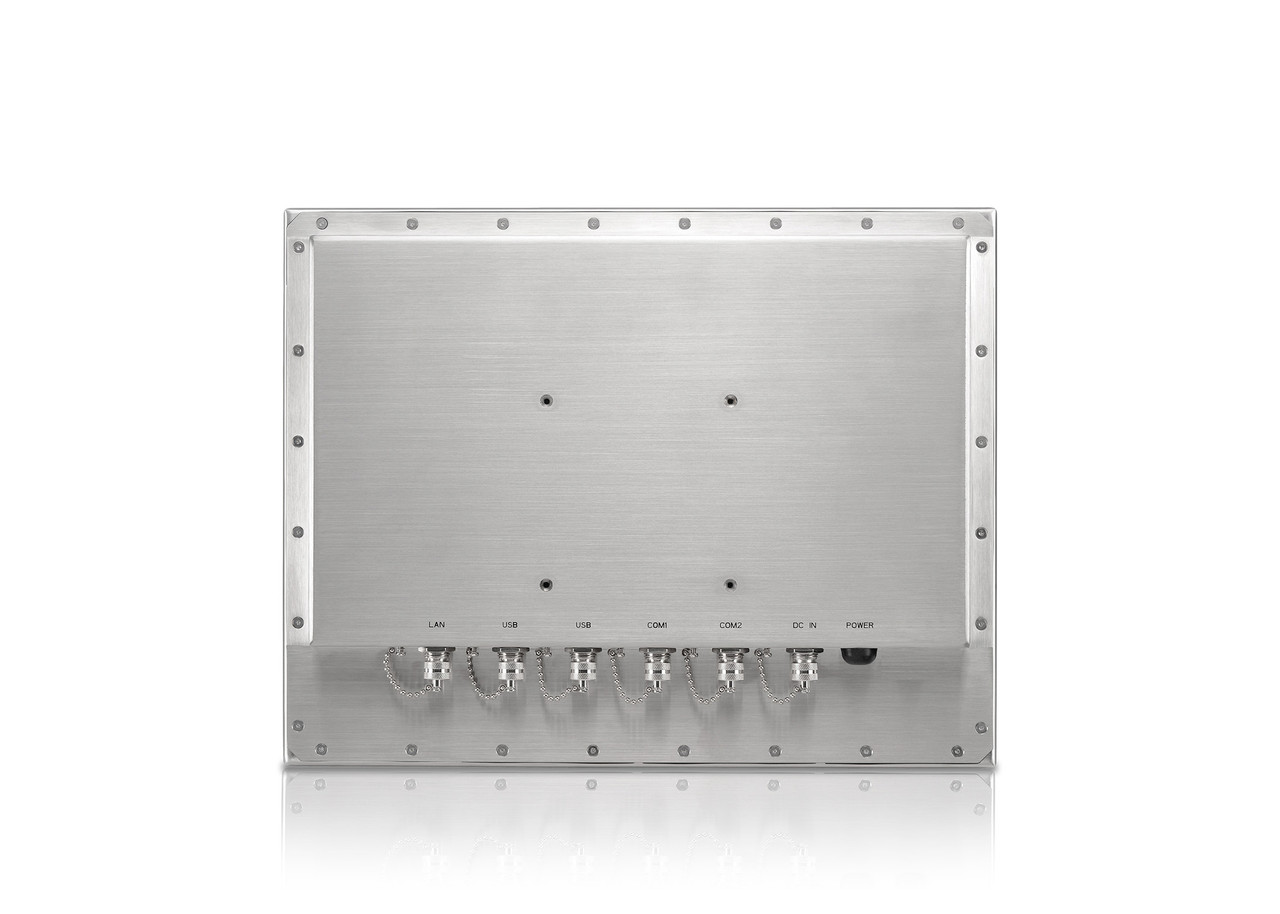

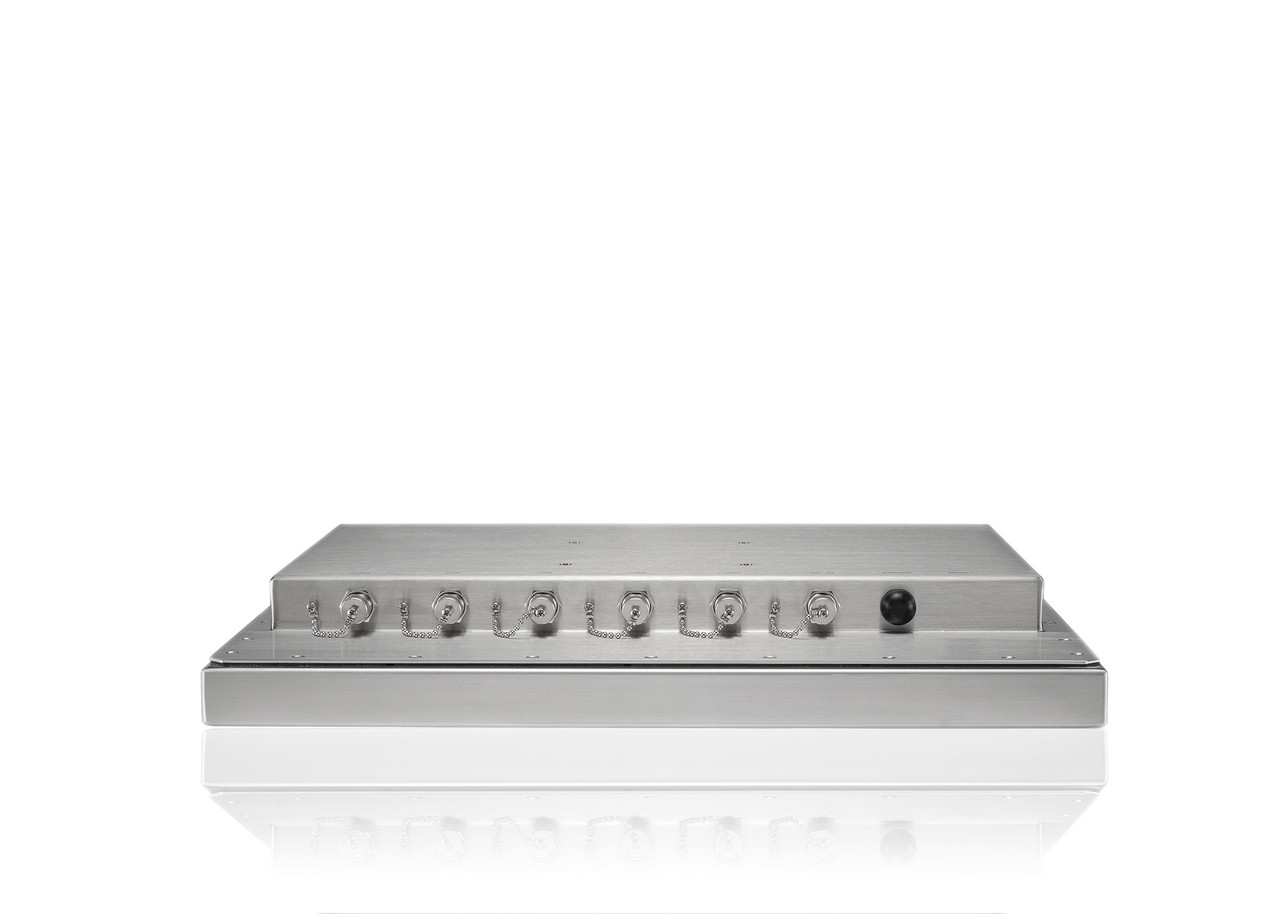

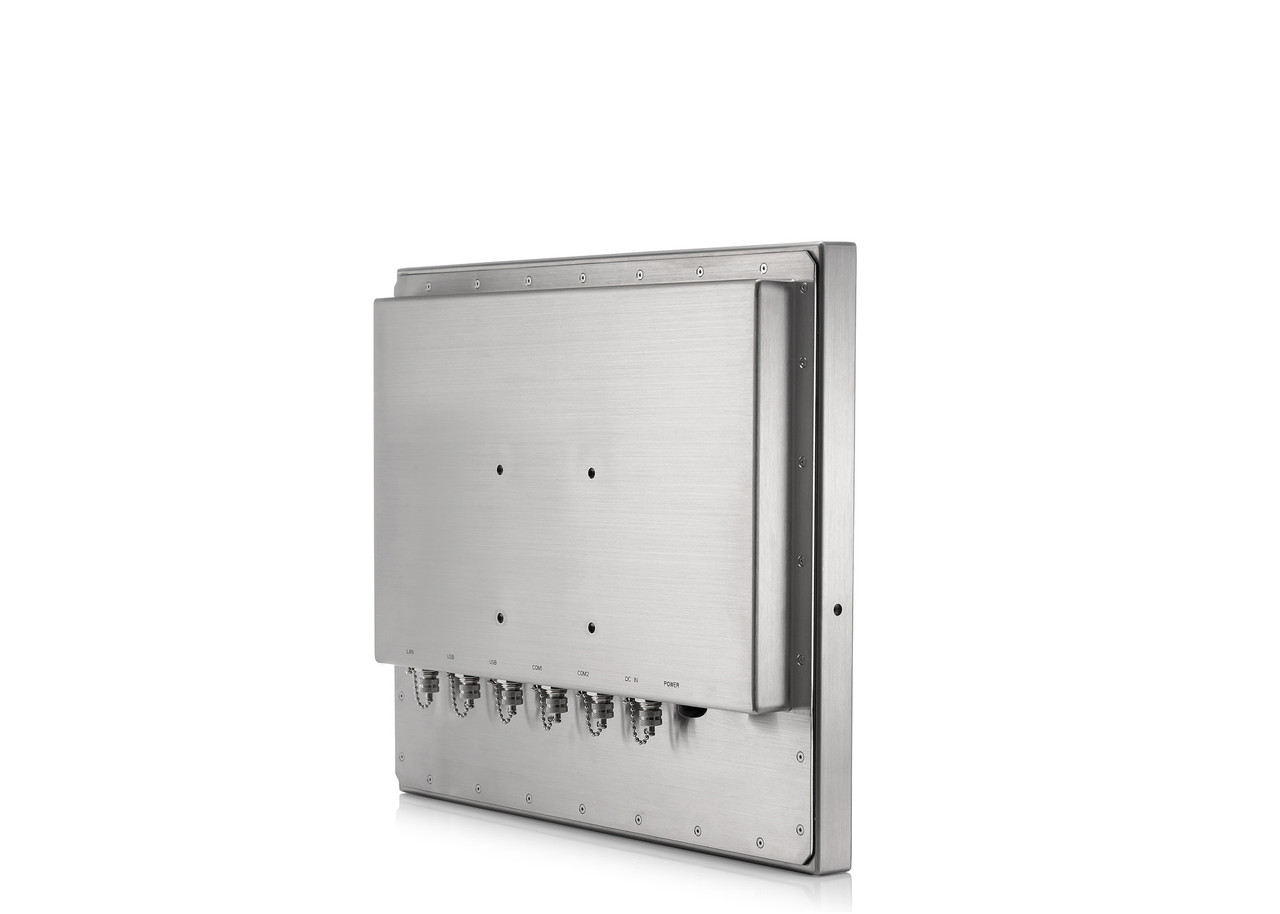

External I/O Ports

USB2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com2x M12 8-pin for COM
Serial Protocol Detail2x RS-232/422/485 (configured in BIOS)
Ethernet / LAN1x M12 8 pin RJ45 2.5Gbit LAN
Other PortsM12 Ports can be configured as needed. Example: 2nd LAN or 3rd COM port
Power Input PortM12 type 5-PIN DC-in

Power

Input Voltage Range12-28V DC
Standard Power AdapterAC 100~240V / 47 ~ 63Hz, IP68, 60W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 Pro
LinuxLinux Ubuntu 20.04 or above (Contact your sales rep for more information)

Compatibility

Security HardwarefTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option)

Multimedia

SpeakersOptional Speaker

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialOptional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66, IP69K, NEMA 4X, Optional IP67
ColorStainless Steel
Control ButtonsPower Button
Mounting OptionsTable Mount, VESA 100 Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFiOptional WiFi + Bluetooth Flat Antenna Kit, Supports WIFI 6 (AX)
BluetoothOptional Bluetooth 5.2
Barcode ScannerOptional 1D/2D Barcode Scanner

Weight / Dimensions

Weight11.5 kg (25.4 lbs)
Dimensions458 x 386 x 64 mm (18.0 x 15.2 x 2.5 in)

Certification

CertificationsCE, FCC, VCCI Class B

Warranty

WarrantyUp to 5 Years

Food Processing: The Stainless Steel Panel PC Series, with its fully sealed stainless steel housing and compatibility with repeated cleanings in washdown environments, is well-suited for use in food processing facilities, ensuring hygienic and durable computing solutions.

Pharmaceutical Manufacturing: With their corrosion-proof stainless steel housing and robust design, the Stainless Steel Panel PCs are suitable for pharmaceutical manufacturing environments, where frequent cleanings and resistance to corrosive substances are necessary for maintaining a sterile production environment.

Industrial Automation: The Stainless Steel Panel PC Series, with its industrial-grade components and Intel Celeron J6412 CPU, provides reliable computing power for industrial automation applications, allowing for seamless control and monitoring of manufacturing processes and machinery on the production floor.

Cleanroom Environments: The fully sealed and corrosion-proof stainless steel housing of the TS-4810 Panel PC makes it well-suited for cleanroom environments, where maintaining a controlled and contaminant-free environment is crucial, such as in semiconductor manufacturing or precision engineering industries.

Dimensional Drawings & I/Os

I/O Diagram Images

TS-4810-19 IOs Labled

Tech Diagram Images

TS-4810-19 Technical Drawing
