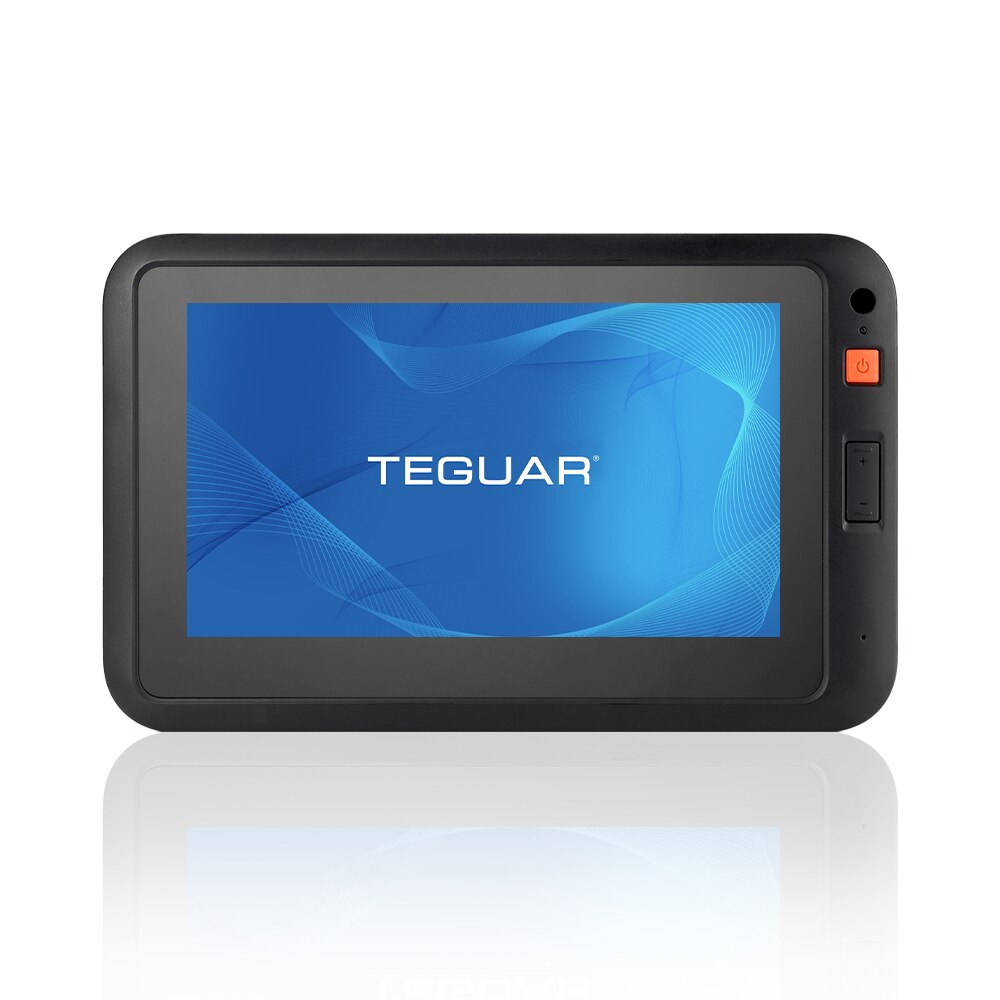

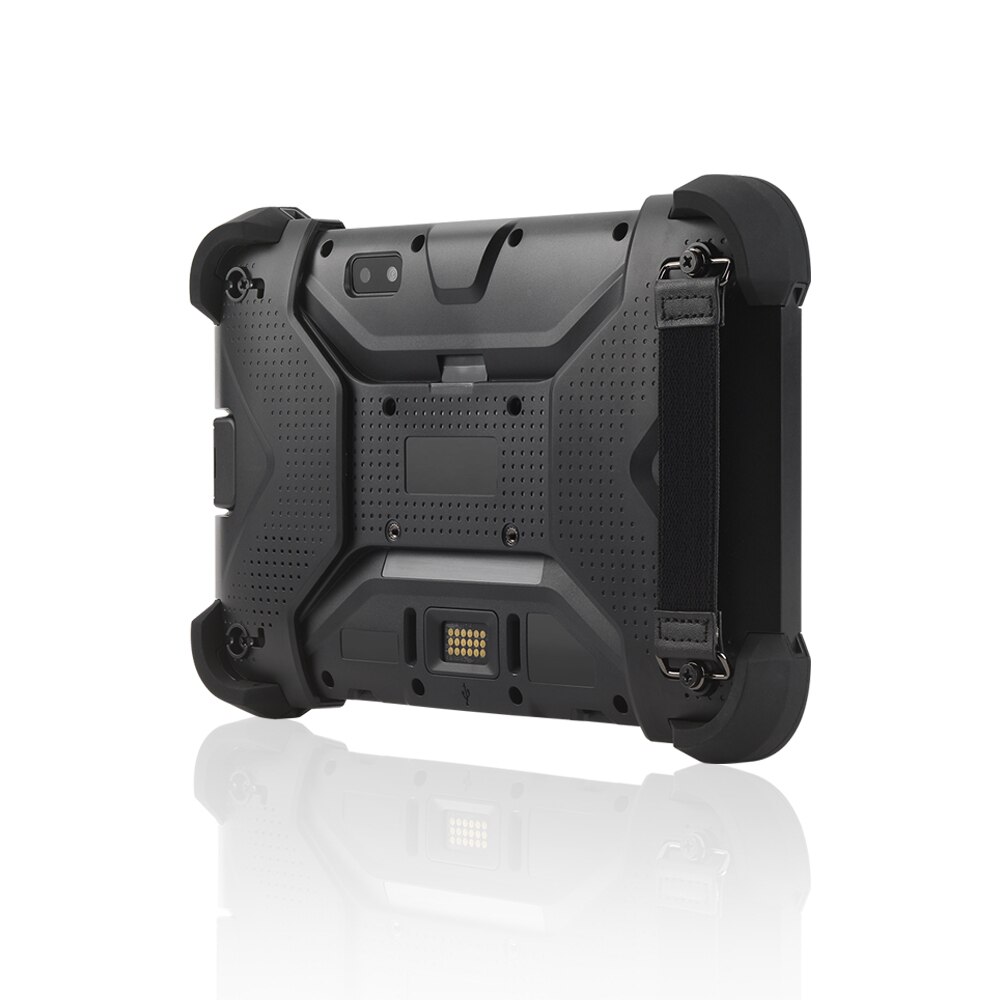

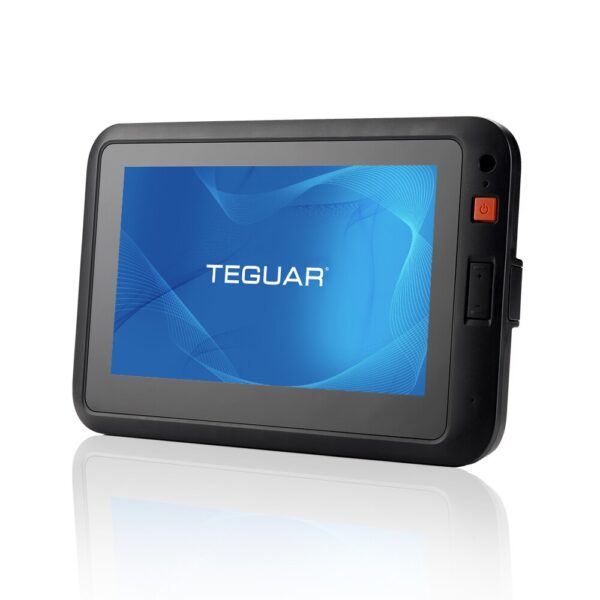

TRT-Q5393-07

7" Rugged Mini Tablet with Android
Available – Contact Us for Quick Quote

Description

The TRT-Q5393-07 is a 7” touchscreen tablet PC for industrial and rugged applications. It is MIL-STD-810G rated for protection from shocks, drops and machine vibration. It has a 600 nit display with optical bonding and an anti-glare coating, for easy readability in a vehicle, outdoors, or under bright overhead lights. This tablet runs on a Qualcomm Snapdragon Octa-Core CPU and it is GMS certified for Android 9.0. The TRT-Q5393-07 is Verizon and AT&T Carrier Certified. This rugged tablet PC is ideal for fleet management, logistics applications and field services, due to its compact size, light weight, and durability.

>> Check out how this rugged tablet handles industrial application in our Teguar Torture Test

Key Highlights

  • 7” Touchscreen with Anti-Glare Coating
  • Qualcomm Snapdragon SDM450 Octa-Core
  • GMS Certified for Android 9.0
  • 4G LTE, WiFi, BT 4.2 and GPS
  • MIL-STD-810G Shock and Drop Proof

Primary Components

Processor FamilyQualcomm Snapdragon 450 OctaCore
Processor Speed1.8 GHz
Memory TypeOnboard DDR3
Memory Support2GB
Storage TypeOnboard eMMC Flash
Storage Support32GB

Display

Screen Size7"
Resolution1024 x 600 (WSVGA)
Screen Ratio16:9
Brightness600 nits

Touch Screen

Touch ScreenProjected Capacitive
Hardness> 7H

External I/O Ports

USB1x USB 2.0 type C (OTG)
Power Input PortPogo Pin Connector

Power

Input Voltage Range5V DC
Standard Power AdapterUS AC/DC USB 5V Power Supply

Battery

Battery TypeInternal 4,000mAh Battery

Operating Systems

AndroidAndroid 9.0

Expansion Slots

SD card1x Micro SD Slot

Multimedia

Speakers1x 0.8W Speaker
CameraFront: 8MP, Rear: 8MP w/flash
Microphone2x Built-in Microphones

Thermal & Environmental

Operating Temperature-20°C - 60°C (-4°F – 140°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range5% – 95% Non-condensing
Storage Humidity5% – 95% Non-condensing

Enclosure

MaterialPC+ABS
IP RatingIP54 Front Bezel
ColorBlack
Control ButtonsAudio Down, Audio Up, Power Button
Shock RatingMIL-STD-810G, SAE J1455
Drop Rating6ft Drop Protection with bumpers
Mounting OptionsForklift Mount, Vehicle Mount

Peripherals & Wireless Connectivity

WiFiDual-Band WIFI (802.11 a/b/g/n/ac)
BluetoothBluetooth 4.2
GPSyes
Mobile Network 4G LTE4G LTE
Sim Card1x Micro SIM Card Slot, 1x SIM Card Slot
RFIDRFID (HF)
SensorsAccelerometer, Compass, Gyroscope, Light Sensor

Weight / Dimensions

Weight0.5 kg (1.1 lbs)
Dimensions132 x 210.8 x 20.55 mm (5.2 x 8.3 x 0.8 in)

Warranty

Warranty1 Year

This rugged tablet is ideal for fleet management, logistics management, field services and more. It is rugged and lightweight and will keep you connected, wherever you go.

Dimensional Drawings & I/Os

I/O Diagram Images
