Tech Specs
Primary Components
| Processor Family | ARM Cortex A9 |
| Processor Speed | 1.0 GHz |
| Memory Type | Onboard DDR3 |
| Memory Support | 1GB |
| Storage Support | 4GB |
Display
| Screen Size | 10.1" |
| Resolution | 1024 x 600 (WSVGA) |
| Screen Ratio | 16:9 |
| Brightness | 250 nits |
Touch Screen
| Touch Screen | Projected Capacitive, Resistive |

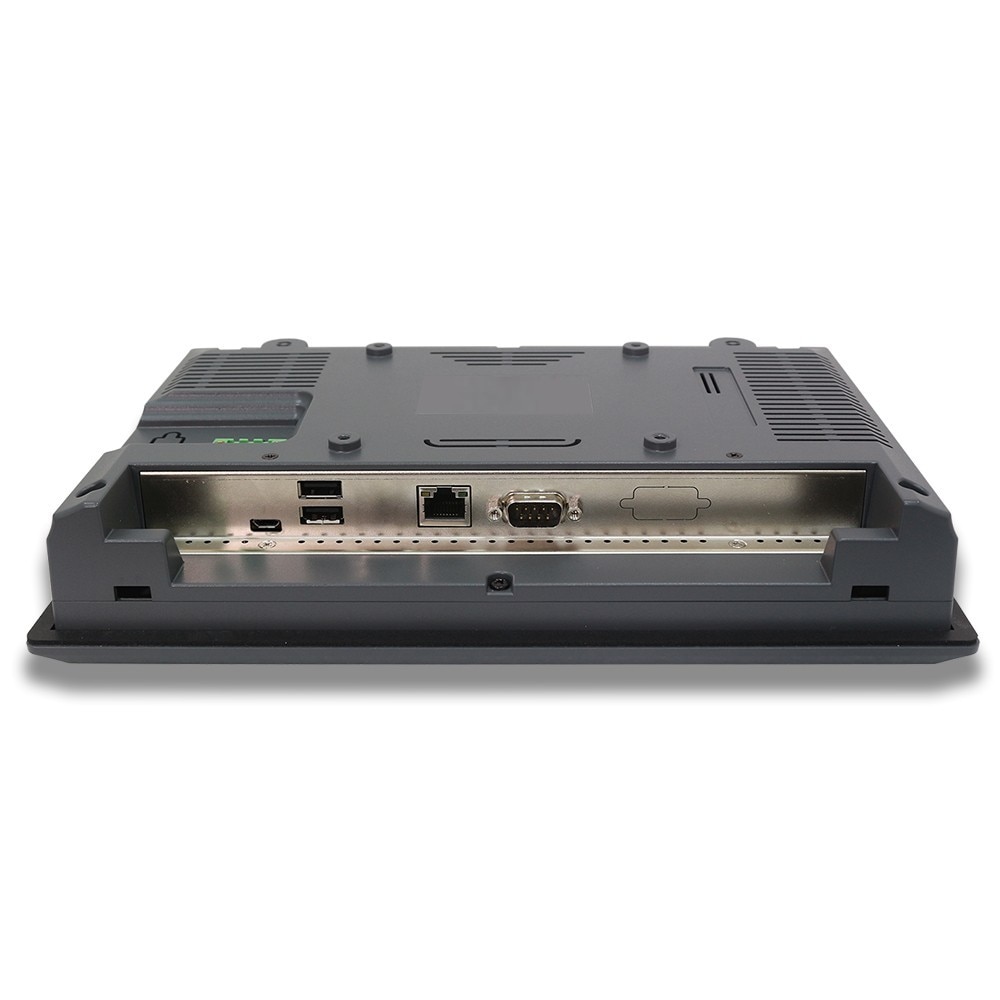

External I/O Ports
| USB | 1x Micro USB Port, 2x USB 2.0 |
| Serial / Com | 1x COM |
| Serial Protocol Detail | 1x RS-232/422/485 DB-9 |
| Ethernet / LAN | 1x RJ45 GbE LAN |
| Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range | 9-36V DC |
| Standard Power Adapter | Optional 12V AC/DC Adapter |
Operating Systems
| Android | Android 6.0.1 |
| Linux | Linux 4.1.15 |
Expansion Slots
| SD card | 1x Micro SD Slot |
Thermal & Environmental
| Operating Temperature | 0°C - 50°C (32°F – 122°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless with Heatsink |
| Humidity Range | 10% – 90% Non-condensing |
Enclosure
| Material | Plastic |
| IP Rating | IP65 Front Bezel |
| Mounting Options | Panel Mount, Wall Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional WiFi/3G Module (via mini-PCIe) |
| Sim Card | 1x SIM Card Slot |
Weight / Dimensions
| Weight | 1.3 kg (2.9 lbs) |
| Dimensions | 285 x 49.6 x 189 mm (11.2 x 2.0 x 7.4 in) |
Certification
| Certifications | CE, FCC Class A |
Warranty
| Warranty | Up to 5 Years |
