Tech Specs
Primary Components
| Processor Family | Intel Core I series 12th Generation Alder Lake |
| Processor Model | Core i3-1215U |
| Processor Speed | Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB |
| Storage Type | 1x M.2 2280 NVME SSD slot |
| Storage Support | M.2: 256GB-1TB |
Display
| Screen Size | 12.1" |
| Resolution | 1024 x 768 (XGA) |
| Screen Ratio | 4:3 |
| Brightness | Optional 1000 nit High Brightness, 500 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch), Resistive |
External I/O Ports
| USB | 2x USB 2.0, 2x USB 3.0 |
| Serial / Com | 3x COM |
| Serial Protocol Detail | COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232 |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range | 9-36V DC |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option) |
Thermal & Environmental
| Operating Temperature | -20°C - 60°C (-4°F – 140°F) |
| Storage Temperature | -30°C - 70°C (-22°F – 158°F) |
| Cooling Solution | Passive – Fanless with Heatsink |
| Humidity Range | 10% – 95% Non-condensing |
Enclosure
| Material | Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis |
| IP Rating | IP66 Front Bezel |
| Color | Gray |
| Led Indicator Light | Power |
| Mounting Options | Panel Mount, VESA 100 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 |
| Bluetooth | Optional Bluetooth 5.3 |
Weight / Dimensions
| Weight | 3.5 kg (7.7 lbs) |

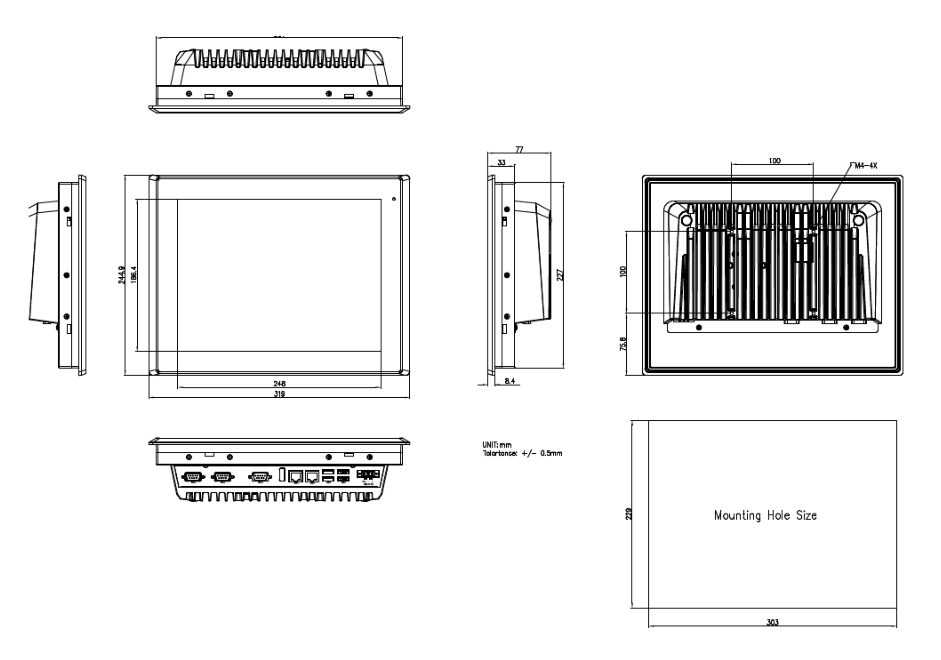

| Dimensions | 314 x 77 x 244.9 mm (12.4 x 3.0 x 9.6 in) |
Warranty
| Warranty | Up to 5 Years |
