Tech Specs
Primary Components
| Processor Family | Intel Core I series 12th Generation Alder Lake |
| Processor Model | Core i5-1245UE |
| Processor Speed | Up to 4.4 GHz |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB |
| Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 NVME SSD Slot (2242/2262/2280) |
| Storage Support | 128GB-1TB |

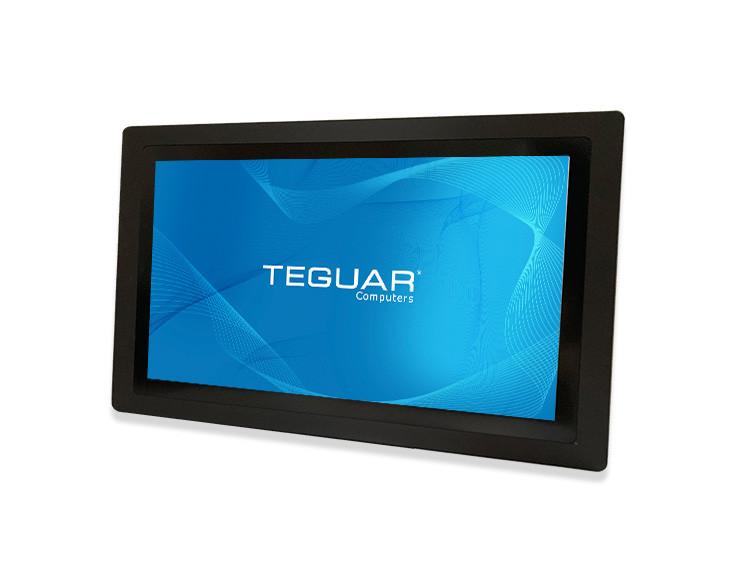

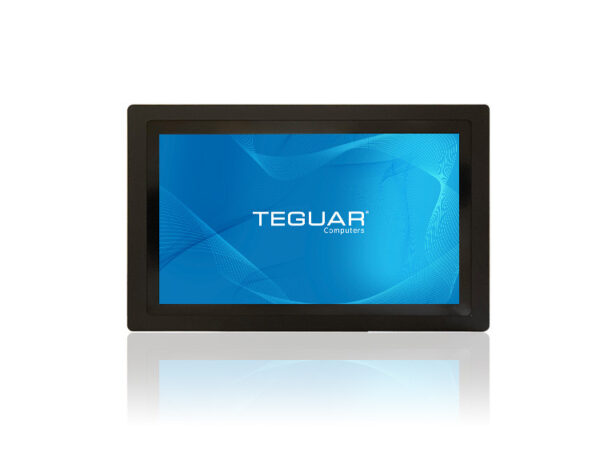

Display
| Screen Size | 21.5 |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 250 nits |
Touch Screen
| Touch Screen | Projected Capacitive, Resistive |
| Hardness | Resistive: 3H, P-cap: 7H |

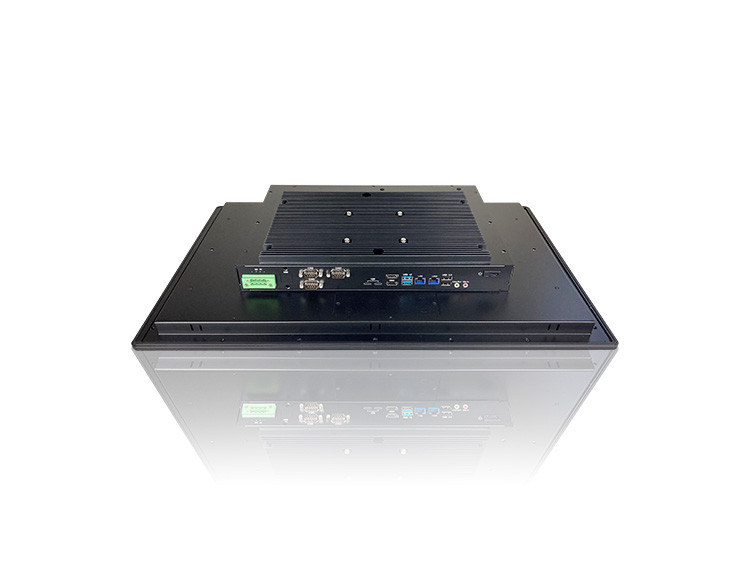

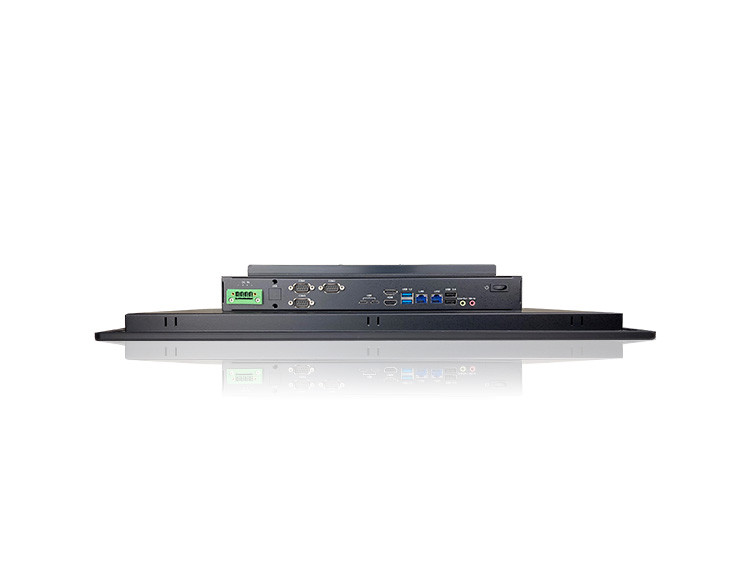

External I/O Ports
| USB | 2x USB 2.0, 2x USB 3.2, 2x USB 3.2 Type C |
| Serial / Com | 3x COM |
| Serial Protocol Detail | 2x RS-232/422/485, 1x RS-232 |
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN |
| Video Outputs | 2x Display Port 1.4a via USB-C, 2x HDMI 2.0b |
| Audio Ports | 2x 3.5mm Audio Line-Out/Mic-In |
| Power Input Port | 4-Pin DC-In (Phoenix Type Terminal Block) |
Power
| Input Voltage Range | 12-28V DC |
| Standard Power Adapter | External, 100 watts, universal 100 ~240V AC in, 19V DC out, 5.26A (PSU with PSE) |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
| Linux | Linux |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option), 1x M.2 for NVME SSD Support |
Thermal & Environmental
| Operating Temperature | 0°C - 40°C (32°F – 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 10% – 90% Non-condensing |
Enclosure
| Material | Aluminum front bezel and SECC Steel Chassis |
| IP Rating | IP66 Front Bezel |
| Color | Black |
| Control Buttons | Power Switch |
| Mounting Options | Panel Mount, VESA 75 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional WiFi 6 (AX) |
| Bluetooth | Optional Bluetooth 5.3 |
| Sim Card | 1x SIM Card Slot |
Weight / Dimensions
| Weight | 9.8 kg (21.6 lbs) |
| Dimensions | 584 x 364 x 83.6 mm (23.0 x 14.3 x 3.3 in) |
Certification
| Certifications | CE, FCC, VCCI Class B |
Warranty
| Warranty | Up to 5 Years |
