Tech Specs
Primary Components
| Processor Family | Intel Core-I Series 9th Generation Coffee Lake |
| Processor Model | Core i5-9500TE |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB |
| Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 1x M.2 2280 NVME SSD slot |
| Storage Support | M.2 and 2.5": 128GB - 1TB |
Display
| Screen Size | 21.5 |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 250 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch), 5 Wire Resistive |
| Hardness | Resistive: 3H, P-cap: 7H |

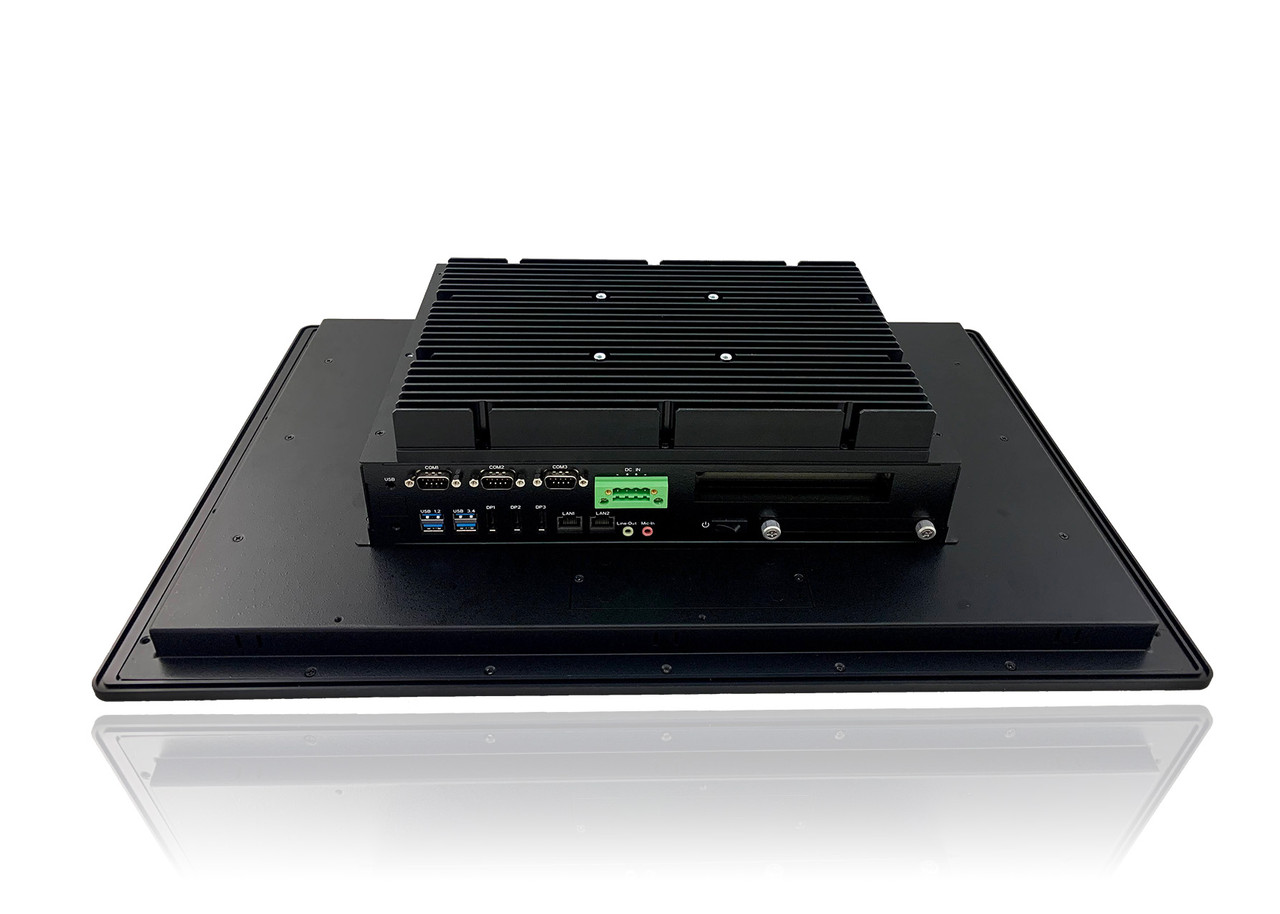

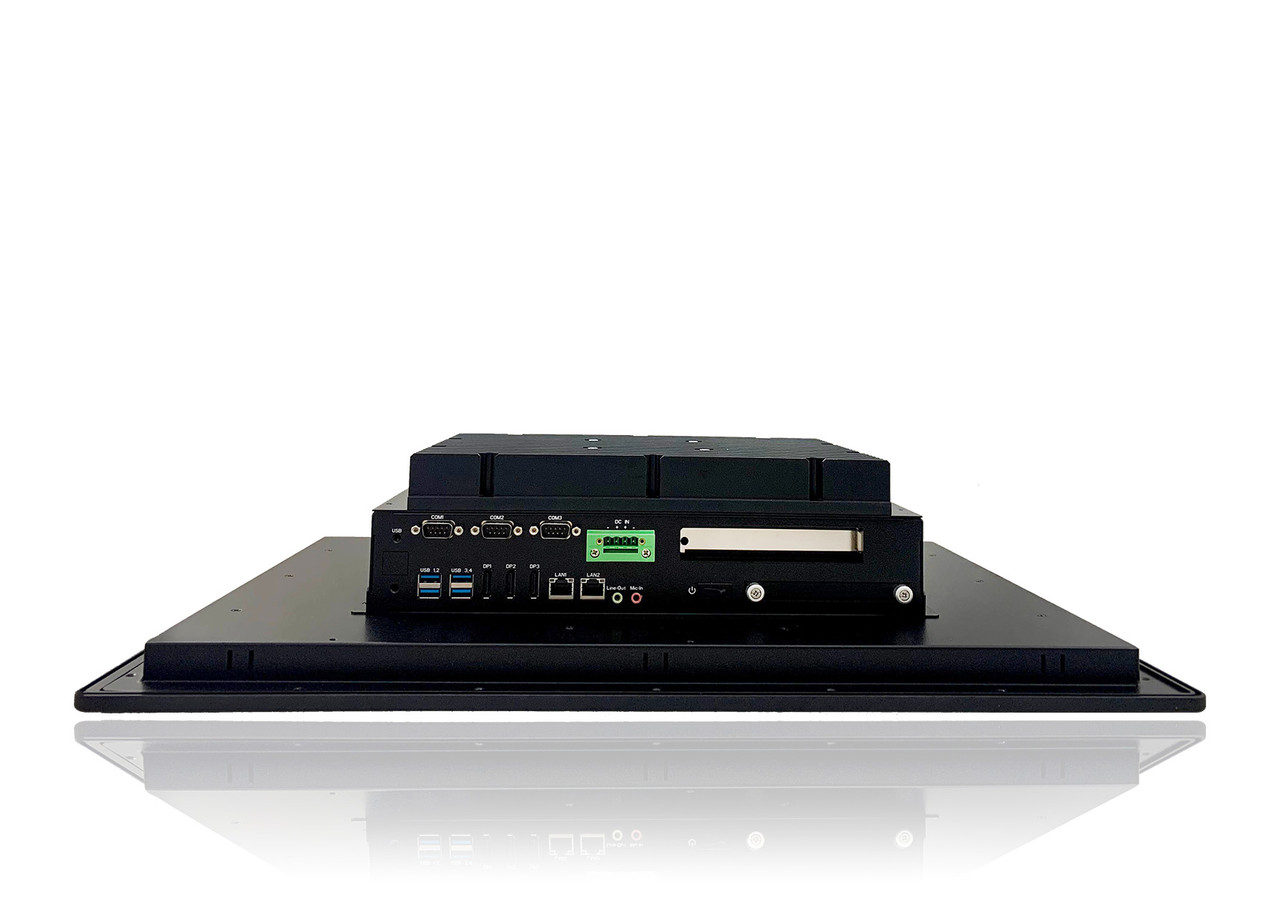

External I/O Ports
| USB | 4x USB 3.1 |
| Serial / Com | 3x COM |
| Serial Protocol Detail | 2x RS-232, 1x RS-232/422/485 |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Video Outputs | 3x DisplayPort 1.2 |
| Audio Ports | 1x Audio Line-Out, 1x Mic-In |
| Power Input Port | 4-Pin DC-In (Phoenix Type Terminal Block) |
Power
| Input Voltage Range | 19-28V DC |
| Standard Power Adapter | Optional 150 watt, universal 100 ~240V AC in, 19V DC out, 7.8A |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
| Linux | Linux Ubuntu 20.04 or above (Contact your sales rep for more information) |
Compatibility
| Security Hardware | fTPM 2.0 |
Thermal & Environmental
| Operating Temperature | 0°C - 50°C (32°F – 122°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless with Heatsink |
Enclosure
| Material | Aluminum front bezel and SECC Steel Chassis |
| IP Rating | IP66 Front Bezel |
| Color | Black |

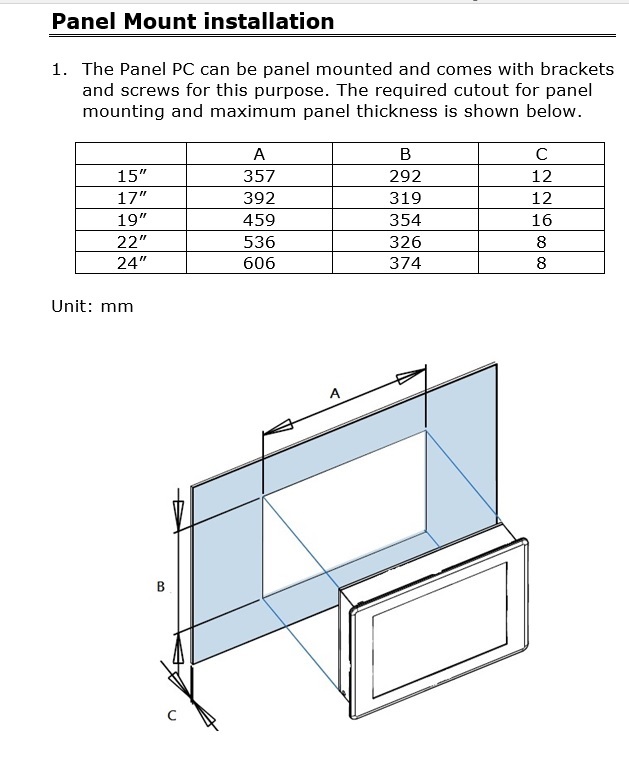

| Mounting Options | Panel Mount, VESA 75 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional 802.11 ac + Bluetooth with External Antennas |
| Bluetooth | Optional Bluetooth 4.0 |
Weight / Dimensions
| Weight | 11.3 kg (24.9 lbs) |

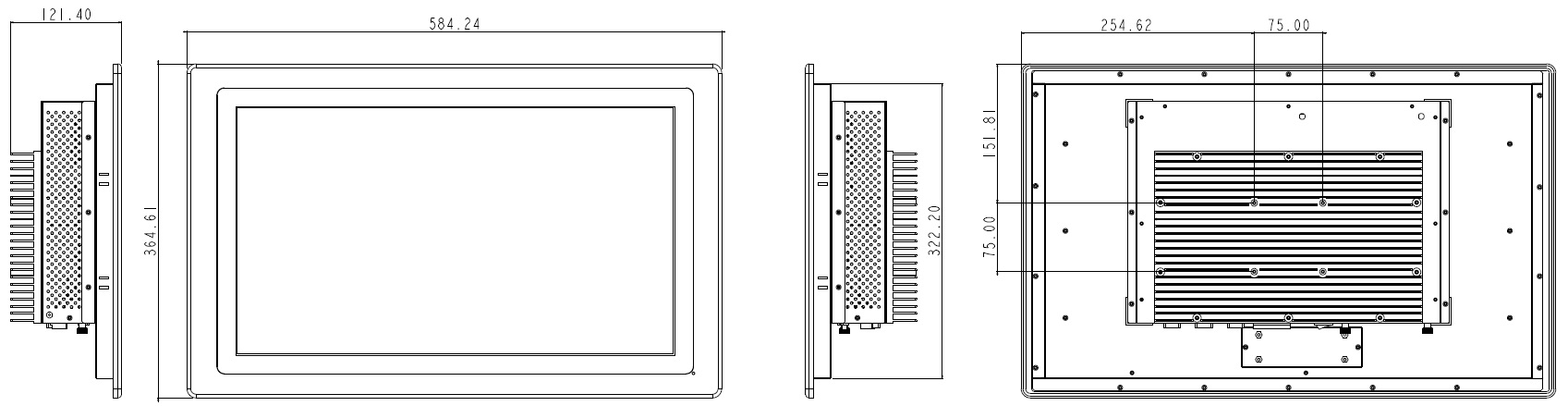

| Dimensions | 584 x 365 x 121 mm (23.0 x 14.4 x 4.8 in) |
Certification
| Certifications | CE, FCC |
Warranty
| Warranty | Up to 5 Years |
