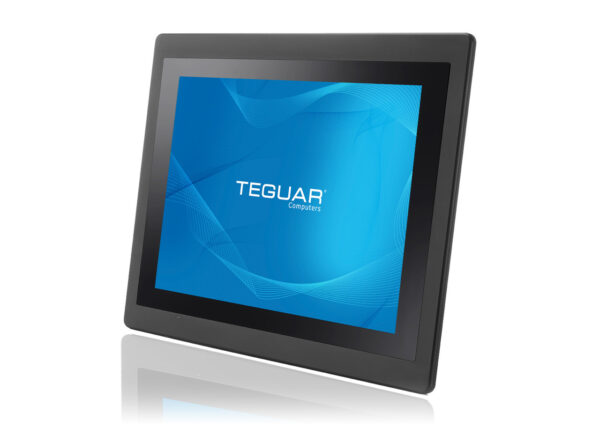

TP-5710-17

17" Industrial HMI

Available – Contact Us for Quick Quote

Description

The TP-5710-17 is ideal for industrial environments where high computing power is needed. This panel PC comes equipped with a high TDP processor that we designed into a fanless chassis, encouraging more computing power while still running efficiently and quietly. The 17” design can come in either resistive or PCap touchscreens, with an IP66 rated front bezel to protect from spray or splashes. This is a modular Panel PC where the front monitor can be taken off for easy maintenance and cleaning. The Intel 6-Core i5 CPU allows for Windows 11 capabilities and improves the efficiency of your business with faster processing power.

Key Highlights

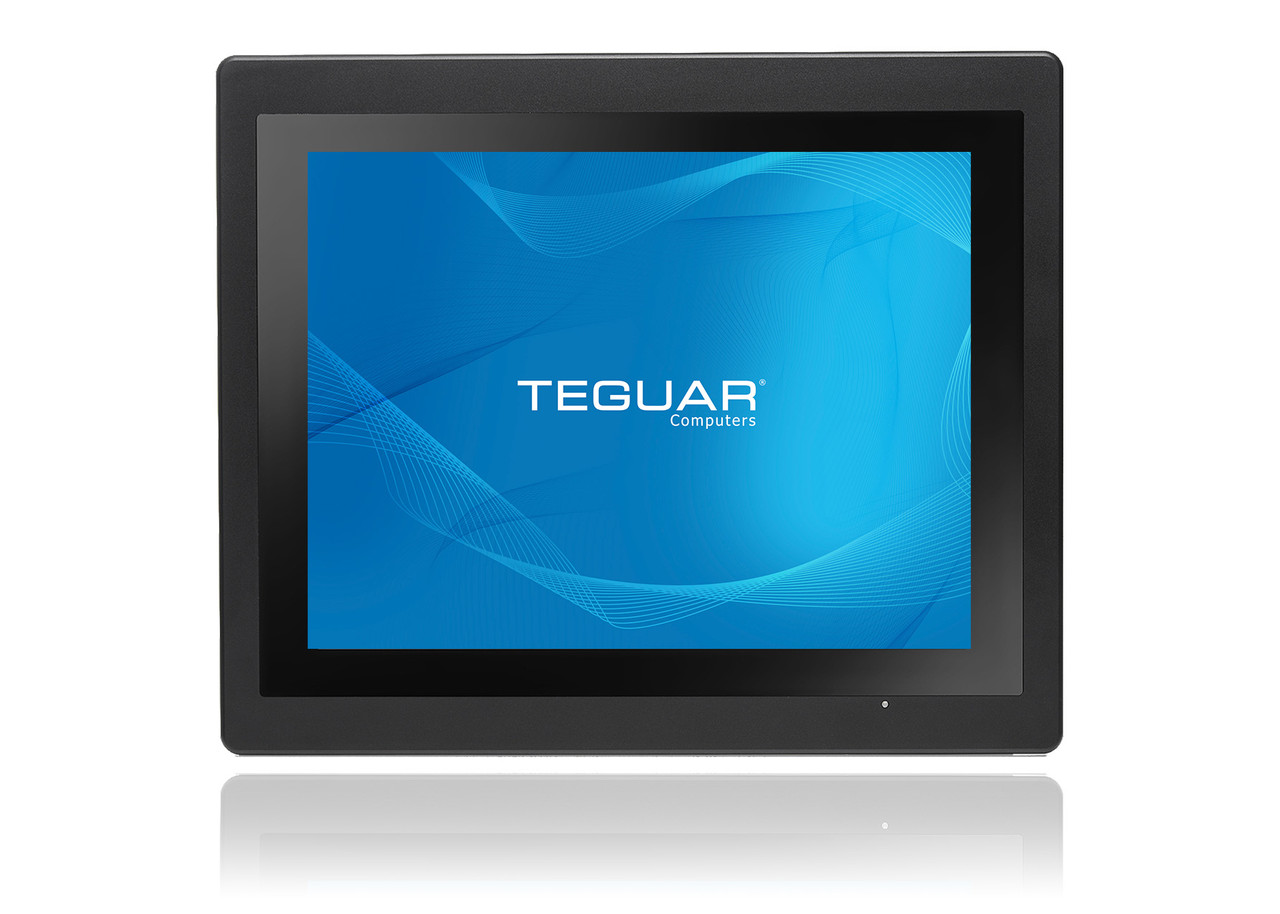

17” Fully Flat Touchscreen
Intel 9th Generation 6-Core i5 CPU
Fanless Cooling System
Multiple inputs and outputs including 4x USB 3.1, 3x COM, 2x Lan, and 3x Display port 1.2
Windows 11 Capabilities

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core-I Series 9th Generation Coffee Lake
Processor Model	Core i5-9500TE
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 1x M.2 2280 NVME SSD slot
Storage Support	M.2 and 2.5": 128GB - 1TB

Display

Screen Size	17"
Resolution	1280 x 1024 (SXGA)
Screen Ratio	5:4
Brightness	350 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch), 5 Wire Resistive
Hardness	Resistive: 3H, P-cap: 7H

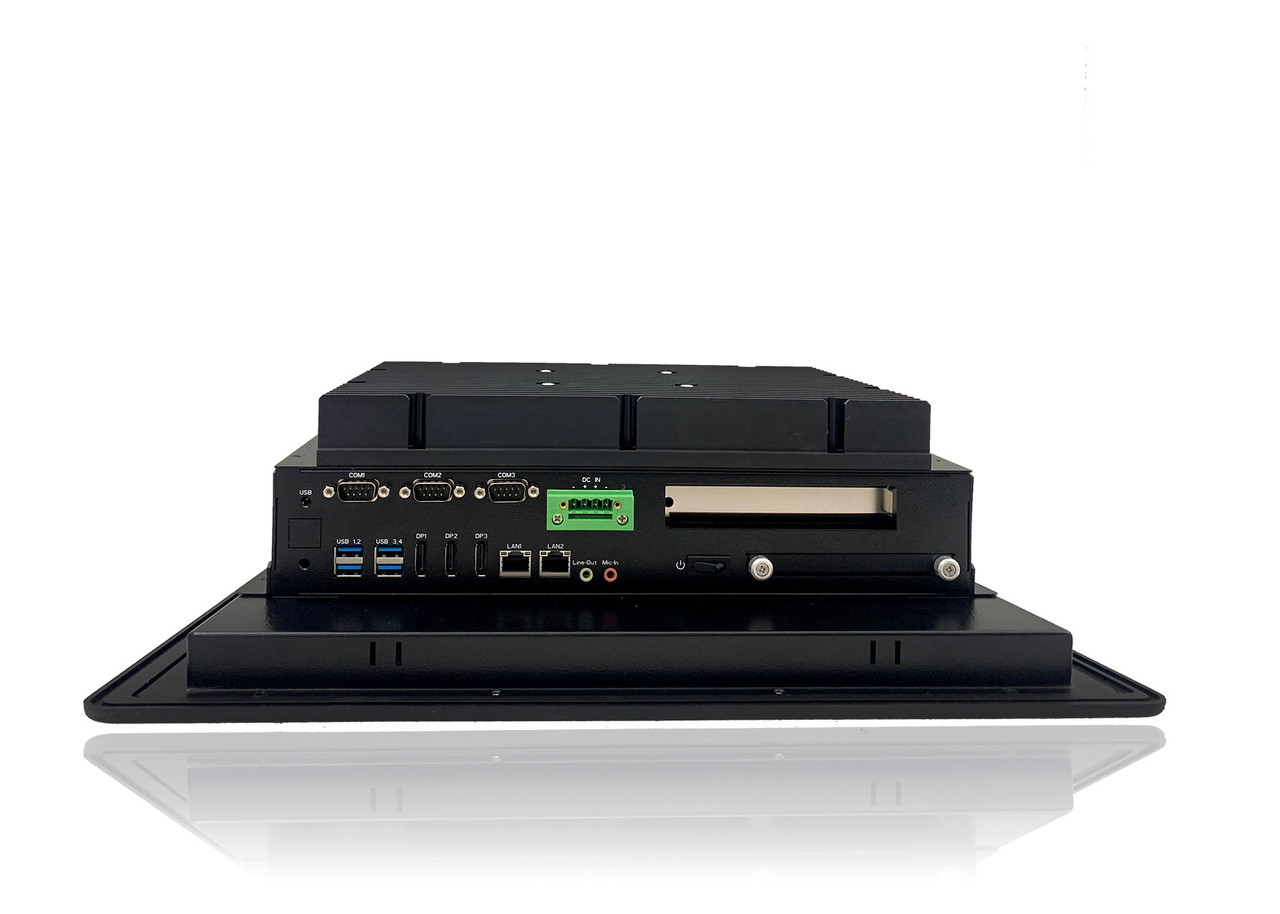

External I/O Ports

USB	4x USB 3.1
Serial / Com	3x COM
Serial Protocol Detail	2x RS-232, 1x RS-232/422/485
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	3x DisplayPort 1.2
Audio Ports	1x Audio Line-Out, 1x Mic-In
Power Input Port	4-Pin DC-In (Phoenix Type Terminal Block)

Power

Input Voltage Range	19-28V DC
Standard Power Adapter	Optional 150 watt, universal 100 ~240V AC in, 19V DC out, 7.8A

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware

fTPM 2.0

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)

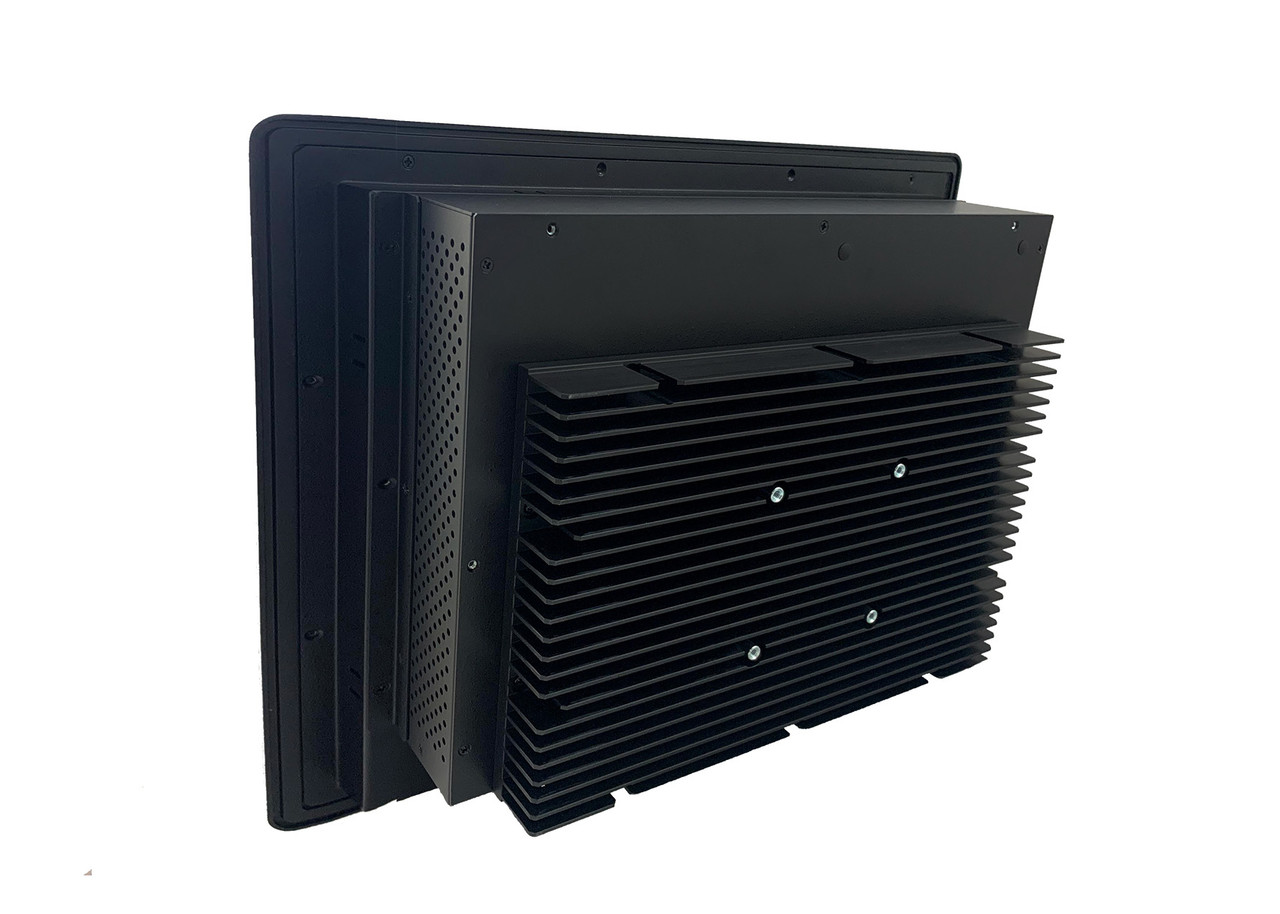

Cooling Solution	Passive – Fanless with Heatsink

Enclosure

Material	Aluminum front bezel and SECC Steel Chassis
IP Rating	IP66 Front Bezel
Color	Black

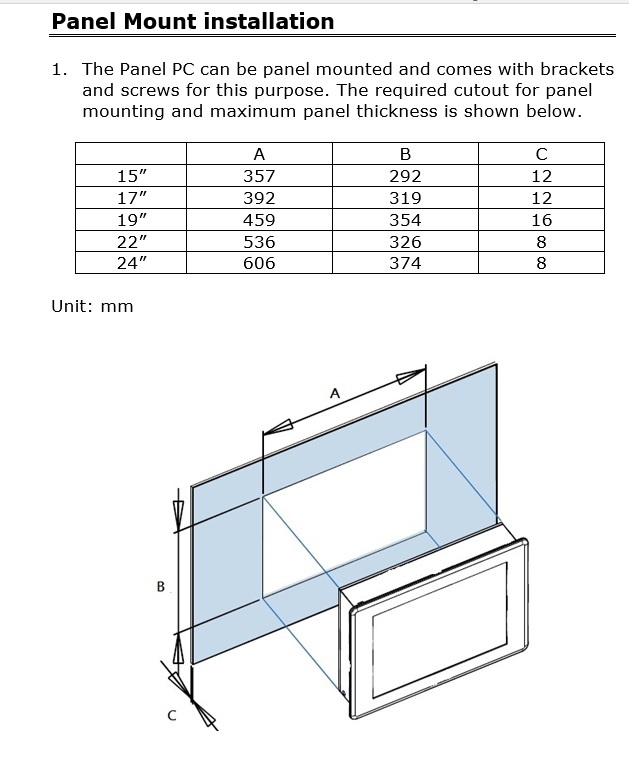

Mounting Options	Panel Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 ac + Bluetooth with External Antennas
Bluetooth	Optional Bluetooth 4.0

Weight / Dimensions

Weight	9.4 kg (20.7 lbs)

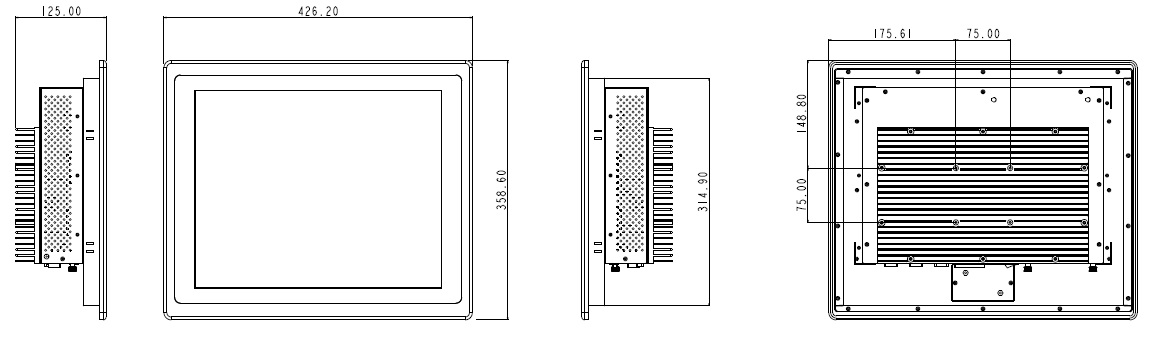

Dimensions	426 x 358 x 125 mm (16.8 x 14.1 x 4.9 in)

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Industrial Manufacturing: Efficient monitoring and control of machinery and equipment on assembly lines or production floors in industries like automotive manufacturing and electronics.

Oil and Gas: Reliable data collection, monitoring, and control in rugged environments of the oil and gas industry, such as offshore platforms and drilling sites.

Transportation and Logistics: Fleet management, vehicle monitoring, and control systems in transportation and logistics sectors, optimizing operations in logistics, shipping, and public transportation.

Energy and Utilities: Monitoring and control of power generation, distribution, and management systems in the energy and utilities sector, including renewable energy and power plants.
