TP-5710-15

15" Industrial HMI

Available – Contact Us for Quick Quote

Description

The TP-5710-15 has a powerful Intel 6-Core 35W i5 CPU and is built with high quality components to ensure the highest reliability and 24/7 use of industrial and commercial applications. The rugged computer is built with a high TDP processor that we designed into a fanless chassis, encouraging more computing power while still running efficiently and quietly. The 15” panel PC design has an IP66 front rated bezel, making it resistant to spills and sprays. Its modular design makes it easily implemented in a diverse range of applications including machine learning, AI, or 3D modeling.

Key Highlights

15” Full Flat Touchscreen
High Performance Intel 9th Generation 6-Core i5 CPU
Fanless Cooling System
IP66 Rated Front Bezel
High TDP Processor
Multiple inputs and outputs including 4x USB 3.1, 3x COM, 2x Lan, and 3x Display port 1.2

Screen Size

15" 17" 19" 21.5" 23.8"

Get a Demo Get a Quick Quote

Why Buy from Teguar

✆ Dedicated, Quick Response Customer Support Experts
✓ 30-Day Worry Free Return, Plus Up to 5 Years Warranty
★ Top-Rated by Our Customers on Google & Trustpilot

Primary Components

Processor Family	Intel Core-I Series 9th Generation Coffee Lake
Processor Model	Core i5-9500TE
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 1x M.2 2280 NVME SSD slot
Storage Support	M.2 and 2.5": 128GB - 1TB

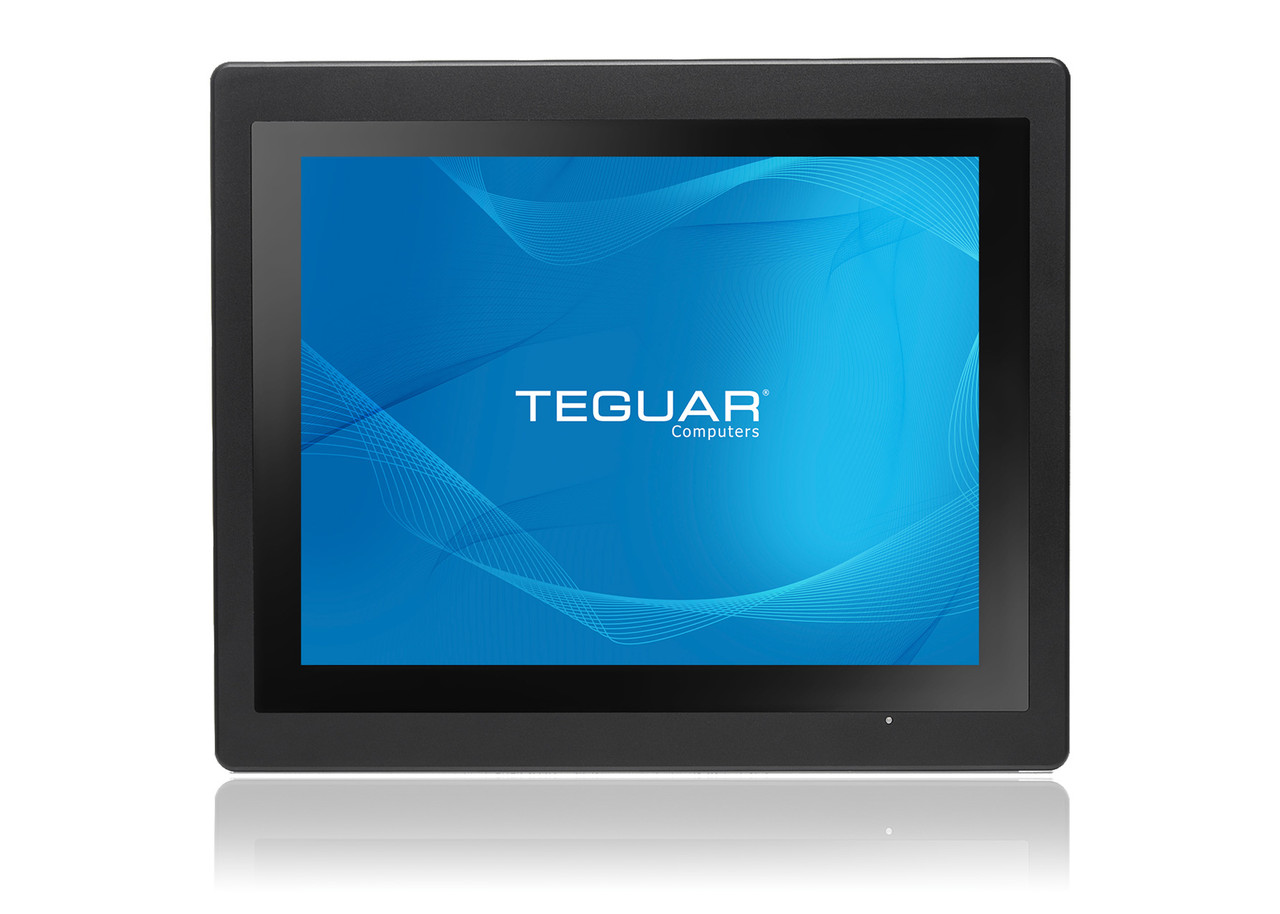

Display

Screen Size	15"
Resolution	1024 x 768 (XGA)
Screen Ratio	4:3
Brightness	350 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch), 5 Wire Resistive
Hardness	Resistive: 3H, P-cap: 7H

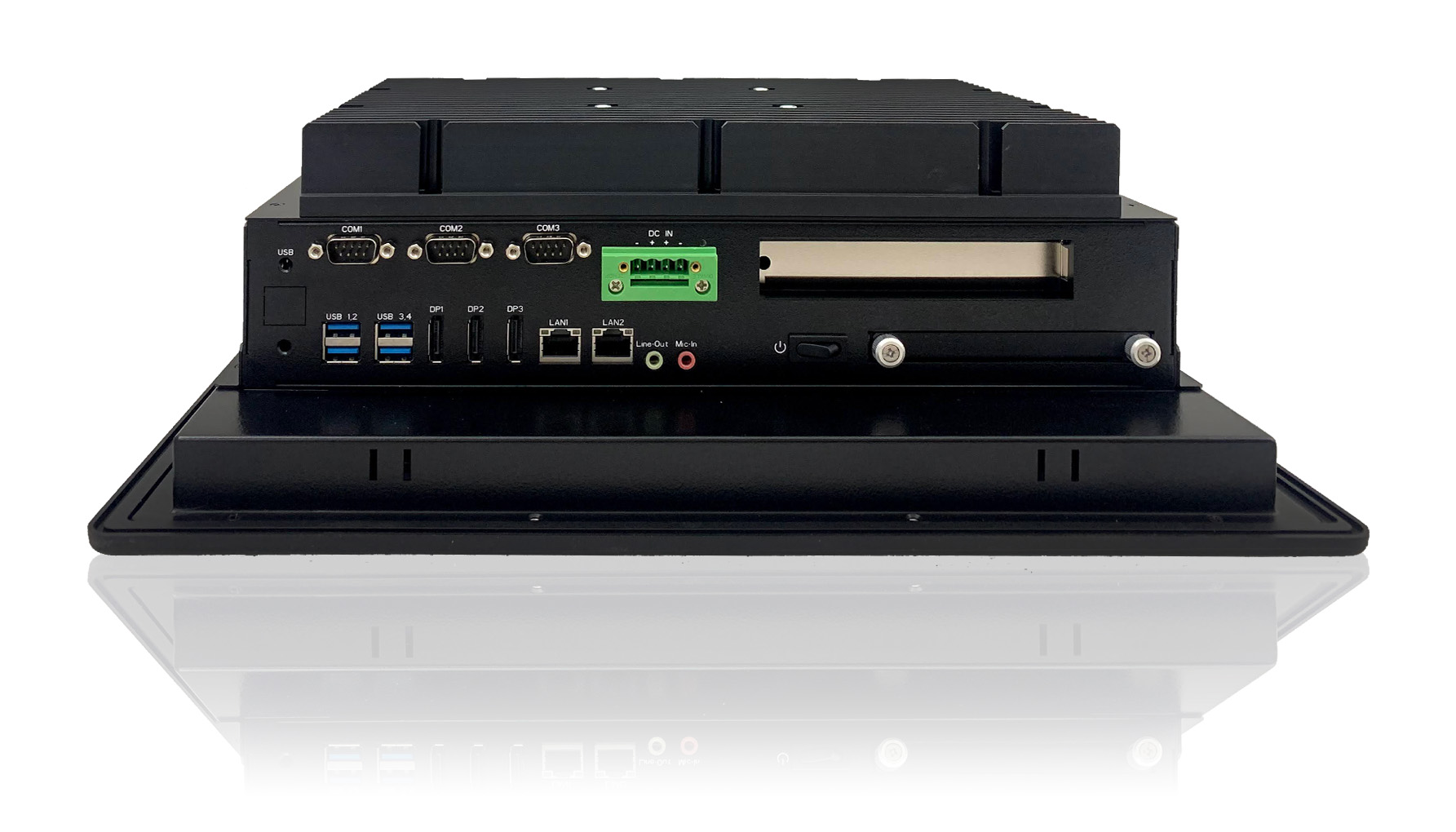

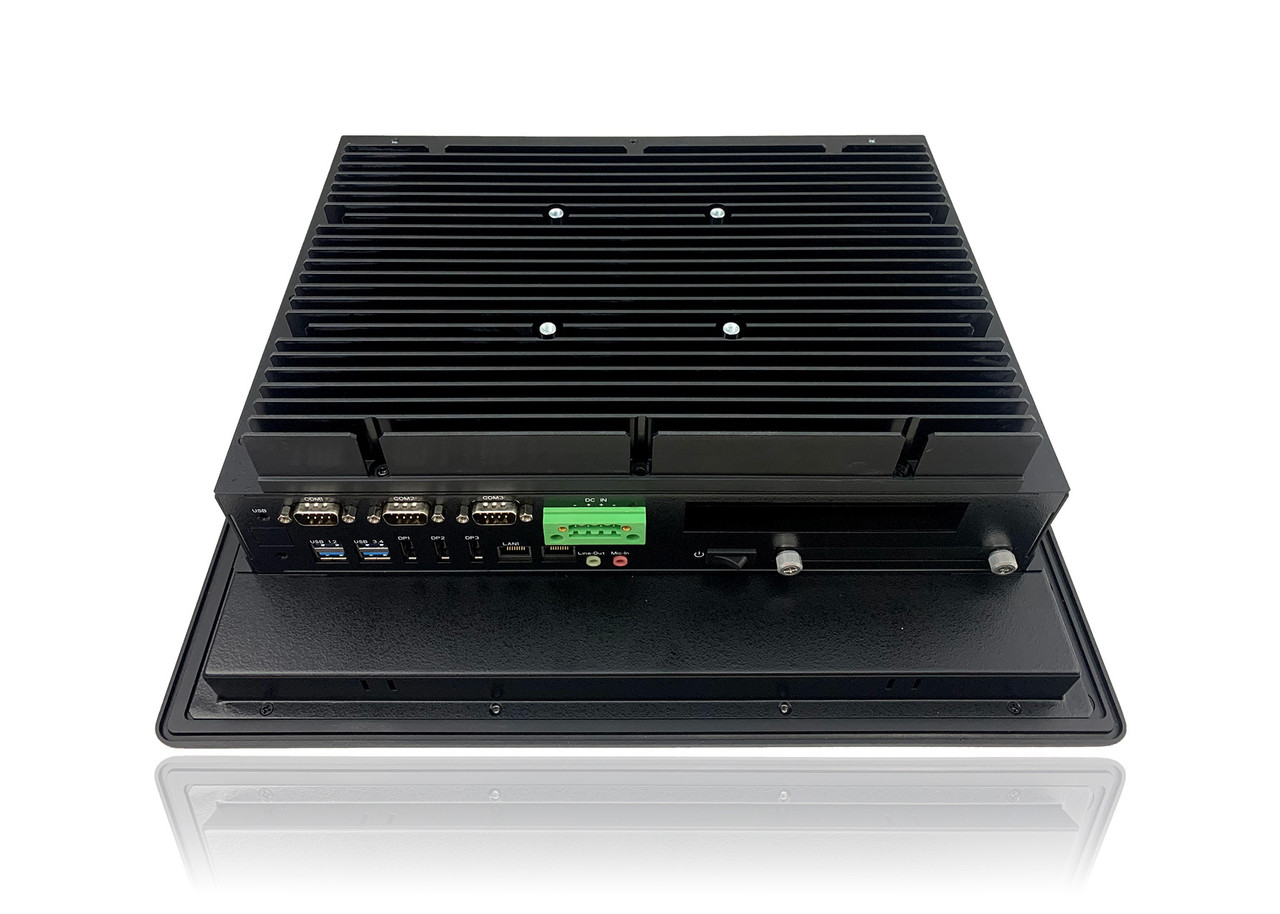

External I/O Ports

USB	4x USB 3.1
Serial / Com	3x COM
Serial Protocol Detail	2x RS-232, 1x RS-232/422/485
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	3x DisplayPort 1.2
Audio Ports	1x Audio Line-Out, 1x Mic-In
Power Input Port	4-Pin DC-In (Phoenix Type Terminal Block)

Power

Input Voltage Range	19-28V DC
Max Power Consumption	96W
Standard Power Adapter	Optional 150 watt, universal 100 ~240V AC in, 19V DC out, 7.8A

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware

fTPM 2.0

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)

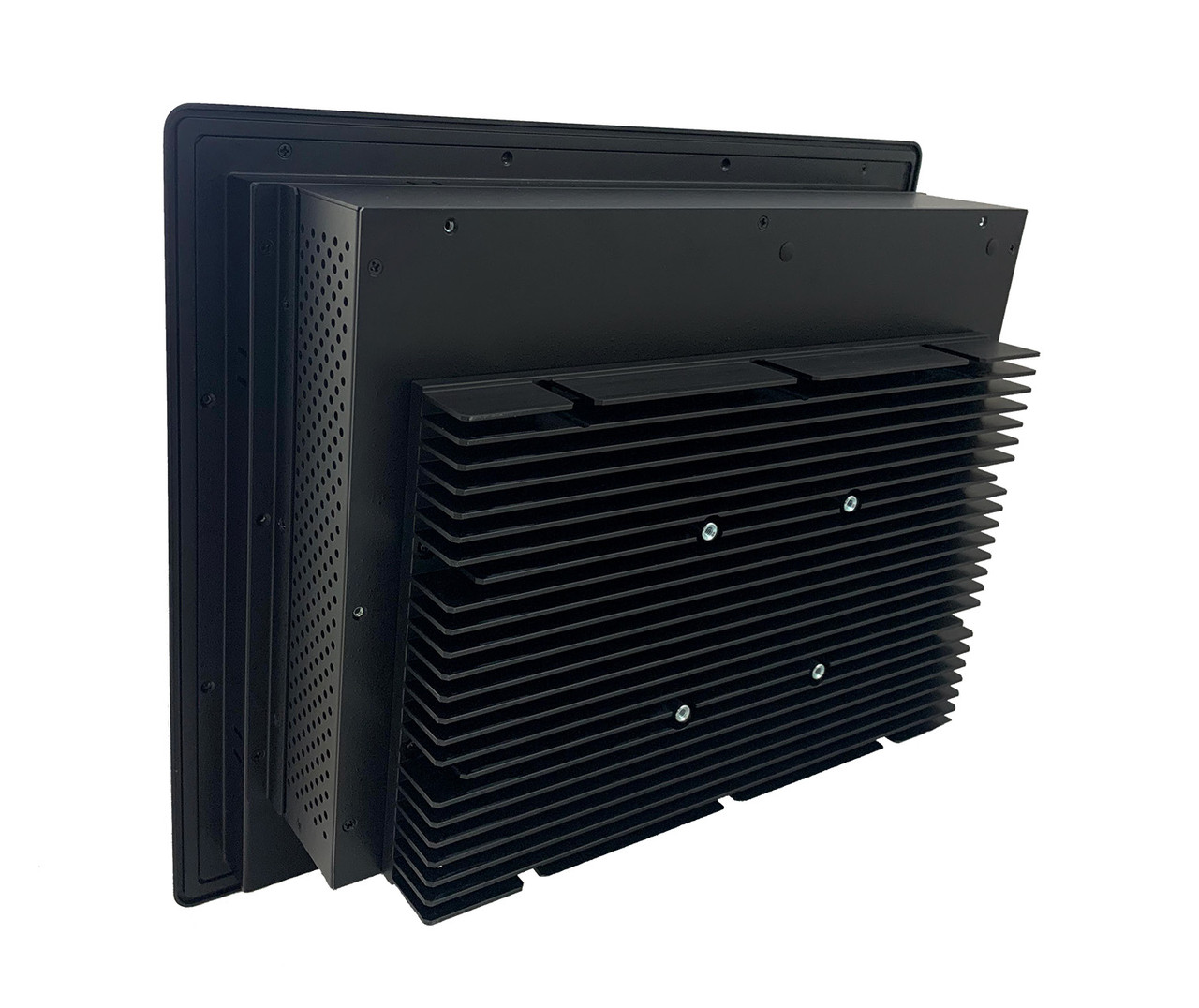

Cooling Solution	Passive – Fanless with Heatsink

Enclosure

Material	Aluminum front bezel and SECC Steel Chassis
IP Rating	IP66 Front Bezel
Color	Black

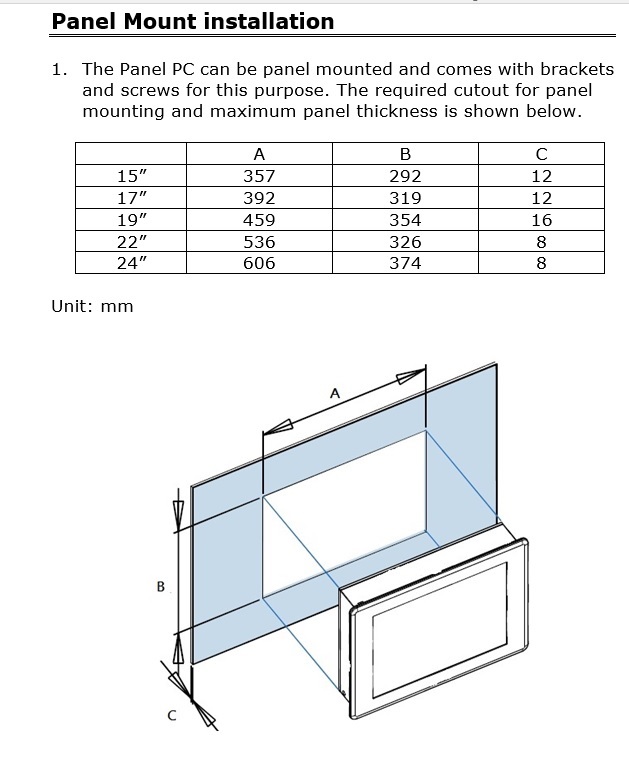

Mounting Options	Panel Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 ac + Bluetooth with External Antennas
Bluetooth	Optional Bluetooth 4.0

Weight / Dimensions

Weight	8.8 kg (19.4 lbs)
Dimensions	398 x 330 x 124 mm (15.7 x 13.0 x 4.9 in)

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Industrial Manufacturing: Efficient monitoring and control of machinery and equipment on assembly lines or production floors in industries like automotive manufacturing and electronics.

Oil and Gas: Reliable data collection, monitoring, and control in rugged environments of the oil and gas industry, such as offshore platforms and drilling sites.

Transportation and Logistics: Fleet management, vehicle monitoring, and control systems in transportation and logistics sectors, optimizing operations in logistics, shipping, and public transportation.

Energy and Utilities: Monitoring and control of power generation, distribution, and management systems in the energy and utilities sector, including renewable energy and power plants.

See the data sheet Warranty Download Drivers
